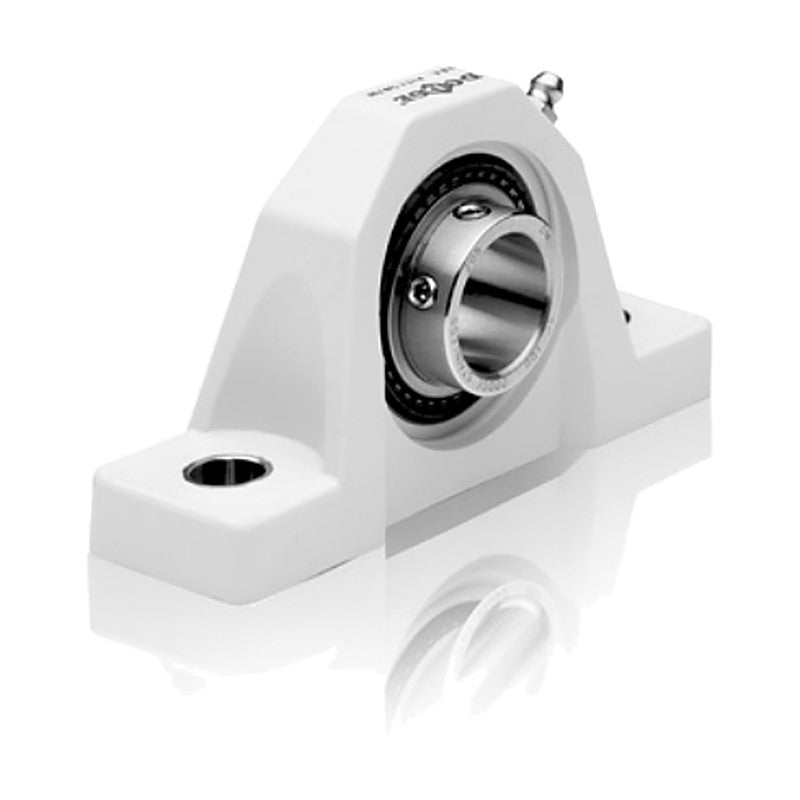

DODGE Ultra Kleen SCEZ PSS Polymer Wide Slot Take-Up

DODGE Ultra Kleen SCEZ PSS Polymer Wide Slot Take-Up

DODGE Ultra Kleen mounted ball bearings combine polymer housings with 100% stainless steel set screw inserts for food and beverage washdown service.

Key features

  • 100% stainless steel insert with 65° set screws and stainless anti-rotation pin
  • QuadGuard sealing system: patented triple-lip seal with rubberized flinger
  • Maxlife cage creates grease compartments that resist washout
  • Factory filled 100% with H1 food-grade grease
  • Solid cross-section polymer housing with anti-microbial agent
  • Housing groove accepts snap-on polymer end covers

Specifications

Brand DODGE
Product line Ultra Kleen
Housing style Wide slot take-up
Housing material polymer
Locking Set screw (65°), stainless steel
Shaft range 20-35 mm, 3/4-1-7/16 in
Source DODGE Mounted Bearings Catalog (Metric, June 2014), p. 1-28
WSTU-SCEZ-20M-PSS Series: 204 | Shaft: 20 mm | Part no.: 136769
WSTU-SCEZ-012-PSS Series: 204 | Shaft: 3/4 in | Part no.: 136734
WSTU-SCEZ-25M-PSS Series: 205 | Shaft: 25 mm | Part no.: 136770
WSTU-SCEZ-100-PSS Series: 205 | Shaft: 1 in | Part no.: 136735
WSTU-SCEZ-30M-PSS Series: 206 | Shaft: 30 mm | Part no.: 136771
WSTU-SCEZ-103-PSS Series: 206 | Shaft: 1-3/16 in | Part no.: 136736
WSTU-SCEZ-104S-PSS Series: 206 | Shaft: 1-1/4 in | Part no.: 136737
WSTU-SCEZ-35M-PSS Series: 207 | Shaft: 35 mm | Part no.: 136772
WSTU-SCEZ-104-PSS Series: 207 | Shaft: 1-1/4 in | Part no.: 136738
WSTU-SCEZ-107-PSS Series: 207 | Shaft: 1-7/16 in | Part no.: 136739
Mounted Bearing UnitsDODGE
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DODGE Ultra Kleen SCEZ PSS Polymer Wide Slot Take-Up

Brand DODGE·Mounted Bearing Units

Available part numbers (10)

WSTU-SCEZ-20M-PSS, WSTU-SCEZ-012-PSS, WSTU-SCEZ-25M-PSS, WSTU-SCEZ-100-PSS, WSTU-SCEZ-30M-PSS, WSTU-SCEZ-103-PSS, WSTU-SCEZ-104S-PSS, WSTU-SCEZ-35M-PSS, WSTU-SCEZ-104-PSS, WSTU-SCEZ-107-PSS

How to order

Send the DODGE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WSTU-SCEZ-20M-PSSSeries: 204 | Shaft: 20 mm | Part no.: 136769
WSTU-SCEZ-012-PSSSeries: 204 | Shaft: 3/4 in | Part no.: 136734
WSTU-SCEZ-25M-PSSSeries: 205 | Shaft: 25 mm | Part no.: 136770
WSTU-SCEZ-100-PSSSeries: 205 | Shaft: 1 in | Part no.: 136735
WSTU-SCEZ-30M-PSSSeries: 206 | Shaft: 30 mm | Part no.: 136771
WSTU-SCEZ-103-PSSSeries: 206 | Shaft: 1-3/16 in | Part no.: 136736
WSTU-SCEZ-104S-PSSSeries: 206 | Shaft: 1-1/4 in | Part no.: 136737
WSTU-SCEZ-35M-PSSSeries: 207 | Shaft: 35 mm | Part no.: 136772
WSTU-SCEZ-104-PSSSeries: 207 | Shaft: 1-1/4 in | Part no.: 136738
WSTU-SCEZ-107-PSSSeries: 207 | Shaft: 1-7/16 in | Part no.: 136739
