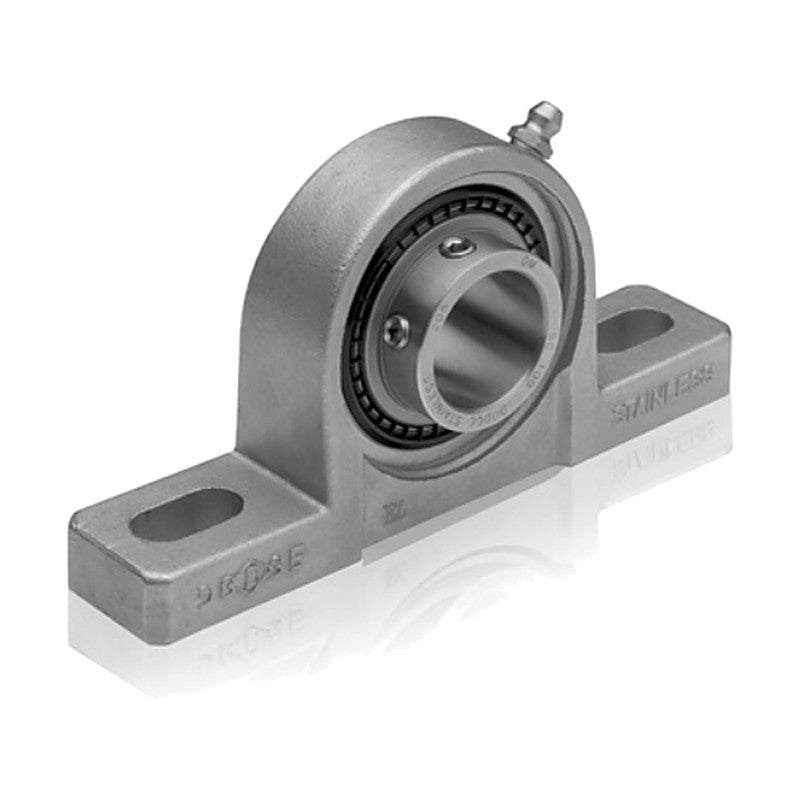

• DODGE Ultra Kleen SCEZ SHSS Stainless Pillow Block
1 1

DODGE Ultra Kleen SCEZ SHSS Stainless Pillow Block

DODGE Ultra Kleen SCEZ SHSS Stainless Pillow Block

DODGE Ultra Kleen mounted ball bearings combine stainless steel housings with 100% stainless steel set screw inserts for food and beverage washdown service.

Key features

  • 100% stainless steel insert with 65° set screws and stainless anti-rotation pin
  • QuadGuard sealing system: patented triple-lip seal with rubberized flinger
  • Maxlife cage creates grease compartments that resist washout
  • Factory filled 100% with H1 food-grade grease
  • 300 series stainless steel housing casting
  • Housing groove accepts snap-on polymer end covers

Specifications

Brand DODGE
Product line Ultra Kleen
Housing style Pillow block
Housing material stainless steel
Locking Set screw (65°), stainless steel
Shaft range 20-50 mm, 3/4-2 in
Source DODGE Mounted Bearings Catalog (Metric, June 2014), p. 1-16
P2B-SCEZ-20M-SHSS Series: 204 | Shaft: 20 mm | Part no.: 136849
P2B-SCEZ-012-SHSS Series: 204 | Shaft: 3/4 in | Part no.: 136773
P2B-SCEZ-25M-SHSS Series: 205 | Shaft: 25 mm | Part no.: 136850
P2B-SCEZ-100-SHSS Series: 205 | Shaft: 1 in | Part no.: 136774
P2B-SCEZ-30M-SHSS Series: 206 | Shaft: 30 mm | Part no.: Assembled to order
P2B-SCEZ-103-SHSS Series: 206 | Shaft: 1-3/16 in | Part no.: 136775
P2B-SCEZ-104S-SHSS Series: 206 | Shaft: 1-1/4 in | Part no.: 136777
P2B-SCUEZ-30M-SHSS Series: 206 | Shaft: 30 mm | Part no.: 136851
P2B-SCUEZ-103-SHSS Series: 206 | Shaft: 1-3/16 in | Part no.: 136776
P2B-SCUEZ-104S-SHSS Series: 206 | Shaft: 1-1/4 in | Part no.: 136778
P2B-SCEZ-35M-SHSS Series: 207 | Shaft: 35 mm | Part no.: 136852
P2B-SCEZ-104-SHSS Series: 207 | Shaft: 1-1/4 in | Part no.: 136779
P2B-SCEZ-107-SHSS Series: 207 | Shaft: 1-7/16 in | Part no.: 136780
P2B-SCEZ-40M-SHSS Series: 208 | Shaft: 40 mm | Part no.: Assembled to order
P2B-SCEZ-108-SHSS Series: 208 | Shaft: 1-1/2 in | Part no.: 136781
P2B-SCBEZ-40M-SHSS Series: 208 | Shaft: 40 mm | Part no.: 136853
P2B-SCBEZ-108-SHSS Series: 208 | Shaft: 1-1/2 in | Part no.: 136782
P2B-SCEZ-50M-SHSS Series: 210 | Shaft: 50 mm | Part no.: 136854
P2B-SCEZ-115-SHSS Series: 210 | Shaft: 1-15/16 in | Part no.: 136783
P2B-SCEZ-200-SHSS Series: 210 | Shaft: 2 in | Part no.: 136989
Mounted Bearing UnitsDODGE
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DODGE Ultra Kleen SCEZ SHSS Stainless Pillow Block

Brand DODGE·Mounted Bearing Units

Available part numbers (20)

P2B-SCEZ-20M-SHSS, P2B-SCEZ-012-SHSS, P2B-SCEZ-25M-SHSS, P2B-SCEZ-100-SHSS, P2B-SCEZ-30M-SHSS, P2B-SCEZ-103-SHSS, P2B-SCEZ-104S-SHSS, P2B-SCUEZ-30M-SHSS, P2B-SCUEZ-103-SHSS, P2B-SCUEZ-104S-SHSS + 10 more — see full table ↓

How to order

Send the DODGE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
P2B-SCEZ-20M-SHSSSeries: 204 | Shaft: 20 mm | Part no.: 136849
P2B-SCEZ-012-SHSSSeries: 204 | Shaft: 3/4 in | Part no.: 136773
P2B-SCEZ-25M-SHSSSeries: 205 | Shaft: 25 mm | Part no.: 136850
P2B-SCEZ-100-SHSSSeries: 205 | Shaft: 1 in | Part no.: 136774
P2B-SCEZ-30M-SHSSSeries: 206 | Shaft: 30 mm | Part no.: Assembled to order
P2B-SCEZ-103-SHSSSeries: 206 | Shaft: 1-3/16 in | Part no.: 136775
P2B-SCEZ-104S-SHSSSeries: 206 | Shaft: 1-1/4 in | Part no.: 136777
P2B-SCUEZ-30M-SHSSSeries: 206 | Shaft: 30 mm | Part no.: 136851
P2B-SCUEZ-103-SHSSSeries: 206 | Shaft: 1-3/16 in | Part no.: 136776
P2B-SCUEZ-104S-SHSSSeries: 206 | Shaft: 1-1/4 in | Part no.: 136778
P2B-SCEZ-35M-SHSSSeries: 207 | Shaft: 35 mm | Part no.: 136852
P2B-SCEZ-104-SHSSSeries: 207 | Shaft: 1-1/4 in | Part no.: 136779
P2B-SCEZ-107-SHSSSeries: 207 | Shaft: 1-7/16 in | Part no.: 136780
P2B-SCEZ-40M-SHSSSeries: 208 | Shaft: 40 mm | Part no.: Assembled to order
P2B-SCEZ-108-SHSSSeries: 208 | Shaft: 1-1/2 in | Part no.: 136781
P2B-SCBEZ-40M-SHSSSeries: 208 | Shaft: 40 mm | Part no.: 136853
P2B-SCBEZ-108-SHSSSeries: 208 | Shaft: 1-1/2 in | Part no.: 136782
P2B-SCEZ-50M-SHSSSeries: 210 | Shaft: 50 mm | Part no.: 136854
P2B-SCEZ-115-SHSSSeries: 210 | Shaft: 1-15/16 in | Part no.: 136783
P2B-SCEZ-200-SHSSSeries: 210 | Shaft: 2 in | Part no.: 136989
