Dongyang Chain Slat Conveyor Chain for Automotive Assembly Lines (VB)

Dongyang Chain Slat Conveyor Chain for Automotive Assembly Lines (VB)

This slat conveyor chain is used mainly in automotive assembly plants.

Key features

  • It has bearing-type side rollers that prevent stick-slip
  • Pressed-in ball bearings make it cheaper than a roller with a separate bearing, and it is robust with a long service life
  • A chain for automotive shower-test lines is also available

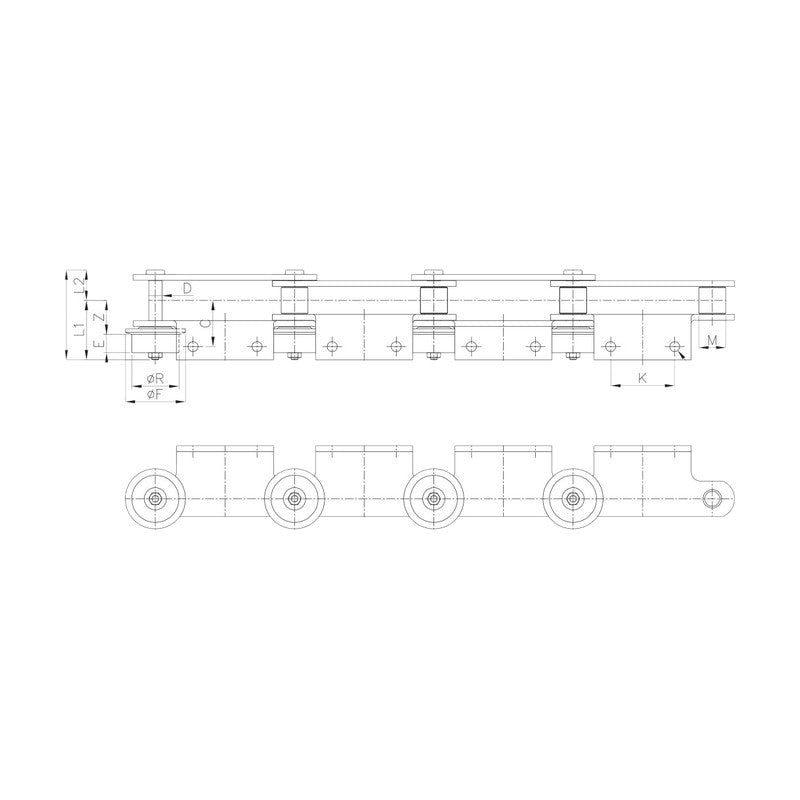

DY 13150 VB Pitch: 150 mm | Side roller (bearing) flange dia. F: 66 mm | Side roller dia. R: 52 mm | Side roller width E: 18 mm | Plate thickness: 7 mm | Plate height: 38.1 mm | Pin length L: 116 mm | Pin dia.: 15.4 mm | Attachment N/K1: 90/60 mm | Attachment height S: 75 mm | Weight: 13.0 kg/m | Avg. tensile strength: 15,000 kgf
DY 13200 VB Pitch: 200 mm | Side roller (bearing) flange dia. F: 66 mm | Side roller dia. R: 52 mm | Side roller width E: 18 mm | Plate thickness: 7 mm | Plate height: 38.1 mm | Pin length L: 116 mm | Pin dia.: 15.4 mm | Attachment N/K1: 140/80 mm | Attachment height S: 75 mm | Weight: 12.1 kg/m | Avg. tensile strength: 15,000 kgf
DY 13250 VB Pitch: 250 mm | Side roller (bearing) flange dia. F: 66 mm | Side roller dia. R: 52 mm | Side roller width E: 18 mm | Plate thickness: 7 mm | Plate height: 38.1 mm | Pin length L: 116 mm | Pin dia.: 15.4 mm | Attachment N/K1: 190/140 mm | Attachment height S: 75 mm | Weight: 11.5 kg/m | Avg. tensile strength: 15,000 kgf
DY 20200 VB Pitch: 200 mm | Side roller (bearing) flange dia. F: 84 mm | Side roller dia. R: 68 mm | Side roller width E: 27 mm | Plate thickness: 9 mm | Plate height: 50.8 mm | Pin length L: 138 mm | Pin dia.: 21 mm | Attachment N/K1: 120/80 mm | Attachment height S: 80 mm | Weight: 18.6 kg/m | Avg. tensile strength: 24,000 kgf
DY 20250 VB Pitch: 250 mm | Side roller (bearing) flange dia. F: 84 mm | Side roller dia. R: 68 mm | Side roller width E: 27 mm | Plate thickness: 9 mm | Plate height: 50.8 mm | Pin length L: 138 mm | Pin dia.: 21 mm | Attachment N/K1: 180/140 mm | Attachment height S: 80 mm | Weight: 18.5 kg/m | Avg. tensile strength: 24,000 kgf
DY 20300 VB Pitch: 300 mm | Side roller (bearing) flange dia. F: 84 mm | Side roller dia. R: 68 mm | Side roller width E: 27 mm | Plate thickness: 9 mm | Plate height: 50.8 mm | Pin length L: 138 mm | Pin dia.: 21 mm | Attachment N/K1: 230/180 mm | Attachment height S: 80 mm | Weight: 17.8 kg/m | Avg. tensile strength: 24,000 kgf
Conveyor ChainsDongyang Chain
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Dongyang Chain Slat Conveyor Chain for Automotive Assembly Lines (VB)

Brand Dongyang Chain·Conveyor Chains

Available part numbers (6)

DY 13150 VB, DY 13200 VB, DY 13250 VB, DY 20200 VB, DY 20250 VB, DY 20300 VB

How to order

Send the Dongyang Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DY 13150 VBPitch: 150 mm | Side roller (bearing) flange dia. F: 66 mm | Side roller dia. R: 52 mm | Side roller width E: 18 mm | Plate thickness: 7 mm | Plate height: 38.1 mm | Pin length L: 116 mm | Pin dia.: 15.4 mm | Attachment N/K1: 90/60 mm | Attachment height S: 75 mm | Weight: 13.0 kg/m | Avg. tensile strength: 15,000 kgf
DY 13200 VBPitch: 200 mm | Side roller (bearing) flange dia. F: 66 mm | Side roller dia. R: 52 mm | Side roller width E: 18 mm | Plate thickness: 7 mm | Plate height: 38.1 mm | Pin length L: 116 mm | Pin dia.: 15.4 mm | Attachment N/K1: 140/80 mm | Attachment height S: 75 mm | Weight: 12.1 kg/m | Avg. tensile strength: 15,000 kgf
DY 13250 VBPitch: 250 mm | Side roller (bearing) flange dia. F: 66 mm | Side roller dia. R: 52 mm | Side roller width E: 18 mm | Plate thickness: 7 mm | Plate height: 38.1 mm | Pin length L: 116 mm | Pin dia.: 15.4 mm | Attachment N/K1: 190/140 mm | Attachment height S: 75 mm | Weight: 11.5 kg/m | Avg. tensile strength: 15,000 kgf
DY 20200 VBPitch: 200 mm | Side roller (bearing) flange dia. F: 84 mm | Side roller dia. R: 68 mm | Side roller width E: 27 mm | Plate thickness: 9 mm | Plate height: 50.8 mm | Pin length L: 138 mm | Pin dia.: 21 mm | Attachment N/K1: 120/80 mm | Attachment height S: 80 mm | Weight: 18.6 kg/m | Avg. tensile strength: 24,000 kgf
DY 20250 VBPitch: 250 mm | Side roller (bearing) flange dia. F: 84 mm | Side roller dia. R: 68 mm | Side roller width E: 27 mm | Plate thickness: 9 mm | Plate height: 50.8 mm | Pin length L: 138 mm | Pin dia.: 21 mm | Attachment N/K1: 180/140 mm | Attachment height S: 80 mm | Weight: 18.5 kg/m | Avg. tensile strength: 24,000 kgf
DY 20300 VBPitch: 300 mm | Side roller (bearing) flange dia. F: 84 mm | Side roller dia. R: 68 mm | Side roller width E: 27 mm | Plate thickness: 9 mm | Plate height: 50.8 mm | Pin length L: 138 mm | Pin dia.: 21 mm | Attachment N/K1: 230/180 mm | Attachment height S: 80 mm | Weight: 17.8 kg/m | Avg. tensile strength: 24,000 kgf
