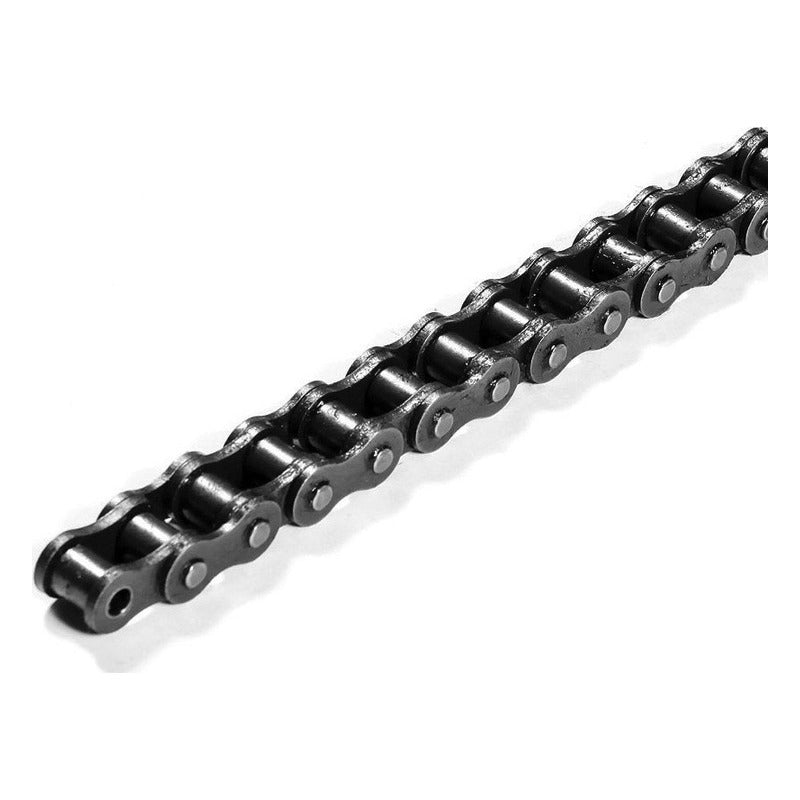

Dongyang Chain BS/DIN Roller Chain 06B-48B (Single and Double Strand)

Dongyang Chain BS/DIN Roller Chain 06B-48B (Single and Double Strand)

BS/DIN (ISO-B series) roller chain from 06B to 48B, pitch 9.525 to 76.2 mm, in single and double strand.

Key features

  • Each size is cross-referenced to its ISO-B number and listed with the ISO-B average tensile strength and the DY average tensile strength
  • Full dimensions are given for roller diameter, inner width, link plates and pin lengths
DY 06B-1 ISO-B No.: 06B-1 | Strands: 1 | Pitch: 9.525 mm | Roller dia.: 6.35 mm | Width between inner plates: 5.72 mm | Plate height: 8.2 mm | Plate thickness T/t: 1.32/1.05 mm | Pin dia.: 3.28 mm | Pin length L: 13.4 mm | ISO-B avg. tensile strength: 910 kg | DY avg. tensile strength: 1,000 kg | Approx. weight: 0.37 kg/m
DY 08B-1 ISO-B No.: 08B-1 | Strands: 1 | Pitch: 12.70 mm | Roller dia.: 8.51 mm | Width between inner plates: 7.85 mm | Plate height: 11.8 mm | Plate thickness T/t: 1.62/1.62 mm | Pin dia.: 4.45 mm | Pin length L: 18.3 mm | ISO-B avg. tensile strength: 1,820 kg | DY avg. tensile strength: 2,100 kg | Approx. weight: 0.71 kg/m
DY 10B-1 ISO-B No.: 10B-1 | Strands: 1 | Pitch: 15.875 mm | Roller dia.: 10.16 mm | Width between inner plates: 9.80 mm | Plate height: 14.7 mm | Plate thickness T/t: 1.62/1.62 mm | Pin dia.: 5.08 mm | Pin length L: 21.2 mm | ISO-B avg. tensile strength: 2,270 kg | DY avg. tensile strength: 2,600 kg | Approx. weight: 0.95 kg/m
DY 12B-1 ISO-B No.: 12B-1 | Strands: 1 | Pitch: 19.05 mm | Roller dia.: 12.07 mm | Width between inner plates: 11.70 mm | Plate height: 16.1 mm | Plate thickness T/t: 1.88/1.88 mm | Pin dia.: 5.72 mm | Pin length L: 24.3 mm | ISO-B avg. tensile strength: 2,950 kg | DY avg. tensile strength: 3,400 kg | Approx. weight: 1.3 kg/m
DY 16B-1 ISO-B No.: 16B-1 | Strands: 1 | Pitch: 25.40 mm | Roller dia.: 15.88 mm | Width between inner plates: 17.05 mm | Plate height: 21.08 mm | Plate thickness T/t: 4.10/3.2 mm | Pin dia.: 8.28 mm | Pin length L: 38.2 mm | ISO-B avg. tensile strength: 4,310 kg | DY avg. tensile strength: 7,500 kg | Approx. weight: 2.9 kg/m
DY 20B-1 ISO-B No.: 20B-1 | Strands: 1 | Pitch: 31.75 mm | Roller dia.: 19.05 mm | Width between inner plates: 19.60 mm | Plate height: 26.0 mm | Plate thickness T/t: 4.4/3.5 mm | Pin dia.: 10.19 mm | Pin length L: 43.85 mm | ISO-B avg. tensile strength: 6,580 kg | DY avg. tensile strength: 11,500 kg | Approx. weight: 3.8 kg/m
DY 24B-1 ISO-B No.: 24B-1 | Strands: 1 | Pitch: 38.10 mm | Roller dia.: 25.40 mm | Width between inner plates: 25.40 mm | Plate height: 33.4 mm | Plate thickness T/t: 5.9/4.9 mm | Pin dia.: 14.63 mm | Pin length L: 58.75 mm | ISO-B avg. tensile strength: 9,980 kg | DY avg. tensile strength: 19,700 kg | Approx. weight: 7.1 kg/m
DY 28B-1 ISO-B No.: 28B-1 | Strands: 1 | Pitch: 44.45 mm | Roller dia.: 27.94 mm | Width between inner plates: 31.00 mm | Plate height: 36.7 mm | Plate thickness T/t: 7.5/6 mm | Pin dia.: 15.90 mm | Pin length L: 70.45 mm | ISO-B avg. tensile strength: 13,160 kg | DY avg. tensile strength: 23,100 kg | Approx. weight: 8.6 kg/m
DY 32B-1 ISO-B No.: 32B-1 | Strands: 1 | Pitch: 50.80 mm | Roller dia.: 29.21 mm | Width between inner plates: 31.00 mm | Plate height: 41.9 mm | Plate thickness T/t: 7.0/6.4 mm | Pin dia.: 17.81 mm | Pin length L: 71.10 mm | ISO-B avg. tensile strength: 17,240 kg | DY avg. tensile strength: 30,100 kg | Approx. weight: 9.6 kg/m
DY 40B-1 ISO-B No.: 40B-1 | Strands: 1 | Pitch: 63.50 mm | Roller dia.: 39.37 mm | Width between inner plates: 38.10 mm | Plate height: 52.9 mm | Plate thickness T/t: 8.5/8 mm | Pin dia.: 22.89 mm | Pin length L: 87.3 mm | ISO-B avg. tensile strength: 26,770 kg | DY avg. tensile strength: 41,000 kg | Approx. weight: 15.8 kg/m
DY 48B-1 ISO-B No.: 48B-1 | Strands: 1 | Pitch: 76.2 mm | Roller dia.: 48.4 mm | Width between inner plates: 45.72 mm | Plate height: 63.8 mm | Plate thickness T/t: 12/10 mm | Pin dia.: 29.24 mm | Pin length L: 107 mm | ISO-B avg. tensile strength: 40,830 kg | DY avg. tensile strength: 57,140 kg | Approx. weight: 25.0 kg/m
DY 06B-2 ISO-B No.: 06B-2 | Strands: 2 | Pitch: 9.525 mm | Roller dia.: 6.35 mm | Width between inner plates: 5.72 mm | Plate thickness T/t: 1.32/1.05 mm | Pin dia.: 3.28 mm | Pin length L: 23.7 mm | Transverse pitch: 10.24 mm | ISO-B avg. tensile strength: 1,730 kg | DY avg. tensile strength: 1,900 kg | Approx. weight: 0.70 kg/m
DY 08B-2 ISO-B No.: 08B-2 | Strands: 2 | Pitch: 12.70 mm | Roller dia.: 8.51 mm | Width between inner plates: 7.85 mm | Plate thickness T/t: 1.62/1.62 mm | Pin dia.: 4.45 mm | Pin length L: 32.3 mm | Transverse pitch: 13.92 mm | ISO-B avg. tensile strength: 3,180 kg | DY avg. tensile strength: 3,700 kg | Approx. weight: 1.3 kg/m
DY 10B-2 ISO-B No.: 10B-2 | Strands: 2 | Pitch: 15.875 mm | Roller dia.: 10.16 mm | Width between inner plates: 9.80 mm | Plate thickness T/t: 1.62/1.62 mm | Pin dia.: 5.08 mm | Pin length L: 37.9 mm | Transverse pitch: 16.59 mm | ISO-B avg. tensile strength: 4,540 kg | DY avg. tensile strength: 5,200 kg | Approx. weight: 1.8 kg/m
DY 12B-2 ISO-B No.: 12B-2 | Strands: 2 | Pitch: 19.05 mm | Roller dia.: 12.07 mm | Width between inner plates: 11.70 mm | Plate thickness T/t: 1.88/1.88 mm | Pin dia.: 5.72 mm | Pin length L: 43.8 mm | Transverse pitch: 19.46 mm | ISO-B avg. tensile strength: 5,900 kg | DY avg. tensile strength: 6,800 kg | Approx. weight: 2.5 kg/m
DY 16B-2 ISO-B No.: 16B-2 | Strands: 2 | Pitch: 25.40 mm | Roller dia.: 15.88 mm | Width between inner plates: 17.05 mm | Plate thickness T/t: 4.10/3.2 mm | Pin dia.: 8.28 mm | Pin length L: 70.0 mm | Transverse pitch: 31.88 mm | ISO-B avg. tensile strength: 8,620 kg | DY avg. tensile strength: 15,000 kg | Approx. weight: 5.6 kg/m
DY 20B-2 ISO-B No.: 20B-2 | Strands: 2 | Pitch: 31.75 mm | Roller dia.: 19.02 mm | Width between inner plates: 19.60 mm | Plate thickness T/t: 4.4/3.5 mm | Pin dia.: 10.16 mm | Pin length L: 80.9 mm | Transverse pitch: 36.45 mm | ISO-B avg. tensile strength: 13,160 kg | DY avg. tensile strength: 23,000 kg | Approx. weight: 7.4 kg/m
DY 24B-2 ISO-B No.: 24B-2 | Strands: 2 | Pitch: 38.10 mm | Roller dia.: 25.40 mm | Width between inner plates: 25.40 mm | Plate thickness T/t: 5.9/4.9 mm | Pin dia.: 14.61 mm | Pin length L: 107.2 mm | Transverse pitch: 48.36 mm | ISO-B avg. tensile strength: 19,960 kg | DY avg. tensile strength: 39,400 kg | Approx. weight: 13.9 kg/m
DY 28B-2 ISO-B No.: 28B-2 | Strands: 2 | Pitch: 44.45 mm | Roller dia.: 27.94 mm | Width between inner plates: 31.00 mm | Plate thickness T/t: 7.5/6 mm | Pin dia.: 15.88 mm | Pin length L: 129.8 mm | Transverse pitch: 59.56 mm | ISO-B avg. tensile strength: 26,320 kg | DY avg. tensile strength: 46,200 kg | Approx. weight: 16.6 kg/m
DY 32B-2 ISO-B No.: 32B-2 | Strands: 2 | Pitch: 50.80 mm | Roller dia.: 29.21 mm | Width between inner plates: 31.00 mm | Plate thickness T/t: 7.0/6.4 mm | Pin dia.: 17.79 mm | Pin length L: 129.7 mm | Transverse pitch: 58.55 mm | ISO-B avg. tensile strength: 34,480 kg | DY avg. tensile strength: 60,200 kg | Approx. weight: 18.7 kg/m
DY 40B-2 ISO-B No.: 40B-2 | Strands: 2 | Pitch: 63.50 mm | Roller dia.: 39.37 mm | Width between inner plates: 38.10 mm | Plate thickness T/t: 8.5/8.0 mm | Pin dia.: 22.89 mm | Pin length L: 159.6 mm | Transverse pitch: 72.29 mm | ISO-B avg. tensile strength: 53,540 kg | DY avg. tensile strength: 82,000 kg | Approx. weight: 31.0 kg/m
DY 48B-2 ISO-B No.: 48B-2 | Strands: 2 | Pitch: 76.2 mm | Roller dia.: 48.4 mm | Width between inner plates: 45.72 mm | Plate thickness T/t: 12/10 mm | Pin dia.: 29.24 mm | Pin length L: 198.2 mm | Transverse pitch: 91.21 mm | ISO-B avg. tensile strength: 81,650 kg | DY avg. tensile strength: 103,040 kg | Approx. weight: 50.0 kg/m
