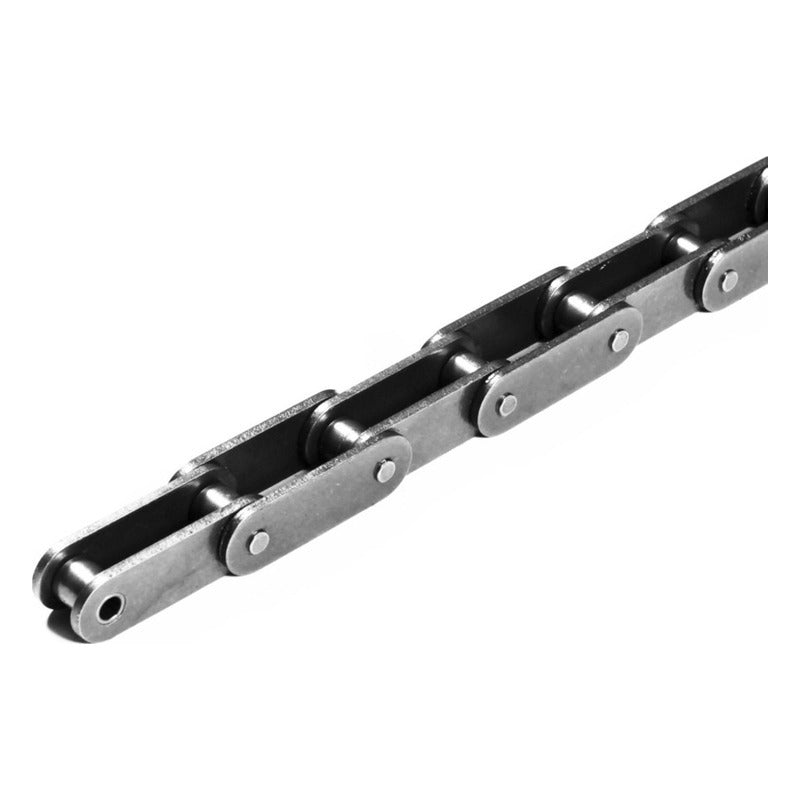

Dongyang Chain Double Pitch Roller Chain C2040-C2162H

Dongyang Chain Double Pitch Roller Chain C2040-C2162H

Double pitch roller chain for light-load, long-distance conveyors, with twice the pitch of the matching standard chain for lower weight and cost.

Key features

  • Sizes DY C2040 to DY C2162H, pitch 25.4 to 101.6 mm
  • Each size is available with standard S-rollers (C20x0) or oversize R-rollers (C20x2) for rolling on rails
  • Average tensile strength ranges from 16.7 kN to 258 kN
Dongyang Chain Double Pitch Roller Chain C2040-C2162H reference 2
DY C2040 Roller type: S-roller (standard) | Pitch: 25.40 mm | Inner width: 7.95 mm | Roller dia.: 7.94 mm | Pin length L1/L2: 8.25/9.95 mm | Pin dia.: 3.97 mm | Plate height: 12.0 mm | Plate thickness: 1.5 mm | Avg. tensile strength: 16.7(1700) kN(kgf) | Max. allowable load: 2.65(270) kN(kgf) | Approx. weight: 0.51 kg/m | Links per unit: 120
DY C2042 Roller type: R-roller (oversize) | Pitch: 25.40 mm | Inner width: 7.95 mm | Roller dia.: 15.88 mm | Pin length L1/L2: 8.25/9.95 mm | Pin dia.: 3.97 mm | Plate height: 12.0 mm | Plate thickness: 1.5 mm | Avg. tensile strength: 16.7(1700) kN(kgf) | Max. allowable load: 2.65(270) kN(kgf) | Approx. weight: 0.87 kg/m | Links per unit: 120
DY C2050 Roller type: S-roller (standard) | Pitch: 31.75 mm | Inner width: 9.53 mm | Roller dia.: 10.16 mm | Pin length L1/L2: 10.30/12.0 mm | Pin dia.: 5.09 mm | Plate height: 15.0 mm | Plate thickness: 2.0 mm | Avg. tensile strength: 27.5(2800) kN(kgf) | Max. allowable load: 4.31(440) kN(kgf) | Approx. weight: 0.84 kg/m | Links per unit: 96
DY C2052 Roller type: R-roller (oversize) | Pitch: 31.75 mm | Inner width: 9.53 mm | Roller dia.: 19.05 mm | Pin length L1/L2: 10.30/12.0 mm | Pin dia.: 5.09 mm | Plate height: 15.0 mm | Plate thickness: 2.0 mm | Avg. tensile strength: 27.5(2800) kN(kgf) | Max. allowable load: 4.31(440) kN(kgf) | Approx. weight: 1.30 kg/m | Links per unit: 96
DY C2060H Roller type: S-roller (standard) | Pitch: 38.10 mm | Inner width: 12.70 mm | Roller dia.: 11.91 mm | Pin length L1/L2: 14.55/16.55 mm | Pin dia.: 5.96 mm | Plate height: 18.0 mm | Plate thickness: 3.2 mm | Avg. tensile strength: 40.2(4100) kN(kgf) | Max. allowable load: 6.28(640) kN(kgf) | Approx. weight: 1.51 kg/m | Links per unit: 80
DY C2062H Roller type: R-roller (oversize) | Pitch: 38.10 mm | Inner width: 12.70 mm | Roller dia.: 22.23 mm | Pin length L1/L2: 14.55/16.55 mm | Pin dia.: 5.96 mm | Plate height: 18.0 mm | Plate thickness: 3.2 mm | Avg. tensile strength: 40.2(4100) kN(kgf) | Max. allowable load: 6.28(640) kN(kgf) | Approx. weight: 2.19 kg/m | Links per unit: 80
DY C2080H Roller type: S-roller (standard) | Pitch: 50.80 mm | Inner width: 15.88 mm | Roller dia.: 15.88 mm | Pin length L1/L2: 18.30/20.90 mm | Pin dia.: 7.94 mm | Plate height: 24.0 mm | Plate thickness: 4.0 mm | Avg. tensile strength: 68.6(7000) kN(kgf) | Max. allowable load: 10.7(1090) kN(kgf) | Approx. weight: 2.66 kg/m | Links per unit: 60
DY C2082H Roller type: R-roller (oversize) | Pitch: 50.80 mm | Inner width: 15.88 mm | Roller dia.: 28.58 mm | Pin length L1/L2: 18.30/20.90 mm | Pin dia.: 7.94 mm | Plate height: 24.0 mm | Plate thickness: 4.0 mm | Avg. tensile strength: 68.6(7000) kN(kgf) | Max. allowable load: 10.7(1090) kN(kgf) | Approx. weight: 3.68 kg/m | Links per unit: 60
DY C2100H Roller type: S-roller (standard) | Pitch: 63.50 mm | Inner width: 19.05 mm | Roller dia.: 19.05 mm | Pin length L1/L2: 21.80/24.50 mm | Pin dia.: 9.54 mm | Plate height: 30.0 mm | Plate thickness: 4.8 mm | Avg. tensile strength: 108(11000) kN(kgf) | Max. allowable load: 17.1(1740) kN(kgf) | Approx. weight: 3.99 kg/m | Links per unit: 48
DY C2102H Roller type: R-roller (oversize) | Pitch: 63.50 mm | Inner width: 19.05 mm | Roller dia.: 39.67 mm | Pin length L1/L2: 21.80/24.50 mm | Pin dia.: 9.54 mm | Plate height: 30.0 mm | Plate thickness: 4.8 mm | Avg. tensile strength: 108(11000) kN(kgf) | Max. allowable load: 17.1(1740) kN(kgf) | Approx. weight: 6.30 kg/m | Links per unit: 48
DY C2120H Roller type: S-roller (standard) | Pitch: 76.20 mm | Inner width: 25.40 mm | Roller dia.: 22.23 mm | Pin length L1/L2: 26.95/30.55 mm | Pin dia.: 11.11 mm | Plate height: 34.2 mm | Plate thickness: 5.6 mm | Avg. tensile strength: 151(15400) kN(kgf) | Max. allowable load: 23.9(2400) kN(kgf) | Approx. weight: 5.35 kg/m | Links per unit: 40
DY C2122H Roller type: R-roller (oversize) | Pitch: 76.20 mm | Inner width: 25.40 mm | Roller dia.: 44.45 mm | Pin length L1/L2: 26.95/30.55 mm | Pin dia.: 11.11 mm | Plate height: 34.2 mm | Plate thickness: 5.6 mm | Avg. tensile strength: 151(15400) kN(kgf) | Max. allowable load: 23.9(2400) kN(kgf) | Approx. weight: 8.60 kg/m | Links per unit: 40
DY C2160H Roller type: S-roller (standard) | Pitch: 101.6 mm | Inner width: 31.75 mm | Roller dia.: 28.58 mm | Pin length L1/L2: 33.95/38.45 mm | Pin dia.: 14.29 mm | Plate height: 48.0 mm | Plate thickness: 7.2 mm | Avg. tensile strength: 258(26300) kN(kgf) | Max. allowable load: 409(4170) kN(kgf) | Approx. weight: 9.42 kg/m | Links per unit: 30
DY C2162H Roller type: R-roller (oversize) | Pitch: 101.6 mm | Inner width: 31.75 mm | Roller dia.: 57.15 mm | Pin length L1/L2: 33.95/38.45 mm | Pin dia.: 14.29 mm | Plate height: 48.0 mm | Plate thickness: 7.2 mm | Avg. tensile strength: 258(26300) kN(kgf) | Max. allowable load: 409(4170) kN(kgf) | Approx. weight: 11.79 kg/m | Links per unit: 30
Conveyor ChainsDongyang Chain
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Dongyang Chain Double Pitch Roller Chain C2040-C2162H

Brand Dongyang Chain·Conveyor Chains

Available part numbers (14)

DY C2040, DY C2042, DY C2050, DY C2052, DY C2060H, DY C2062H, DY C2080H, DY C2082H, DY C2100H, DY C2102H + 4 more — see full table ↓

How to order

Send the Dongyang Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Dongyang Chain Double Pitch Roller Chain C2040-C2162H reference 2
0 selected
RFQ List (0)
Product codeSpec
DY C2040Roller type: S-roller (standard) | Pitch: 25.40 mm | Inner width: 7.95 mm | Roller dia.: 7.94 mm | Pin length L1/L2: 8.25/9.95 mm | Pin dia.: 3.97 mm | Plate height: 12.0 mm | Plate thickness: 1.5 mm | Avg. tensile strength: 16.7(1700) kN(kgf) | Max. allowable load: 2.65(270) kN(kgf) | Approx. weight: 0.51 kg/m | Links per unit: 120
DY C2042Roller type: R-roller (oversize) | Pitch: 25.40 mm | Inner width: 7.95 mm | Roller dia.: 15.88 mm | Pin length L1/L2: 8.25/9.95 mm | Pin dia.: 3.97 mm | Plate height: 12.0 mm | Plate thickness: 1.5 mm | Avg. tensile strength: 16.7(1700) kN(kgf) | Max. allowable load: 2.65(270) kN(kgf) | Approx. weight: 0.87 kg/m | Links per unit: 120
DY C2050Roller type: S-roller (standard) | Pitch: 31.75 mm | Inner width: 9.53 mm | Roller dia.: 10.16 mm | Pin length L1/L2: 10.30/12.0 mm | Pin dia.: 5.09 mm | Plate height: 15.0 mm | Plate thickness: 2.0 mm | Avg. tensile strength: 27.5(2800) kN(kgf) | Max. allowable load: 4.31(440) kN(kgf) | Approx. weight: 0.84 kg/m | Links per unit: 96
DY C2052Roller type: R-roller (oversize) | Pitch: 31.75 mm | Inner width: 9.53 mm | Roller dia.: 19.05 mm | Pin length L1/L2: 10.30/12.0 mm | Pin dia.: 5.09 mm | Plate height: 15.0 mm | Plate thickness: 2.0 mm | Avg. tensile strength: 27.5(2800) kN(kgf) | Max. allowable load: 4.31(440) kN(kgf) | Approx. weight: 1.30 kg/m | Links per unit: 96
DY C2060HRoller type: S-roller (standard) | Pitch: 38.10 mm | Inner width: 12.70 mm | Roller dia.: 11.91 mm | Pin length L1/L2: 14.55/16.55 mm | Pin dia.: 5.96 mm | Plate height: 18.0 mm | Plate thickness: 3.2 mm | Avg. tensile strength: 40.2(4100) kN(kgf) | Max. allowable load: 6.28(640) kN(kgf) | Approx. weight: 1.51 kg/m | Links per unit: 80
DY C2062HRoller type: R-roller (oversize) | Pitch: 38.10 mm | Inner width: 12.70 mm | Roller dia.: 22.23 mm | Pin length L1/L2: 14.55/16.55 mm | Pin dia.: 5.96 mm | Plate height: 18.0 mm | Plate thickness: 3.2 mm | Avg. tensile strength: 40.2(4100) kN(kgf) | Max. allowable load: 6.28(640) kN(kgf) | Approx. weight: 2.19 kg/m | Links per unit: 80
DY C2080HRoller type: S-roller (standard) | Pitch: 50.80 mm | Inner width: 15.88 mm | Roller dia.: 15.88 mm | Pin length L1/L2: 18.30/20.90 mm | Pin dia.: 7.94 mm | Plate height: 24.0 mm | Plate thickness: 4.0 mm | Avg. tensile strength: 68.6(7000) kN(kgf) | Max. allowable load: 10.7(1090) kN(kgf) | Approx. weight: 2.66 kg/m | Links per unit: 60
DY C2082HRoller type: R-roller (oversize) | Pitch: 50.80 mm | Inner width: 15.88 mm | Roller dia.: 28.58 mm | Pin length L1/L2: 18.30/20.90 mm | Pin dia.: 7.94 mm | Plate height: 24.0 mm | Plate thickness: 4.0 mm | Avg. tensile strength: 68.6(7000) kN(kgf) | Max. allowable load: 10.7(1090) kN(kgf) | Approx. weight: 3.68 kg/m | Links per unit: 60
DY C2100HRoller type: S-roller (standard) | Pitch: 63.50 mm | Inner width: 19.05 mm | Roller dia.: 19.05 mm | Pin length L1/L2: 21.80/24.50 mm | Pin dia.: 9.54 mm | Plate height: 30.0 mm | Plate thickness: 4.8 mm | Avg. tensile strength: 108(11000) kN(kgf) | Max. allowable load: 17.1(1740) kN(kgf) | Approx. weight: 3.99 kg/m | Links per unit: 48
DY C2102HRoller type: R-roller (oversize) | Pitch: 63.50 mm | Inner width: 19.05 mm | Roller dia.: 39.67 mm | Pin length L1/L2: 21.80/24.50 mm | Pin dia.: 9.54 mm | Plate height: 30.0 mm | Plate thickness: 4.8 mm | Avg. tensile strength: 108(11000) kN(kgf) | Max. allowable load: 17.1(1740) kN(kgf) | Approx. weight: 6.30 kg/m | Links per unit: 48
DY C2120HRoller type: S-roller (standard) | Pitch: 76.20 mm | Inner width: 25.40 mm | Roller dia.: 22.23 mm | Pin length L1/L2: 26.95/30.55 mm | Pin dia.: 11.11 mm | Plate height: 34.2 mm | Plate thickness: 5.6 mm | Avg. tensile strength: 151(15400) kN(kgf) | Max. allowable load: 23.9(2400) kN(kgf) | Approx. weight: 5.35 kg/m | Links per unit: 40
DY C2122HRoller type: R-roller (oversize) | Pitch: 76.20 mm | Inner width: 25.40 mm | Roller dia.: 44.45 mm | Pin length L1/L2: 26.95/30.55 mm | Pin dia.: 11.11 mm | Plate height: 34.2 mm | Plate thickness: 5.6 mm | Avg. tensile strength: 151(15400) kN(kgf) | Max. allowable load: 23.9(2400) kN(kgf) | Approx. weight: 8.60 kg/m | Links per unit: 40
DY C2160HRoller type: S-roller (standard) | Pitch: 101.6 mm | Inner width: 31.75 mm | Roller dia.: 28.58 mm | Pin length L1/L2: 33.95/38.45 mm | Pin dia.: 14.29 mm | Plate height: 48.0 mm | Plate thickness: 7.2 mm | Avg. tensile strength: 258(26300) kN(kgf) | Max. allowable load: 409(4170) kN(kgf) | Approx. weight: 9.42 kg/m | Links per unit: 30
DY C2162HRoller type: R-roller (oversize) | Pitch: 101.6 mm | Inner width: 31.75 mm | Roller dia.: 57.15 mm | Pin length L1/L2: 33.95/38.45 mm | Pin dia.: 14.29 mm | Plate height: 48.0 mm | Plate thickness: 7.2 mm | Avg. tensile strength: 258(26300) kN(kgf) | Max. allowable load: 409(4170) kN(kgf) | Approx. weight: 11.79 kg/m | Links per unit: 30
