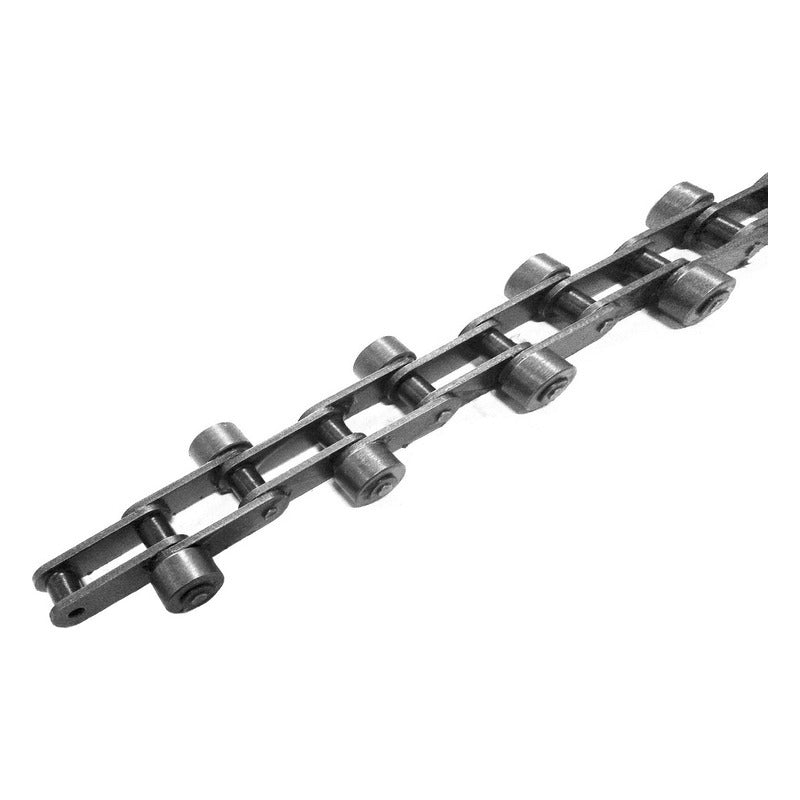

Dongyang Chain Double Pitch Side Roller Chain (SSR)

Dongyang Chain Double Pitch Side Roller Chain (SSR)

Double pitch conveyor chain fitted with side rollers mounted on extended pins, sizes DY C2040 SSR to DY C2102H SSR.

Key features

  • Side rollers can be fitted on every link (Z-type) or every second link (K-type), and EL and 2L attachment versions are shown
  • Chain and side rollers are steel as standard; plastic side rollers are made to order
DY C2040 SSR Roller type: S-roller | Pitch: 25.40 mm | Inner width: 7.95 mm | Roller dia.: 7.94 mm | Pin length L1/L2/L3: 9.65/17.9/19.3 mm | Pin dia.: 3.97 mm | Plate height: 12.0 mm | Plate thickness: 1.5 mm | Side roller dia. Ds: 15.88 / 23 mm | Side roller width Hs: 7.8 mm | Approx. weight, plastic side roller: 0.66 kg/m | Approx. weight, steel side roller: 1.02 kg/m
DY C2042 SSR Roller type: R-roller | Pitch: 25.40 mm | Inner width: 7.95 mm | Roller dia.: 15.88 mm | Pin length L1/L2/L3: 9.65/17.9/19.3 mm | Pin dia.: 3.97 mm | Plate height: 12.0 mm | Plate thickness: 1.5 mm | Side roller dia. Ds: 15.88 / 23 mm | Side roller width Hs: 7.8 mm | Approx. weight, plastic side roller: 0.66 kg/m | Approx. weight, steel side roller: 1.02 kg/m
DY C2050 SSR Roller type: S-roller | Pitch: 31.75 mm | Inner width: 9.53 mm | Roller dia.: 10.16 mm | Pin length L1/L2/L3: 11.9/21.6/23.2 mm | Pin dia.: 5.09 mm | Plate height: 15.0 mm | Plate thickness: 2.0 mm | Side roller dia. Ds: 19.05 / 27 mm | Side roller width Hs: 9.4 mm | Approx. weight, plastic side roller: 1.03 kg/m | Approx. weight, steel side roller: 1.49 kg/m
DY C2052 SSR Roller type: R-roller | Pitch: 31.75 mm | Inner width: 9.53 mm | Roller dia.: 19.05 mm | Pin length L1/L2/L3: 11.9/21.6/23.2 mm | Pin dia.: 5.09 mm | Plate height: 15.0 mm | Plate thickness: 2.0 mm | Side roller dia. Ds: 19.05 / 27 mm | Side roller width Hs: 9.4 mm | Approx. weight, plastic side roller: 1.03 kg/m | Approx. weight, steel side roller: 1.49 kg/m
DY C2060H SSR Roller type: S-roller | Pitch: 38.10 mm | Inner width: 12.70 mm | Roller dia.: 11.91 mm | Pin length L1/L2/L3: 16.95/29.65/32.05 mm | Pin dia.: 5.96 mm | Plate height: 18.0 mm | Plate thickness: 3.2 mm | Side roller dia. Ds: 22.23 / 30 mm | Side roller width Hs: 12.6 mm | Approx. weight, plastic side roller: 1.80 kg/m | Approx. weight, steel side roller: 2.48 kg/m
DY C2062H SSR Roller type: R-roller | Pitch: 38.10 mm | Inner width: 12.70 mm | Roller dia.: 22.23 mm | Pin length L1/L2/L3: 16.95/29.65/32.05 mm | Pin dia.: 5.96 mm | Plate height: 18.0 mm | Plate thickness: 3.2 mm | Side roller dia. Ds: 22.23 / 30 mm | Side roller width Hs: 12.6 mm | Approx. weight, plastic side roller: 1.80 kg/m | Approx. weight, steel side roller: 2.48 kg/m
DY C2080H SSR Roller type: S-roller | Pitch: 50.80 mm | Inner width: 15.88 mm | Roller dia.: 15.88 mm | Pin length L1/L2/L3: 20.95/36.65/39.65 mm | Pin dia.: 7.94 mm | Plate height: 24.0 mm | Plate thickness: 4.0 mm | Side roller dia. Ds: 28.58 / 38.1 mm | Side roller width Hs: 15.8 mm | Approx. weight, plastic side roller: 3.37 kg/m | Approx. weight, steel side roller: 4.39 kg/m
DY C2082H SSR Roller type: R-roller | Pitch: 50.80 mm | Inner width: 15.88 mm | Roller dia.: 28.58 mm | Pin length L1/L2/L3: 20.95/36.65/39.65 mm | Pin dia.: 7.94 mm | Plate height: 24.0 mm | Plate thickness: 4.0 mm | Side roller dia. Ds: 28.58 / 38.1 mm | Side roller width Hs: 15.8 mm | Approx. weight, plastic side roller: 3.37 kg/m | Approx. weight, steel side roller: 4.39 kg/m
DY C2100H SSR Roller type: S-roller | Pitch: 63.50 mm | Inner width: 19.05 mm | Roller dia.: 19.05 mm | Pin length L1/L2/L3: 24.5/44.2/47.3 mm | Pin dia.: 9.54 mm | Plate height: 30.0 mm | Plate thickness: 4.8 mm | Side roller dia. Ds: 39.67 / 50.8 mm | Side roller width Hs: 19.0 mm | Approx. weight, plastic side roller: 5.22 kg/m | Approx. weight, steel side roller: 7.53 kg/m
DY C2102H SSR Roller type: R-roller | Pitch: 63.50 mm | Inner width: 19.05 mm | Roller dia.: 39.67 mm | Pin length L1/L2/L3: 24.5/44.2/47.3 mm | Pin dia.: 9.54 mm | Plate height: 30.0 mm | Plate thickness: 4.8 mm | Side roller dia. Ds: 39.67 / 50.8 mm | Side roller width Hs: 19.0 mm | Approx. weight, plastic side roller: 5.22 kg/m | Approx. weight, steel side roller: 7.53 kg/m
Conveyor ChainsDongyang Chain
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Dongyang Chain Double Pitch Side Roller Chain (SSR)

Brand Dongyang Chain·Conveyor Chains

Available part numbers (10)

DY C2040 SSR, DY C2042 SSR, DY C2050 SSR, DY C2052 SSR, DY C2060H SSR, DY C2062H SSR, DY C2080H SSR, DY C2082H SSR, DY C2100H SSR, DY C2102H SSR

How to order

Send the Dongyang Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
