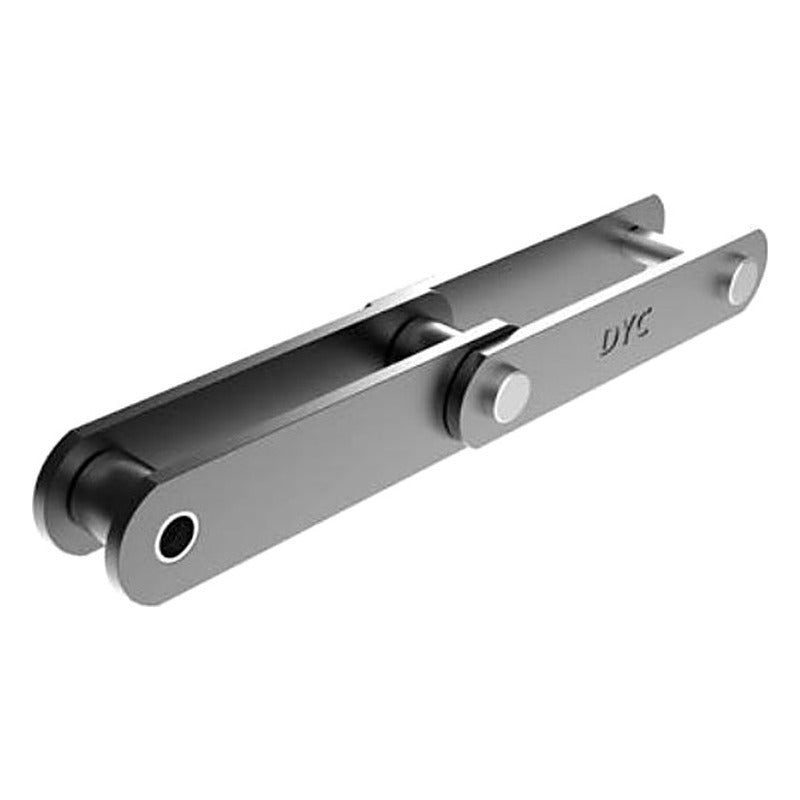

Dongyang Chain DSS Water Treatment Chain (Stainless Steel)

The DSS chain is used in water treatment equipment such as sludge collectors.

Key features

All parts are made from specially heat-treated stainless steel for excellent corrosion and wear resistance
All sizes have a 152.4 mm pitch
SF4, A2 and D22 attachments are available

Specifications

Pitch	152.4 mm

DSS 15215-B		Pitch: 152.4 mm \| Avg. tensile strength: 15,000 kgf \| Guaranteed breaking strength: 13,500 kgf \| Bush dia.: 24 mm \| Inner width: 26 mm \| Pin dia.: 13.5 mm \| Pin length L1/L2: 29/33 mm \| Bush link plate T x H: 6 x 38 mm \| Pin link plate T1 x H1: 5 x 36 mm \| Weight: 4.8 kg/m
DSS 15219-B		Pitch: 152.4 mm \| Avg. tensile strength: 19,000 kgf \| Guaranteed breaking strength: 17,100 kgf \| Bush dia.: 26 mm \| Inner width: 30 mm \| Pin dia.: 14.5 mm \| Pin length L1/L2: 32/39.5 mm \| Bush link plate T x H: 6 x 44 mm \| Pin link plate T1 x H1: 6 x 38 mm \| Weight: 58 (as printed) kg/m
DSS 15225-B		Pitch: 152.4 mm \| Avg. tensile strength: 25,000 kgf \| Guaranteed breaking strength: 22,500 kgf \| Bush dia.: 29 mm \| Inner width: 30 mm \| Pin dia.: 15.8 mm \| Pin length L1/L2: 35/41 mm \| Bush link plate T x H: 7 x 54 mm \| Pin link plate T1 x H1: 6 x 44 mm \| Weight: 7.9 kg/m
DSS 15235-B		Pitch: 152.4 mm \| Avg. tensile strength: 35,000 kgf \| Guaranteed breaking strength: 31,500 kgf \| Bush dia.: 35 mm \| Inner width: 38 mm \| Pin dia.: 19.0 mm \| Pin length L1/L2: 41/46 mm \| Bush link plate T x H: 7 x 60 mm \| Pin link plate T1 x H1: 7 x 54 mm \| Weight: 10.9 kg/m

Water Treatment ChainsDongyang Chain

4 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Dongyang Chain DSS Water Treatment Chain (Stainless Steel)

Brand Dongyang Chain·Water Treatment Chains

Available part numbers (4)

DSS 15215-B, DSS 15219-B, DSS 15225-B, DSS 15235-B

How to order

Send the Dongyang Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	DSS 15215-B	Pitch: 152.4 mm \| Avg. tensile strength: 15,000 kgf \| Guaranteed breaking strength: 13,500 kgf \| Bush dia.: 24 mm \| Inner width: 26 mm \| Pin dia.: 13.5 mm \| Pin length L1/L2: 29/33 mm \| Bush link plate T x H: 6 x 38 mm \| Pin link plate T1 x H1: 5 x 36 mm \| Weight: 4.8 kg/m
	DSS 15219-B	Pitch: 152.4 mm \| Avg. tensile strength: 19,000 kgf \| Guaranteed breaking strength: 17,100 kgf \| Bush dia.: 26 mm \| Inner width: 30 mm \| Pin dia.: 14.5 mm \| Pin length L1/L2: 32/39.5 mm \| Bush link plate T x H: 6 x 44 mm \| Pin link plate T1 x H1: 6 x 38 mm \| Weight: 58 (as printed) kg/m
	DSS 15225-B	Pitch: 152.4 mm \| Avg. tensile strength: 25,000 kgf \| Guaranteed breaking strength: 22,500 kgf \| Bush dia.: 29 mm \| Inner width: 30 mm \| Pin dia.: 15.8 mm \| Pin length L1/L2: 35/41 mm \| Bush link plate T x H: 7 x 54 mm \| Pin link plate T1 x H1: 6 x 44 mm \| Weight: 7.9 kg/m
	DSS 15235-B	Pitch: 152.4 mm \| Avg. tensile strength: 35,000 kgf \| Guaranteed breaking strength: 31,500 kgf \| Bush dia.: 35 mm \| Inner width: 38 mm \| Pin dia.: 19.0 mm \| Pin length L1/L2: 41/46 mm \| Bush link plate T x H: 7 x 60 mm \| Pin link plate T1 x H1: 7 x 54 mm \| Weight: 10.9 kg/m
