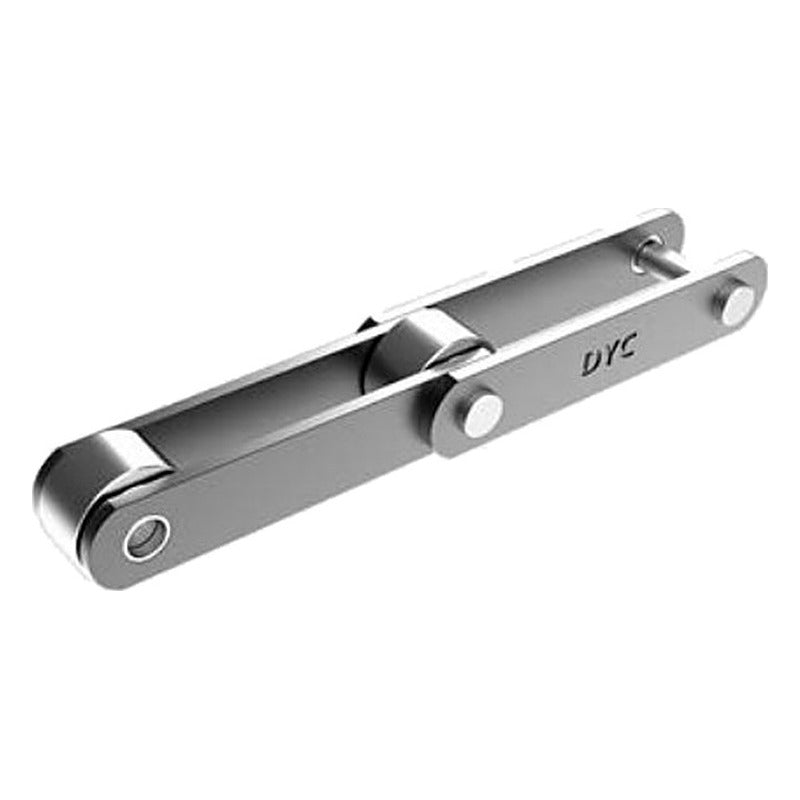

Dongyang Chain DY Series Standard Conveyor Chain (75-600 mm Pitch)

Dongyang Chain DY Series Standard Conveyor Chain (75-600 mm Pitch)

The DY series is Dongyang Chain's standard conveyor chain range, covering pitches from 66.27 mm to 600 mm and average tensile strengths from 3,000 kgf to 225,000 kgf.

Key features

  • Each chain number is offered with a choice of roller styles: R (large roller), F (flanged roller), S (small roller), M and N rollers
  • Three strength grades are listed for every size: standard, semi-high strength and high strength
  • Plate thicknesses in parentheses apply to stainless steel versions
  • Standard A, K, SA, SK and G attachments are available for most sizes
Dongyang Chain DY Series Standard Conveyor Chain (75-600 mm Pitch) reference 2
DY 03075 Roller types: R / F / S / M | Pitch: 75 mm | Avg. tensile strength (standard/semi-high/high strength): 3,000 / 5,000 / 7,100 kgf | Roller dia.: R 31.8 ; F 31.8 (flange 42) ; S 15.9 mm | Roller width E (R roller): 15.4 mm | Inner width: 16.1 mm | Plate height: 22 mm | Plate thickness: 3.2 mm | Pin dia.: 7.9 mm | Pin length L1+L2: 37 mm | Bush dia.: 11.1 mm | Weight R/F/S/M-N roller: 2.8 / 2.9 / 1.8 / - kg/m
DY 03100 Roller types: R / F / S | Pitch: 100 mm | Avg. tensile strength (standard/semi-high/high strength): 3,000 / 5,000 / 7,100 kgf | Roller dia.: R 31.8 ; F 31.8 (flange 42) ; S 15.9 mm | Roller width E (R roller): 15.4 mm | Inner width: 16.1 mm | Plate height: 22 mm | Plate thickness: 3.2 mm | Pin dia.: 7.9 mm | Pin length L1+L2: 37 mm | Bush dia.: 11.1 mm | Weight R/F/S/M-N roller: 2.4 / 2.5 / 1.6 / - kg/m
DY 03150 Roller types: R / F / S | Pitch: 150 mm | Avg. tensile strength (standard/semi-high/high strength): 3,000 / 5,000 / 7,100 kgf | Roller dia.: R 31.8 ; F 31.8 (flange 42) ; S 15.9 mm | Roller width E (R roller): 15.4 mm | Inner width: 16.1 mm | Plate height: 22 mm | Plate thickness: 3.2 mm | Pin dia.: 7.9 mm | Pin length L1+L2: 37 mm | Bush dia.: 11.1 mm | Weight R/F/S/M-N roller: 2.0 / 2.1 / 1.4 / - kg/m
DY 430 Roller types: R / S | Pitch: 101.6 mm | Avg. tensile strength (standard/semi-high/high strength): 5,500 / 8,000 / 10,000 kgf | Roller dia.: R 38.1 ; S 20.1 mm | Roller width E (R roller): 19 mm | Inner width: 22.6 mm | Plate height: 25.4 mm | Plate thickness: 4.8 (stainless 5.0) mm | Pin dia.: 9.7 mm | Pin length L1+L2: 55 mm | Bush dia.: 14.3 mm | Weight R/F/S/M-N roller: 4.4 / - / 3.0 / - kg/m
DY 05075 Roller types: S | Pitch: 75 mm | Avg. tensile strength (standard/semi-high/high strength): 7,000 / 10,000 / 14,500 kgf | Roller dia.: S 22.2 mm | Roller width E (R roller): - mm | Inner width: 22 mm | Plate height: 32 mm | Plate thickness: 4.5 mm | Pin dia.: 11.1 mm | Pin length L1+L2: 54.2 mm | Bush dia.: 15.9 mm | Weight R/F/S/M-N roller: - / - / 4.3 / - kg/m
DY 05100 Roller types: R / F / S | Pitch: 100 mm | Avg. tensile strength (standard/semi-high/high strength): 7,000 / 10,000 / 14,500 kgf | Roller dia.: R 40 ; F 40 (flange 50) ; S 22.2 mm | Roller width E (R roller): 19 mm | Inner width: 22 mm | Plate height: 32 mm | Plate thickness: 4.5 mm | Pin dia.: 11.1 mm | Pin length L1+L2: 54.2 mm | Bush dia.: 15.9 mm | Weight R/F/S/M-N roller: 5.2 / 5.4 / 3.8 / - kg/m
DY 05150 Roller types: R / F / S | Pitch: 150 mm | Avg. tensile strength (standard/semi-high/high strength): 7,000 / 10,000 / 14,500 kgf | Roller dia.: R 40 ; F 40 (flange 50) ; S 22.2 mm | Roller width E (R roller): 19 mm | Inner width: 22 mm | Plate height: 32 mm | Plate thickness: 4.5 mm | Pin dia.: 11.1 mm | Pin length L1+L2: 54.2 mm | Bush dia.: 15.9 mm | Weight R/F/S/M-N roller: 4.2 / 4.4 / 3.3 / - kg/m
DY 204 Roller types: S | Pitch: 66.27 mm | Avg. tensile strength (standard/semi-high/high strength): 8,000 / 11,000 / 14,500 kgf | Roller dia.: S 22.2 mm | Roller width E (R roller): - mm | Inner width: 27 mm | Plate height: 28.6 mm | Plate thickness: 6.3 (stainless 6.0) mm | Pin dia.: 11.1 mm | Pin length L1+L2: 66.3 mm | Bush dia.: 15.9 mm | Weight R/F/S/M-N roller: - / - / 5.5 / - kg/m
DY 450 Roller types: R / F / S / M | Pitch: 101.6 mm | Avg. tensile strength (standard/semi-high/high strength): 8,000 / 11,000 / 14,500 kgf | Roller dia.: R 44.5 ; F 44.5 (flange 55) ; S 22.2 ; M 25.4 mm | Roller width E (R roller): 23 mm | Inner width: 27 mm | Plate height: 28.6 mm | Plate thickness: 6.3 (stainless 6.0) mm | Pin dia.: 11.1 mm | Pin length L1+L2: 66.3 mm | Bush dia.: 15.9 mm | Weight R/F/S/M-N roller: 6.9 / 7.2 / 4.6 / 4.8 kg/m
DY 08125 Roller types: R / F / S / M | Pitch: 125 mm | Avg. tensile strength (standard/semi-high/high strength): 8,000 / 11,000 / 14,500 kgf | Roller dia.: R 44.5 ; F 44.5 (flange 55) ; S 22.2 ; M 25.4 mm | Roller width E (R roller): 23 mm | Inner width: 27 mm | Plate height: 28.6 mm | Plate thickness: 6.3 (stainless 6.0) mm | Pin dia.: 11.1 mm | Pin length L1+L2: 66.3 mm | Bush dia.: 15.9 mm | Weight R/F/S/M-N roller: 6.1 / 6.3 / 4.3 / 4.5 kg/m
DY 08150 Roller types: R / F / S / M | Pitch: 150 mm | Avg. tensile strength (standard/semi-high/high strength): 8,000 / 11,000 / 14,500 kgf | Roller dia.: R 44.5 ; F 44.5 (flange 55) ; S 22.2 ; M 25.4 mm | Roller width E (R roller): 23 mm | Inner width: 27 mm | Plate height: 28.6 mm | Plate thickness: 6.3 (stainless 6.0) mm | Pin dia.: 11.1 mm | Pin length L1+L2: 66.3 mm | Bush dia.: 15.9 mm | Weight R/F/S/M-N roller: 5.6 / 5.8 / 4.0 / 4.2 kg/m
DY 650 Roller types: R / F / S / M | Pitch: 152.4 mm | Avg. tensile strength (standard/semi-high/high strength): 8,000 / 11,000 / 14,500 kgf | Roller dia.: R 50.8 ; F 50.8 (flange 65) ; S 25.4 ; M 31.8 mm | Roller width E (R roller): 26 mm | Inner width: 30.2 mm | Plate height: 28.6 mm | Plate thickness: 6.3 (stainless 6.0) mm | Pin dia.: 11.1 mm | Pin length L1+L2: 69.6 mm | Bush dia.: 15.9 mm | Weight R/F/S/M-N roller: 7.9 / 8.2 / 5.7 / 6.1 kg/m
DY 10100 Roller types: R / S / M | Pitch: 100 mm | Avg. tensile strength (standard/semi-high/high strength): 11,500 / 17,000 / 23,000 kgf | Roller dia.: R 50.8 ; S 29 ; M 31.8 mm | Roller width E (R roller): 27 mm | Inner width: 30 mm | Plate height: 38.1 mm | Plate thickness: 6.3 (stainless 6.0) mm | Pin dia.: 14.3 mm | Pin length L1+L2: 71.9 mm | Bush dia.: 20 mm | Weight R/F/S/M-N roller: 10.0 / - / 7.0 / 7.3 kg/m
DY 10125 Roller types: S | Pitch: 125 mm | Avg. tensile strength (standard/semi-high/high strength): 11,500 / 17,000 / 23,000 kgf | Roller dia.: R 50.8 ; F 50.8 (flange 65) ; S 29 ; M 31.8 mm | Roller width E (R roller): 27 mm | Inner width: 30 mm | Plate height: 38.1 mm | Plate thickness: 6.3 (stainless 6.0) mm | Pin dia.: 14.3 mm | Pin length L1+L2: 71.9 mm | Bush dia.: 20 mm | Weight R/F/S/M-N roller: 8.7 / 8.9 / 6.3 / 6.5 kg/m
DY 10150 Roller types: R / F / S / M | Pitch: 150 mm | Avg. tensile strength (standard/semi-high/high strength): 11,500 / 17,000 / 23,000 kgf | Roller dia.: R 50.8 ; F 50.8 (flange 65) ; S 29 ; M 31.8 mm | Roller width E (R roller): 27 mm | Inner width: 30 mm | Plate height: 38.1 mm | Plate thickness: 6.3 (stainless 6.0) mm | Pin dia.: 14.3 mm | Pin length L1+L2: 71.9 mm | Bush dia.: 20 mm | Weight R/F/S/M-N roller: 8.0 / 8.3 / 5.9 / 6.1 kg/m
DY 214 Roller types: R / S / M | Pitch: 101.6 mm | Avg. tensile strength (standard/semi-high/high strength): 13,000 / 18,000 / 24,500 kgf | Roller dia.: R 44.5 ; S 31.8 ; M 34.9 mm | Roller width E (R roller): 27 mm | Inner width: 31.6 mm | Plate height: 38.1 mm | Plate thickness: 7.9 mm | Pin dia.: 15.9 mm | Pin length L1+L2: 80.9 mm | Bush dia.: 22.2 mm | Weight R/F/S/M-N roller: 10.5 / - / 8.7 / 9.1 kg/m
DY 205 Roller types: S | Pitch: 78.11 mm | Avg. tensile strength (standard/semi-high/high strength): 13,000 / 18,000 / 24,500 kgf | Roller dia.: S 31.8 mm | Roller width E (R roller): - mm | Inner width: 37.1 mm | Plate height: 38.1 mm | Plate thickness: 7.9 mm | Pin dia.: 15.9 mm | Pin length L1+L2: 86.4 mm | Bush dia.: 22.2 mm | Weight R/F/S/M-N roller: - / - / 10.3 / - kg/m
DY 6205 Roller types: R / F / S / M | Pitch: 152.4 mm | Avg. tensile strength (standard/semi-high/high strength): 19,000 / 23,000 / 28,500 kgf | Roller dia.: R 57.2 ; F 57.2 (flange 70) ; S 34.9 ; M 38.1 mm | Roller width E (R roller): 32 mm | Inner width: 37.1 mm | Plate height: 44.5 mm | Plate thickness: 7.9 mm | Pin dia.: 15.9 mm | Pin length L1+L2: 86.4 mm | Bush dia.: 22.2 mm | Weight R/F/S/M-N roller: 12.2 / 12.6 / 9.2 / 9.5 kg/m
DY 12200 Roller types: R / F / S / M | Pitch: 200 mm | Avg. tensile strength (standard/semi-high/high strength): 19,000 / 23,000 / 28,500 kgf | Roller dia.: R 65 ; F 65 (flange 80) ; S 34.9 ; M 38.1 mm | Roller width E (R roller): 32 mm | Inner width: 37.1 mm | Plate height: 44.5 mm | Plate thickness: 7.9 mm | Pin dia.: 15.9 mm | Pin length L1+L2: 86.4 mm | Bush dia.: 22.2 mm | Weight R/F/S/M-N roller: 11.6 / 12.1 / 8.3 / 8.6 kg/m
DY 12250 Roller types: R / F / S / M | Pitch: 250 mm | Avg. tensile strength (standard/semi-high/high strength): 19,000 / 23,000 / 28,500 kgf | Roller dia.: R 65 ; F 65 (flange 80) ; S 34.9 ; M 38.1 mm | Roller width E (R roller): 32 mm | Inner width: 37.1 mm | Plate height: 44.5 mm | Plate thickness: 7.9 mm | Pin dia.: 15.9 mm | Pin length L1+L2: 86.4 mm | Bush dia.: 22.2 mm | Weight R/F/S/M-N roller: 10.4 / 10.8 / 7.8 / 8.0 kg/m
DY 212 Roller types: R / S / M | Pitch: 152.4 mm | Avg. tensile strength (standard/semi-high/high strength): 25,000 / 32,000 / 39,500 kgf | Roller dia.: R 69.9 ; S 40.1 ; M 44.4 mm | Roller width E (R roller): 32.5 mm | Inner width: 37.1 mm | Plate height: 50.8 mm | Plate thickness: 9.5 (stainless 10.0) mm | Pin dia.: 19.05 mm | Pin length L1+L2: 96.8 mm | Bush dia.: 28.6 mm | Weight R/F/S/M-N roller: 18 / - / 13 / 13 kg/m
DY 17200 Roller types: R / F / S / M | Pitch: 200 mm | Avg. tensile strength (standard/semi-high/high strength): 25,000 / 32,000 / 39,500 kgf | Roller dia.: R 80 ; F 80 (flange 100) ; S 40.1 ; M 44.5 mm | Roller width E (R roller): 44 mm | Inner width: 51.4 mm | Plate height: 50.8 mm | Plate thickness: 9.5 (stainless 10.0) mm | Pin dia.: 19.05 mm | Pin length L1+L2: 111.5 mm | Bush dia.: 28.6 mm | Weight R/F/S/M-N roller: 20 / 21 / 12 / 13 kg/m
DY 17250 Roller types: R / F / S / M | Pitch: 250 mm | Avg. tensile strength (standard/semi-high/high strength): 25,000 / 32,000 / 39,500 kgf | Roller dia.: R 80 ; F 80 (flange 100) ; S 40.1 ; M 44.5 mm | Roller width E (R roller): 44 mm | Inner width: 51.4 mm | Plate height: 50.8 mm | Plate thickness: 9.5 (stainless 10.0) mm | Pin dia.: 19.05 mm | Pin length L1+L2: 111.5 mm | Bush dia.: 28.6 mm | Weight R/F/S/M-N roller: 17 / 18 / 11 / 12 kg/m
DY 17300 Roller types: R / F / S / M | Pitch: 300 mm | Avg. tensile strength (standard/semi-high/high strength): 25,000 / 32,000 / 39,500 kgf | Roller dia.: R 80 ; F 80 (flange 100) ; S 40.1 ; M 44.5 mm | Roller width E (R roller): 44 mm | Inner width: 51.4 mm | Plate height: 50.8 mm | Plate thickness: 9.5 (stainless 10.0) mm | Pin dia.: 19.05 mm | Pin length L1+L2: 111.5 mm | Bush dia.: 28.6 mm | Weight R/F/S/M-N roller: 16 / 16 / 11 / 11 kg/m
DY 26200 Roller types: S / M | Pitch: 200 mm | Avg. tensile strength (standard/semi-high/high strength): 32,000 / 45,000 / 53,000 kgf | Roller dia.: S 44.5 ; M 50.8 mm | Roller width E (R roller): - mm | Inner width: 57.2 mm | Plate height: 63.5 mm | Plate thickness: 9.5 (stainless 10.0) mm | Pin dia.: 22.2 mm | Pin length L1+L2: 117.9 mm | Bush dia.: 31.75 mm | Weight R/F/S/M-N roller: - / - / 16 / 17 kg/m
DY 26250 Roller types: R / F / S / M | Pitch: 250 mm | Avg. tensile strength (standard/semi-high/high strength): 32,000 / 45,000 / 53,000 kgf | Roller dia.: R 100 ; F 100 (flange 125) ; S 44.5 ; M 50.8 mm | Roller width E (R roller): 50 mm | Inner width: 57.2 mm | Plate height: 63.5 mm | Plate thickness: 9.5 (stainless 10.0) mm | Pin dia.: 22.2 mm | Pin length L1+L2: 117.9 mm | Bush dia.: 31.75 mm | Weight R/F/S/M-N roller: 26 / 27 / 15 / 16 kg/m
DY 26300 Roller types: R / F / S / M | Pitch: 300 mm | Avg. tensile strength (standard/semi-high/high strength): 32,000 / 45,000 / 53,000 kgf | Roller dia.: R 100 ; F 100 (flange 125) ; S 44.5 ; M 50.8 mm | Roller width E (R roller): 50 mm | Inner width: 57.2 mm | Plate height: 63.5 mm | Plate thickness: 9.5 (stainless 10.0) mm | Pin dia.: 22.2 mm | Pin length L1+L2: 117.9 mm | Bush dia.: 31.75 mm | Weight R/F/S/M-N roller: 23 / 24 / 14 / 15 kg/m
DY 26450 Roller types: R / F / S / M | Pitch: 450 mm | Avg. tensile strength (standard/semi-high/high strength): 32,000 / 45,000 / 53,000 kgf | Roller dia.: R 100 ; F 100 (flange 125) ; S 44.5 ; M 50.8 mm | Roller width E (R roller): 50 mm | Inner width: 57.2 mm | Plate height: 63.5 mm | Plate thickness: 9.5 (stainless 10.0) mm | Pin dia.: 22.2 mm | Pin length L1+L2: 117.9 mm | Bush dia.: 31.75 mm | Weight R/F/S/M-N roller: 19 / 19 / 13 / 13 kg/m
DY 36250 Roller types: S / M | Pitch: 250 mm | Avg. tensile strength (standard/semi-high/high strength): 48,500 / 52,000 / 69,500 kgf | Roller dia.: S 50.8 ; M 57.2 mm | Roller width E (R roller): - mm | Inner width: 66.7 mm | Plate height: 76.2 mm | Plate thickness: 12.7 mm | Pin dia.: 25.4 mm | Pin length L1+L2: 144.5 mm | Bush dia.: 38.1 (40) mm | Weight R/F/S/M-N roller: - / - / 25 / 26 kg/m
DY 36300 Roller types: R / F / S / M | Pitch: 300 mm | Avg. tensile strength (standard/semi-high/high strength): 48,500 / 52,000 / 69,500 kgf | Roller dia.: R 125 ; F 125 (flange 150) ; S 50.8 ; M 57.2 mm | Roller width E (R roller): 56 mm | Inner width: 66.7 mm | Plate height: 76.2 mm | Plate thickness: 12.7 mm | Pin dia.: 25.4 mm | Pin length L1+L2: 144.5 mm | Bush dia.: 38.1 (40) mm | Weight R/F/S/M-N roller: 40 / 42 / 23 / 24 kg/m
DY 36450 Roller types: R / F / S / M | Pitch: 450 mm | Avg. tensile strength (standard/semi-high/high strength): 48,500 / 52,000 / 69,500 kgf | Roller dia.: R 125 ; F 125 (flange 150) ; S 50.8 ; M 57.2 mm | Roller width E (R roller): 56 mm | Inner width: 66.7 mm | Plate height: 76.2 mm | Plate thickness: 12.7 mm | Pin dia.: 25.4 mm | Pin length L1+L2: 144.5 mm | Bush dia.: 38.1 (40) mm | Weight R/F/S/M-N roller: 32 / 33 / 21 / 21 kg/m
DY 36600 Roller types: R / F / S / M | Pitch: 600 mm | Avg. tensile strength (standard/semi-high/high strength): 48,500 / 52,000 / 69,500 kgf | Roller dia.: R 125 ; F 125 (flange 150) ; S 50.8 ; M 57.2 mm | Roller width E (R roller): 56 mm | Inner width: 66.7 mm | Plate height: 76.2 mm | Plate thickness: 12.7 mm | Pin dia.: 25.4 mm | Pin length L1+L2: 144.5 mm | Bush dia.: 38.1 (40) mm | Weight R/F/S/M-N roller: 28 / 29 / 19 / 20 kg/m
DY 52300 Roller types: R / F / S | Pitch: 300 mm | Avg. tensile strength (standard/semi-high/high strength): 51,000 / 88,000 / 105,000 kgf | Roller dia.: R 140 ; F 140 (flange 170) ; S 57.2 mm | Roller width E (R roller): 65 mm | Inner width: 77 mm | Plate height: 76.2 mm | Plate thickness: 16 mm | Pin dia.: 31.75 mm | Pin length L1+L2: 175.5 mm | Bush dia.: 44.45 mm | Weight R/F/S/M-N roller: 55 / 58 / 30 / - kg/m
DY 52450 Roller types: R / F / S | Pitch: 450 mm | Avg. tensile strength (standard/semi-high/high strength): 51,000 / 88,000 / 105,000 kgf | Roller dia.: R 140 ; F 140 (flange 170) ; S 57.2 mm | Roller width E (R roller): 65 mm | Inner width: 77 mm | Plate height: 76.2 mm | Plate thickness: 16 mm | Pin dia.: 31.75 mm | Pin length L1+L2: 175.5 mm | Bush dia.: 44.45 mm | Weight R/F/S/M-N roller: 43 / 45 / 26 / - kg/m
DY 52600 Roller types: R / F / S | Pitch: 600 mm | Avg. tensile strength (standard/semi-high/high strength): 51,000 / 88,000 / 105,000 kgf | Roller dia.: R 140 ; F 140 (flange 170) ; S 57.2 mm | Roller width E (R roller): 65 mm | Inner width: 77 mm | Plate height: 76.2 mm | Plate thickness: 16 mm | Pin dia.: 31.75 mm | Pin length L1+L2: 175.5 mm | Bush dia.: 44.45 mm | Weight R/F/S/M-N roller: 37 / 38 / 25 / - kg/m
DY 60300 Roller types: R / F / N | Pitch: 300 mm | Avg. tensile strength (standard/semi-high/high strength): 51,000 / 88,000 / 106,000 kgf | Roller dia.: R 140 ; F 140 (flange 170) ; N 70 mm | Roller width E (R roller): 65 mm | Inner width: 77 mm | Plate height: 90 mm | Plate thickness: 12.7 mm | Pin dia.: 35 mm | Pin length L1+L2: 160.8 mm | Bush dia.: 50.8 mm | Weight R/F/S/M-N roller: 54 / 57 / - / 32 kg/m
DY 60350 Roller types: R / F / N | Pitch: 350 mm | Avg. tensile strength (standard/semi-high/high strength): 51,000 / 88,000 / 106,000 kgf | Roller dia.: R 140 ; F 140 (flange 170) ; N 70 mm | Roller width E (R roller): 65 mm | Inner width: 77 mm | Plate height: 90 mm | Plate thickness: 12.7 mm | Pin dia.: 35 mm | Pin length L1+L2: 160.8 mm | Bush dia.: 50.8 mm | Weight R/F/S/M-N roller: 49 / 51 / - / 30 kg/m
DY 60400 Roller types: R / F / N | Pitch: 400 mm | Avg. tensile strength (standard/semi-high/high strength): 51,000 / 88,000 / 106,000 kgf | Roller dia.: R 140 ; F 140 (flange 170) ; N 70 mm | Roller width E (R roller): 65 mm | Inner width: 77 mm | Plate height: 90 mm | Plate thickness: 12.7 mm | Pin dia.: 35 mm | Pin length L1+L2: 160.8 mm | Bush dia.: 50.8 mm | Weight R/F/S/M-N roller: 45 / 47 / - / 28 kg/m
DY 90350 Roller types: S | Pitch: 350 mm | Avg. tensile strength (standard/semi-high/high strength): 80,500 / 135,000 / 166,000 kgf | Roller dia.: N 85 mm | Roller width E (R roller): - mm | Inner width: 88 mm | Plate height: 110 mm | Plate thickness: 16 mm | Pin dia.: 42.0 mm | Pin length L1+L2: 189.5 mm | Bush dia.: 63.5 mm | Weight R/F/S/M-N roller: - / - / - / 49 kg/m
DY 90400 Roller types: R / F / N | Pitch: 400 mm | Avg. tensile strength (standard/semi-high/high strength): 80,500 / 135,000 / 166,000 kgf | Roller dia.: R 170 ; F 170 (flange 205) ; N 85 mm | Roller width E (R roller): 76 mm | Inner width: 88 mm | Plate height: 110 mm | Plate thickness: 16 mm | Pin dia.: 42.0 mm | Pin length L1+L2: 189.5 mm | Bush dia.: 63.5 mm | Weight R/F/S/M-N roller: 74 / 78 / - / 42 kg/m
DY 90500 Roller types: R / F / N | Pitch: 500 mm | Avg. tensile strength (standard/semi-high/high strength): 80,500 / 135,000 / 166,000 kgf | Roller dia.: R 170 ; F 170 (flange 205) ; N 85 mm | Roller width E (R roller): 76 mm | Inner width: 88 mm | Plate height: 110 mm | Plate thickness: 16 mm | Pin dia.: 42.0 mm | Pin length L1+L2: 189.5 mm | Bush dia.: 63.5 mm | Weight R/F/S/M-N roller: 65 / 68 / - / 42 kg/m
DY 120400 Roller types: R / N | Pitch: 400 mm | Avg. tensile strength (standard/semi-high/high strength): 113,000 / 184,000 / 225,000 kgf | Roller dia.: R 200 ; F 200 (flange 240) ; N 100 mm | Roller width E (R roller): 87 mm | Inner width: 100 mm | Plate height: 130 mm | Plate thickness: 19 mm | Pin dia.: 50.0 mm | Pin length L1+L2: 218 mm | Bush dia.: 75 mm | Weight R/F/S/M-N roller: 113 / - / - / 69 kg/m
DY 120600 Roller types: R / F / N | Pitch: 600 mm | Avg. tensile strength (standard/semi-high/high strength): 113,000 / 184,000 / 225,000 kgf | Roller dia.: R 200 ; F 200 (flange 240) ; N 100 mm | Roller width E (R roller): 87 mm | Inner width: 100 mm | Plate height: 130 mm | Plate thickness: 19 mm | Pin dia.: 50.0 mm | Pin length L1+L2: 218 mm | Bush dia.: 75 mm | Weight R/F/S/M-N roller: 88 / 92 / - / 59 kg/m
Conveyor ChainsDongyang Chain
43 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Dongyang Chain DY Series Standard Conveyor Chain (75-600 mm Pitch)

Brand Dongyang Chain·Conveyor Chains

Available part numbers (43)

DY 03075, DY 03100, DY 03150, DY 430, DY 05075, DY 05100, DY 05150, DY 204, DY 450, DY 08125 + 33 more — see full table ↓
