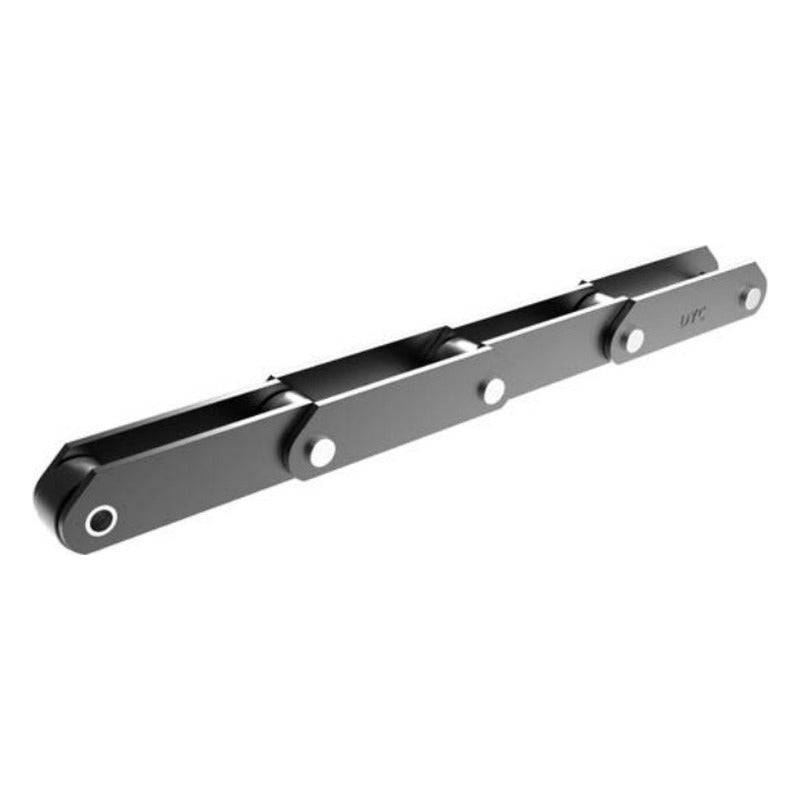

Dongyang Chain DYD Type Conveyor Chain

Dongyang Chain DYD Type Conveyor Chain

The DYD chain carries loads directly on top of the chain.

Key features

  • Typical uses are steel mill plate and section transfer and automotive assembly lines where car bodies ride on the chain
  • Ball bearings can be fitted in the rollers for long lines
  • Sizes from 75 mm to 450 mm pitch are listed
DYD 03075-R Pitch: 75 mm | Roller dia.: 31.8 mm | Roller width E: 15.5 mm | Inner width: 16.1 mm | Overall height H: 36.9 mm | Plate height H1: 21 mm | Plate offset H2: 4.9 mm | Plate thickness: 3.2 mm | Pin length L1/L2: 18/20 mm | Weight: 3.2 kg/m | Avg. tensile strength: 3,000 kgf
DYD 03010-R Pitch: 100 mm | Roller dia.: 31.8 mm | Roller width E: 15.5 mm | Inner width: 16.1 mm | Overall height H: 36.9 mm | Plate height H1: 21 mm | Plate offset H2: 4.9 mm | Plate thickness: 3.2 mm | Pin length L1/L2: 18/20 mm | Weight: 2.8 kg/m | Avg. tensile strength: 3,000 kgf
DYD 05100-R Pitch: 100 mm | Roller dia.: 40 mm | Roller width E: 19 mm | Inner width: 22 mm | Overall height H: 44 mm | Plate height H1: 24 mm | Plate offset H2: 4 mm | Plate thickness: 4.5 mm | Pin length L1/L2: 25/28.5 mm | Weight: 5.9 kg/m | Avg. tensile strength: 7,000 kgf
DYD 05150-R Pitch: 150 mm | Roller dia.: 40 mm | Roller width E: 19 mm | Inner width: 22 mm | Overall height H: 44 mm | Plate height H1: 24 mm | Plate offset H2: 4 mm | Plate thickness: 4.5 mm | Pin length L1/L2: 25/28.5 mm | Weight: 4.9 kg/m | Avg. tensile strength: 7,000 kgf
DYD 08150-R Pitch: 150 mm | Roller dia.: 44.5 mm | Roller width E: 23 mm | Inner width: 27 mm | Overall height H: 50.3 mm | Plate height H1: 28 mm | Plate offset H2: 8 mm | Plate thickness: 6.3 mm | Pin length L1/L2: 31/34.5 mm | Weight: 7.0 kg/m | Avg. tensile strength: 8,000 kgf
DYD 10150-R Pitch: 150 mm | Roller dia.: 50.8 mm | Roller width E: 27 mm | Inner width: 30 mm | Overall height H: 57.4 mm | Plate height H1: 32 mm | Plate offset H2: 6.4 mm | Plate thickness: 6.3 mm | Pin length L1/L2: 33/36 mm | Weight: 9.7 kg/m | Avg. tensile strength: 11,500 kgf
DYD 10200-R Pitch: 200 mm | Roller dia.: 50.8 mm | Roller width E: 27 mm | Inner width: 30 mm | Overall height H: 57.4 mm | Plate height H1: 32 mm | Plate offset H2: 6.4 mm | Plate thickness: 6.3 mm | Pin length L1/L2: 33/36 mm | Weight: 8.5 kg/m | Avg. tensile strength: 11,500 kgf
DYD 6205-R Pitch: 152.4 mm | Roller dia.: 57.2 mm | Roller width E: 32 mm | Inner width: 37.1 mm | Overall height H: 63.6 mm | Plate height H1: 35 mm | Plate offset H2: 6.1 mm | Plate thickness: 7.9 mm | Pin length L1/L2: 40.5/43 mm | Weight: 14.0 kg/m | Avg. tensile strength: 19,000 kgf
DYD 12200-R Pitch: 200 mm | Roller dia.: 65 mm | Roller width E: 32 mm | Inner width: 37.1 mm | Overall height H: 73.5 mm | Plate height H1: 41 mm | Plate offset H2: 10 mm | Plate thickness: 7.9 mm | Pin length L1/L2: 40.5/43 mm | Weight: 14.9 kg/m | Avg. tensile strength: 19,000 kgf
DYD 12250-R Pitch: 250 mm | Roller dia.: 65 mm | Roller width E: 32 mm | Inner width: 37.1 mm | Overall height H: 73.5 mm | Plate height H1: 41 mm | Plate offset H2: 10 mm | Plate thickness: 7.9 mm | Pin length L1/L2: 40.5/43 mm | Weight: 13.5 kg/m | Avg. tensile strength: 19,000 kgf
DYD 17250-R Pitch: 250 mm | Roller dia.: 80 mm | Roller width E: 44 mm | Inner width: 51.4 mm | Overall height H: 90 mm | Plate height H1: 50 mm | Plate offset H2: 13.8 mm | Plate thickness: 9.5 mm | Pin length L1/L2: 51.5/58 mm | Weight: 22.5 kg/m | Avg. tensile strength: 25,000 kgf
DYD 17300-R Pitch: 300 mm | Roller dia.: 80 mm | Roller width E: 44 mm | Inner width: 51.4 mm | Overall height H: 90 mm | Plate height H1: 50 mm | Plate offset H2: 13.8 mm | Plate thickness: 9.5 mm | Pin length L1/L2: 51.5/58 mm | Weight: 21.5 kg/m | Avg. tensile strength: 25,000 kgf
DYD 26300-R Pitch: 300 mm | Roller dia.: 85 mm | Roller width E: 50 mm | Inner width: 57.2 mm | Overall height H: 95.5 mm | Plate height H1: 53 mm | Plate offset H2: 10.5 mm | Plate thickness: 9.5 mm | Pin length L1/L2: 55.5/61 mm | Weight: 24.3 kg/m | Avg. tensile strength: 32,000 kgf
DYD 36300-R Pitch: 300 mm | Roller dia.: 100 mm | Roller width E: 56 mm | Inner width: 66.7 mm | Overall height H: 112 mm | Plate height H1: 62 mm | Plate offset H2: 12 mm | Plate thickness: 12.7 mm | Pin length L1/L2: 68/78 mm | Weight: 39.0 kg/m | Avg. tensile strength: 48,500 kgf
DYD 36400-R Pitch: 400 mm | Roller dia.: 100 mm | Roller width E: 56 mm | Inner width: 66.7 mm | Overall height H: 112 mm | Plate height H1: 62 mm | Plate offset H2: 12 mm | Plate thickness: 12.7 mm | Pin length L1/L2: 68/78 mm | Weight: 34.2 kg/m | Avg. tensile strength: 48,500 kgf
DYD 52450-R Pitch: 450 mm | Roller dia.: 110 mm | Roller width E: 65 mm | Inner width: 77 mm | Overall height H: 125 mm | Plate height H1: 70 mm | Plate offset H2: 17 mm | Plate thickness: 16 mm | Pin length L1/L2: 82/90 mm | Weight: 46.0 kg/m | Avg. tensile strength: 51,000 kgf
Conveyor ChainsDongyang Chain
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Dongyang Chain DYD Type Conveyor Chain

Brand Dongyang Chain·Conveyor Chains

Available part numbers (16)

DYD 03075-R, DYD 03010-R, DYD 05100-R, DYD 05150-R, DYD 08150-R, DYD 10150-R, DYD 10200-R, DYD 6205-R, DYD 12200-R, DYD 12250-R + 6 more — see full table ↓

How to order

Send the Dongyang Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DYD 03075-RPitch: 75 mm | Roller dia.: 31.8 mm | Roller width E: 15.5 mm | Inner width: 16.1 mm | Overall height H: 36.9 mm | Plate height H1: 21 mm | Plate offset H2: 4.9 mm | Plate thickness: 3.2 mm | Pin length L1/L2: 18/20 mm | Weight: 3.2 kg/m | Avg. tensile strength: 3,000 kgf
DYD 03010-RPitch: 100 mm | Roller dia.: 31.8 mm | Roller width E: 15.5 mm | Inner width: 16.1 mm | Overall height H: 36.9 mm | Plate height H1: 21 mm | Plate offset H2: 4.9 mm | Plate thickness: 3.2 mm | Pin length L1/L2: 18/20 mm | Weight: 2.8 kg/m | Avg. tensile strength: 3,000 kgf
DYD 05100-RPitch: 100 mm | Roller dia.: 40 mm | Roller width E: 19 mm | Inner width: 22 mm | Overall height H: 44 mm | Plate height H1: 24 mm | Plate offset H2: 4 mm | Plate thickness: 4.5 mm | Pin length L1/L2: 25/28.5 mm | Weight: 5.9 kg/m | Avg. tensile strength: 7,000 kgf
DYD 05150-RPitch: 150 mm | Roller dia.: 40 mm | Roller width E: 19 mm | Inner width: 22 mm | Overall height H: 44 mm | Plate height H1: 24 mm | Plate offset H2: 4 mm | Plate thickness: 4.5 mm | Pin length L1/L2: 25/28.5 mm | Weight: 4.9 kg/m | Avg. tensile strength: 7,000 kgf
DYD 08150-RPitch: 150 mm | Roller dia.: 44.5 mm | Roller width E: 23 mm | Inner width: 27 mm | Overall height H: 50.3 mm | Plate height H1: 28 mm | Plate offset H2: 8 mm | Plate thickness: 6.3 mm | Pin length L1/L2: 31/34.5 mm | Weight: 7.0 kg/m | Avg. tensile strength: 8,000 kgf
DYD 10150-RPitch: 150 mm | Roller dia.: 50.8 mm | Roller width E: 27 mm | Inner width: 30 mm | Overall height H: 57.4 mm | Plate height H1: 32 mm | Plate offset H2: 6.4 mm | Plate thickness: 6.3 mm | Pin length L1/L2: 33/36 mm | Weight: 9.7 kg/m | Avg. tensile strength: 11,500 kgf
DYD 10200-RPitch: 200 mm | Roller dia.: 50.8 mm | Roller width E: 27 mm | Inner width: 30 mm | Overall height H: 57.4 mm | Plate height H1: 32 mm | Plate offset H2: 6.4 mm | Plate thickness: 6.3 mm | Pin length L1/L2: 33/36 mm | Weight: 8.5 kg/m | Avg. tensile strength: 11,500 kgf
DYD 6205-RPitch: 152.4 mm | Roller dia.: 57.2 mm | Roller width E: 32 mm | Inner width: 37.1 mm | Overall height H: 63.6 mm | Plate height H1: 35 mm | Plate offset H2: 6.1 mm | Plate thickness: 7.9 mm | Pin length L1/L2: 40.5/43 mm | Weight: 14.0 kg/m | Avg. tensile strength: 19,000 kgf
DYD 12200-RPitch: 200 mm | Roller dia.: 65 mm | Roller width E: 32 mm | Inner width: 37.1 mm | Overall height H: 73.5 mm | Plate height H1: 41 mm | Plate offset H2: 10 mm | Plate thickness: 7.9 mm | Pin length L1/L2: 40.5/43 mm | Weight: 14.9 kg/m | Avg. tensile strength: 19,000 kgf
DYD 12250-RPitch: 250 mm | Roller dia.: 65 mm | Roller width E: 32 mm | Inner width: 37.1 mm | Overall height H: 73.5 mm | Plate height H1: 41 mm | Plate offset H2: 10 mm | Plate thickness: 7.9 mm | Pin length L1/L2: 40.5/43 mm | Weight: 13.5 kg/m | Avg. tensile strength: 19,000 kgf
DYD 17250-RPitch: 250 mm | Roller dia.: 80 mm | Roller width E: 44 mm | Inner width: 51.4 mm | Overall height H: 90 mm | Plate height H1: 50 mm | Plate offset H2: 13.8 mm | Plate thickness: 9.5 mm | Pin length L1/L2: 51.5/58 mm | Weight: 22.5 kg/m | Avg. tensile strength: 25,000 kgf
DYD 17300-RPitch: 300 mm | Roller dia.: 80 mm | Roller width E: 44 mm | Inner width: 51.4 mm | Overall height H: 90 mm | Plate height H1: 50 mm | Plate offset H2: 13.8 mm | Plate thickness: 9.5 mm | Pin length L1/L2: 51.5/58 mm | Weight: 21.5 kg/m | Avg. tensile strength: 25,000 kgf
DYD 26300-RPitch: 300 mm | Roller dia.: 85 mm | Roller width E: 50 mm | Inner width: 57.2 mm | Overall height H: 95.5 mm | Plate height H1: 53 mm | Plate offset H2: 10.5 mm | Plate thickness: 9.5 mm | Pin length L1/L2: 55.5/61 mm | Weight: 24.3 kg/m | Avg. tensile strength: 32,000 kgf
DYD 36300-RPitch: 300 mm | Roller dia.: 100 mm | Roller width E: 56 mm | Inner width: 66.7 mm | Overall height H: 112 mm | Plate height H1: 62 mm | Plate offset H2: 12 mm | Plate thickness: 12.7 mm | Pin length L1/L2: 68/78 mm | Weight: 39.0 kg/m | Avg. tensile strength: 48,500 kgf
DYD 36400-RPitch: 400 mm | Roller dia.: 100 mm | Roller width E: 56 mm | Inner width: 66.7 mm | Overall height H: 112 mm | Plate height H1: 62 mm | Plate offset H2: 12 mm | Plate thickness: 12.7 mm | Pin length L1/L2: 68/78 mm | Weight: 34.2 kg/m | Avg. tensile strength: 48,500 kgf
DYD 52450-RPitch: 450 mm | Roller dia.: 110 mm | Roller width E: 65 mm | Inner width: 77 mm | Overall height H: 125 mm | Plate height H1: 70 mm | Plate offset H2: 17 mm | Plate thickness: 16 mm | Pin length L1/L2: 82/90 mm | Weight: 46.0 kg/m | Avg. tensile strength: 51,000 kgf
