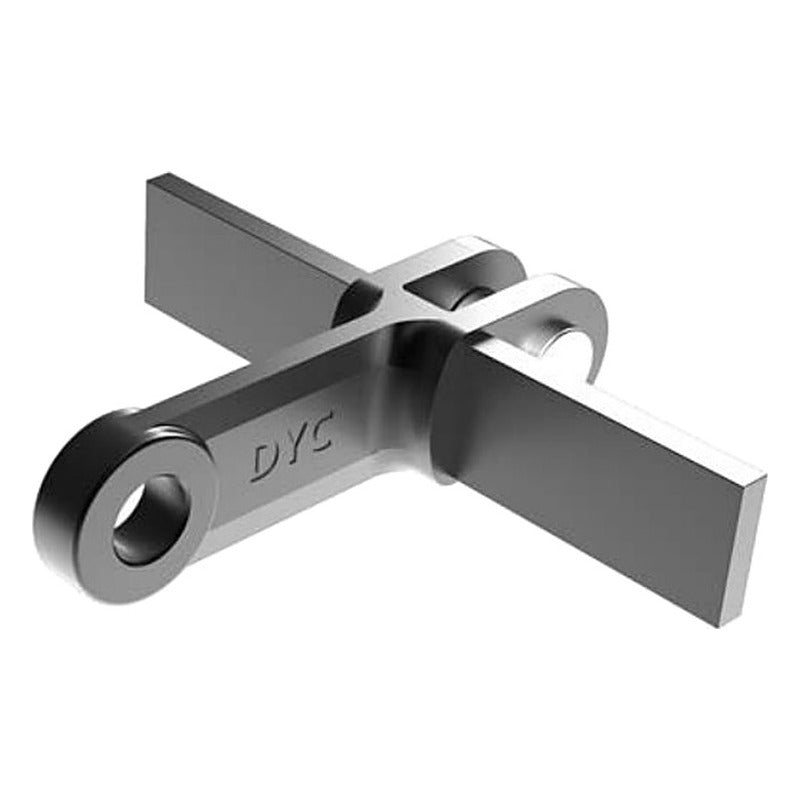

Dongyang Chain DYF Flow Conveyor Chain

Dongyang Chain DYF Flow Conveyor Chain

The DYF chain is a flow conveyor chain for high-temperature or high-abrasion duty.

Key features

  • Links (blocks) are forged with welded-on attachments, or cast steel with the link and attachment in one piece
  • Pitches from 120 mm to 200 mm and attachment widths from 125 mm to 570 mm are listed
  • Listed weights include an attachment on every link
DYF 05125 Pitch: 120 mm | Max. allowable load: 830 kgf | Avg. tensile strength: 5,000 kgf | Link dim. a: 10 mm | Link dim. b: 21 mm | Link height h: 26 mm | Link thickness t: 6 mm | Attachment width B: 125 mm | Weight (with attachment every link): 3.30 kg/m
DYF 05150 Pitch: 120 mm | Max. allowable load: 830 kgf | Avg. tensile strength: 5,000 kgf | Link dim. a: 10 mm | Link dim. b: 21 mm | Link height h: 26 mm | Link thickness t: 6 mm | Attachment width B: 150 mm | Weight (with attachment every link): 3.33 kg/m
DYF 05190 Pitch: 120 mm | Max. allowable load: 830 kgf | Avg. tensile strength: 5,000 kgf | Link dim. a: 10 mm | Link dim. b: 21 mm | Link height h: 26 mm | Link thickness t: 6 mm | Attachment width B: 190 mm | Weight (with attachment every link): 3.40 kg/m
DYF 10125 Pitch: 150 mm | Max. allowable load: 1,670 kgf | Avg. tensile strength: 10,000 kgf | Link dim. a: 15 mm | Link dim. b: 32 mm | Link height h: 34 mm | Link thickness t: 8 mm | Attachment width B: 125 mm | Weight (with attachment every link): 4.60 kg/m
DYF 10150 Pitch: 150 mm | Max. allowable load: 1,670 kgf | Avg. tensile strength: 10,000 kgf | Link dim. a: 15 mm | Link dim. b: 32 mm | Link height h: 34 mm | Link thickness t: 8 mm | Attachment width B: 150 mm | Weight (with attachment every link): 4.86 kg/m
DYF 10190 Pitch: 150 mm | Max. allowable load: 1,670 kgf | Avg. tensile strength: 10,000 kgf | Link dim. a: 15 mm | Link dim. b: 32 mm | Link height h: 34 mm | Link thickness t: 8 mm | Attachment width B: 190 mm | Weight (with attachment every link): 6.05 kg/m
DYF 10240 Pitch: 150 mm | Max. allowable load: 1,670 kgf | Avg. tensile strength: 10,000 kgf | Link dim. a: 15 mm | Link dim. b: 32 mm | Link height h: 34 mm | Link thickness t: 8 mm | Attachment width B: 240 mm | Weight (with attachment every link): 8.80 kg/m
DYF 10290 Pitch: 150 mm | Max. allowable load: 1,670 kgf | Avg. tensile strength: 10,000 kgf | Link dim. a: 15 mm | Link dim. b: 32 mm | Link height h: 34 mm | Link thickness t: 8 mm | Attachment width B: 290 mm | Weight (with attachment every link): 8.85 kg/m
DYF 15290 Pitch: 150 mm | Max. allowable load: 2,500 kgf | Avg. tensile strength: 20,000 kgf | Link dim. a: 18 mm | Link dim. b: 37 mm | Link height h: 40 mm | Link thickness t: 10 mm | Attachment width B: 290 mm | Weight (with attachment every link): 11.63 kg/m
DYF 10340 Pitch: 150 mm | Max. allowable load: 1,670 kgf | Avg. tensile strength: 10,000 kgf | Link dim. a: 15 mm | Link dim. b: 32 mm | Link height h: 34 mm | Link thickness t: 8 mm | Attachment width B: 340 mm | Weight (with attachment every link): 9.84 kg/m
DYF 20340 Pitch: 150 mm | Max. allowable load: 3,340 kgf | Avg. tensile strength: 30,000 kgf | Link dim. a: 20 mm | Link dim. b: 41 mm | Link height h: 46 mm | Link thickness t: 11 mm | Attachment width B: 340 mm | Weight (with attachment every link): 15.9 kg/m
DYF 20410 Pitch: 150 mm | Max. allowable load: 3,340 kgf | Avg. tensile strength: 30,000 kgf | Link dim. a: 20 mm | Link dim. b: 41 mm | Link height h: 46 mm | Link thickness t: 11 mm | Attachment width B: 410 mm | Weight (with attachment every link): 21.2 kg/m
DYF 30410 Pitch: 200 mm | Max. allowable load: 5,000 kgf | Avg. tensile strength: 40,000 kgf | Link dim. a: 20 mm | Link dim. b: 41 mm | Link height h: 46 mm | Link thickness t: 12 mm | Attachment width B: 410 mm | Weight (with attachment every link): 17.3 kg/m
DYF 30480 Pitch: 200 mm | Max. allowable load: 5,000 kgf | Avg. tensile strength: 40,000 kgf | Link dim. a: 20 mm | Link dim. b: 41 mm | Link height h: 46 mm | Link thickness t: 12 mm | Attachment width B: 480 mm | Weight (with attachment every link): 19.1 kg/m
DYF 40480 Pitch: 200 mm | Max. allowable load: 6,600 kgf | Avg. tensile strength: 48,000 kgf | Link dim. a: 22 mm | Link dim. b: 45 mm | Link height h: 52 mm | Link thickness t: 12 mm | Attachment width B: 480 mm | Weight (with attachment every link): 22.4 kg/m
DYF 40570 Pitch: 200 mm | Max. allowable load: 6,600 kgf | Avg. tensile strength: 48,000 kgf | Link dim. a: 22 mm | Link dim. b: 45 mm | Link height h: 52 mm | Link thickness t: 12 mm | Attachment width B: 570 mm | Weight (with attachment every link): 25.2 kg/m
DYF 50570 Pitch: 200 mm | Max. allowable load: 8,300 kgf | Avg. tensile strength: 58,000 kgf | Link dim. a: 26 mm | Link dim. b: 54 mm | Link height h: 54 mm | Link thickness t: 14 mm | Attachment width B: 570 mm | Weight (with attachment every link): 27.5 kg/m
Flow Conveyor ChainsDongyang Chain
17 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Dongyang Chain DYF Flow Conveyor Chain

Brand Dongyang Chain·Flow Conveyor Chains

Available part numbers (17)

DYF 05125, DYF 05150, DYF 05190, DYF 10125, DYF 10150, DYF 10190, DYF 10240, DYF 10290, DYF 15290, DYF 10340 + 7 more — see full table ↓
