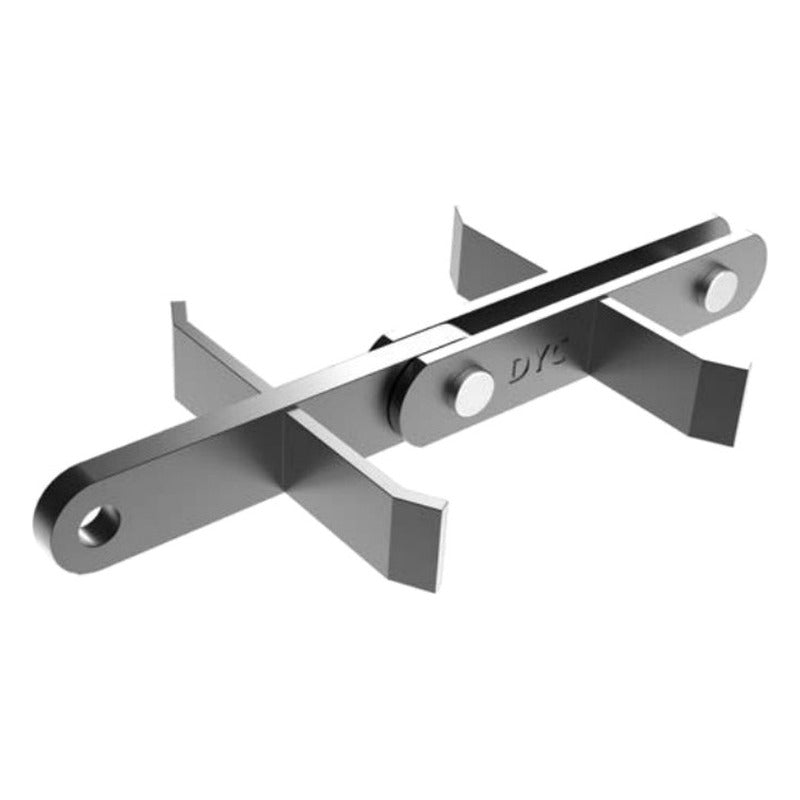

Dongyang Chain DYN Flow Conveyor Chain (NF Chain)

Dongyang Chain DYN Flow Conveyor Chain (NF Chain)

The DYN chain is a flow conveyor chain for materials that cause heavy wear.

Key features

  • It is designed to minimise wear of the bushings and rollers
  • Inner links are forged or cast and outer link plates are pressed from flat steel
  • L, KL and W attachments for horizontal conveyors are welded on according to the conveyed material
DYN 30150 Pitch: 150 mm | Plate height H1: 44.5 mm | Plate height H2: 38.1 mm | Pin length L1: 23.5 mm | Pin length L2: 32 mm | Plate thickness: 7.9 mm | Inner width: 23.3 mm | Weight: 7.9 kg/m | Avg. tensile strength: 31,500 kgf
DYN 30200 Pitch: 200 mm | Plate height H1: 44.5 mm | Plate height H2: 38.1 mm | Pin length L1: 23.5 mm | Pin length L2: 32 mm | Plate thickness: 7.9 mm | Inner width: 23.3 mm | Weight: 7.6 kg/m | Avg. tensile strength: 31,500 kgf
DYN 56200 Pitch: 200 mm | Plate height H1: 63.5 mm | Plate height H2: 54.0 mm | Pin length L1: 28.5 mm | Pin length L2: 39.5 mm | Plate thickness: 9.5 mm | Inner width: 29.5 mm | Weight: 14.7 kg/m | Avg. tensile strength: 56,500 kgf
DYN 56250 Pitch: 250 mm | Plate height H1: 63.5 mm | Plate height H2: 54.0 mm | Pin length L1: 28.5 mm | Pin length L2: 39.5 mm | Plate thickness: 9.5 mm | Inner width: 29.5 mm | Weight: 14.5 kg/m | Avg. tensile strength: 56,500 kgf
Flow Conveyor ChainsDongyang Chain
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Dongyang Chain DYN Flow Conveyor Chain (NF Chain)

Brand Dongyang Chain·Flow Conveyor Chains

Available part numbers (4)

DYN 30150, DYN 30200, DYN 56200, DYN 56250

How to order

Send the Dongyang Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DYN 30150Pitch: 150 mm | Plate height H1: 44.5 mm | Plate height H2: 38.1 mm | Pin length L1: 23.5 mm | Pin length L2: 32 mm | Plate thickness: 7.9 mm | Inner width: 23.3 mm | Weight: 7.9 kg/m | Avg. tensile strength: 31,500 kgf
DYN 30200Pitch: 200 mm | Plate height H1: 44.5 mm | Plate height H2: 38.1 mm | Pin length L1: 23.5 mm | Pin length L2: 32 mm | Plate thickness: 7.9 mm | Inner width: 23.3 mm | Weight: 7.6 kg/m | Avg. tensile strength: 31,500 kgf
DYN 56200Pitch: 200 mm | Plate height H1: 63.5 mm | Plate height H2: 54.0 mm | Pin length L1: 28.5 mm | Pin length L2: 39.5 mm | Plate thickness: 9.5 mm | Inner width: 29.5 mm | Weight: 14.7 kg/m | Avg. tensile strength: 56,500 kgf
DYN 56250Pitch: 250 mm | Plate height H1: 63.5 mm | Plate height H2: 54.0 mm | Pin length L1: 28.5 mm | Pin length L2: 39.5 mm | Plate thickness: 9.5 mm | Inner width: 29.5 mm | Weight: 14.5 kg/m | Avg. tensile strength: 56,500 kgf
