Dongyang Chain DYNB Bucket Elevator Chain with G4 Attachments

Dongyang Chain DYNB Bucket Elevator Chain with G4 Attachments

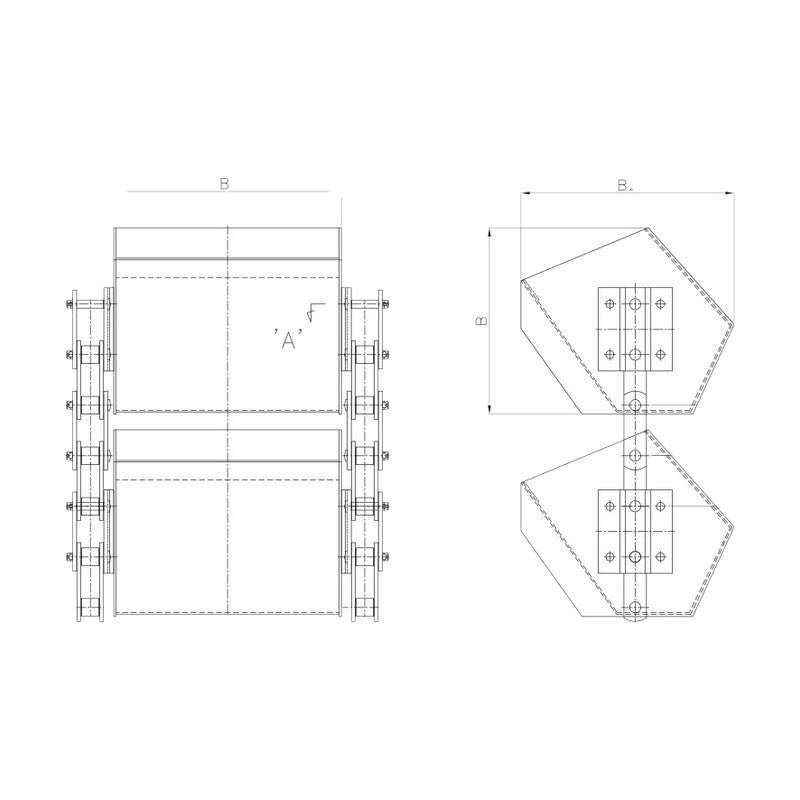

The DYNB chain is a bucket elevator chain supplied with G4 attachments on every fourth link (G4/4L).

Key features

  • It is matched to NBH elevator case sizes and NSS buckets
  • Pitches from 75 mm to 175 mm cover tensile strengths from 23.5 to 166 tons
DYNB 10075S-G4/4L Pitch: 75 mm | Avg. tensile strength: 23.5 ton | Elevator case type (NBH): 300 / 300H | Bucket: NSS 3030 / NSS 3045 | Bucket plate thickness front/side: 3.2/3.2 ; 3.2/4.5 mm | Bucket width B1: 300 / 450 mm | Bucket B2/B3: 285/360 mm | Mounting bolt: M12
DYNB 12003S-G4/4L Pitch: 76.2 mm | Avg. tensile strength: 29.0 ton | Elevator case type (NBH): 300 / 300H | Bucket: NSS 3030 / NSS 3045 | Bucket plate thickness front/side: 3.2/3.2 ; 3.2/4.5 mm | Bucket width B1: 300 / 450 mm | Bucket B2/B3: 285/360 mm | Mounting bolt: M12
DYNB 12100S-G4/4L Pitch: 100 mm | Avg. tensile strength: 29.0 ton | Elevator case type (NBH): 450 / 450H | Bucket: NSS 4045 / NSS 4060 | Bucket plate thickness front/side: 4.5/4.5 ; 4.5/4.5 mm | Bucket width B1: 450 / 600 mm | Bucket B2/B3: 380/490 mm | Mounting bolt: M14
DYNB 17100S-G4/4L Pitch: 100 mm | Avg. tensile strength: 41.0 ton | Elevator case type (NBH): 450 / 450H | Bucket: NSS 4045 / NSS 4060 | Bucket plate thickness front/side: 4.5/4.5 ; 4.5/4.5 mm | Bucket width B1: 450 / 600 mm | Bucket B2/B3: 380/490 mm | Mounting bolt: M14
DYNB 26100N-G4/4L Pitch: 100 mm | Avg. tensile strength: 57.0 ton | Elevator case type (NBH): 450 / 450H | Bucket: NSS 4045 / NSS 4060 | Bucket plate thickness front/side: 4.5/4.5 ; 4.5/4.5 mm | Bucket width B1: 450 / 600 mm | Bucket B2/B3: 380/490 mm | Mounting bolt: M14
DYNB 17125S-G4/4L Pitch: 125 mm | Avg. tensile strength: 41.0 ton | Elevator case type (NBH): 600 / 600H | Bucket: NSS 5060 / NSS 5080 | Bucket plate thickness front/side: 4.5/4.5 ; 4.5/6 mm | Bucket width B1: 600 / 800 mm | Bucket B2/B3: 475/620 mm | Mounting bolt: M16
DYNB 26125N-G4/4L Pitch: 125 mm | Avg. tensile strength: 57.0 ton | Elevator case type (NBH): 600 / 600H | Bucket: NSS 5060 / NSS 5080 | Bucket plate thickness front/side: 4.5/4.5 ; 4.5/6 mm | Bucket width B1: 600 / 800 mm | Bucket B2/B3: 475/620 mm | Mounting bolt: M16
DYNB 36125N-G4/4L Pitch: 125 mm | Avg. tensile strength: 91.0 ton | Elevator case type (NBH): 600 / 600H | Bucket: NSS 5060 / NSS 5080 | Bucket plate thickness front/side: 4.5/4.5 ; 4.5/6 mm | Bucket width B1: 600 / 800 mm | Bucket B2/B3: 475/620 mm | Mounting bolt: M16
DYNB 26150N-G4/4L Pitch: 150 mm | Avg. tensile strength: 57.0 ton | Elevator case type (NBH): 800 / 800H | Bucket: NSS 6080 / NSS 6010 | Bucket plate thickness front/side: 4.5/6 ; 4.5/6 mm | Bucket width B1: 800 / 1,000 mm | Bucket B2/B3: 570/740 mm | Mounting bolt: M20
DYNB 36150N-G4/4L Pitch: 150 mm | Avg. tensile strength: 91.0 ton | Elevator case type (NBH): 800 / 800H | Bucket: NSS 6080 / NSS 6010 | Bucket plate thickness front/side: 4.5/6 ; 4.5/6 mm | Bucket width B1: 800 / 1,000 mm | Bucket B2/B3: 570/740 mm | Mounting bolt: M20
DYNB 60150N-G4/4L Pitch: 150 mm | Avg. tensile strength: 105.0 ton | Elevator case type (NBH): 800 / 800H | Bucket: NSS 6080 / NSS 6010 | Bucket plate thickness front/side: 4.5/6 ; 4.5/6 mm | Bucket width B1: 800 / 1,000 mm | Bucket B2/B3: 570/740 mm | Mounting bolt: M20
DYNB 36175N-G4/4L Pitch: 175 mm | Avg. tensile strength: 91.0 ton | Elevator case type (NBH): (011) / (011H) | Bucket: NSS 7011 / NSS 7014 | Bucket plate thickness front/side: 4.5/6 ; 4.5/9 mm | Bucket width B1: 1,100 / 1,400 mm | Bucket B2/B3: 670/865 mm | Mounting bolt: M24
DYNB 60175N-G4/4L Pitch: 175 mm | Avg. tensile strength: 105.0 ton | Elevator case type (NBH): (011) / (011H) | Bucket: NSS 7011 / NSS 7014 | Bucket plate thickness front/side: 4.5/6 ; 4.5/9 mm | Bucket width B1: 1,100 / 1,400 mm | Bucket B2/B3: 670/865 mm | Mounting bolt: M24
DYNB 90175N-G4/4L Pitch: 175 mm | Avg. tensile strength: 166.0 ton | Elevator case type (NBH): (011) / (011H) | Bucket: NSS 7011 / NSS 7014 | Bucket plate thickness front/side: 4.5/6 ; 4.5/9 mm | Bucket width B1: 1,100 / 1,400 mm | Bucket B2/B3: 670/865 mm | Mounting bolt: M24
Bucket Elevator ChainsDongyang Chain
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Dongyang Chain DYNB Bucket Elevator Chain with G4 Attachments

Brand Dongyang Chain·Bucket Elevator Chains

Available part numbers (14)

DYNB 10075S-G4/4L, DYNB 12003S-G4/4L, DYNB 12100S-G4/4L, DYNB 17100S-G4/4L, DYNB 26100N-G4/4L, DYNB 17125S-G4/4L, DYNB 26125N-G4/4L, DYNB 36125N-G4/4L, DYNB 26150N-G4/4L, DYNB 36150N-G4/4L + 4 more — see full table ↓
