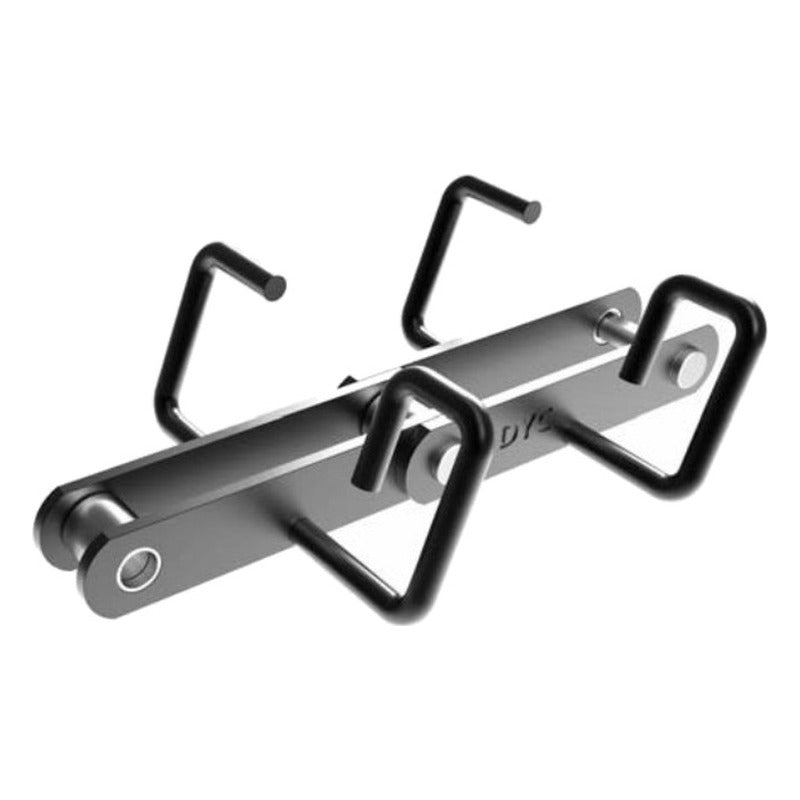

• Dongyang Chain Flow Conveyor Chain (General and Incline Types)
1 1

Dongyang Chain Flow Conveyor Chain (General and Incline Types)

Dongyang Chain Flow Conveyor Chain (General and Incline Types)

Flow conveyor chain carries bulk solids inside an enclosed casing, which prevents material loss and pollution.

Key features

  • It is mainly used for conveying feed and cement
  • Attachments are selected according to the conveyed material and are welded to the link plates
  • L, KL, B, U2V and W attachments are listed for horizontal conveyors, and U and U2 (U2N) square or round bar attachments for incline conveyors
Dongyang Chain Flow Conveyor Chain (General and Incline Types) reference 2
DY 450W-M Conveyor type: FH150 | Pitch: 101.6 mm | Roller dia.: 25.4 mm | Inner width: 27 mm | Plate height: 31.8 mm | Plate thickness: 6.3 mm | Avg. tensile strength (standard): 11,000 kgf | Avg. tensile strength (high strength): 14,500 kgf | Attachment span 2X: 135 mm | Weight with L attachment: 6.5 kg/m
DY 08125W-M Conveyor type: FH200 | Pitch: 125 mm | Roller dia.: 25.4 mm | Inner width: 27 mm | Plate height: 31.8 mm | Plate thickness: 6.3 mm | Avg. tensile strength (standard): 11,000 kgf | Avg. tensile strength (high strength): 14,500 kgf | Attachment span 2X: 185 mm | Weight with L attachment: 6.5 kg/m
DY 10125-M Conveyor type: FH200 | Pitch: 125 mm | Roller dia.: 31.8 mm | Inner width: 30 mm | Plate height: 38.1 mm | Plate thickness: 6.3 mm | Avg. tensile strength (standard): 11,500 kgf | Avg. tensile strength (high strength): 23,000 kgf | Attachment span 2X: 185 mm | Weight with L attachment: 8.1 kg/m
DY 10150-M Conveyor type: FH270 | Pitch: 150 mm | Roller dia.: 31.8 mm | Inner width: 30 mm | Plate height: 38.1 mm | Plate thickness: 6.3 mm | Avg. tensile strength (standard): 11,500 kgf | Avg. tensile strength (high strength): 23,000 kgf | Attachment span 2X: 250 mm | Weight with L attachment: 8.1 kg/m
DY 6205-M Conveyor type: FH270 | Pitch: 152.4 mm | Roller dia.: 38.1 mm | Inner width: 37.1 mm | Plate height: 44.5 mm | Plate thickness: 7.9 mm | Avg. tensile strength (standard): 19,000 kgf | Avg. tensile strength (high strength): 28,500 kgf | Attachment span 2X: 250 mm | Weight with L attachment: 12 kg/m
DY 12200-M Conveyor type: FH350 | Pitch: 200 mm | Roller dia.: 38.1 mm | Inner width: 37.1 mm | Plate height: 44.5 mm | Plate thickness: 7.9 mm | Avg. tensile strength (standard): 19,000 kgf | Avg. tensile strength (high strength): 28,500 kgf | Attachment span 2X: 330 mm | Weight with L attachment: 12 kg/m
DY 17200-M Conveyor type: FH350 | Pitch: 200 mm | Roller dia.: 44.5 mm | Inner width: 51.4 mm | Plate height: 50.8 mm | Plate thickness: 9.5 mm | Avg. tensile strength (standard): 25,000 kgf | Avg. tensile strength (high strength): 39,500 kgf | Attachment span 2X: 330 mm | Weight with L attachment: 17 kg/m
DY 17250-M Conveyor type: FH450 | Pitch: 250 mm | Roller dia.: 44.5 mm | Inner width: 51.4 mm | Plate height: 50.8 mm | Plate thickness: 9.5 mm | Avg. tensile strength (standard): 25,000 kgf | Avg. tensile strength (high strength): 39,500 kgf | Attachment span 2X: 430 mm | Weight with L attachment: 17 kg/m
DY 26200-M Conveyor type: FH410 | Pitch: 200 mm | Roller dia.: 50.8 mm | Inner width: 57.2 mm | Plate height: 63.5 mm | Plate thickness: 9.5 mm | Avg. tensile strength (standard): 32,000 kgf | Avg. tensile strength (high strength): 53,000 kgf | Attachment span 2X: 390 mm | Weight with L attachment: 28 kg/m
DY 26250-N Conveyor type: FH450 | Pitch: 250 mm | Roller dia.: 50.8 mm | Inner width: 57.2 mm | Plate height: 63.5 mm | Plate thickness: 9.5 mm | Avg. tensile strength (standard): 30,500 kgf | Avg. tensile strength (high strength): 57,500 kgf | Attachment span 2X: 430 mm | Weight with L attachment: 23 kg/m
DY 26300-N Conveyor type: FH580 | Pitch: 300 mm | Roller dia.: 50.8 mm | Inner width: 57.2 mm | Plate height: 63.5 mm | Plate thickness: 9.5 mm | Avg. tensile strength (standard): 30,500 kgf | Avg. tensile strength (high strength): 57,500 kgf | Attachment span 2X: 560 mm | Weight with L attachment: 23 kg/m
DY 36300-M Conveyor type: FH580 | Pitch: 300 mm | Roller dia.: 57.2 mm | Inner width: 66.7 mm | Plate height: 76.2 mm | Plate thickness: 12.7 mm | Avg. tensile strength (standard): 48,500 kgf | Avg. tensile strength (high strength): 69,500 kgf | Attachment span 2X: 560 mm | Weight with L attachment: 34 kg/m
DY 36300-N Conveyor type: FH580 | Pitch: 300 mm | Roller dia.: 57.2 mm | Inner width: 66.7 mm | Plate height: 76.2 mm | Plate thickness: 12.7 mm | Avg. tensile strength (standard): - | Avg. tensile strength (high strength): 88,500 kgf | Attachment span 2X: 560 mm | Weight with L attachment: 34 kg/m
DY 26200-N Conveyor type: FL/FS410 (incline) | Pitch: 200 mm | Roller dia.: 50.8 mm | Inner width: 57.2 mm | Plate height: 63.5 mm | Plate thickness: 9.5 mm | Avg. tensile strength (standard): 30,500 kgf | Avg. tensile strength (high strength): 57,500 kgf | Attachment span 2X: 390 mm | Weight with U attachment: 30.9 kg/m
Flow Conveyor ChainsDongyang Chain
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Dongyang Chain Flow Conveyor Chain (General and Incline Types)

Brand Dongyang Chain·Flow Conveyor Chains

Available part numbers (14)

DY 450W-M, DY 08125W-M, DY 10125-M, DY 10150-M, DY 6205-M, DY 12200-M, DY 17200-M, DY 17250-M, DY 26200-M, DY 26250-N + 4 more — see full table ↓

How to order

Send the Dongyang Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Dongyang Chain Flow Conveyor Chain (General and Incline Types) reference 2
0 selected
RFQ List (0)
Product codeSpec
DY 450W-MConveyor type: FH150 | Pitch: 101.6 mm | Roller dia.: 25.4 mm | Inner width: 27 mm | Plate height: 31.8 mm | Plate thickness: 6.3 mm | Avg. tensile strength (standard): 11,000 kgf | Avg. tensile strength (high strength): 14,500 kgf | Attachment span 2X: 135 mm | Weight with L attachment: 6.5 kg/m
DY 08125W-MConveyor type: FH200 | Pitch: 125 mm | Roller dia.: 25.4 mm | Inner width: 27 mm | Plate height: 31.8 mm | Plate thickness: 6.3 mm | Avg. tensile strength (standard): 11,000 kgf | Avg. tensile strength (high strength): 14,500 kgf | Attachment span 2X: 185 mm | Weight with L attachment: 6.5 kg/m
DY 10125-MConveyor type: FH200 | Pitch: 125 mm | Roller dia.: 31.8 mm | Inner width: 30 mm | Plate height: 38.1 mm | Plate thickness: 6.3 mm | Avg. tensile strength (standard): 11,500 kgf | Avg. tensile strength (high strength): 23,000 kgf | Attachment span 2X: 185 mm | Weight with L attachment: 8.1 kg/m
DY 10150-MConveyor type: FH270 | Pitch: 150 mm | Roller dia.: 31.8 mm | Inner width: 30 mm | Plate height: 38.1 mm | Plate thickness: 6.3 mm | Avg. tensile strength (standard): 11,500 kgf | Avg. tensile strength (high strength): 23,000 kgf | Attachment span 2X: 250 mm | Weight with L attachment: 8.1 kg/m
DY 6205-MConveyor type: FH270 | Pitch: 152.4 mm | Roller dia.: 38.1 mm | Inner width: 37.1 mm | Plate height: 44.5 mm | Plate thickness: 7.9 mm | Avg. tensile strength (standard): 19,000 kgf | Avg. tensile strength (high strength): 28,500 kgf | Attachment span 2X: 250 mm | Weight with L attachment: 12 kg/m
DY 12200-MConveyor type: FH350 | Pitch: 200 mm | Roller dia.: 38.1 mm | Inner width: 37.1 mm | Plate height: 44.5 mm | Plate thickness: 7.9 mm | Avg. tensile strength (standard): 19,000 kgf | Avg. tensile strength (high strength): 28,500 kgf | Attachment span 2X: 330 mm | Weight with L attachment: 12 kg/m
DY 17200-MConveyor type: FH350 | Pitch: 200 mm | Roller dia.: 44.5 mm | Inner width: 51.4 mm | Plate height: 50.8 mm | Plate thickness: 9.5 mm | Avg. tensile strength (standard): 25,000 kgf | Avg. tensile strength (high strength): 39,500 kgf | Attachment span 2X: 330 mm | Weight with L attachment: 17 kg/m
DY 17250-MConveyor type: FH450 | Pitch: 250 mm | Roller dia.: 44.5 mm | Inner width: 51.4 mm | Plate height: 50.8 mm | Plate thickness: 9.5 mm | Avg. tensile strength (standard): 25,000 kgf | Avg. tensile strength (high strength): 39,500 kgf | Attachment span 2X: 430 mm | Weight with L attachment: 17 kg/m
DY 26200-MConveyor type: FH410 | Pitch: 200 mm | Roller dia.: 50.8 mm | Inner width: 57.2 mm | Plate height: 63.5 mm | Plate thickness: 9.5 mm | Avg. tensile strength (standard): 32,000 kgf | Avg. tensile strength (high strength): 53,000 kgf | Attachment span 2X: 390 mm | Weight with L attachment: 28 kg/m
DY 26250-NConveyor type: FH450 | Pitch: 250 mm | Roller dia.: 50.8 mm | Inner width: 57.2 mm | Plate height: 63.5 mm | Plate thickness: 9.5 mm | Avg. tensile strength (standard): 30,500 kgf | Avg. tensile strength (high strength): 57,500 kgf | Attachment span 2X: 430 mm | Weight with L attachment: 23 kg/m
DY 26300-NConveyor type: FH580 | Pitch: 300 mm | Roller dia.: 50.8 mm | Inner width: 57.2 mm | Plate height: 63.5 mm | Plate thickness: 9.5 mm | Avg. tensile strength (standard): 30,500 kgf | Avg. tensile strength (high strength): 57,500 kgf | Attachment span 2X: 560 mm | Weight with L attachment: 23 kg/m
DY 36300-MConveyor type: FH580 | Pitch: 300 mm | Roller dia.: 57.2 mm | Inner width: 66.7 mm | Plate height: 76.2 mm | Plate thickness: 12.7 mm | Avg. tensile strength (standard): 48,500 kgf | Avg. tensile strength (high strength): 69,500 kgf | Attachment span 2X: 560 mm | Weight with L attachment: 34 kg/m
DY 36300-NConveyor type: FH580 | Pitch: 300 mm | Roller dia.: 57.2 mm | Inner width: 66.7 mm | Plate height: 76.2 mm | Plate thickness: 12.7 mm | Avg. tensile strength (standard): - | Avg. tensile strength (high strength): 88,500 kgf | Attachment span 2X: 560 mm | Weight with L attachment: 34 kg/m
DY 26200-NConveyor type: FL/FS410 (incline) | Pitch: 200 mm | Roller dia.: 50.8 mm | Inner width: 57.2 mm | Plate height: 63.5 mm | Plate thickness: 9.5 mm | Avg. tensile strength (standard): 30,500 kgf | Avg. tensile strength (high strength): 57,500 kgf | Attachment span 2X: 390 mm | Weight with U attachment: 30.9 kg/m
