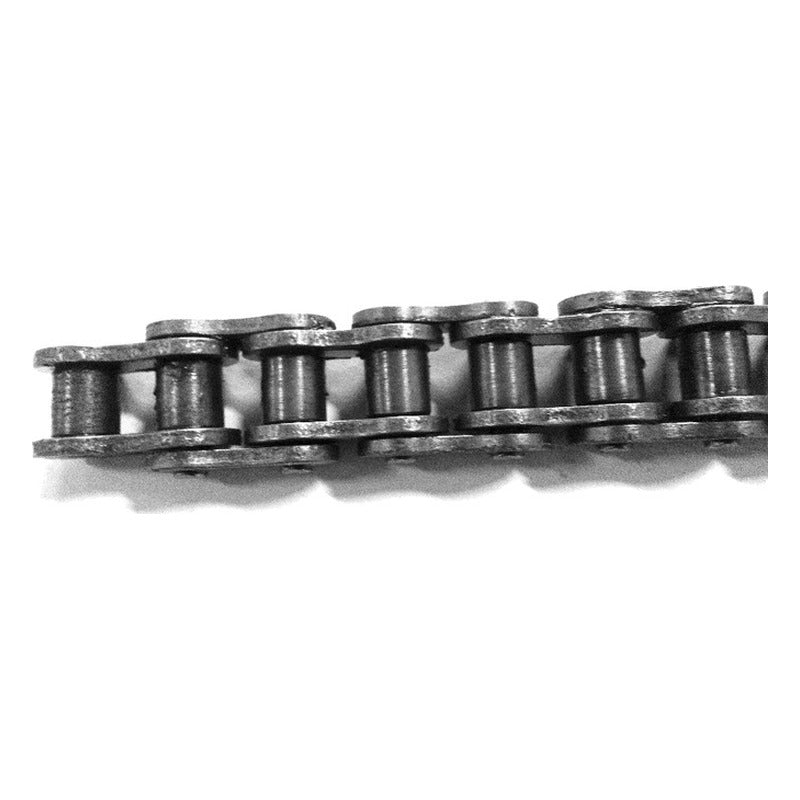

Dongyang Chain Heavy Series Roller Chain DY 60H-DY 200H (1-4 Strands)

Dongyang Chain Heavy Series Roller Chain DY 60H-DY 200H (1-4 Strands)

Heavy series (H) roller chain with thicker link plates than the standard series for high-load and shock-load drives.

Key features

  • Available in sizes DY 60H to DY 200H, pitch 19.05 to 63.5 mm, in single to quadruple strand
  • Average tensile strength ranges from 49.5 kN to 1,804.4 kN
Dongyang Chain Heavy Series Roller Chain DY 60H-DY 200H (1-4 Strands) reference 2
DY 60H-1 Pitch: 19.05 mm | Strands: 1 | Inner width: 12.57 mm | Roller dia.: 11.91 mm | Pin dia.: 5.94 mm | Pin length L: 32.7 mm | Plate thickness: 3.2 mm | Plate height: 17.5 mm | Transverse pitch: 26.1 mm | Avg. tensile strength: 49.5(5050) kN(kgf) | Max. allowable load: 9.8(1000) kN(kgf) | Approx. weight: 1.77 kg/m
DY 60H-2 Pitch: 19.05 mm | Strands: 2 | Inner width: 12.57 mm | Roller dia.: 11.91 mm | Pin dia.: 5.94 mm | Pin length L: 58.8 mm | Plate thickness: 3.2 mm | Plate height: 17.5 mm | Transverse pitch: 26.1 mm | Avg. tensile strength: 99(10100) kN(kgf) | Max. allowable load: 16.7(1700) kN(kgf) | Approx. weight: 3.53 kg/m
DY 60H-3 Pitch: 19.05 mm | Strands: 3 | Inner width: 12.57 mm | Roller dia.: 11.91 mm | Pin dia.: 5.94 mm | Pin length L: 84.9 mm | Plate thickness: 3.2 mm | Plate height: 17.5 mm | Transverse pitch: 26.1 mm | Avg. tensile strength: 148.5(15150) kN(kgf) | Max. allowable load: 245.1(2500) kN(kgf) | Approx. weight: 5.27 kg/m
DY 60H-4 Pitch: 19.05 mm | Strands: 4 | Inner width: 12.57 mm | Roller dia.: 11.91 mm | Pin dia.: 5.94 mm | Pin length L: 111.0 mm | Plate thickness: 3.2 mm | Plate height: 17.5 mm | Transverse pitch: 26.1 mm | Avg. tensile strength: 198(20200) kN(kgf) | Max. allowable load: 32.3(3300) kN(kgf) | Approx. weight: 7.01 kg/m
DY 80H-1 Pitch: 25.40 mm | Strands: 1 | Inner width: 15.75 mm | Roller dia.: 15.88 mm | Pin dia.: 7.92 mm | Pin length L: 40.2 mm | Plate thickness: 4.0 mm | Plate height: 23.0 mm | Transverse pitch: 32.6 mm | Avg. tensile strength: 80.4(8200) kN(kgf) | Max. allowable load: 16.2(1650) kN(kgf) | Approx. weight: 2.96 kg/m
DY 80H-2 Pitch: 25.40 mm | Strands: 2 | Inner width: 15.75 mm | Roller dia.: 15.88 mm | Pin dia.: 7.92 mm | Pin length L: 72.8 mm | Plate thickness: 4.0 mm | Plate height: 23.0 mm | Transverse pitch: 32.6 mm | Avg. tensile strength: 160.8(16400) kN(kgf) | Max. allowable load: 27.8(2840) kN(kgf) | Approx. weight: 5.84 kg/m
DY 80H-3 Pitch: 25.40 mm | Strands: 3 | Inner width: 15.75 mm | Roller dia.: 15.88 mm | Pin dia.: 7.92 mm | Pin length L: 105.4 mm | Plate thickness: 4.0 mm | Plate height: 23.0 mm | Transverse pitch: 32.6 mm | Avg. tensile strength: 241.2(24600) kN(kgf) | Max. allowable load: 40.2(4100) kN(kgf) | Approx. weight: 8.73 kg/m
DY 80H-4 Pitch: 25.40 mm | Strands: 4 | Inner width: 15.75 mm | Roller dia.: 15.88 mm | Pin dia.: 7.92 mm | Pin length L: 138.0 mm | Plate thickness: 4.0 mm | Plate height: 23.0 mm | Transverse pitch: 32.6 mm | Avg. tensile strength: 321.6(32800) kN(kgf) | Max. allowable load: 52.9(5400) kN(kgf) | Approx. weight: 11.32 kg/m
DY 100H-1 Pitch: 31.75 mm | Strands: 1 | Inner width: 18.90 mm | Roller dia.: 19.05 mm | Pin dia.: 9.53 mm | Pin length L: 47.6 mm | Plate thickness: 4.8 mm | Plate height: 28.9 mm | Transverse pitch: 39.1 mm | Avg. tensile strength: 121.6(12400) kN(kgf) | Max. allowable load: 24.7(2520) kN(kgf) | Approx. weight: 4.17 kg/m
DY 100H-2 Pitch: 31.75 mm | Strands: 2 | Inner width: 18.90 mm | Roller dia.: 19.05 mm | Pin dia.: 9.53 mm | Pin length L: 86.7 mm | Plate thickness: 4.8 mm | Plate height: 28.9 mm | Transverse pitch: 39.1 mm | Avg. tensile strength: 243.2(24800) kN(kgf) | Max. allowable load: 42.1(4300) kN(kgf) | Approx. weight: 8.23 kg/m
DY 100H-3 Pitch: 31.75 mm | Strands: 3 | Inner width: 18.90 mm | Roller dia.: 19.05 mm | Pin dia.: 9.53 mm | Pin length L: 125.8 mm | Plate thickness: 4.8 mm | Plate height: 28.9 mm | Transverse pitch: 39.1 mm | Avg. tensile strength: 364.8(37200) kN(kgf) | Max. allowable load: 61.8(6300) kN(kgf) | Approx. weight: 12.30 kg/m
DY 100H-4 Pitch: 31.75 mm | Strands: 4 | Inner width: 18.90 mm | Roller dia.: 19.05 mm | Pin dia.: 9.53 mm | Pin length L: 165.0 mm | Plate thickness: 4.8 mm | Plate height: 28.9 mm | Transverse pitch: 39.1 mm | Avg. tensile strength: 486.4(49600) kN(kgf) | Max. allowable load: 80.4(8200) kN(kgf) | Approx. weight: 16.38 kg/m
DY 120H-1 Pitch: 38.10 mm | Strands: 1 | Inner width: 25.22 mm | Roller dia.: 22.23 mm | Pin dia.: 11.10 mm | Pin length L: 58.9 mm | Plate thickness: 5.6 mm | Plate height: 35.0 mm | Transverse pitch: 48.9 mm | Avg. tensile strength: 165.7(16900) kN(kgf) | Max. allowable load: 32.8(3350) kN(kgf) | Approx. weight: 6.28 kg/m
DY 120H-2 Pitch: 38.10 mm | Strands: 2 | Inner width: 25.22 mm | Roller dia.: 22.23 mm | Pin dia.: 11.10 mm | Pin length L: 107.8 mm | Plate thickness: 5.6 mm | Plate height: 35.0 mm | Transverse pitch: 48.9 mm | Avg. tensile strength: 331.4(33800) kN(kgf) | Max. allowable load: 54.9(5600) kN(kgf) | Approx. weight: 12.45 kg/m
DY 120H-3 Pitch: 38.10 mm | Strands: 3 | Inner width: 25.22 mm | Roller dia.: 22.23 mm | Pin dia.: 11.10 mm | Pin length L: 156.7 mm | Plate thickness: 5.6 mm | Plate height: 35.0 mm | Transverse pitch: 48.9 mm | Avg. tensile strength: 497.2(50700) kN(kgf) | Max. allowable load: 81.4(8300) kN(kgf) | Approx. weight: 18.61 kg/m
DY 120H-4 Pitch: 38.10 mm | Strands: 4 | Inner width: 25.22 mm | Roller dia.: 22.23 mm | Pin dia.: 11.10 mm | Pin length L: 206.0 mm | Plate thickness: 5.6 mm | Plate height: 35.0 mm | Transverse pitch: 48.9 mm | Avg. tensile strength: 663(67600) kN(kgf) | Max. allowable load: 106.9(10900) kN(kgf) | Approx. weight: 24.78 kg/m
DY 140H-1 Pitch: 44.45 mm | Strands: 1 | Inner width: 25.22 mm | Roller dia.: 25.40 mm | Pin dia.: 12.71 mm | Pin length L: 63.8 mm | Plate thickness: 6.4 mm | Plate height: 40.7 mm | Transverse pitch: 52.2 mm | Avg. tensile strength: 213.7(21800) kN(kgf) | Max. allowable load: 43.1(4400) kN(kgf) | Approx. weight: 7.83 kg/m
DY 140H-2 Pitch: 44.45 mm | Strands: 2 | Inner width: 25.22 mm | Roller dia.: 25.40 mm | Pin dia.: 12.71 mm | Pin length L: 116.0 mm | Plate thickness: 6.4 mm | Plate height: 40.7 mm | Transverse pitch: 52.2 mm | Avg. tensile strength: 427.5(43600) kN(kgf) | Max. allowable load: 73.3(7480) kN(kgf) | Approx. weight: 15.50 kg/m
DY 140H-3 Pitch: 44.45 mm | Strands: 3 | Inner width: 25.22 mm | Roller dia.: 25.40 mm | Pin dia.: 12.71 mm | Pin length L: 168.2 mm | Plate thickness: 6.4 mm | Plate height: 40.7 mm | Transverse pitch: 52.2 mm | Avg. tensile strength: 641.3(65400) kN(kgf) | Max. allowable load: 107.8(11000) kN(kgf) | Approx. weight: 23.17 kg/m
DY 140H-4 Pitch: 44.45 mm | Strands: 4 | Inner width: 25.22 mm | Roller dia.: 25.40 mm | Pin dia.: 12.71 mm | Pin length L: 220.5 mm | Plate thickness: 6.4 mm | Plate height: 40.7 mm | Transverse pitch: 52.2 mm | Avg. tensile strength: 855.1(87200) kN(kgf) | Max. allowable load: 142.2(14500) kN(kgf) | Approx. weight: 30.84 kg/m
DY 160H-1 Pitch: 50.80 mm | Strands: 1 | Inner width: 31.55 mm | Roller dia.: 28.58 mm | Pin dia.: 14.27 mm | Pin length L: 75.6 mm | Plate thickness: 7.15 mm | Plate height: 46.7 mm | Transverse pitch: 61.9 mm | Avg. tensile strength: 280.4(28600) kN(kgf) | Max. allowable load: 56.2(5730) kN(kgf) | Approx. weight: 10.9 kg/m
DY 160H-2 Pitch: 50.80 mm | Strands: 2 | Inner width: 31.55 mm | Roller dia.: 28.58 mm | Pin dia.: 14.27 mm | Pin length L: 137.5 mm | Plate thickness: 7.15 mm | Plate height: 46.7 mm | Transverse pitch: 61.9 mm | Avg. tensile strength: 560.9(57200) kN(kgf) | Max. allowable load: 95.8(9770) kN(kgf) | Approx. weight: 21.7 kg/m
DY 160H-3 Pitch: 50.80 mm | Strands: 3 | Inner width: 31.55 mm | Roller dia.: 28.58 mm | Pin dia.: 14.27 mm | Pin length L: 199.4 mm | Plate thickness: 7.15 mm | Plate height: 46.7 mm | Transverse pitch: 61.9 mm | Avg. tensile strength: 841.4(85800) kN(kgf) | Max. allowable load: 141.2(14400) kN(kgf) | Approx. weight: 32.4 kg/m
DY 160H-4 Pitch: 50.80 mm | Strands: 4 | Inner width: 31.55 mm | Roller dia.: 28.58 mm | Pin dia.: 14.27 mm | Pin length L: 261.3 mm | Plate thickness: 7.15 mm | Plate height: 46.7 mm | Transverse pitch: 61.9 mm | Avg. tensile strength: 1121.9(114400) kN(kgf) | Max. allowable load: 184.3(18800) kN(kgf) | Approx. weight: 43.1 kg/m
DY 200H-1 Pitch: 63.50 mm | Strands: 1 | Inner width: 37.85 mm | Roller dia.: 39.68 mm | Pin dia.: 19.85 mm | Pin length L: 95.5 mm | Plate thickness: 9.5 mm | Plate height: 58.4 mm | Transverse pitch: 78.3 mm | Avg. tensile strength: 451.1(46000) kN(kgf) | Max. allowable load: 79.1(8070) kN(kgf) | Approx. weight: 19.2 kg/m
DY 200H-2 Pitch: 63.50 mm | Strands: 2 | Inner width: 37.85 mm | Roller dia.: 39.68 mm | Pin dia.: 19.85 mm | Pin length L: 173.8 mm | Plate thickness: 9.5 mm | Plate height: 58.4 mm | Transverse pitch: 78.3 mm | Avg. tensile strength: 902.2(92000) kN(kgf) | Max. allowable load: 134.3(13700) kN(kgf) | Approx. weight: 38.0 kg/m
DY 200H-3 Pitch: 63.50 mm | Strands: 3 | Inner width: 37.85 mm | Roller dia.: 39.68 mm | Pin dia.: 19.85 mm | Pin length L: 252.1 mm | Plate thickness: 9.5 mm | Plate height: 58.4 mm | Transverse pitch: 78.3 mm | Avg. tensile strength: 1353.3(138000) kN(kgf) | Max. allowable load: 197.1(20100) kN(kgf) | Approx. weight: 56.8 kg/m
DY 200H-4 Pitch: 63.50 mm | Strands: 4 | Inner width: 37.85 mm | Roller dia.: 39.68 mm | Pin dia.: 19.85 mm | Pin length L: 330.4 mm | Plate thickness: 9.5 mm | Plate height: 58.4 mm | Transverse pitch: 78.3 mm | Avg. tensile strength: 1804.4(184000) kN(kgf) | Max. allowable load: 258.9(26400) kN(kgf) | Approx. weight: 75.6 kg/m
Roller ChainsDongyang Chain
28 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Dongyang Chain Heavy Series Roller Chain DY 60H-DY 200H (1-4 Strands)

Brand Dongyang Chain·Roller Chains

Available part numbers (28)

DY 60H-1, DY 60H-2, DY 60H-3, DY 60H-4, DY 80H-1, DY 80H-2, DY 80H-3, DY 80H-4, DY 100H-1, DY 100H-2 + 18 more — see full table ↓

How to order

Send the Dongyang Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Dongyang Chain Heavy Series Roller Chain DY 60H-DY 200H (1-4 Strands) reference 2
0 selected
RFQ List (0)
Product codeSpec
DY 60H-1Pitch: 19.05 mm | Strands: 1 | Inner width: 12.57 mm | Roller dia.: 11.91 mm | Pin dia.: 5.94 mm | Pin length L: 32.7 mm | Plate thickness: 3.2 mm | Plate height: 17.5 mm | Transverse pitch: 26.1 mm | Avg. tensile strength: 49.5(5050) kN(kgf) | Max. allowable load: 9.8(1000) kN(kgf) | Approx. weight: 1.77 kg/m
DY 60H-2Pitch: 19.05 mm | Strands: 2 | Inner width: 12.57 mm | Roller dia.: 11.91 mm | Pin dia.: 5.94 mm | Pin length L: 58.8 mm | Plate thickness: 3.2 mm | Plate height: 17.5 mm | Transverse pitch: 26.1 mm | Avg. tensile strength: 99(10100) kN(kgf) | Max. allowable load: 16.7(1700) kN(kgf) | Approx. weight: 3.53 kg/m
DY 60H-3Pitch: 19.05 mm | Strands: 3 | Inner width: 12.57 mm | Roller dia.: 11.91 mm | Pin dia.: 5.94 mm | Pin length L: 84.9 mm | Plate thickness: 3.2 mm | Plate height: 17.5 mm | Transverse pitch: 26.1 mm | Avg. tensile strength: 148.5(15150) kN(kgf) | Max. allowable load: 245.1(2500) kN(kgf) | Approx. weight: 5.27 kg/m
DY 60H-4Pitch: 19.05 mm | Strands: 4 | Inner width: 12.57 mm | Roller dia.: 11.91 mm | Pin dia.: 5.94 mm | Pin length L: 111.0 mm | Plate thickness: 3.2 mm | Plate height: 17.5 mm | Transverse pitch: 26.1 mm | Avg. tensile strength: 198(20200) kN(kgf) | Max. allowable load: 32.3(3300) kN(kgf) | Approx. weight: 7.01 kg/m
DY 80H-1Pitch: 25.40 mm | Strands: 1 | Inner width: 15.75 mm | Roller dia.: 15.88 mm | Pin dia.: 7.92 mm | Pin length L: 40.2 mm | Plate thickness: 4.0 mm | Plate height: 23.0 mm | Transverse pitch: 32.6 mm | Avg. tensile strength: 80.4(8200) kN(kgf) | Max. allowable load: 16.2(1650) kN(kgf) | Approx. weight: 2.96 kg/m
DY 80H-2Pitch: 25.40 mm | Strands: 2 | Inner width: 15.75 mm | Roller dia.: 15.88 mm | Pin dia.: 7.92 mm | Pin length L: 72.8 mm | Plate thickness: 4.0 mm | Plate height: 23.0 mm | Transverse pitch: 32.6 mm | Avg. tensile strength: 160.8(16400) kN(kgf) | Max. allowable load: 27.8(2840) kN(kgf) | Approx. weight: 5.84 kg/m
DY 80H-3Pitch: 25.40 mm | Strands: 3 | Inner width: 15.75 mm | Roller dia.: 15.88 mm | Pin dia.: 7.92 mm | Pin length L: 105.4 mm | Plate thickness: 4.0 mm | Plate height: 23.0 mm | Transverse pitch: 32.6 mm | Avg. tensile strength: 241.2(24600) kN(kgf) | Max. allowable load: 40.2(4100) kN(kgf) | Approx. weight: 8.73 kg/m
DY 80H-4Pitch: 25.40 mm | Strands: 4 | Inner width: 15.75 mm | Roller dia.: 15.88 mm | Pin dia.: 7.92 mm | Pin length L: 138.0 mm | Plate thickness: 4.0 mm | Plate height: 23.0 mm | Transverse pitch: 32.6 mm | Avg. tensile strength: 321.6(32800) kN(kgf) | Max. allowable load: 52.9(5400) kN(kgf) | Approx. weight: 11.32 kg/m
DY 100H-1Pitch: 31.75 mm | Strands: 1 | Inner width: 18.90 mm | Roller dia.: 19.05 mm | Pin dia.: 9.53 mm | Pin length L: 47.6 mm | Plate thickness: 4.8 mm | Plate height: 28.9 mm | Transverse pitch: 39.1 mm | Avg. tensile strength: 121.6(12400) kN(kgf) | Max. allowable load: 24.7(2520) kN(kgf) | Approx. weight: 4.17 kg/m
DY 100H-2Pitch: 31.75 mm | Strands: 2 | Inner width: 18.90 mm | Roller dia.: 19.05 mm | Pin dia.: 9.53 mm | Pin length L: 86.7 mm | Plate thickness: 4.8 mm | Plate height: 28.9 mm | Transverse pitch: 39.1 mm | Avg. tensile strength: 243.2(24800) kN(kgf) | Max. allowable load: 42.1(4300) kN(kgf) | Approx. weight: 8.23 kg/m
DY 100H-3Pitch: 31.75 mm | Strands: 3 | Inner width: 18.90 mm | Roller dia.: 19.05 mm | Pin dia.: 9.53 mm | Pin length L: 125.8 mm | Plate thickness: 4.8 mm | Plate height: 28.9 mm | Transverse pitch: 39.1 mm | Avg. tensile strength: 364.8(37200) kN(kgf) | Max. allowable load: 61.8(6300) kN(kgf) | Approx. weight: 12.30 kg/m
DY 100H-4Pitch: 31.75 mm | Strands: 4 | Inner width: 18.90 mm | Roller dia.: 19.05 mm | Pin dia.: 9.53 mm | Pin length L: 165.0 mm | Plate thickness: 4.8 mm | Plate height: 28.9 mm | Transverse pitch: 39.1 mm | Avg. tensile strength: 486.4(49600) kN(kgf) | Max. allowable load: 80.4(8200) kN(kgf) | Approx. weight: 16.38 kg/m
DY 120H-1Pitch: 38.10 mm | Strands: 1 | Inner width: 25.22 mm | Roller dia.: 22.23 mm | Pin dia.: 11.10 mm | Pin length L: 58.9 mm | Plate thickness: 5.6 mm | Plate height: 35.0 mm | Transverse pitch: 48.9 mm | Avg. tensile strength: 165.7(16900) kN(kgf) | Max. allowable load: 32.8(3350) kN(kgf) | Approx. weight: 6.28 kg/m
DY 120H-2Pitch: 38.10 mm | Strands: 2 | Inner width: 25.22 mm | Roller dia.: 22.23 mm | Pin dia.: 11.10 mm | Pin length L: 107.8 mm | Plate thickness: 5.6 mm | Plate height: 35.0 mm | Transverse pitch: 48.9 mm | Avg. tensile strength: 331.4(33800) kN(kgf) | Max. allowable load: 54.9(5600) kN(kgf) | Approx. weight: 12.45 kg/m
DY 120H-3Pitch: 38.10 mm | Strands: 3 | Inner width: 25.22 mm | Roller dia.: 22.23 mm | Pin dia.: 11.10 mm | Pin length L: 156.7 mm | Plate thickness: 5.6 mm | Plate height: 35.0 mm | Transverse pitch: 48.9 mm | Avg. tensile strength: 497.2(50700) kN(kgf) | Max. allowable load: 81.4(8300) kN(kgf) | Approx. weight: 18.61 kg/m
DY 120H-4Pitch: 38.10 mm | Strands: 4 | Inner width: 25.22 mm | Roller dia.: 22.23 mm | Pin dia.: 11.10 mm | Pin length L: 206.0 mm | Plate thickness: 5.6 mm | Plate height: 35.0 mm | Transverse pitch: 48.9 mm | Avg. tensile strength: 663(67600) kN(kgf) | Max. allowable load: 106.9(10900) kN(kgf) | Approx. weight: 24.78 kg/m
DY 140H-1Pitch: 44.45 mm | Strands: 1 | Inner width: 25.22 mm | Roller dia.: 25.40 mm | Pin dia.: 12.71 mm | Pin length L: 63.8 mm | Plate thickness: 6.4 mm | Plate height: 40.7 mm | Transverse pitch: 52.2 mm | Avg. tensile strength: 213.7(21800) kN(kgf) | Max. allowable load: 43.1(4400) kN(kgf) | Approx. weight: 7.83 kg/m
DY 140H-2Pitch: 44.45 mm | Strands: 2 | Inner width: 25.22 mm | Roller dia.: 25.40 mm | Pin dia.: 12.71 mm | Pin length L: 116.0 mm | Plate thickness: 6.4 mm | Plate height: 40.7 mm | Transverse pitch: 52.2 mm | Avg. tensile strength: 427.5(43600) kN(kgf) | Max. allowable load: 73.3(7480) kN(kgf) | Approx. weight: 15.50 kg/m
DY 140H-3Pitch: 44.45 mm | Strands: 3 | Inner width: 25.22 mm | Roller dia.: 25.40 mm | Pin dia.: 12.71 mm | Pin length L: 168.2 mm | Plate thickness: 6.4 mm | Plate height: 40.7 mm | Transverse pitch: 52.2 mm | Avg. tensile strength: 641.3(65400) kN(kgf) | Max. allowable load: 107.8(11000) kN(kgf) | Approx. weight: 23.17 kg/m
DY 140H-4Pitch: 44.45 mm | Strands: 4 | Inner width: 25.22 mm | Roller dia.: 25.40 mm | Pin dia.: 12.71 mm | Pin length L: 220.5 mm | Plate thickness: 6.4 mm | Plate height: 40.7 mm | Transverse pitch: 52.2 mm | Avg. tensile strength: 855.1(87200) kN(kgf) | Max. allowable load: 142.2(14500) kN(kgf) | Approx. weight: 30.84 kg/m
DY 160H-1Pitch: 50.80 mm | Strands: 1 | Inner width: 31.55 mm | Roller dia.: 28.58 mm | Pin dia.: 14.27 mm | Pin length L: 75.6 mm | Plate thickness: 7.15 mm | Plate height: 46.7 mm | Transverse pitch: 61.9 mm | Avg. tensile strength: 280.4(28600) kN(kgf) | Max. allowable load: 56.2(5730) kN(kgf) | Approx. weight: 10.9 kg/m
DY 160H-2Pitch: 50.80 mm | Strands: 2 | Inner width: 31.55 mm | Roller dia.: 28.58 mm | Pin dia.: 14.27 mm | Pin length L: 137.5 mm | Plate thickness: 7.15 mm | Plate height: 46.7 mm | Transverse pitch: 61.9 mm | Avg. tensile strength: 560.9(57200) kN(kgf) | Max. allowable load: 95.8(9770) kN(kgf) | Approx. weight: 21.7 kg/m
DY 160H-3Pitch: 50.80 mm | Strands: 3 | Inner width: 31.55 mm | Roller dia.: 28.58 mm | Pin dia.: 14.27 mm | Pin length L: 199.4 mm | Plate thickness: 7.15 mm | Plate height: 46.7 mm | Transverse pitch: 61.9 mm | Avg. tensile strength: 841.4(85800) kN(kgf) | Max. allowable load: 141.2(14400) kN(kgf) | Approx. weight: 32.4 kg/m
DY 160H-4Pitch: 50.80 mm | Strands: 4 | Inner width: 31.55 mm | Roller dia.: 28.58 mm | Pin dia.: 14.27 mm | Pin length L: 261.3 mm | Plate thickness: 7.15 mm | Plate height: 46.7 mm | Transverse pitch: 61.9 mm | Avg. tensile strength: 1121.9(114400) kN(kgf) | Max. allowable load: 184.3(18800) kN(kgf) | Approx. weight: 43.1 kg/m
DY 200H-1Pitch: 63.50 mm | Strands: 1 | Inner width: 37.85 mm | Roller dia.: 39.68 mm | Pin dia.: 19.85 mm | Pin length L: 95.5 mm | Plate thickness: 9.5 mm | Plate height: 58.4 mm | Transverse pitch: 78.3 mm | Avg. tensile strength: 451.1(46000) kN(kgf) | Max. allowable load: 79.1(8070) kN(kgf) | Approx. weight: 19.2 kg/m
DY 200H-2Pitch: 63.50 mm | Strands: 2 | Inner width: 37.85 mm | Roller dia.: 39.68 mm | Pin dia.: 19.85 mm | Pin length L: 173.8 mm | Plate thickness: 9.5 mm | Plate height: 58.4 mm | Transverse pitch: 78.3 mm | Avg. tensile strength: 902.2(92000) kN(kgf) | Max. allowable load: 134.3(13700) kN(kgf) | Approx. weight: 38.0 kg/m
DY 200H-3Pitch: 63.50 mm | Strands: 3 | Inner width: 37.85 mm | Roller dia.: 39.68 mm | Pin dia.: 19.85 mm | Pin length L: 252.1 mm | Plate thickness: 9.5 mm | Plate height: 58.4 mm | Transverse pitch: 78.3 mm | Avg. tensile strength: 1353.3(138000) kN(kgf) | Max. allowable load: 197.1(20100) kN(kgf) | Approx. weight: 56.8 kg/m
DY 200H-4Pitch: 63.50 mm | Strands: 4 | Inner width: 37.85 mm | Roller dia.: 39.68 mm | Pin dia.: 19.85 mm | Pin length L: 330.4 mm | Plate thickness: 9.5 mm | Plate height: 58.4 mm | Transverse pitch: 78.3 mm | Avg. tensile strength: 1804.4(184000) kN(kgf) | Max. allowable load: 258.9(26400) kN(kgf) | Approx. weight: 75.6 kg/m
