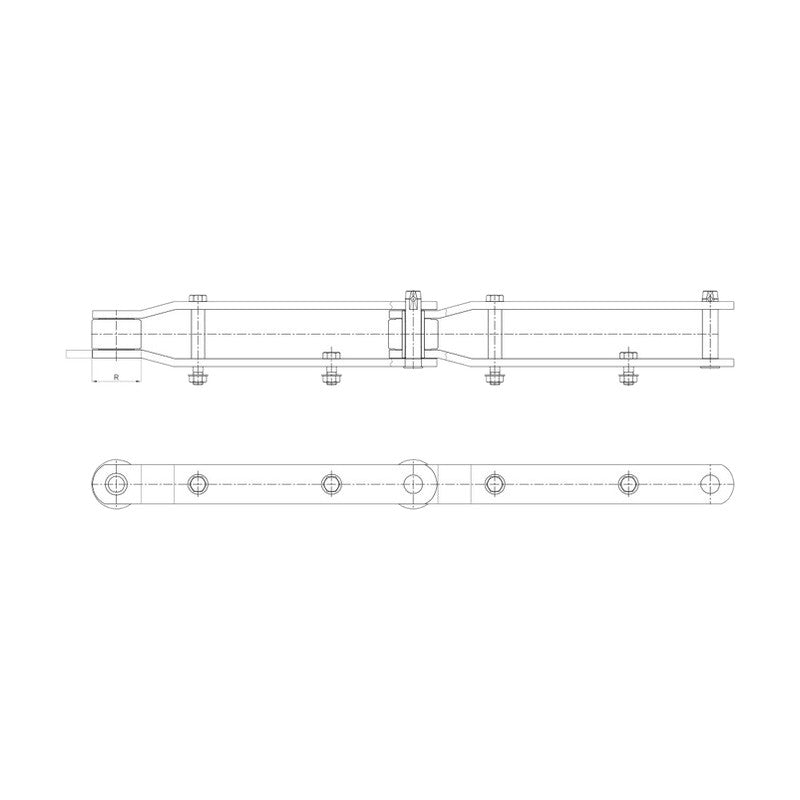

Dongyang Chain HRT Carrying Chain for Travelling Screens

Dongyang Chain HRT Carrying Chain for Travelling Screens

The HRT carrying chain is used in the automatic screens of cooling-water intakes at thermal power plants.

Key features

  • It is built to withstand seawater, and the material and surface treatment are selected to suit operating conditions
  • Special specifications can be made to order
HRT4525 Avg. tensile strength: 25,000 kgf | Pitch: 450 mm | Roller dia.: 90 mm | Inner width: 40.3 mm | Pin dia.: 20 mm | Plate height: 65 mm | Plate thickness: 9 mm | Weight: 16.0 kg/m
HRT6030 Avg. tensile strength: 30,000 kgf | Pitch: 600 mm | Roller dia.: 100 mm | Inner width: 40.3 mm | Pin dia.: 30 mm | Plate height: 75 mm | Plate thickness: 9 mm | Weight: 17.0 kg/m
HRT6040 Avg. tensile strength: 40,000 kgf | Pitch: 600 mm | Roller dia.: 100 mm | Inner width: 55.2 mm | Pin dia.: 32 mm | Plate height: 80 mm | Plate thickness: 12 mm | Weight: 24.0 kg/m
HRT6058 Avg. tensile strength: 58,000 kgf | Pitch: 600 mm | Roller dia.: 100 mm | Inner width: 52.6 mm | Pin dia.: 34 mm | Plate height: 80 mm | Plate thickness: 16 mm | Weight: 30.0 kg/m
HRT6068 Avg. tensile strength: 68,000 kgf | Pitch: 600 mm | Roller dia.: 115 mm | Inner width: 64.6 mm | Pin dia.: 36 mm | Plate height: 90 mm | Plate thickness: 16 mm | Weight: 38.0 kg/m
HRT6078 Avg. tensile strength: 78,000 kgf | Pitch: 600 mm | Roller dia.: 125 mm | Inner width: 85.0 mm | Pin dia.: 40 mm | Plate height: 100 mm | Plate thickness: 19 mm | Weight: 54.0 kg/m
Conveyor ChainsDongyang Chain
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Dongyang Chain HRT Carrying Chain for Travelling Screens

Brand Dongyang Chain·Conveyor Chains

Available part numbers (6)

HRT4525, HRT6030, HRT6040, HRT6058, HRT6068, HRT6078

How to order

Send the Dongyang Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HRT4525Avg. tensile strength: 25,000 kgf | Pitch: 450 mm | Roller dia.: 90 mm | Inner width: 40.3 mm | Pin dia.: 20 mm | Plate height: 65 mm | Plate thickness: 9 mm | Weight: 16.0 kg/m
HRT6030Avg. tensile strength: 30,000 kgf | Pitch: 600 mm | Roller dia.: 100 mm | Inner width: 40.3 mm | Pin dia.: 30 mm | Plate height: 75 mm | Plate thickness: 9 mm | Weight: 17.0 kg/m
HRT6040Avg. tensile strength: 40,000 kgf | Pitch: 600 mm | Roller dia.: 100 mm | Inner width: 55.2 mm | Pin dia.: 32 mm | Plate height: 80 mm | Plate thickness: 12 mm | Weight: 24.0 kg/m
HRT6058Avg. tensile strength: 58,000 kgf | Pitch: 600 mm | Roller dia.: 100 mm | Inner width: 52.6 mm | Pin dia.: 34 mm | Plate height: 80 mm | Plate thickness: 16 mm | Weight: 30.0 kg/m
HRT6068Avg. tensile strength: 68,000 kgf | Pitch: 600 mm | Roller dia.: 115 mm | Inner width: 64.6 mm | Pin dia.: 36 mm | Plate height: 90 mm | Plate thickness: 16 mm | Weight: 38.0 kg/m
HRT6078Avg. tensile strength: 78,000 kgf | Pitch: 600 mm | Roller dia.: 125 mm | Inner width: 85.0 mm | Pin dia.: 40 mm | Plate height: 100 mm | Plate thickness: 19 mm | Weight: 54.0 kg/m
