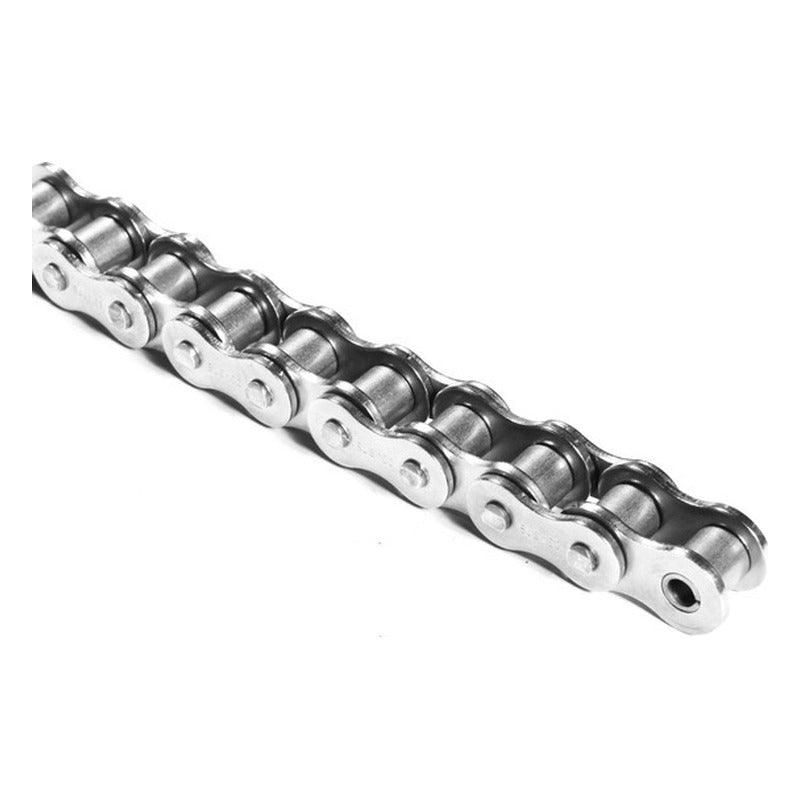

Dongyang Chain Stainless Steel Standard Roller Chain DY 25SS-DY 240SS
Dongyang Chain Stainless Steel Standard Roller Chain DY 25SS-DY 240SS
Stainless steel roller chain in standard ANSI dimensions, sizes DY 25SS to DY 240SS, pitch 6.35 to 76.2 mm, in single and double strand.
Key features
- It suits food processing, chemical, washdown and other corrosive or wet environments
- Maximum allowable loads range from 0.12 kN (DY 25SS-1) to 26.30 kN (DY 240SS-2)
Specifications
| Material | Stainless steel |
|---|
| DY 25SS-1 | Strands: 1 | Pitch: 6.350 mm | Roller dia.: 3.30 mm | Width between inner plates: 3.18 mm | Pin dia.: 2.31 mm | Pin length L1/L2: 7.90/8.40 mm | Inner plate depth: 6.00 mm | Plate thickness: 0.75 mm | Max. allowable load: 0.12(12) kN(kgf) | Weight: 0.15 kg/m | Material: Stainless steel | |
| DY 35SS-1 | Strands: 1 | Pitch: 9.525 mm | Roller dia.: 5.08 mm | Width between inner plates: 4.78 mm | Pin dia.: 3.59 mm | Pin length L1/L2: 12.40/13.17 mm | Inner plate depth: 9.00 mm | Plate thickness: 1.20 mm | Max. allowable load: 0.26(27) kN(kgf) | Weight: 0.33 kg/m | Material: Stainless steel | |
| DY 40SS-1 | Strands: 1 | Pitch: 12.700 mm | Roller dia.: 7.95 mm | Width between inner plates: 7.95 mm | Pin dia.: 3.97 mm | Pin length L1/L2: 16.60/17.80 mm | Inner plate depth: 12.00 mm | Plate thickness: 1.50 mm | Max. allowable load: 0.44(45) kN(kgf) | Weight: 0.62 kg/m | Material: Stainless steel | |
| DY 50SS-1 | Strands: 1 | Pitch: 15.875 mm | Roller dia.: 10.16 mm | Width between inner plates: 9.53 mm | Pin dia.: 5.09 mm | Pin length L1/L2: 20.70/22.20 mm | Inner plate depth: 15.00 mm | Plate thickness: 2.00 mm | Max. allowable load: 0.69(70) kN(kgf) | Weight: 1.02 kg/m | Material: Stainless steel | |
| DY 60SS-1 | Strands: 1 | Pitch: 19.050 mm | Roller dia.: 11.91 mm | Width between inner plates: 12.7 mm | Pin dia.: 5.96 mm | Pin length L1/L2: 25.90/27.70 mm | Inner plate depth: 18.10 mm | Plate thickness: 2.40 mm | Max. allowable load: 1.03(105) kN(kgf) | Weight: 1.50 kg/m | Material: Stainless steel | |
| DY 80SS-1 | Strands: 1 | Pitch: 25.400 mm | Roller dia.: 15.88 mm | Width between inner plates: 15.88 mm | Pin dia.: 7.94 mm | Pin length L1/L2: 32.70/35.00 mm | Inner plate depth: 24.10 mm | Plate thickness: 3.20 mm | Max. allowable load: 1.77(180) kN(kgf) | Weight: 2.60 kg/m | Material: Stainless steel | |
| DY 100SS-1 | Strands: 1 | Pitch: 31.750 mm | Roller dia.: 19.05 mm | Width between inner plates: 19.05 mm | Pin dia.: 9.54 mm | Pin length L1/L2: 40.40/44.70 mm | Inner plate depth: 30.10 mm | Plate thickness: 4.00 mm | Max. allowable load: 2.56(260) kN(kgf) | Weight: 3.91 kg/m | Material: Stainless steel | |
| DY 120SS-1 | Strands: 1 | Pitch: 38.100 mm | Roller dia.: 22.23 mm | Width between inner plates: 25.4 mm | Pin dia.: 11.11 mm | Pin length L1/L2: 50.30/54.30 mm | Inner plate depth: 36.20 mm | Plate thickness: 4.80 mm | Max. allowable load: 3.85(390) kN(kgf) | Weight: 5.62 kg/m | Material: Stainless steel | |
| DY 140SS-1 | Strands: 1 | Pitch: 44.450 mm | Roller dia.: 25.40 mm | Width between inner plates: 25.4 mm | Pin dia.: 12.71 mm | Pin length L1/L2: 54.40/59.00 mm | Inner plate depth: 42.20 mm | Plate thickness: 5.60 mm | Max. allowable load: 4.65(470) kN(kgf) | Weight: 7.50 kg/m | Material: Stainless steel | |
| DY 160SS-1 | Strands: 1 | Pitch: 50.800 mm | Roller dia.: 28.58 mm | Width between inner plates: 31.75 mm | Pin dia.: 14.29 mm | Pin length L1/L2: 64.80/69.60 mm | Inner plate depth: 48.20 mm | Plate thickness: 6.40 mm | Max. allowable load: 6.42(650) kN(kgf) | Weight: 10.10 kg/m | Material: Stainless steel | |
| DY 180SS-1 | Strands: 1 | Pitch: 57.150 mm | Roller dia.: 35.71 mm | Width between inner plates: 35.72 mm | Pin dia.: 17.46 mm | Pin length L1/L2: 72.80/78.60 mm | Inner plate depth: 54.20 mm | Plate thickness: 7.15 mm | Max. allowable load: 8.60(872) kN(kgf) | Weight: 13.45 kg/m | Material: Stainless steel | |
| DY 200SS-1 | Strands: 1 | Pitch: 63.500 mm | Roller dia.: 39.68 mm | Width between inner plates: 38.1 mm | Pin dia.: 19.85 mm | Pin length L1/L2: 80.30/87.20 mm | Inner plate depth: 60.30 mm | Plate thickness: 8.00 mm | Max. allowable load: 10.90(1100) kN(kgf) | Weight: 16.15 kg/m | Material: Stainless steel | |
| DY 240SS-1 | Strands: 1 | Pitch: 76.200 mm | Roller dia.: 47.63 mm | Width between inner plates: 47.63 mm | Pin dia.: 23.81 mm | Pin length L1/L2: 95.50/103.00 mm | Inner plate depth: 72.40 mm | Plate thickness: 9.50 mm | Max. allowable load: 15.85(1600) kN(kgf) | Weight: 23.20 kg/m | Material: Stainless steel | |
| DY 25SS-2 | Strands: 2 | Pitch: 6.350 mm | Roller dia.: 3.30 mm | Width between inner plates: 3.18 mm | Pin dia.: 2.31 mm | Pin length L1/L2: 14.5/15.0 mm | Inner plate depth: 6.00 mm | Plate thickness: 0.75 mm | Transverse pitch: 6.4 mm | Max. allowable load: 0.17(17) kN(kgf) | Weight: 0.28 kg/m | Material: Stainless steel | |
| DY 35SS-2 | Strands: 2 | Pitch: 9.525 mm | Roller dia.: 5.08 mm | Width between inner plates: 4.78 mm | Pin dia.: 3.59 mm | Pin length L1/L2: 22.5/23.3 mm | Inner plate depth: 9.00 mm | Plate thickness: 1.20 mm | Transverse pitch: 10.13 mm | Max. allowable load: 0.37(38) kN(kgf) | Weight: 0.63 kg/m | Material: Stainless steel | |
| DY 40SS-2 | Strands: 2 | Pitch: 12.700 mm | Roller dia.: 7.95 mm | Width between inner plates: 7.95 mm | Pin dia.: 3.97 mm | Pin length L1/L2: 31.0/32.2 mm | Inner plate depth: 12.00 mm | Plate thickness: 1.50 mm | Transverse pitch: 14.38 mm | Max. allowable load: 0.64(65) kN(kgf) | Weight: 1.12 kg/m | Material: Stainless steel | |
| DY 50SS-2 | Strands: 2 | Pitch: 15.875 mm | Roller dia.: 10.16 mm | Width between inner plates: 9.53 mm | Pin dia.: 5.09 mm | Pin length L1/L2: 38.9/40.4 mm | Inner plate depth: 15.00 mm | Plate thickness: 2.00 mm | Transverse pitch: 18.11 mm | Max. allowable load: 1.00(100) kN(kgf) | Weight: 2.00 kg/m | Material: Stainless steel | |
| DY 60SS-2 | Strands: 2 | Pitch: 19.050 mm | Roller dia.: 11.91 mm | Width between inner plates: 12.70 mm | Pin dia.: 5.96 mm | Pin length L1/L2: 48.8/50.5 mm | Inner plate depth: 18.10 mm | Plate thickness: 2.40 mm | Transverse pitch: 22.78 mm | Max. allowable load: 1.50(153) kN(kgf) | Weight: 2.92 kg/m | Material: Stainless steel | |
| DY 80SS-2 | Strands: 2 | Pitch: 25.400 mm | Roller dia.: 15.88 mm | Width between inner plates: 15.88 mm | Pin dia.: 7.94 mm | Pin length L1/L2: 62.7/64.3 mm | Inner plate depth: 24.10 mm | Plate thickness: 3.20 mm | Transverse pitch: 29.29 mm | Max. allowable load: 2.57(262) kN(kgf) | Weight: 5.15 kg/m | Material: Stainless steel | |
| DY 100SS-2 | Strands: 2 | Pitch: 31.750 mm | Roller dia.: 19.05 mm | Width between inner plates: 19.05 mm | Pin dia.: 9.54 mm | Pin length L1/L2: 76.4/80.5 mm | Inner plate depth: 30.10 mm | Plate thickness: 4.00 mm | Transverse pitch: 35.76 mm | Max. allowable load: 3.77(383) kN(kgf) | Weight: 7.80 kg/m | Material: Stainless steel | |
| DY 120SS-2 | Strands: 2 | Pitch: 38.100 mm | Roller dia.: 22.23 mm | Width between inner plates: 25.40 mm | Pin dia.: 11.11 mm | Pin length L1/L2: 95.8/99.7 mm | Inner plate depth: 36.20 mm | Plate thickness: 4.80 mm | Transverse pitch: 45.44 mm | Max. allowable load: 5.41(556) kN(kgf) | Weight: 11.70 kg/m | Material: Stainless steel | |
| DY 140SS-2 | Strands: 2 | Pitch: 44.450 mm | Roller dia.: 25.40 mm | Width between inner plates: 25.40 mm | Pin dia.: 12.71 mm | Pin length L1/L2: 103.3/107.9 mm | Inner plate depth: 42.20 mm | Plate thickness: 5.60 mm | Transverse pitch: 48.87 mm | Max. allowable load: 7.72(780) kN(kgf) | Weight: 15.14 kg/m | Material: Stainless steel | |
| DY 160SS-2 | Strands: 2 | Pitch: 50.800 mm | Roller dia.: 28.58 mm | Width between inner plates: 31.75 mm | Pin dia.: 14.29 mm | Pin length L1/L2: 123.3/128.1 mm | Inner plate depth: 48.20 mm | Plate thickness: 6.40 mm | Transverse pitch: 58.55 mm | Max. allowable load: 10.65(1079) kN(kgf) | Weight: 20.14 kg/m | Material: Stainless steel | |
| DY 180SS-2 | Strands: 2 | Pitch: 57.150 mm | Roller dia.: 35.71 mm | Width between inner plates: 35.72 mm | Pin dia.: 17.46 mm | Pin length L1/L2: 138.6/144.4 mm | Inner plate depth: 54.20 mm | Plate thickness: 7.15 mm | Transverse pitch: 65.84 mm | Max. allowable load: 14.27(1447) kN(kgf) | Weight: 29.22 kg/m | Material: Stainless steel | |
| DY 200SS-2 | Strands: 2 | Pitch: 63.500 mm | Roller dia.: 39.68 mm | Width between inner plates: 38.10 mm | Pin dia.: 19.85 mm | Pin length L1/L2: 151.9/158.8 mm | Inner plate depth: 60.30 mm | Plate thickness: 8.00 mm | Transverse pitch: 71.55 mm | Max. allowable load: 18.40(1859) kN(kgf) | Weight: 32.24 kg/m | Material: Stainless steel | |
| DY 240SS-2 | Strands: 2 | Pitch: 76.200 mm | Roller dia.: 47.63 mm | Width between inner plates: 47.63 mm | Pin dia.: 23.81 mm | Pin length L1/L2: 183.4/190.8 mm | Inner plate depth: 72.40 mm | Plate thickness: 9.50 mm | Transverse pitch: 87.83 mm | Max. allowable load: 26.30(2656) kN(kgf) | Weight: 45.23 kg/m | Material: Stainless steel |
Roller ChainsDongyang Chain
26 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Dongyang Chain Stainless Steel Standard Roller Chain DY 25SS-DY 240SS
Available part numbers (26)
DY 25SS-1, DY 35SS-1, DY 40SS-1, DY 50SS-1, DY 60SS-1, DY 80SS-1, DY 100SS-1, DY 120SS-1, DY 140SS-1, DY 160SS-1 + 16 more — see full table ↓
How to order
Send the Dongyang Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Dongyang Chain
Roller Chains
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| DY 25SS-1 | Strands: 1 | Pitch: 6.350 mm | Roller dia.: 3.30 mm | Width between inner plates: 3.18 mm | Pin dia.: 2.31 mm | Pin length L1/L2: 7.90/8.40 mm | Inner plate depth: 6.00 mm | Plate thickness: 0.75 mm | Max. allowable load: 0.12(12) kN(kgf) | Weight: 0.15 kg/m | Material: Stainless steel | ||
| DY 35SS-1 | Strands: 1 | Pitch: 9.525 mm | Roller dia.: 5.08 mm | Width between inner plates: 4.78 mm | Pin dia.: 3.59 mm | Pin length L1/L2: 12.40/13.17 mm | Inner plate depth: 9.00 mm | Plate thickness: 1.20 mm | Max. allowable load: 0.26(27) kN(kgf) | Weight: 0.33 kg/m | Material: Stainless steel | ||
| DY 40SS-1 | Strands: 1 | Pitch: 12.700 mm | Roller dia.: 7.95 mm | Width between inner plates: 7.95 mm | Pin dia.: 3.97 mm | Pin length L1/L2: 16.60/17.80 mm | Inner plate depth: 12.00 mm | Plate thickness: 1.50 mm | Max. allowable load: 0.44(45) kN(kgf) | Weight: 0.62 kg/m | Material: Stainless steel | ||
| DY 50SS-1 | Strands: 1 | Pitch: 15.875 mm | Roller dia.: 10.16 mm | Width between inner plates: 9.53 mm | Pin dia.: 5.09 mm | Pin length L1/L2: 20.70/22.20 mm | Inner plate depth: 15.00 mm | Plate thickness: 2.00 mm | Max. allowable load: 0.69(70) kN(kgf) | Weight: 1.02 kg/m | Material: Stainless steel | ||
| DY 60SS-1 | Strands: 1 | Pitch: 19.050 mm | Roller dia.: 11.91 mm | Width between inner plates: 12.7 mm | Pin dia.: 5.96 mm | Pin length L1/L2: 25.90/27.70 mm | Inner plate depth: 18.10 mm | Plate thickness: 2.40 mm | Max. allowable load: 1.03(105) kN(kgf) | Weight: 1.50 kg/m | Material: Stainless steel | ||
| DY 80SS-1 | Strands: 1 | Pitch: 25.400 mm | Roller dia.: 15.88 mm | Width between inner plates: 15.88 mm | Pin dia.: 7.94 mm | Pin length L1/L2: 32.70/35.00 mm | Inner plate depth: 24.10 mm | Plate thickness: 3.20 mm | Max. allowable load: 1.77(180) kN(kgf) | Weight: 2.60 kg/m | Material: Stainless steel | ||
| DY 100SS-1 | Strands: 1 | Pitch: 31.750 mm | Roller dia.: 19.05 mm | Width between inner plates: 19.05 mm | Pin dia.: 9.54 mm | Pin length L1/L2: 40.40/44.70 mm | Inner plate depth: 30.10 mm | Plate thickness: 4.00 mm | Max. allowable load: 2.56(260) kN(kgf) | Weight: 3.91 kg/m | Material: Stainless steel | ||
| DY 120SS-1 | Strands: 1 | Pitch: 38.100 mm | Roller dia.: 22.23 mm | Width between inner plates: 25.4 mm | Pin dia.: 11.11 mm | Pin length L1/L2: 50.30/54.30 mm | Inner plate depth: 36.20 mm | Plate thickness: 4.80 mm | Max. allowable load: 3.85(390) kN(kgf) | Weight: 5.62 kg/m | Material: Stainless steel | ||
| DY 140SS-1 | Strands: 1 | Pitch: 44.450 mm | Roller dia.: 25.40 mm | Width between inner plates: 25.4 mm | Pin dia.: 12.71 mm | Pin length L1/L2: 54.40/59.00 mm | Inner plate depth: 42.20 mm | Plate thickness: 5.60 mm | Max. allowable load: 4.65(470) kN(kgf) | Weight: 7.50 kg/m | Material: Stainless steel | ||
| DY 160SS-1 | Strands: 1 | Pitch: 50.800 mm | Roller dia.: 28.58 mm | Width between inner plates: 31.75 mm | Pin dia.: 14.29 mm | Pin length L1/L2: 64.80/69.60 mm | Inner plate depth: 48.20 mm | Plate thickness: 6.40 mm | Max. allowable load: 6.42(650) kN(kgf) | Weight: 10.10 kg/m | Material: Stainless steel | ||
| DY 180SS-1 | Strands: 1 | Pitch: 57.150 mm | Roller dia.: 35.71 mm | Width between inner plates: 35.72 mm | Pin dia.: 17.46 mm | Pin length L1/L2: 72.80/78.60 mm | Inner plate depth: 54.20 mm | Plate thickness: 7.15 mm | Max. allowable load: 8.60(872) kN(kgf) | Weight: 13.45 kg/m | Material: Stainless steel | ||
| DY 200SS-1 | Strands: 1 | Pitch: 63.500 mm | Roller dia.: 39.68 mm | Width between inner plates: 38.1 mm | Pin dia.: 19.85 mm | Pin length L1/L2: 80.30/87.20 mm | Inner plate depth: 60.30 mm | Plate thickness: 8.00 mm | Max. allowable load: 10.90(1100) kN(kgf) | Weight: 16.15 kg/m | Material: Stainless steel | ||
| DY 240SS-1 | Strands: 1 | Pitch: 76.200 mm | Roller dia.: 47.63 mm | Width between inner plates: 47.63 mm | Pin dia.: 23.81 mm | Pin length L1/L2: 95.50/103.00 mm | Inner plate depth: 72.40 mm | Plate thickness: 9.50 mm | Max. allowable load: 15.85(1600) kN(kgf) | Weight: 23.20 kg/m | Material: Stainless steel | ||
| DY 25SS-2 | Strands: 2 | Pitch: 6.350 mm | Roller dia.: 3.30 mm | Width between inner plates: 3.18 mm | Pin dia.: 2.31 mm | Pin length L1/L2: 14.5/15.0 mm | Inner plate depth: 6.00 mm | Plate thickness: 0.75 mm | Transverse pitch: 6.4 mm | Max. allowable load: 0.17(17) kN(kgf) | Weight: 0.28 kg/m | Material: Stainless steel | ||
| DY 35SS-2 | Strands: 2 | Pitch: 9.525 mm | Roller dia.: 5.08 mm | Width between inner plates: 4.78 mm | Pin dia.: 3.59 mm | Pin length L1/L2: 22.5/23.3 mm | Inner plate depth: 9.00 mm | Plate thickness: 1.20 mm | Transverse pitch: 10.13 mm | Max. allowable load: 0.37(38) kN(kgf) | Weight: 0.63 kg/m | Material: Stainless steel | ||
| DY 40SS-2 | Strands: 2 | Pitch: 12.700 mm | Roller dia.: 7.95 mm | Width between inner plates: 7.95 mm | Pin dia.: 3.97 mm | Pin length L1/L2: 31.0/32.2 mm | Inner plate depth: 12.00 mm | Plate thickness: 1.50 mm | Transverse pitch: 14.38 mm | Max. allowable load: 0.64(65) kN(kgf) | Weight: 1.12 kg/m | Material: Stainless steel | ||
| DY 50SS-2 | Strands: 2 | Pitch: 15.875 mm | Roller dia.: 10.16 mm | Width between inner plates: 9.53 mm | Pin dia.: 5.09 mm | Pin length L1/L2: 38.9/40.4 mm | Inner plate depth: 15.00 mm | Plate thickness: 2.00 mm | Transverse pitch: 18.11 mm | Max. allowable load: 1.00(100) kN(kgf) | Weight: 2.00 kg/m | Material: Stainless steel | ||
| DY 60SS-2 | Strands: 2 | Pitch: 19.050 mm | Roller dia.: 11.91 mm | Width between inner plates: 12.70 mm | Pin dia.: 5.96 mm | Pin length L1/L2: 48.8/50.5 mm | Inner plate depth: 18.10 mm | Plate thickness: 2.40 mm | Transverse pitch: 22.78 mm | Max. allowable load: 1.50(153) kN(kgf) | Weight: 2.92 kg/m | Material: Stainless steel | ||
| DY 80SS-2 | Strands: 2 | Pitch: 25.400 mm | Roller dia.: 15.88 mm | Width between inner plates: 15.88 mm | Pin dia.: 7.94 mm | Pin length L1/L2: 62.7/64.3 mm | Inner plate depth: 24.10 mm | Plate thickness: 3.20 mm | Transverse pitch: 29.29 mm | Max. allowable load: 2.57(262) kN(kgf) | Weight: 5.15 kg/m | Material: Stainless steel | ||
| DY 100SS-2 | Strands: 2 | Pitch: 31.750 mm | Roller dia.: 19.05 mm | Width between inner plates: 19.05 mm | Pin dia.: 9.54 mm | Pin length L1/L2: 76.4/80.5 mm | Inner plate depth: 30.10 mm | Plate thickness: 4.00 mm | Transverse pitch: 35.76 mm | Max. allowable load: 3.77(383) kN(kgf) | Weight: 7.80 kg/m | Material: Stainless steel | ||
| DY 120SS-2 | Strands: 2 | Pitch: 38.100 mm | Roller dia.: 22.23 mm | Width between inner plates: 25.40 mm | Pin dia.: 11.11 mm | Pin length L1/L2: 95.8/99.7 mm | Inner plate depth: 36.20 mm | Plate thickness: 4.80 mm | Transverse pitch: 45.44 mm | Max. allowable load: 5.41(556) kN(kgf) | Weight: 11.70 kg/m | Material: Stainless steel | ||
| DY 140SS-2 | Strands: 2 | Pitch: 44.450 mm | Roller dia.: 25.40 mm | Width between inner plates: 25.40 mm | Pin dia.: 12.71 mm | Pin length L1/L2: 103.3/107.9 mm | Inner plate depth: 42.20 mm | Plate thickness: 5.60 mm | Transverse pitch: 48.87 mm | Max. allowable load: 7.72(780) kN(kgf) | Weight: 15.14 kg/m | Material: Stainless steel | ||
| DY 160SS-2 | Strands: 2 | Pitch: 50.800 mm | Roller dia.: 28.58 mm | Width between inner plates: 31.75 mm | Pin dia.: 14.29 mm | Pin length L1/L2: 123.3/128.1 mm | Inner plate depth: 48.20 mm | Plate thickness: 6.40 mm | Transverse pitch: 58.55 mm | Max. allowable load: 10.65(1079) kN(kgf) | Weight: 20.14 kg/m | Material: Stainless steel | ||
| DY 180SS-2 | Strands: 2 | Pitch: 57.150 mm | Roller dia.: 35.71 mm | Width between inner plates: 35.72 mm | Pin dia.: 17.46 mm | Pin length L1/L2: 138.6/144.4 mm | Inner plate depth: 54.20 mm | Plate thickness: 7.15 mm | Transverse pitch: 65.84 mm | Max. allowable load: 14.27(1447) kN(kgf) | Weight: 29.22 kg/m | Material: Stainless steel | ||
| DY 200SS-2 | Strands: 2 | Pitch: 63.500 mm | Roller dia.: 39.68 mm | Width between inner plates: 38.10 mm | Pin dia.: 19.85 mm | Pin length L1/L2: 151.9/158.8 mm | Inner plate depth: 60.30 mm | Plate thickness: 8.00 mm | Transverse pitch: 71.55 mm | Max. allowable load: 18.40(1859) kN(kgf) | Weight: 32.24 kg/m | Material: Stainless steel | ||
| DY 240SS-2 | Strands: 2 | Pitch: 76.200 mm | Roller dia.: 47.63 mm | Width between inner plates: 47.63 mm | Pin dia.: 23.81 mm | Pin length L1/L2: 183.4/190.8 mm | Inner plate depth: 72.40 mm | Plate thickness: 9.50 mm | Transverse pitch: 87.83 mm | Max. allowable load: 26.30(2656) kN(kgf) | Weight: 45.23 kg/m | Material: Stainless steel |
Need a different model, or a part not listed here? Send us your parts list →
