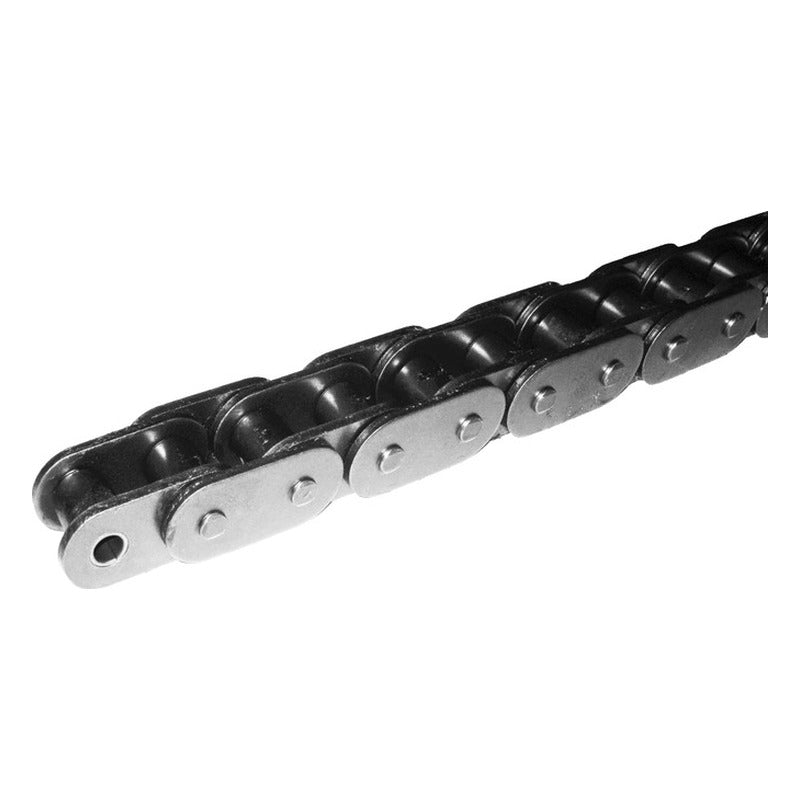

Dongyang Chain Straight Side Plate Roller Chain (FP)

Dongyang Chain Straight Side Plate Roller Chain (FP)

Roller chain with straight (flat) side link plates, sizes DY 40 FP to DY 240 FP, pitch 12.7 to 76.2 mm.

Key features

  • The straight plate edges provide a flat sliding and carrying surface for conveying applications
  • Average tensile strength ranges from 16.7 kN to 637.4 kN
DY 40 FP Pitch: 12.70 mm | Roller dia.: 7.92 mm | Inner width: 7.85 mm | Pin dia.: 3.96 mm | Pin length L1/L2: 8.10/9.20 mm | Link plate height: 12.0 mm | Link plate thickness: 1.5 mm | Avg. tensile strength: 16.7(1,700) kN(kgf) | Approx. weight: 0.77 kg/m
DY 50 FP Pitch: 15.875 mm | Roller dia.: 10.16 mm | Inner width: 9.40 mm | Pin dia.: 5.08 mm | Pin length L1/L2: 10.10/11.70 mm | Link plate height: 15.0 mm | Link plate thickness: 2.0 mm | Avg. tensile strength: 27.5(2,800) kN(kgf) | Approx. weight: 1.20 kg/m
DY 60 FP Pitch: 19.05 mm | Roller dia.: 11.91 mm | Inner width: 12.57 mm | Pin dia.: 5.94 mm | Pin length L1/L2: 12.60/14.40 mm | Link plate height: 18.1 mm | Link plate thickness: 2.4 mm | Avg. tensile strength: 40.2(4,100) kN(kgf) | Approx. weight: 1.60 kg/m
DY 80 FP Pitch: 25.40 mm | Roller dia.: 15.88 mm | Inner width: 15.75 mm | Pin dia.: 7.92 mm | Pin length L1/L2: 16.25/19.25 mm | Link plate height: 24.1 mm | Link plate thickness: 3.2 mm | Avg. tensile strength: 68.6(7,000) kN(kgf) | Approx. weight: 2.74 kg/m
DY 100 FP Pitch: 31.75 mm | Roller dia.: 19.05 mm | Inner width: 18.90 mm | Pin dia.: 9.53 mm | Pin length L1/L2: 19.80/22.90 mm | Link plate height: 30.1 mm | Link plate thickness: 4.0 mm | Avg. tensile strength: 108(11,000) kN(kgf) | Approx. weight: 4.08 kg/m
DY 120 FP Pitch: 38.10 mm | Roller dia.: 22.23 mm | Inner width: 25.22 mm | Pin dia.: 11.10 mm | Pin length L1/L2: 24.80/28.2 mm | Link plate height: 36.0 mm | Link plate thickness: 4.8 mm | Avg. tensile strength: 151(15,400) kN(kgf) | Approx. weight: 5.98 kg/m
DY 140 FP Pitch: 44.45 mm | Roller dia.: 25.40 mm | Inner width: 25.22 mm | Pin dia.: 12.71 mm | Pin length L1/L2: 25.60/31.35 mm | Link plate height: 42.0 mm | Link plate thickness: 5.6 mm | Avg. tensile strength: 204(20,800) kN(kgf) | Approx. weight: 7.70 kg/m
DY 160 FP Pitch: 50.80 mm | Roller dia.: 28.58 mm | Inner width: 31.55 mm | Pin dia.: 14.27 mm | Pin length L1/L2: 31.60/37.10 mm | Link plate height: 48.0 mm | Link plate thickness: 6.4 mm | Avg. tensile strength: 258(26,300) kN(kgf) | Approx. weight: 10.23 kg/m
DY 180 FP Pitch: 57.15 mm | Roller dia.: 35.71 mm | Inner width: 35.48 mm | Pin dia.: 17.46 mm | Pin length L1/L2: 35.9/41.7 mm | Link plate height: 54.2 mm | Link plate thickness: 7.2 mm | Avg. tensile strength: 331.5(33,800) kN(kgf) | Approx. weight: 13.50 kg/m
DY 200 FP Pitch: 63.5 mm | Roller dia.: 39.68 mm | Inner width: 37.85 mm | Pin dia.: 19.85 mm | Pin length L1/L2: 39.05/46.65 mm | Link plate height: 60.3 mm | Link plate thickness: 8.0 mm | Avg. tensile strength: 426.6(43,500) kN(kgf) | Approx. weight: 17.33 kg/m
DY 240 FP Pitch: 76.2 mm | Roller dia.: 47.63 mm | Inner width: 47.35 mm | Pin dia.: 23.81 mm | Pin length L1/L2: 47.2/54.8 mm | Link plate height: 72.4 mm | Link plate thickness: 9.5 mm | Avg. tensile strength: 637.4(65,000) kN(kgf) | Approx. weight: 25.60 kg/m
Roller ChainsDongyang Chain
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Dongyang Chain Straight Side Plate Roller Chain (FP)

Brand Dongyang Chain·Roller Chains

Available part numbers (11)

DY 40 FP, DY 50 FP, DY 60 FP, DY 80 FP, DY 100 FP, DY 120 FP, DY 140 FP, DY 160 FP, DY 180 FP, DY 200 FP + 1 more — see full table ↓

How to order

Send the Dongyang Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DY 40 FPPitch: 12.70 mm | Roller dia.: 7.92 mm | Inner width: 7.85 mm | Pin dia.: 3.96 mm | Pin length L1/L2: 8.10/9.20 mm | Link plate height: 12.0 mm | Link plate thickness: 1.5 mm | Avg. tensile strength: 16.7(1,700) kN(kgf) | Approx. weight: 0.77 kg/m
DY 50 FPPitch: 15.875 mm | Roller dia.: 10.16 mm | Inner width: 9.40 mm | Pin dia.: 5.08 mm | Pin length L1/L2: 10.10/11.70 mm | Link plate height: 15.0 mm | Link plate thickness: 2.0 mm | Avg. tensile strength: 27.5(2,800) kN(kgf) | Approx. weight: 1.20 kg/m
DY 60 FPPitch: 19.05 mm | Roller dia.: 11.91 mm | Inner width: 12.57 mm | Pin dia.: 5.94 mm | Pin length L1/L2: 12.60/14.40 mm | Link plate height: 18.1 mm | Link plate thickness: 2.4 mm | Avg. tensile strength: 40.2(4,100) kN(kgf) | Approx. weight: 1.60 kg/m
DY 80 FPPitch: 25.40 mm | Roller dia.: 15.88 mm | Inner width: 15.75 mm | Pin dia.: 7.92 mm | Pin length L1/L2: 16.25/19.25 mm | Link plate height: 24.1 mm | Link plate thickness: 3.2 mm | Avg. tensile strength: 68.6(7,000) kN(kgf) | Approx. weight: 2.74 kg/m
DY 100 FPPitch: 31.75 mm | Roller dia.: 19.05 mm | Inner width: 18.90 mm | Pin dia.: 9.53 mm | Pin length L1/L2: 19.80/22.90 mm | Link plate height: 30.1 mm | Link plate thickness: 4.0 mm | Avg. tensile strength: 108(11,000) kN(kgf) | Approx. weight: 4.08 kg/m
DY 120 FPPitch: 38.10 mm | Roller dia.: 22.23 mm | Inner width: 25.22 mm | Pin dia.: 11.10 mm | Pin length L1/L2: 24.80/28.2 mm | Link plate height: 36.0 mm | Link plate thickness: 4.8 mm | Avg. tensile strength: 151(15,400) kN(kgf) | Approx. weight: 5.98 kg/m
DY 140 FPPitch: 44.45 mm | Roller dia.: 25.40 mm | Inner width: 25.22 mm | Pin dia.: 12.71 mm | Pin length L1/L2: 25.60/31.35 mm | Link plate height: 42.0 mm | Link plate thickness: 5.6 mm | Avg. tensile strength: 204(20,800) kN(kgf) | Approx. weight: 7.70 kg/m
DY 160 FPPitch: 50.80 mm | Roller dia.: 28.58 mm | Inner width: 31.55 mm | Pin dia.: 14.27 mm | Pin length L1/L2: 31.60/37.10 mm | Link plate height: 48.0 mm | Link plate thickness: 6.4 mm | Avg. tensile strength: 258(26,300) kN(kgf) | Approx. weight: 10.23 kg/m
DY 180 FPPitch: 57.15 mm | Roller dia.: 35.71 mm | Inner width: 35.48 mm | Pin dia.: 17.46 mm | Pin length L1/L2: 35.9/41.7 mm | Link plate height: 54.2 mm | Link plate thickness: 7.2 mm | Avg. tensile strength: 331.5(33,800) kN(kgf) | Approx. weight: 13.50 kg/m
DY 200 FPPitch: 63.5 mm | Roller dia.: 39.68 mm | Inner width: 37.85 mm | Pin dia.: 19.85 mm | Pin length L1/L2: 39.05/46.65 mm | Link plate height: 60.3 mm | Link plate thickness: 8.0 mm | Avg. tensile strength: 426.6(43,500) kN(kgf) | Approx. weight: 17.33 kg/m
DY 240 FPPitch: 76.2 mm | Roller dia.: 47.63 mm | Inner width: 47.35 mm | Pin dia.: 23.81 mm | Pin length L1/L2: 47.2/54.8 mm | Link plate height: 72.4 mm | Link plate thickness: 9.5 mm | Avg. tensile strength: 637.4(65,000) kN(kgf) | Approx. weight: 25.60 kg/m
