Dongyang Chain Sugar Mill Bushed Chain

Dongyang Chain Sugar Mill Bushed Chain

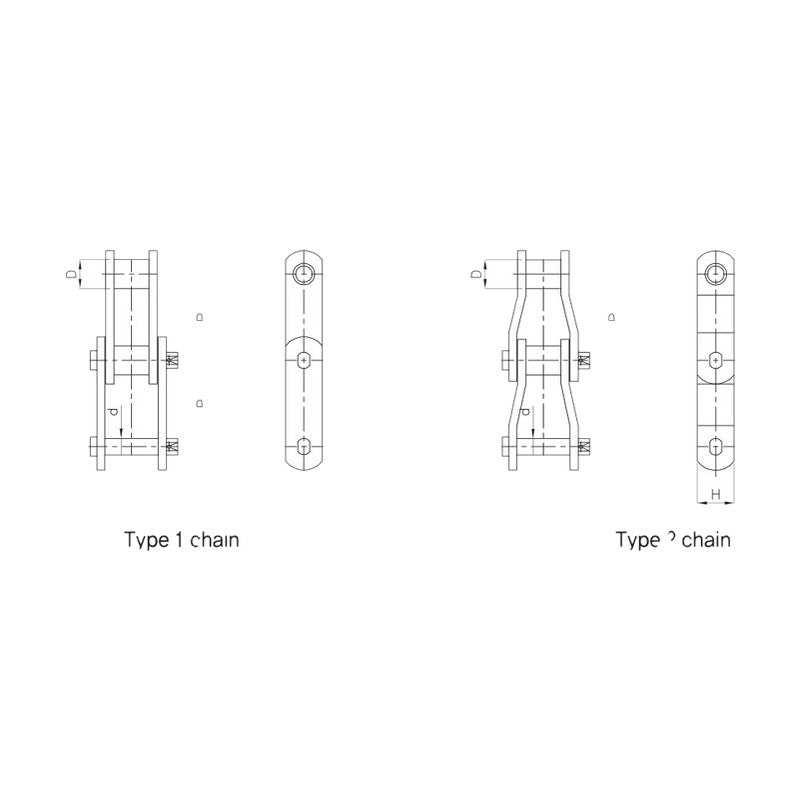

This bushed chain is for sugar mills and is listed in straight sidebar (Type 1) and offset sidebar (Type 2) designs.

Key features

  • K1, K2, A22, F2 and A42 attachments are available depending on the chain
  • Weights on page 62 are given per foot and on page 66 per metre
DY188 Chain type: 1 | Pitch: 66.27 mm | Bushing dia.: 22.2 mm | Inner width: 27 mm | Pin dia.: 12.7 mm | Pin length L1/L2: 31.8/35.7 mm | Plate height: 28.6 mm | Plate thickness: 6.3 mm | Avg. tensile strength: 11,300 kgf | Weight: 1.7 kg/ft | Attachments available: K1 / K2 / A22
DY102B Chain type: 1 | Pitch: 101.6 mm | Bushing dia.: 25.4 mm | Inner width: 54.4 mm | Pin dia.: 15.9 mm | Pin length L1/L2: 51.6/59.1 mm | Plate height: 38.1 mm | Plate thickness: 9.5 mm | Avg. tensile strength: 18,000 kgf | Weight: 3.1 kg/ft | Attachments available: K2
DY825 Chain type: 1 | Pitch: 101.6 mm | Bushing dia.: 29.8 mm | Inner width: 39.7 mm | Pin dia.: 19.05 mm | Pin length L1/L2: 45.2/55.5 mm | Plate height: 50.8 mm | Plate thickness: 9.5 mm | Avg. tensile strength: 22,600 kgf | Weight: 3.9 kg/ft
DY825B Chain type: 2 | Pitch: 101.6 mm | Bushing dia.: 29.8 mm | Inner width: 39.7 mm | Pin dia.: 19.05 mm | Pin length L1/L2: 45.2/55.5 mm | Plate height: 50.8 mm | Plate thickness: 9.5 mm | Avg. tensile strength: 22,600 kgf | Weight: 3.9 kg/ft | Attachments available: K2
DY844 Chain type: 2 | Pitch: 152.4 mm | Bushing dia.: 29.4 mm | Inner width: 63.5 mm | Pin dia.: 19.05 mm | Pin length L1/L2: 63.5/73.0 mm | Plate height: 50.8 mm | Plate thickness: 12.7 mm | Avg. tensile strength: 31,700 kgf | Weight: 4.7 kg/ft | Attachments available: K2
DY150 Plus Chain type: 1 | Pitch: 153.67 mm | Bushing dia.: 44.5 mm | Inner width: 84.1 mm | Pin dia.: 25.4 mm | Pin length L1/L2: 78.2/84.1 mm | Plate height: 63.5 mm | Plate thickness: 12.7 mm | Avg. tensile strength: 45,300 kgf | Weight: 7.5 kg/ft | Attachments available: K2
DY234 Chain type: 2 | Pitch: 66.27 mm | Bushing dia.: 22.58 mm | Inner width: 27.0 mm | Pin dia.: 11.32 mm | Pin length L1/L2: 31.0/35.0 mm | Plate height: 28.6 mm | Plate thickness: 6.3 mm | Min. breaking strength: 5,200 kgf | Weight: 5.8 kg/m
DY488 Chain type: 1 / 2 | Pitch: 66.27 mm | Bushing dia.: 22.58 mm | Inner width: 28.6 mm | Pin dia.: 11.10 mm | Pin length L1/L2: 31.9/37.1 mm | Plate height: 28.6 mm | Plate thickness: 6.3 mm | Min. breaking strength: 8,000 kgf | Weight: 5.9 / 5.4 kg/m
DY4103 Chain type: 1 | Pitch: 78.11 mm | Bushing dia.: 31.80 mm | Inner width: 31.8 mm | Pin dia.: 19.05 mm | Pin length L1/L2: 39.0/45.5 mm | Plate height: 44.5 mm | Plate thickness: 7.9 mm | Min. breaking strength: 14,500 kgf | Weight: 12.2 kg/m
DY0340 Chain type: 1 | Pitch: 101.60 mm | Bushing dia.: 36.50 mm | Inner width: 41.3 mm | Pin dia.: 15.88 mm | Pin length L1/L2: 45.1/49.2 mm | Plate height: 44.5 mm | Plate thickness: 7.9 mm | Min. breaking strength: 14,500 kgf | Weight: 10.9 kg/m
DYH124 Chain type: 1 | Pitch: 101.60 mm | Bushing dia.: 36.50 mm | Inner width: 54.0 mm | Pin dia.: 19.05 mm | Pin length L1/L2: 52.3/57.2 mm | Plate height: 44.5 mm | Plate thickness: 7.9 mm | Min. breaking strength: 14,500 kgf | Weight: 21.5 kg/m
Sugar Mill ChainsDongyang Chain
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Dongyang Chain Sugar Mill Bushed Chain

Brand Dongyang Chain·Sugar Mill Chains

Available part numbers (11)

DY188, DY102B, DY825, DY825B, DY844, DY150 Plus, DY234, DY488, DY4103, DY0340 + 1 more — see full table ↓

How to order

Send the Dongyang Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DY188Chain type: 1 | Pitch: 66.27 mm | Bushing dia.: 22.2 mm | Inner width: 27 mm | Pin dia.: 12.7 mm | Pin length L1/L2: 31.8/35.7 mm | Plate height: 28.6 mm | Plate thickness: 6.3 mm | Avg. tensile strength: 11,300 kgf | Weight: 1.7 kg/ft | Attachments available: K1 / K2 / A22
DY102BChain type: 1 | Pitch: 101.6 mm | Bushing dia.: 25.4 mm | Inner width: 54.4 mm | Pin dia.: 15.9 mm | Pin length L1/L2: 51.6/59.1 mm | Plate height: 38.1 mm | Plate thickness: 9.5 mm | Avg. tensile strength: 18,000 kgf | Weight: 3.1 kg/ft | Attachments available: K2
DY825Chain type: 1 | Pitch: 101.6 mm | Bushing dia.: 29.8 mm | Inner width: 39.7 mm | Pin dia.: 19.05 mm | Pin length L1/L2: 45.2/55.5 mm | Plate height: 50.8 mm | Plate thickness: 9.5 mm | Avg. tensile strength: 22,600 kgf | Weight: 3.9 kg/ft
DY825BChain type: 2 | Pitch: 101.6 mm | Bushing dia.: 29.8 mm | Inner width: 39.7 mm | Pin dia.: 19.05 mm | Pin length L1/L2: 45.2/55.5 mm | Plate height: 50.8 mm | Plate thickness: 9.5 mm | Avg. tensile strength: 22,600 kgf | Weight: 3.9 kg/ft | Attachments available: K2
DY844Chain type: 2 | Pitch: 152.4 mm | Bushing dia.: 29.4 mm | Inner width: 63.5 mm | Pin dia.: 19.05 mm | Pin length L1/L2: 63.5/73.0 mm | Plate height: 50.8 mm | Plate thickness: 12.7 mm | Avg. tensile strength: 31,700 kgf | Weight: 4.7 kg/ft | Attachments available: K2
DY150 PlusChain type: 1 | Pitch: 153.67 mm | Bushing dia.: 44.5 mm | Inner width: 84.1 mm | Pin dia.: 25.4 mm | Pin length L1/L2: 78.2/84.1 mm | Plate height: 63.5 mm | Plate thickness: 12.7 mm | Avg. tensile strength: 45,300 kgf | Weight: 7.5 kg/ft | Attachments available: K2
DY234Chain type: 2 | Pitch: 66.27 mm | Bushing dia.: 22.58 mm | Inner width: 27.0 mm | Pin dia.: 11.32 mm | Pin length L1/L2: 31.0/35.0 mm | Plate height: 28.6 mm | Plate thickness: 6.3 mm | Min. breaking strength: 5,200 kgf | Weight: 5.8 kg/m
DY488Chain type: 1 / 2 | Pitch: 66.27 mm | Bushing dia.: 22.58 mm | Inner width: 28.6 mm | Pin dia.: 11.10 mm | Pin length L1/L2: 31.9/37.1 mm | Plate height: 28.6 mm | Plate thickness: 6.3 mm | Min. breaking strength: 8,000 kgf | Weight: 5.9 / 5.4 kg/m
DY4103Chain type: 1 | Pitch: 78.11 mm | Bushing dia.: 31.80 mm | Inner width: 31.8 mm | Pin dia.: 19.05 mm | Pin length L1/L2: 39.0/45.5 mm | Plate height: 44.5 mm | Plate thickness: 7.9 mm | Min. breaking strength: 14,500 kgf | Weight: 12.2 kg/m
DY0340Chain type: 1 | Pitch: 101.60 mm | Bushing dia.: 36.50 mm | Inner width: 41.3 mm | Pin dia.: 15.88 mm | Pin length L1/L2: 45.1/49.2 mm | Plate height: 44.5 mm | Plate thickness: 7.9 mm | Min. breaking strength: 14,500 kgf | Weight: 10.9 kg/m
DYH124Chain type: 1 | Pitch: 101.60 mm | Bushing dia.: 36.50 mm | Inner width: 54.0 mm | Pin dia.: 19.05 mm | Pin length L1/L2: 52.3/57.2 mm | Plate height: 44.5 mm | Plate thickness: 7.9 mm | Min. breaking strength: 14,500 kgf | Weight: 21.5 kg/m
