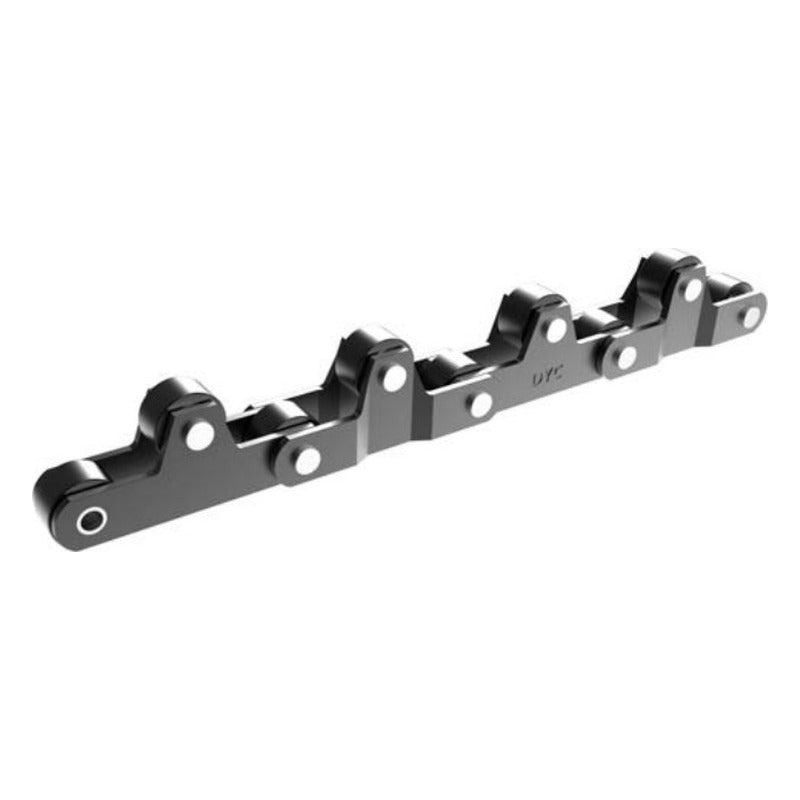

Dongyang Chain Top Roller Conveyor Chain

Dongyang Chain Top Roller Conveyor Chain

Top roller chain is used for accumulation, where the chain keeps running while goods are held by a stopper.

Key features

  • It also allows conveying and stopping on the same chain and reduces impact when loading or unloading goods
  • Type I and Type II layouts are shown
DY 03075-R Pitch: 75 mm | Roller dia.: 31.8 mm | Roller width E: 15.5 mm | Inner width: 16.1 mm | Plate height: 22 mm | Plate thickness: 3.2 mm | Pin length L1/L2: 18/20 mm | Top roller dia.: 40 mm | Top roller width: 13 mm | Overall height B: 59 mm | Weight: 2.7 kg/m | Top roller added weight: 0.18 kg/m
DY 03100-R Pitch: 100 mm | Roller dia.: 31.8 mm | Roller width E: 15.5 mm | Inner width: 16.1 mm | Plate height: 22 mm | Plate thickness: 3.2 mm | Pin length L1/L2: 18/20 mm | Top roller dia.: 40 mm | Top roller width: 13 mm | Overall height B: 59 mm | Weight: 2.3 kg/m | Top roller added weight: 0.18 kg/m
DY 05100-R Pitch: 100 mm | Roller dia.: 40 mm | Roller width E: 19 mm | Inner width: 22 mm | Plate height: 32 mm | Plate thickness: 4.5 mm | Pin length L1/L2: 25/28.5 mm | Top roller dia.: 40 mm | Top roller width: 19 mm | Overall height B: 70 mm | Weight: 5.0 kg/m | Top roller added weight: 0.26 kg/m
DY 05150-R Pitch: 150 mm | Roller dia.: 40 mm | Roller width E: 19 mm | Inner width: 22 mm | Plate height: 32 mm | Plate thickness: 4.5 mm | Pin length L1/L2: 25/28.5 mm | Top roller dia.: 40 mm | Top roller width: 19 mm | Overall height B: 70 mm | Weight: 4.1 kg/m | Top roller added weight: 0.26 kg/m
DY 08150-R Pitch: 150 mm | Roller dia.: 44.5 mm | Roller width E: 23 mm | Inner width: 27 mm | Plate height: 28.6 mm | Plate thickness: 6.3 mm | Pin length L1/L2: 31/34.5 mm | Top roller dia.: 40 mm | Top roller width: 23 mm | Overall height B: 72.2 mm | Weight: 5.5 kg/m | Top roller added weight: 0.35 kg/m
DY 10150-R Pitch: 150 mm | Roller dia.: 50.8 mm | Roller width E: 27 mm | Inner width: 30 mm | Plate height: 38.1 mm | Plate thickness: 6.3 mm | Pin length L1/L2: 33/36 mm | Top roller dia.: 50.8 mm | Top roller width: 27 mm | Overall height B: 80.8 mm | Weight: 7.9 kg/m | Top roller added weight: 0.56 kg/m
DY 6205-R Pitch: 152.4 mm | Roller dia.: 57.2 mm | Roller width E: 32 mm | Inner width: 37.1 mm | Plate height: 44.5 mm | Plate thickness: 7.9 mm | Pin length L1/L2: 40.5/43 mm | Top roller dia.: 57.2 mm | Top roller width: 32 mm | Overall height B: 95 mm | Weight: 12.1 kg/m | Top roller added weight: 0.91 kg/m
DY 12200-R Pitch: 200 mm | Roller dia.: 65 mm | Roller width E: 32 mm | Inner width: 37.1 mm | Plate height: 44.5 mm | Plate thickness: 7.9 mm | Pin length L1/L2: 40.5/43 mm | Top roller dia.: 65 mm | Top roller width: 32 mm | Overall height B: 110 mm | Weight: 11.4 kg/m | Top roller added weight: 1.15 kg/m
DY 17200-R Pitch: 200 mm | Roller dia.: 80 mm | Roller width E: 44 mm | Inner width: 51.4 mm | Plate height: 50.8 mm | Plate thickness: 9.5 mm | Pin length L1/L2: 51.5/58 mm | Top roller dia.: 80 mm | Top roller width: 44 mm | Overall height B: 145 mm | Weight: 19 kg/m | Top roller added weight: 2.58 kg/m
Conveyor ChainsDongyang Chain
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Dongyang Chain Top Roller Conveyor Chain

Brand Dongyang Chain·Conveyor Chains

Available part numbers (9)

DY 03075-R, DY 03100-R, DY 05100-R, DY 05150-R, DY 08150-R, DY 10150-R, DY 6205-R, DY 12200-R, DY 17200-R

How to order

Send the Dongyang Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DY 03075-RPitch: 75 mm | Roller dia.: 31.8 mm | Roller width E: 15.5 mm | Inner width: 16.1 mm | Plate height: 22 mm | Plate thickness: 3.2 mm | Pin length L1/L2: 18/20 mm | Top roller dia.: 40 mm | Top roller width: 13 mm | Overall height B: 59 mm | Weight: 2.7 kg/m | Top roller added weight: 0.18 kg/m
DY 03100-RPitch: 100 mm | Roller dia.: 31.8 mm | Roller width E: 15.5 mm | Inner width: 16.1 mm | Plate height: 22 mm | Plate thickness: 3.2 mm | Pin length L1/L2: 18/20 mm | Top roller dia.: 40 mm | Top roller width: 13 mm | Overall height B: 59 mm | Weight: 2.3 kg/m | Top roller added weight: 0.18 kg/m
DY 05100-RPitch: 100 mm | Roller dia.: 40 mm | Roller width E: 19 mm | Inner width: 22 mm | Plate height: 32 mm | Plate thickness: 4.5 mm | Pin length L1/L2: 25/28.5 mm | Top roller dia.: 40 mm | Top roller width: 19 mm | Overall height B: 70 mm | Weight: 5.0 kg/m | Top roller added weight: 0.26 kg/m
DY 05150-RPitch: 150 mm | Roller dia.: 40 mm | Roller width E: 19 mm | Inner width: 22 mm | Plate height: 32 mm | Plate thickness: 4.5 mm | Pin length L1/L2: 25/28.5 mm | Top roller dia.: 40 mm | Top roller width: 19 mm | Overall height B: 70 mm | Weight: 4.1 kg/m | Top roller added weight: 0.26 kg/m
DY 08150-RPitch: 150 mm | Roller dia.: 44.5 mm | Roller width E: 23 mm | Inner width: 27 mm | Plate height: 28.6 mm | Plate thickness: 6.3 mm | Pin length L1/L2: 31/34.5 mm | Top roller dia.: 40 mm | Top roller width: 23 mm | Overall height B: 72.2 mm | Weight: 5.5 kg/m | Top roller added weight: 0.35 kg/m
DY 10150-RPitch: 150 mm | Roller dia.: 50.8 mm | Roller width E: 27 mm | Inner width: 30 mm | Plate height: 38.1 mm | Plate thickness: 6.3 mm | Pin length L1/L2: 33/36 mm | Top roller dia.: 50.8 mm | Top roller width: 27 mm | Overall height B: 80.8 mm | Weight: 7.9 kg/m | Top roller added weight: 0.56 kg/m
DY 6205-RPitch: 152.4 mm | Roller dia.: 57.2 mm | Roller width E: 32 mm | Inner width: 37.1 mm | Plate height: 44.5 mm | Plate thickness: 7.9 mm | Pin length L1/L2: 40.5/43 mm | Top roller dia.: 57.2 mm | Top roller width: 32 mm | Overall height B: 95 mm | Weight: 12.1 kg/m | Top roller added weight: 0.91 kg/m
DY 12200-RPitch: 200 mm | Roller dia.: 65 mm | Roller width E: 32 mm | Inner width: 37.1 mm | Plate height: 44.5 mm | Plate thickness: 7.9 mm | Pin length L1/L2: 40.5/43 mm | Top roller dia.: 65 mm | Top roller width: 32 mm | Overall height B: 110 mm | Weight: 11.4 kg/m | Top roller added weight: 1.15 kg/m
DY 17200-RPitch: 200 mm | Roller dia.: 80 mm | Roller width E: 44 mm | Inner width: 51.4 mm | Plate height: 50.8 mm | Plate thickness: 9.5 mm | Pin length L1/L2: 51.5/58 mm | Top roller dia.: 80 mm | Top roller width: 44 mm | Overall height B: 145 mm | Weight: 19 kg/m | Top roller added weight: 2.58 kg/m
