Dongyang Chain WS Steel Drag Chain

Dongyang Chain WS Steel Drag Chain

The WS steel drag chain is a wide, welded-style drag conveyor chain.

Key features

  • Pitches from 127 mm to 203.2 mm and average tensile strengths from 12,700 kgf to 30,000 kgf are listed

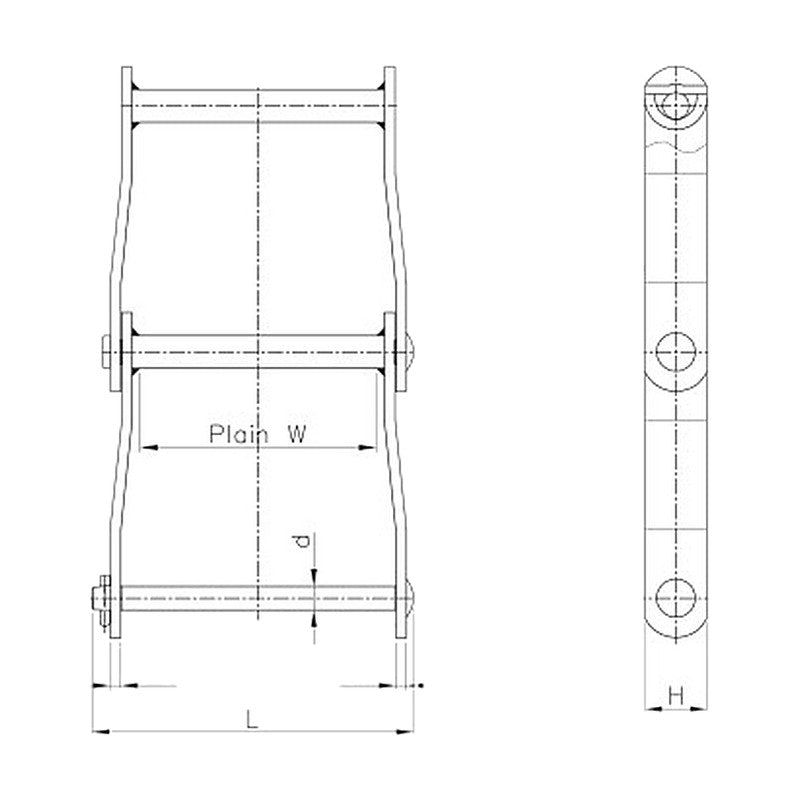

WS 102 Avg. tensile strength: 12,700 kgf | Pitch: 127.0 mm | Plate thickness: 9.5 mm | Plate height: 38.1 mm | Pin dia.: 19.05 mm | Pin length: 224 mm | Overall width M: 179 mm | Inner width W: 140 mm
WS 104 Avg. tensile strength: 23,000 kgf | Pitch: 152.4 mm | Plate thickness: 9.5 mm | Plate height: 38.1 mm | Pin dia.: 19.05 mm | Pin length: 182 mm | Overall width M: 137 mm | Inner width W: 102 mm
WS 110 Avg. tensile strength: 23,000 kgf | Pitch: 152.4 mm | Plate thickness: 9.5 mm | Plate height: 38.1 mm | Pin dia.: 19.05 mm | Pin length: 314 mm | Overall width M: 270 mm | Inner width W: 230 mm
WS 116 Avg. tensile strength: 23,000 kgf | Pitch: 203.2 mm | Plate thickness: 9.5 mm | Plate height: 44.5 mm | Pin dia.: 18.81 mm | Pin length: 404 mm | Overall width M: 362 mm | Inner width W: 330 mm
WS 480 Avg. tensile strength: 30,000 kgf | Pitch: 203.2 mm | Plate thickness: 12.7 mm | Plate height: 50.8 mm | Pin dia.: 22.00 mm | Pin length: 273 mm | Overall width M: 325 mm | Inner width W: 280 mm
Drag ChainsDongyang Chain
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Dongyang Chain WS Steel Drag Chain

Brand Dongyang Chain·Drag Chains

Available part numbers (5)

WS 102, WS 104, WS 110, WS 116, WS 480

How to order

Send the Dongyang Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WS 102Avg. tensile strength: 12,700 kgf | Pitch: 127.0 mm | Plate thickness: 9.5 mm | Plate height: 38.1 mm | Pin dia.: 19.05 mm | Pin length: 224 mm | Overall width M: 179 mm | Inner width W: 140 mm
WS 104Avg. tensile strength: 23,000 kgf | Pitch: 152.4 mm | Plate thickness: 9.5 mm | Plate height: 38.1 mm | Pin dia.: 19.05 mm | Pin length: 182 mm | Overall width M: 137 mm | Inner width W: 102 mm
WS 110Avg. tensile strength: 23,000 kgf | Pitch: 152.4 mm | Plate thickness: 9.5 mm | Plate height: 38.1 mm | Pin dia.: 19.05 mm | Pin length: 314 mm | Overall width M: 270 mm | Inner width W: 230 mm
WS 116Avg. tensile strength: 23,000 kgf | Pitch: 203.2 mm | Plate thickness: 9.5 mm | Plate height: 44.5 mm | Pin dia.: 18.81 mm | Pin length: 404 mm | Overall width M: 362 mm | Inner width W: 330 mm
WS 480Avg. tensile strength: 30,000 kgf | Pitch: 203.2 mm | Plate thickness: 12.7 mm | Plate height: 50.8 mm | Pin dia.: 22.00 mm | Pin length: 273 mm | Overall width M: 325 mm | Inner width W: 280 mm
