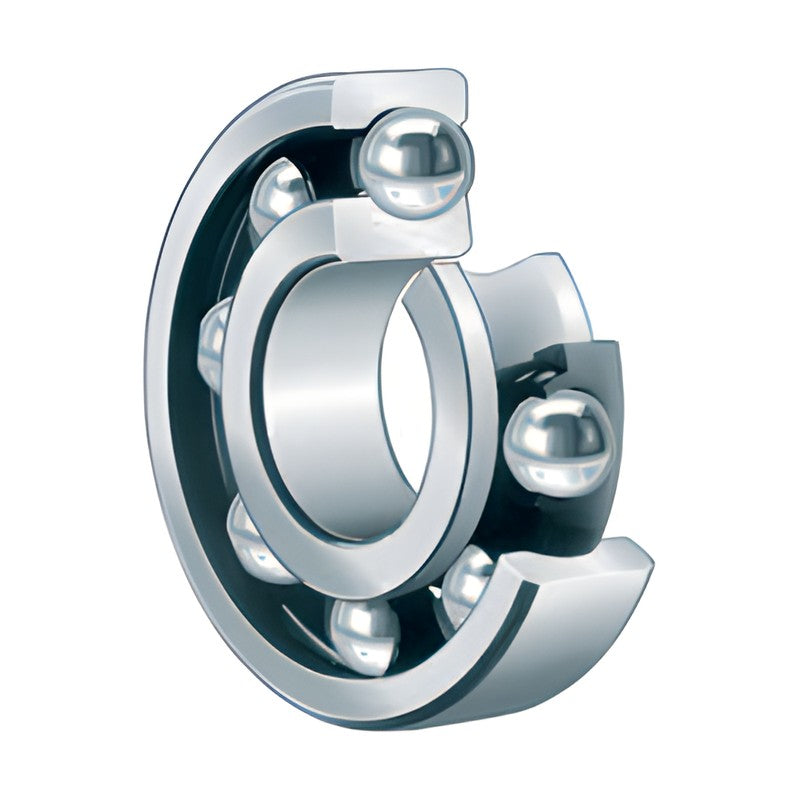

FAG 160 Series Deep Groove Ball Bearings (Open)

FAG 160 Series Deep Groove Ball Bearings (Open)

FAG single row deep groove ball bearings of the narrow 160 series, listed in the Schaeffler HR 1 catalogue. Supplied in the open and sealed variants printed in the dimension tables.

Key features

  • Single row deep groove ball bearings for radial and axial loads in both directions
  • Open design plus 2Z gap seals and 2RSR lip seals where listed
  • Sealed bearings are greased for life and maintenance-free
  • Low friction and high speed capability
  • Dimensions to DIN 625-1 / ISO 15

Specifications

Bearing type Deep groove ball bearing, single row
Series 160
Variants Open
Operating temp. (open) up to +120 C
Dimension standard DIN 625-1
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 208-241
16002 d: 15 mm | D: 32 mm | B: 8 mm | C: 5.6 kN | C0: 2.85 kN | nG: 30000 rpm
16003 d: 17 mm | D: 35 mm | B: 8 mm | C: 6 kN | C0: 3.25 kN | nG: 28000 rpm
16004 d: 20 mm | D: 42 mm | B: 8 mm | C: 6.95 kN | C0: 4.05 kN | nG: 22000 rpm
16005 d: 25 mm | D: 47 mm | B: 8 mm | C: 7.2 kN | C0: 4.65 kN | nG: 19000 rpm
16006 d: 30 mm | D: 55 mm | B: 9 mm | C: 11.2 kN | C0: 7.35 kN | nG: 16000 rpm
16007 d: 35 mm | D: 62 mm | B: 9 mm | C: 12.2 kN | C0: 8.8 kN | nG: 14000 rpm
16008 d: 40 mm | D: 68 mm | B: 9 mm | C: 13.2 kN | C0: 10.2 kN | nG: 13000 rpm
16009 d: 45 mm | D: 75 mm | B: 10 mm | C: 15.6 kN | C0: 12.2 kN | nG: 22000 rpm
16010 d: 50 mm | D: 80 mm | B: 10 mm | C: 16 kN | C0: 13.2 kN | nG: 20000 rpm
16011 d: 55 mm | D: 90 mm | B: 11 mm | C: 19.3 kN | C0: 16.3 kN | nG: 18000 rpm
16012 d: 60 mm | D: 95 mm | B: 11 mm | C: 20 kN | C0: 17.6 kN | nG: 17000 rpm
16013 d: 65 mm | D: 100 mm | B: 11 mm | C: 21.2 kN | C0: 19.6 kN | nG: 16000 rpm
16014 d: 70 mm | D: 110 mm | B: 13 mm | C: 28 kN | C0: 25 kN | nG: 14000 rpm
16015 d: 75 mm | D: 115 mm | B: 13 mm | C: 28.5 kN | C0: 27 kN | nG: 13000 rpm
16016 d: 80 mm | D: 125 mm | B: 14 mm | C: 32 kN | C0: 31 kN | nG: 13000 rpm
16017 d: 85 mm | D: 130 mm | B: 14 mm | C: 34 kN | C0: 33.5 kN | nG: 12000 rpm
16018 d: 90 mm | D: 140 mm | B: 16 mm | C: 41.5 kN | C0: 39 kN | nG: 11000 rpm
16019 d: 95 mm | D: 145 mm | B: 16 mm | C: 40 kN | C0: 40.5 kN | nG: 11000 rpm
16020 d: 100 mm | D: 150 mm | B: 16 mm | C: 44 kN | C0: 44 kN | nG: 10000 rpm
16021 d: 105 mm | D: 160 mm | B: 18 mm | C: 54 kN | C0: 54 kN | nG: 9500 rpm
16022 d: 110 mm | D: 170 mm | B: 19 mm | C: 57 kN | C0: 57 kN | nG: 9000 rpm
16024 d: 120 mm | D: 180 mm | B: 19 mm | C: 61 kN | C0: 64 kN | nG: 8000 rpm
16026 d: 130 mm | D: 200 mm | B: 22 mm | C: 78 kN | C0: 81.5 kN | nG: 7500 rpm
16028 d: 140 mm | D: 210 mm | B: 22 mm | C: 80 kN | C0: 86.5 kN | nG: 7000 rpm
16030 d: 150 mm | D: 225 mm | B: 24 mm | C: 91.5 kN | C0: 98 kN | nG: 6700 rpm
16032 d: 160 mm | D: 240 mm | B: 25 mm | C: 102 kN | C0: 114 kN | nG: 6300 rpm
16034 d: 170 mm | D: 260 mm | B: 28 mm | C: 122 kN | C0: 137 kN | nG: 6000 rpm
16036 d: 180 mm | D: 280 mm | B: 31 mm | C: 132 kN | C0: 146 kN | nG: 5600 rpm
16038 d: 190 mm | D: 290 mm | B: 31 mm | C: 150 kN | C0: 166 kN | nG: 5300 rpm
16040 d: 200 mm | D: 310 mm | B: 34 mm | C: 176 kN | C0: 204 kN | nG: 4800 rpm
16044 d: 220 mm | D: 340 mm | B: 37 mm | C: 200 kN | C0: 240 kN | nG: 4300 rpm
16048 d: 240 mm | D: 360 mm | B: 37 mm | C: 204 kN | C0: 255 kN | nG: 3800 rpm
16052 d: 260 mm | D: 400 mm | B: 44 mm | C: 236 kN | C0: 310 kN | nG: 3600 rpm
16056-M d: 280 mm | D: 420 mm | B: 44 mm | C: 240 kN | C0: 325 kN | nG: 3400 rpm
16060-M d: 300 mm | D: 460 mm | B: 50 mm | C: 300 kN | C0: 430 kN | nG: 3200 rpm
16064-M d: 320 mm | D: 480 mm | B: 50 mm | C: 305 kN | C0: 455 kN | nG: 3000 rpm
16068-M d: 340 mm | D: 520 mm | B: 57 mm | C: 355 kN | C0: 550 kN | nG: 2800 rpm
16072-M d: 360 mm | D: 540 mm | B: 57 mm | C: 365 kN | C0: 585 kN | nG: 2800 rpm
16076-M d: 380 mm | D: 560 mm | B: 57 mm | C: 375 kN | C0: 620 kN | nG: 2600 rpm
