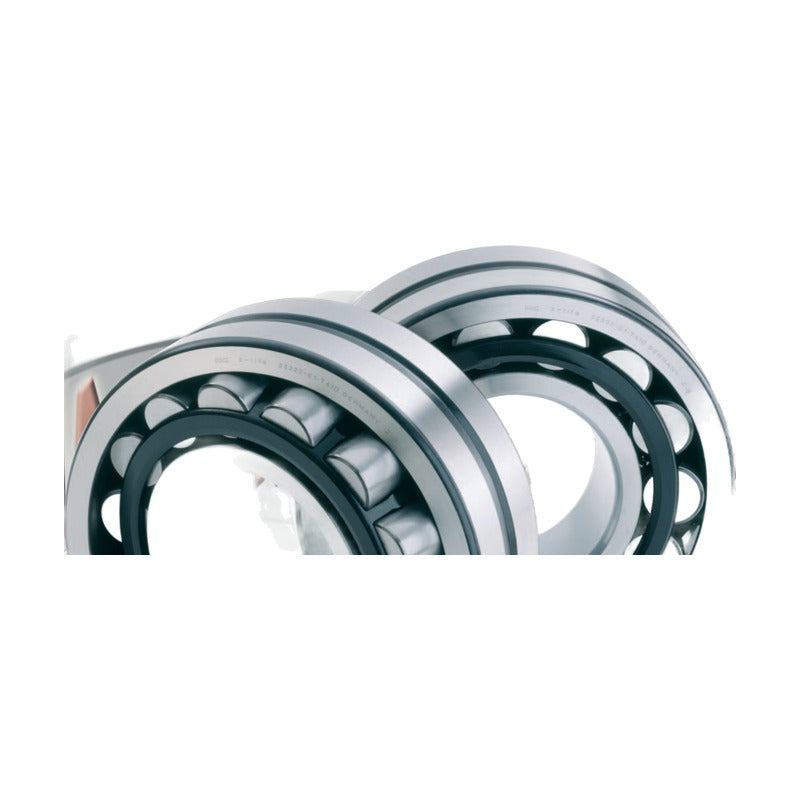

FAG 223..-E1-JPA-T41A Spherical Roller Bearings, Vibratory (d 160-220)

FAG X-life special spherical roller bearings of series 223..-E1-JPA-T41A for large vibrating screens and vibratory machinery, with JPA window cage. Cylindrical and tapered bore (K) versions, shaft 160 to 220 mm.

Key features

X-life design with increased basic dynamic load rating
Manufactured to specification T41A/T41D: restricted bore and outside diameter tolerances
Radial internal clearance C4 as standard (not stated in designation)
Outer ring guided cage supports high radial accelerations of vibratory machinery
Pressed steel window cage JPA (indicated in designation)
Also available with tapered bore 1:12 (suffix K)

Specifications

Series	223..-E1-JPA-T41A
Cage	JPA window cage
Internal clearance	C4 (standard)
Tolerance	Specification T41A
Bore range	160-220 mm
Tapered bore	Taper 1:12, suffix K
Source	FAG Special Spherical Roller Bearings for Vibratory Machinery, p. 3, 25

22332-E1-JPA-T41A		d: 160 mm \| D: 340 mm \| B: 114 mm \| Cr: 1680 kN \| C0r: 1990 kN \| Bore: cylindrical
22334-E1-JPA-T41A		d: 170 mm \| D: 360 mm \| B: 120 mm \| Cr: 1870 kN \| C0r: 2220 kN \| Bore: cylindrical
22336-E1-JPA-T41A		d: 180 mm \| D: 380 mm \| B: 126 mm \| Cr: 2060 kN \| C0r: 2460 kN \| Bore: cylindrical
22338-E1-JPA-T41A		d: 190 mm \| D: 400 mm \| B: 132 mm \| Cr: 2260 kN \| C0r: 2700 kN \| Bore: cylindrical
22340-E1-JPA-T41A		d: 200 mm \| D: 420 mm \| B: 138 mm \| Cr: 2440 kN \| C0r: 2950 kN \| Bore: cylindrical
22344-E1-JPA-T41A		d: 220 mm \| D: 460 mm \| B: 145 mm \| Cr: 2800 kN \| C0r: 3400 kN \| Bore: cylindrical
22332-E1-K-JPA-T41A		d: 160 mm \| D: 340 mm \| B: 114 mm \| Cr: 1680 kN \| C0r: 1990 kN \| Bore: tapered 1:12
22334-E1-K-JPA-T41A		d: 170 mm \| D: 360 mm \| B: 120 mm \| Cr: 1870 kN \| C0r: 2220 kN \| Bore: tapered 1:12
22336-E1-K-JPA-T41A		d: 180 mm \| D: 380 mm \| B: 126 mm \| Cr: 2060 kN \| C0r: 2460 kN \| Bore: tapered 1:12
22338-E1-K-JPA-T41A		d: 190 mm \| D: 400 mm \| B: 132 mm \| Cr: 2260 kN \| C0r: 2700 kN \| Bore: tapered 1:12
22340-E1-K-JPA-T41A		d: 200 mm \| D: 420 mm \| B: 138 mm \| Cr: 2440 kN \| C0r: 2950 kN \| Bore: tapered 1:12
22344-E1-K-JPA-T41A		d: 220 mm \| D: 460 mm \| B: 145 mm \| Cr: 2800 kN \| C0r: 3400 kN \| Bore: tapered 1:12

Spherical Roller BearingsFAG

12 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG 223..-E1-JPA-T41A Spherical Roller Bearings, Vibratory (d 160-220)

Brand FAG·Spherical Roller Bearings

Available part numbers (12)

22332-E1-JPA-T41A, 22334-E1-JPA-T41A, 22336-E1-JPA-T41A, 22338-E1-JPA-T41A, 22340-E1-JPA-T41A, 22344-E1-JPA-T41A, 22332-E1-K-JPA-T41A, 22334-E1-K-JPA-T41A, 22336-E1-K-JPA-T41A, 22338-E1-K-JPA-T41A + 2 more — see full table ↓
