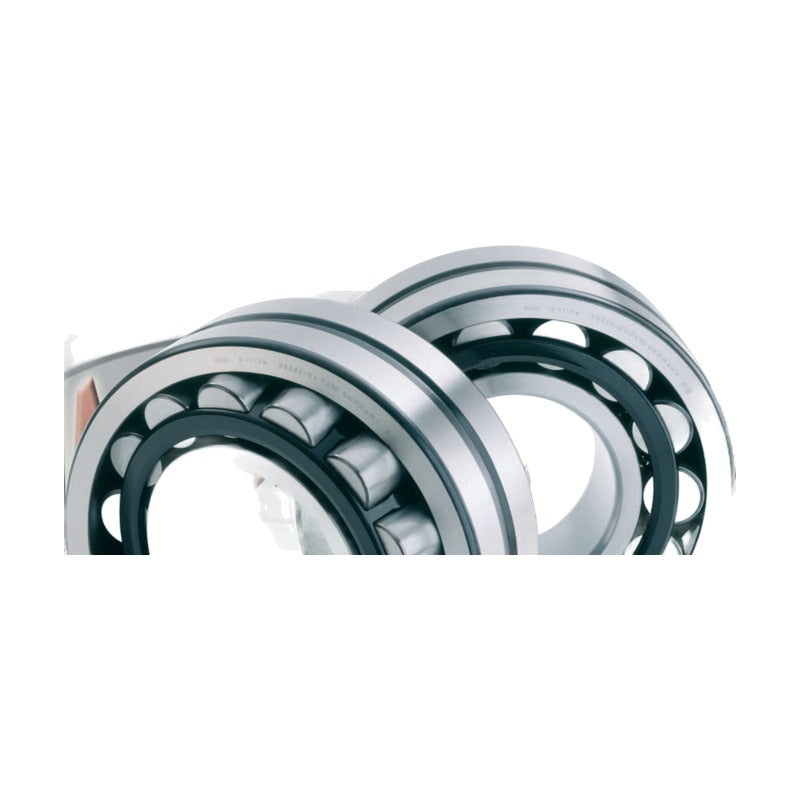

FAG 223..-E1-T41A(D) Spherical Roller Bearings, Vibratory (d 40-150)

FAG 223..-E1-T41A(D) Spherical Roller Bearings, Vibratory (d 40-150)

FAG X-life special spherical roller bearings of series 223..-E1-T41A(D) for vibrating screens, road rollers and other vibratory machinery. Cylindrical bore versions plus tapered bore (K) versions, shaft 40 to 150 mm.

Key features

  • X-life design with increased basic dynamic load rating
  • Manufactured to specification T41A/T41D: restricted bore and outside diameter tolerances
  • Radial internal clearance C4 as standard (not stated in designation)
  • Outer ring guided cage supports high radial accelerations of vibratory machinery
  • Bearings 22317 to 22330 (T41D) with Durotect CK coated cylindrical bore against fretting corrosion
  • Also available with tapered bore 1:12 (suffix K)

Specifications

Series 223..-E1-T41A / -T41D
Cage JPA (standard, not indicated)
Internal clearance C4 (standard)
Tolerance Specification T41A(D)
Bore range 40-150 mm
Tapered bore Taper 1:12, suffix K
Source FAG Special Spherical Roller Bearings for Vibratory Machinery, p. 3, 24
22308-E1-K-T41A d: 40 mm | D: 90 mm | B: 33 mm | Cr: 156 kN | C0r: 149 kN | Bore: tapered 1:12
22309-E1-K-T41A d: 45 mm | D: 100 mm | B: 36 mm | Cr: 187 kN | C0r: 183 kN | Bore: tapered 1:12
22310-E1-K-T41A d: 50 mm | D: 110 mm | B: 40 mm | Cr: 229 kN | C0r: 223 kN | Bore: tapered 1:12
Spherical Roller BearingsFAG
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG 223..-E1-T41A(D) Spherical Roller Bearings, Vibratory (d 40-150)

Brand FAG·Spherical Roller Bearings

Available part numbers (3)

22308-E1-K-T41A, 22309-E1-K-T41A, 22310-E1-K-T41A

How to order

Send the FAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
22308-E1-K-T41Ad: 40 mm | D: 90 mm | B: 33 mm | Cr: 156 kN | C0r: 149 kN | Bore: tapered 1:12
22309-E1-K-T41Ad: 45 mm | D: 100 mm | B: 36 mm | Cr: 187 kN | C0r: 183 kN | Bore: tapered 1:12
22310-E1-K-T41Ad: 50 mm | D: 110 mm | B: 40 mm | Cr: 229 kN | C0r: 223 kN | Bore: tapered 1:12
