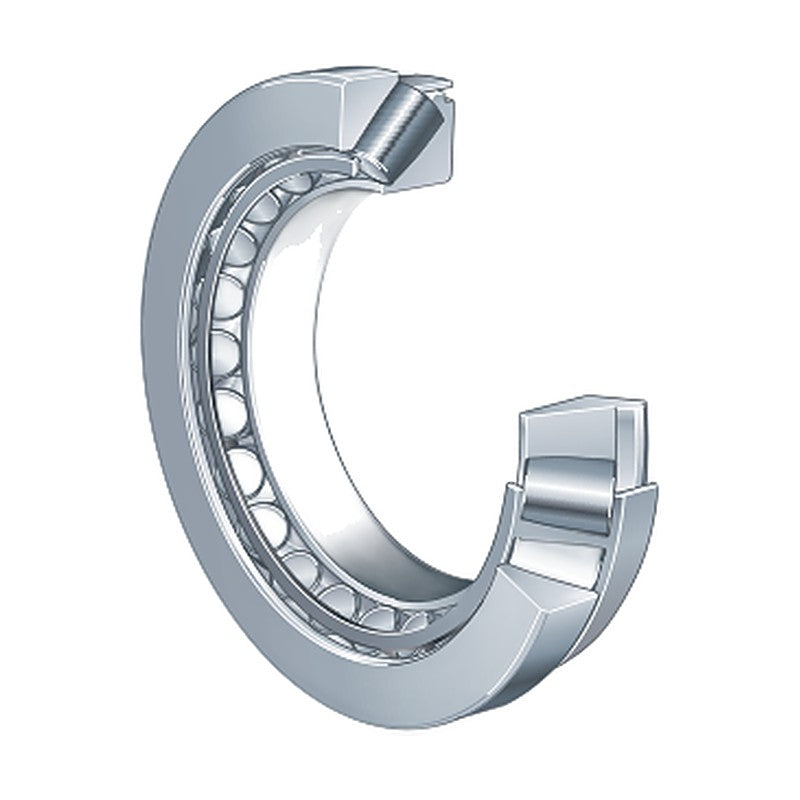

FAG 292/293/294 Axial Spherical Roller Bearings

FAG 292/293/294 Axial Spherical Roller Bearings

Single direction axial spherical roller bearings of series 292, 293 and 294 in E1 (X-life), E and E-MB designs for very high axial loads with self-aligning capability.

Key features

  • Asymmetrical barrel rollers with high axial and moderate radial load capacity
  • Self-aligning: compensates misalignment of shaft relative to housing
  • E1 design in X-life quality; E-MB with machined brass cage for large sizes
  • Separable: shaft washer with roller and cage assembly, housing washer
  • Suitable for oil lubrication at high speeds

Specifications

Brand FAG
Product type Thrust Bearings
Design Single direction
Series 292, 293, 294
Bore d 60 - 850 mm
Outside diameter D 130 - 1250 mm
Height T 39 - 308 mm
Source FAG Rolling Bearings HR 1 catalogue, p. 786-791
29412-E1 d: 60 mm | D: 130 mm | T: 42 mm | Ca: 420 kN | C0a: 970 kN | m: 2.5 kg
29413-E1 d: 65 mm | D: 140 mm | T: 45 mm | Ca: 495 kN | C0a: 1160 kN | m: 3.1 kg
29414-E1 d: 70 mm | D: 150 mm | T: 48 mm | Ca: 550 kN | C0a: 1290 kN | m: 3.8 kg
29415-E1 d: 75 mm | D: 160 mm | T: 51 mm | Ca: 650 kN | C0a: 1540 kN | m: 4.6 kg
29416-E1 d: 80 mm | D: 170 mm | T: 54 mm | Ca: 720 kN | C0a: 1720 kN | m: 5.5 kg
29317-E1 d: 85 mm | D: 150 mm | T: 39 mm | Ca: 420 kN | C0a: 1110 kN | m: 2.7 kg
29417-E1 d: 85 mm | D: 180 mm | T: 58 mm | Ca: 800 kN | C0a: 1910 kN | m: 6.5 kg
29318-E1 d: 90 mm | D: 155 mm | T: 39 mm | Ca: 420 kN | C0a: 1130 kN | m: 2.8 kg
29418-E1 d: 90 mm | D: 190 mm | T: 60 mm | Ca: 880 kN | C0a: 2130 kN | m: 7.5 kg
29320-E1 d: 100 mm | D: 170 mm | T: 42 mm | Ca: 495 kN | C0a: 1340 kN | m: 3.6 kg
29420-E1 d: 100 mm | D: 210 mm | T: 67 mm | Ca: 1060 kN | C0a: 2600 kN | m: 10.1 kg
29322-E1 d: 110 mm | D: 190 mm | T: 48 mm | Ca: 620 kN | C0a: 1760 kN | m: 5.2 kg
29422-E1 d: 110 mm | D: 230 mm | T: 73 mm | Ca: 1260 kN | C0a: 3150 kN | m: 12.8 kg
29324-E1 d: 120 mm | D: 210 mm | T: 54 mm | Ca: 800 kN | C0a: 2210 kN | m: 7.2 kg
29424-E1 d: 120 mm | D: 250 mm | T: 78 mm | Ca: 1460 kN | C0a: 3700 kN | m: 15.9 kg
29326-E1 d: 130 mm | D: 225 mm | T: 58 mm | Ca: 900 kN | C0a: 2600 kN | m: 8.8 kg
29426-E1 d: 130 mm | D: 270 mm | T: 85 mm | Ca: 1700 kN | C0a: 4350 kN | m: 21 kg
29328-E1 d: 140 mm | D: 240 mm | T: 60 mm | Ca: 1010 kN | C0a: 2900 kN | m: 10.3 kg
29428-E1 d: 140 mm | D: 280 mm | T: 85 mm | Ca: 1710 kN | C0a: 4500 kN | m: 22.1 kg
29330-E1 d: 150 mm | D: 250 mm | T: 60 mm | Ca: 1020 kN | C0a: 2900 kN | m: 10.5 kg
29430-E1 d: 150 mm | D: 300 mm | T: 90 mm | Ca: 2000 kN | C0a: 5300 kN | m: 27.2 kg
29332-E1 d: 160 mm | D: 270 mm | T: 67 mm | Ca: 1220 kN | C0a: 3550 kN | m: 14 kg
29432-E1 d: 160 mm | D: 320 mm | T: 95 mm | Ca: 2240 kN | C0a: 6000 kN | m: 32.1 kg
29334-E1 d: 170 mm | D: 280 mm | T: 67 mm | Ca: 1220 kN | C0a: 3500 kN | m: 14.2 kg
29434-E1 d: 170 mm | D: 340 mm | T: 103 mm | Ca: 2550 kN | C0a: 6900 kN | m: 39.6 kg
29336-E1 d: 180 mm | D: 300 mm | T: 73 mm | Ca: 1460 kN | C0a: 4300 kN | m: 18.4 kg
29436-E1 d: 180 mm | D: 360 mm | T: 109 mm | Ca: 2850 kN | C0a: 7700 kN | m: 47.6 kg
29338-E1 d: 190 mm | D: 320 mm | T: 78 mm | Ca: 1680 kN | C0a: 4850 kN | m: 22.3 kg
29438-E d: 190 mm | D: 380 mm | T: 115 mm | Ca: 2320 kN | C0a: 7500 kN | m: 54.9 kg
29240-E-MB d: 200 mm | D: 280 mm | T: 48 mm | Ca: 655 kN | C0a: 2650 kN | m: 8.15 kg
29340-E1 d: 200 mm | D: 340 mm | T: 85 mm | Ca: 1900 kN | C0a: 5600 kN | m: 27.3 kg
29440-E d: 200 mm | D: 400 mm | T: 122 mm | Ca: 2550 kN | C0a: 8500 kN | m: 64.7 kg
29244-E-MB d: 220 mm | D: 300 mm | T: 48 mm | Ca: 720 kN | C0a: 3150 kN | m: 9.18 kg
29344-E d: 220 mm | D: 360 mm | T: 85 mm | Ca: 1560 kN | C0a: 5600 kN | m: 29.9 kg
29444-E d: 220 mm | D: 420 mm | T: 122 mm | Ca: 2600 kN | C0a: 8500 kN | m: 67.4 kg
29248-E-MB d: 240 mm | D: 340 mm | T: 60 mm | Ca: 1040 kN | C0a: 4500 kN | m: 16.1 kg
29348-E d: 240 mm | D: 380 mm | T: 85 mm | Ca: 1630 kN | C0a: 6100 kN | m: 32.5 kg
29448-E d: 240 mm | D: 440 mm | T: 122 mm | Ca: 2700 kN | C0a: 9500 kN | m: 73.5 kg
29252-E-MB d: 260 mm | D: 360 mm | T: 60 mm | Ca: 1060 kN | C0a: 4750 kN | m: 17 kg
29352-E d: 260 mm | D: 420 mm | T: 95 mm | Ca: 2040 kN | C0a: 7650 kN | m: 45.2 kg
29452-E d: 260 mm | D: 480 mm | T: 132 mm | Ca: 3100 kN | C0a: 11000 kN | m: 93.6 kg
29256-E-MB d: 280 mm | D: 380 mm | T: 60 mm | Ca: 1120 kN | C0a: 5100 kN | m: 19.2 kg
29356-E d: 280 mm | D: 440 mm | T: 95 mm | Ca: 2120 kN | C0a: 8300 kN | m: 48.8 kg
29456-E d: 280 mm | D: 520 mm | T: 145 mm | Ca: 3650 kN | C0a: 12900 kN | m: 121 kg
29260-E-MB d: 300 mm | D: 420 mm | T: 73 mm | Ca: 1430 kN | C0a: 6550 kN | m: 28.6 kg
29360-E d: 300 mm | D: 480 mm | T: 109 mm | Ca: 2550 kN | C0a: 9650 kN | m: 66.4 kg
29460-E d: 300 mm | D: 540 mm | T: 145 mm | Ca: 3900 kN | C0a: 14000 kN | m: 129 kg
29264-E-MB d: 320 mm | D: 440 mm | T: 73 mm | Ca: 1500 kN | C0a: 6950 kN | m: 30.3 kg
29364-E d: 320 mm | D: 500 mm | T: 109 mm | Ca: 2650 kN | C0a: 10600 kN | m: 71 kg
29464-E d: 320 mm | D: 580 mm | T: 155 mm | Ca: 4300 kN | C0a: 15600 kN | m: 158 kg
29268-E-MB d: 340 mm | D: 460 mm | T: 73 mm | Ca: 1560 kN | C0a: 7350 kN | m: 32 kg
29368-E-MB d: 340 mm | D: 540 mm | T: 122 mm | Ca: 3250 kN | C0a: 12900 kN | m: 98.9 kg
29468-E d: 340 mm | D: 620 mm | T: 170 mm | Ca: 5200 kN | C0a: 19000 kN | m: 200 kg
29272-E-MB d: 360 mm | D: 500 mm | T: 85 mm | Ca: 1900 kN | C0a: 8800 kN | m: 46.5 kg
29372-E-MB d: 360 mm | D: 560 mm | T: 122 mm | Ca: 3350 kN | C0a: 13400 kN | m: 103 kg
29472-E-MB d: 360 mm | D: 640 mm | T: 170 mm | Ca: 5400 kN | C0a: 20400 kN | m: 219 kg
29276-E-MB d: 380 mm | D: 520 mm | T: 85 mm | Ca: 2080 kN | C0a: 9650 kN | m: 48.4 kg
29376-E-MB d: 380 mm | D: 600 mm | T: 132 mm | Ca: 3900 kN | C0a: 16000 kN | m: 132 kg
29476-E-MB d: 380 mm | D: 670 mm | T: 175 mm | Ca: 5850 kN | C0a: 22400 kN | m: 248 kg
29280-E-MB d: 400 mm | D: 540 mm | T: 85 mm | Ca: 2120 kN | C0a: 10200 kN | m: 51.2 kg
29380-E-MB d: 400 mm | D: 620 mm | T: 132 mm | Ca: 4000 kN | C0a: 16600 kN | m: 137 kg
29480-E-MB d: 400 mm | D: 710 mm | T: 185 mm | Ca: 6400 kN | C0a: 25000 kN | m: 294 kg
29284-E-MB d: 420 mm | D: 580 mm | T: 95 mm | Ca: 2650 kN | C0a: 12500 kN | m: 73.4 kg
29384-E-MB d: 420 mm | D: 650 mm | T: 140 mm | Ca: 4300 kN | C0a: 18000 kN | m: 157 kg
29484-E-MB d: 420 mm | D: 730 mm | T: 185 mm | Ca: 6700 kN | C0a: 26000 kN | m: 305 kg
29288-E-MB d: 440 mm | D: 600 mm | T: 95 mm | Ca: 2650 kN | C0a: 13400 kN | m: 74 kg
29388-E-MB d: 440 mm | D: 680 mm | T: 145 mm | Ca: 4550 kN | C0a: 19000 kN | m: 176 kg
29488-E-MB d: 440 mm | D: 780 mm | T: 206 mm | Ca: 7650 kN | C0a: 30000 kN | m: 393 kg
29292-E-MB d: 460 mm | D: 620 mm | T: 95 mm | Ca: 2700 kN | C0a: 13400 kN | m: 76.3 kg
29392-E-MB d: 460 mm | D: 710 mm | T: 150 mm | Ca: 5000 kN | C0a: 21200 kN | m: 203 kg
29492-E-MB d: 460 mm | D: 800 mm | T: 206 mm | Ca: 7800 kN | C0a: 31000 kN | m: 407 kg
29296-E-MB d: 480 mm | D: 650 mm | T: 103 mm | Ca: 2800 kN | C0a: 14600 kN | m: 90.9 kg
29396-E-MB d: 480 mm | D: 730 mm | T: 150 mm | Ca: 5200 kN | C0a: 22400 kN | m: 208 kg
29496-E-MB d: 480 mm | D: 850 mm | T: 224 mm | Ca: 9300 kN | C0a: 36500 kN | m: 511 kg
292/500-E-MB d: 500 mm | D: 670 mm | T: 103 mm | Ca: 2900 kN | C0a: 15300 kN | m: 93.5 kg
293/500-E-MB d: 500 mm | D: 750 mm | T: 150 mm | Ca: 5100 kN | C0a: 22800 kN | m: 216 kg
294/500-E-MB d: 500 mm | D: 870 mm | T: 224 mm | Ca: 9300 kN | C0a: 37500 kN | m: 525 kg
292/530-E-MB d: 530 mm | D: 710 mm | T: 109 mm | Ca: 3100 kN | C0a: 16300 kN | m: 110 kg
293/530-E-MB d: 530 mm | D: 800 mm | T: 160 mm | Ca: 6000 kN | C0a: 26500 kN | m: 266 kg
294/530-E-MB d: 530 mm | D: 920 mm | T: 236 mm | Ca: 10200 kN | C0a: 41500 kN | m: 621 kg
292/560-E-MB d: 560 mm | D: 750 mm | T: 115 mm | Ca: 3650 kN | C0a: 19300 kN | m: 131 kg
294/560-E-MB d: 560 mm | D: 980 mm | T: 250 mm | Ca: 11800 kN | C0a: 49000 kN | m: 733 kg
292/600-E-MB d: 600 mm | D: 800 mm | T: 122 mm | Ca: 3800 kN | C0a: 20400 kN | m: 154 kg
294/600-E-MB d: 600 mm | D: 1030 mm | T: 258 mm | Ca: 12200 kN | C0a: 52000 kN | m: 839 kg
292/630-E-MB d: 630 mm | D: 850 mm | T: 132 mm | Ca: 4800 kN | C0a: 25500 kN | m: 195 kg
294/630-E-MB d: 630 mm | D: 1090 mm | T: 280 mm | Ca: 14000 kN | C0a: 58500 kN | m: 1030 kg
292/670-E-MB d: 670 mm | D: 900 mm | T: 140 mm | Ca: 4900 kN | C0a: 26000 kN | m: 228 kg
294/710-E-MB d: 710 mm | D: 1220 mm | T: 308 mm | Ca: 17300 kN | C0a: 75000 kN | m: 1420 kg
292/750-E-MB d: 750 mm | D: 1000 mm | T: 150 mm | Ca: 5600 kN | C0a: 32000 kN | m: 299 kg
293/750-E-MB d: 750 mm | D: 1120 mm | T: 224 mm | Ca: 10800 kN | C0a: 51000 kN | m: 716 kg
292/800-E-MB d: 800 mm | D: 1060 mm | T: 155 mm | Ca: 6550 kN | C0a: 37500 kN | m: 341 kg
293/800-E-MB d: 800 mm | D: 1180 mm | T: 230 mm | Ca: 11800 kN | C0a: 57000 kN | m: 801 kg
293/850-E-MB d: 850 mm | D: 1250 mm | T: 243 mm | Ca: 12900 kN | C0a: 64000 kN | m: 933 kg
Thrust BearingsFAG
93 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG 292/293/294 Axial Spherical Roller Bearings

Brand FAG·Thrust Bearings

Available part numbers (93)

29412-E1, 29413-E1, 29414-E1, 29415-E1, 29416-E1, 29317-E1, 29417-E1, 29318-E1, 29418-E1, 29320-E1 + 83 more — see full table ↓

How to order

Send the FAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
