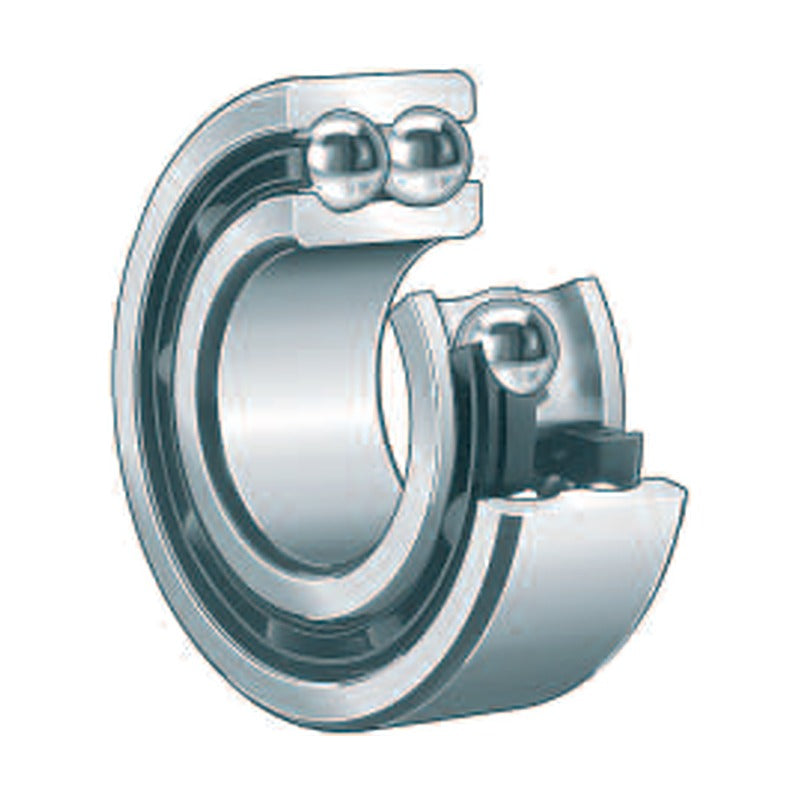

FAG 30..-B Double Row Angular Contact Ball Bearings

FAG 30..-B Double Row Angular Contact Ball Bearings

FAG double row angular contact ball bearings of series 30..-B, open or with 2Z / 2RSR seals as printed.

Key features

  • Double row angular contact ball bearings (O arrangement)
  • Support radial loads and axial loads in both directions
  • Open, 2Z gap seal and 2RSR lip seal versions as printed
  • Compact alternative to a pair of single row bearings
  • Glass fibre reinforced polyamide cage (TVH) as standard

Specifications

Bearing type Angular contact ball bearing, double row
Series 30..-B
Contact angle 25 deg
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 276-283
30/5-B-TVH d: 5 mm | D: 14 mm | B: 7 mm | C: 1.81 kN | C0: 0.95 kN | nG: 30000 rpm
30/5-B-2Z-TVH d: 5 mm | D: 14 mm | B: 7 mm | C: 1.81 kN | C0: 0.95 kN | nG: 24000 rpm
30/5-B-2RSR-TVH d: 5 mm | D: 14 mm | B: 7 mm | C: 1.81 kN | C0: 0.95 kN | nG: 15000 rpm
30/6-B-TVH d: 6 mm | D: 17 mm | B: 9 mm | C: 3.1 kN | C0: 1.42 kN | nG: 28000 rpm
30/6-B-2Z-TVH d: 6 mm | D: 17 mm | B: 9 mm | C: 3.1 kN | C0: 1.42 kN | nG: 22000 rpm
30/6-B-2RSR-TVH d: 6 mm | D: 17 mm | B: 9 mm | C: 3.1 kN | C0: 1.42 kN | nG: 15000 rpm
30/7-B-TVH d: 7 mm | D: 19 mm | B: 10 mm | C: 3.65 kN | C0: 1.7 kN | nG: 26000 rpm
30/7-B-2Z-TVH d: 7 mm | D: 19 mm | B: 10 mm | C: 3.65 kN | C0: 1.7 kN | nG: 20000 rpm
30/7-B-2RSR-TVH d: 7 mm | D: 19 mm | B: 10 mm | C: 3.65 kN | C0: 1.7 kN | nG: 15000 rpm
30/8-B-TVH d: 8 mm | D: 22 mm | B: 11 mm | C: 5.2 kN | C0: 2.65 kN | nG: 26000 rpm
30/8-B-2Z-TVH d: 8 mm | D: 22 mm | B: 11 mm | C: 5.2 kN | C0: 2.65 kN | nG: 19000 rpm
30/8-B-2RSR-TVH d: 8 mm | D: 22 mm | B: 11 mm | C: 5.2 kN | C0: 2.65 kN | nG: 14000 rpm
3000-B-TVH d: 10 mm | D: 26 mm | B: 12 mm | C: 5.7 kN | C0: 3.25 kN | nG: 24000 rpm
3000-B-2Z-TVH d: 10 mm | D: 26 mm | B: 12 mm | C: 5.7 kN | C0: 3.25 kN | nG: 17000 rpm
3000-B-2RSR-TVH d: 10 mm | D: 26 mm | B: 12 mm | C: 5.7 kN | C0: 3.25 kN | nG: 14000 rpm
3001-B-TVH d: 12 mm | D: 28 mm | B: 12 mm | C: 6.2 kN | C0: 3.75 kN | nG: 22000 rpm
3001-B-2Z-TVH d: 12 mm | D: 28 mm | B: 12 mm | C: 6.2 kN | C0: 3.75 kN | nG: 16000 rpm
3001-B-2RSR-TVH d: 12 mm | D: 28 mm | B: 12 mm | C: 6.2 kN | C0: 3.75 kN | nG: 13000 rpm
3002-B-TVH d: 15 mm | D: 32 mm | B: 13 mm | C: 8.6 kN | C0: 5.4 kN | nG: 20000 rpm
3002-B-2Z-TVH d: 15 mm | D: 32 mm | B: 13 mm | C: 8.6 kN | C0: 5.4 kN | nG: 15000 rpm
3002-B-2RSR-TVH d: 15 mm | D: 32 mm | B: 13 mm | C: 8.6 kN | C0: 5.4 kN | nG: 12000 rpm
3003-B-TVH d: 17 mm | D: 35 mm | B: 14 mm | C: 9.2 kN | C0: 6.2 kN | nG: 18000 rpm
3003-B-2Z-TVH d: 17 mm | D: 35 mm | B: 14 mm | C: 9.2 kN | C0: 6.2 kN | nG: 13000 rpm
3003-B-2RSR-TVH d: 17 mm | D: 35 mm | B: 14 mm | C: 9.2 kN | C0: 6.2 kN | nG: 11000 rpm
3004-B-TVH d: 20 mm | D: 42 mm | B: 16 mm | C: 14.5 kN | C0: 9.6 kN | nG: 16000 rpm
3004-B-2Z-TVH d: 20 mm | D: 42 mm | B: 16 mm | C: 14.5 kN | C0: 9.6 kN | nG: 11000 rpm
3004-B-2RSR-TVH d: 20 mm | D: 42 mm | B: 16 mm | C: 14.5 kN | C0: 9.6 kN | nG: 9000 rpm
3005-B-TVH d: 25 mm | D: 47 mm | B: 16 mm | C: 15.5 kN | C0: 11.1 kN | nG: 13000 rpm
3005-B-2Z-TVH d: 25 mm | D: 47 mm | B: 16 mm | C: 15.5 kN | C0: 11.1 kN | nG: 9000 rpm
3005-B-2RSR-TVH d: 25 mm | D: 47 mm | B: 16 mm | C: 15.5 kN | C0: 11.1 kN | nG: 8000 rpm
3006-B-TVH d: 30 mm | D: 55 mm | B: 19 mm | C: 20.3 kN | C0: 15.6 kN | nG: 10000 rpm
3006-B-2Z-TVH d: 30 mm | D: 55 mm | B: 19 mm | C: 20.3 kN | C0: 15.6 kN | nG: 7500 rpm
3006-B-2RSR-TVH d: 30 mm | D: 55 mm | B: 19 mm | C: 20.3 kN | C0: 15.6 kN | nG: 6700 rpm
3007-B-TVH d: 35 mm | D: 62 mm | B: 20 mm | C: 24.5 kN | C0: 19.4 kN | nG: 9000 rpm
3007-B-2Z-TVH d: 35 mm | D: 62 mm | B: 20 mm | C: 24.5 kN | C0: 19.4 kN | nG: 6700 rpm
3007-B-2RSR-TVH d: 35 mm | D: 62 mm | B: 20 mm | C: 24.5 kN | C0: 19.4 kN | nG: 5600 rpm
3008-B-TVH d: 40 mm | D: 68 mm | B: 21 mm | C: 25.5 kN | C0: 21.7 kN | nG: 8000 rpm
3008-B-2Z-TVH d: 40 mm | D: 68 mm | B: 21 mm | C: 25.5 kN | C0: 21.7 kN | nG: 6000 rpm
3008-B-2RSR-TVH d: 40 mm | D: 68 mm | B: 21 mm | C: 25.5 kN | C0: 21.7 kN | nG: 5000 rpm
Angular Contact Ball BearingsFAG
39 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG 30..-B Double Row Angular Contact Ball Bearings

Brand FAG·Angular Contact Ball Bearings

Available part numbers (39)

30/5-B-TVH, 30/5-B-2Z-TVH, 30/5-B-2RSR-TVH, 30/6-B-TVH, 30/6-B-2Z-TVH, 30/6-B-2RSR-TVH, 30/7-B-TVH, 30/7-B-2Z-TVH, 30/7-B-2RSR-TVH, 30/8-B-TVH + 29 more — see full table ↓

How to order

Send the FAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
30/5-B-TVHd: 5 mm | D: 14 mm | B: 7 mm | C: 1.81 kN | C0: 0.95 kN | nG: 30000 rpm
30/5-B-2Z-TVHd: 5 mm | D: 14 mm | B: 7 mm | C: 1.81 kN | C0: 0.95 kN | nG: 24000 rpm
30/5-B-2RSR-TVHd: 5 mm | D: 14 mm | B: 7 mm | C: 1.81 kN | C0: 0.95 kN | nG: 15000 rpm
30/6-B-TVHd: 6 mm | D: 17 mm | B: 9 mm | C: 3.1 kN | C0: 1.42 kN | nG: 28000 rpm
30/6-B-2Z-TVHd: 6 mm | D: 17 mm | B: 9 mm | C: 3.1 kN | C0: 1.42 kN | nG: 22000 rpm
30/6-B-2RSR-TVHd: 6 mm | D: 17 mm | B: 9 mm | C: 3.1 kN | C0: 1.42 kN | nG: 15000 rpm
30/7-B-TVHd: 7 mm | D: 19 mm | B: 10 mm | C: 3.65 kN | C0: 1.7 kN | nG: 26000 rpm
30/7-B-2Z-TVHd: 7 mm | D: 19 mm | B: 10 mm | C: 3.65 kN | C0: 1.7 kN | nG: 20000 rpm
30/7-B-2RSR-TVHd: 7 mm | D: 19 mm | B: 10 mm | C: 3.65 kN | C0: 1.7 kN | nG: 15000 rpm
30/8-B-TVHd: 8 mm | D: 22 mm | B: 11 mm | C: 5.2 kN | C0: 2.65 kN | nG: 26000 rpm
30/8-B-2Z-TVHd: 8 mm | D: 22 mm | B: 11 mm | C: 5.2 kN | C0: 2.65 kN | nG: 19000 rpm
30/8-B-2RSR-TVHd: 8 mm | D: 22 mm | B: 11 mm | C: 5.2 kN | C0: 2.65 kN | nG: 14000 rpm
3000-B-TVHd: 10 mm | D: 26 mm | B: 12 mm | C: 5.7 kN | C0: 3.25 kN | nG: 24000 rpm
3000-B-2Z-TVHd: 10 mm | D: 26 mm | B: 12 mm | C: 5.7 kN | C0: 3.25 kN | nG: 17000 rpm
3000-B-2RSR-TVHd: 10 mm | D: 26 mm | B: 12 mm | C: 5.7 kN | C0: 3.25 kN | nG: 14000 rpm
3001-B-TVHd: 12 mm | D: 28 mm | B: 12 mm | C: 6.2 kN | C0: 3.75 kN | nG: 22000 rpm
3001-B-2Z-TVHd: 12 mm | D: 28 mm | B: 12 mm | C: 6.2 kN | C0: 3.75 kN | nG: 16000 rpm
3001-B-2RSR-TVHd: 12 mm | D: 28 mm | B: 12 mm | C: 6.2 kN | C0: 3.75 kN | nG: 13000 rpm
3002-B-TVHd: 15 mm | D: 32 mm | B: 13 mm | C: 8.6 kN | C0: 5.4 kN | nG: 20000 rpm
3002-B-2Z-TVHd: 15 mm | D: 32 mm | B: 13 mm | C: 8.6 kN | C0: 5.4 kN | nG: 15000 rpm
3002-B-2RSR-TVHd: 15 mm | D: 32 mm | B: 13 mm | C: 8.6 kN | C0: 5.4 kN | nG: 12000 rpm
3003-B-TVHd: 17 mm | D: 35 mm | B: 14 mm | C: 9.2 kN | C0: 6.2 kN | nG: 18000 rpm
3003-B-2Z-TVHd: 17 mm | D: 35 mm | B: 14 mm | C: 9.2 kN | C0: 6.2 kN | nG: 13000 rpm
3003-B-2RSR-TVHd: 17 mm | D: 35 mm | B: 14 mm | C: 9.2 kN | C0: 6.2 kN | nG: 11000 rpm
3004-B-TVHd: 20 mm | D: 42 mm | B: 16 mm | C: 14.5 kN | C0: 9.6 kN | nG: 16000 rpm
3004-B-2Z-TVHd: 20 mm | D: 42 mm | B: 16 mm | C: 14.5 kN | C0: 9.6 kN | nG: 11000 rpm
3004-B-2RSR-TVHd: 20 mm | D: 42 mm | B: 16 mm | C: 14.5 kN | C0: 9.6 kN | nG: 9000 rpm
3005-B-TVHd: 25 mm | D: 47 mm | B: 16 mm | C: 15.5 kN | C0: 11.1 kN | nG: 13000 rpm
3005-B-2Z-TVHd: 25 mm | D: 47 mm | B: 16 mm | C: 15.5 kN | C0: 11.1 kN | nG: 9000 rpm
3005-B-2RSR-TVHd: 25 mm | D: 47 mm | B: 16 mm | C: 15.5 kN | C0: 11.1 kN | nG: 8000 rpm
3006-B-TVHd: 30 mm | D: 55 mm | B: 19 mm | C: 20.3 kN | C0: 15.6 kN | nG: 10000 rpm
3006-B-2Z-TVHd: 30 mm | D: 55 mm | B: 19 mm | C: 20.3 kN | C0: 15.6 kN | nG: 7500 rpm
3006-B-2RSR-TVHd: 30 mm | D: 55 mm | B: 19 mm | C: 20.3 kN | C0: 15.6 kN | nG: 6700 rpm
3007-B-TVHd: 35 mm | D: 62 mm | B: 20 mm | C: 24.5 kN | C0: 19.4 kN | nG: 9000 rpm
3007-B-2Z-TVHd: 35 mm | D: 62 mm | B: 20 mm | C: 24.5 kN | C0: 19.4 kN | nG: 6700 rpm
3007-B-2RSR-TVHd: 35 mm | D: 62 mm | B: 20 mm | C: 24.5 kN | C0: 19.4 kN | nG: 5600 rpm
3008-B-TVHd: 40 mm | D: 68 mm | B: 21 mm | C: 25.5 kN | C0: 21.7 kN | nG: 8000 rpm
3008-B-2Z-TVHd: 40 mm | D: 68 mm | B: 21 mm | C: 25.5 kN | C0: 21.7 kN | nG: 6000 rpm
3008-B-2RSR-TVHd: 40 mm | D: 68 mm | B: 21 mm | C: 25.5 kN | C0: 21.7 kN | nG: 5000 rpm
