FAG 32/33 Double Row Angular Contact Ball Bearings (Filling Slot)

FAG 32/33 Double Row Angular Contact Ball Bearings (Filling Slot)

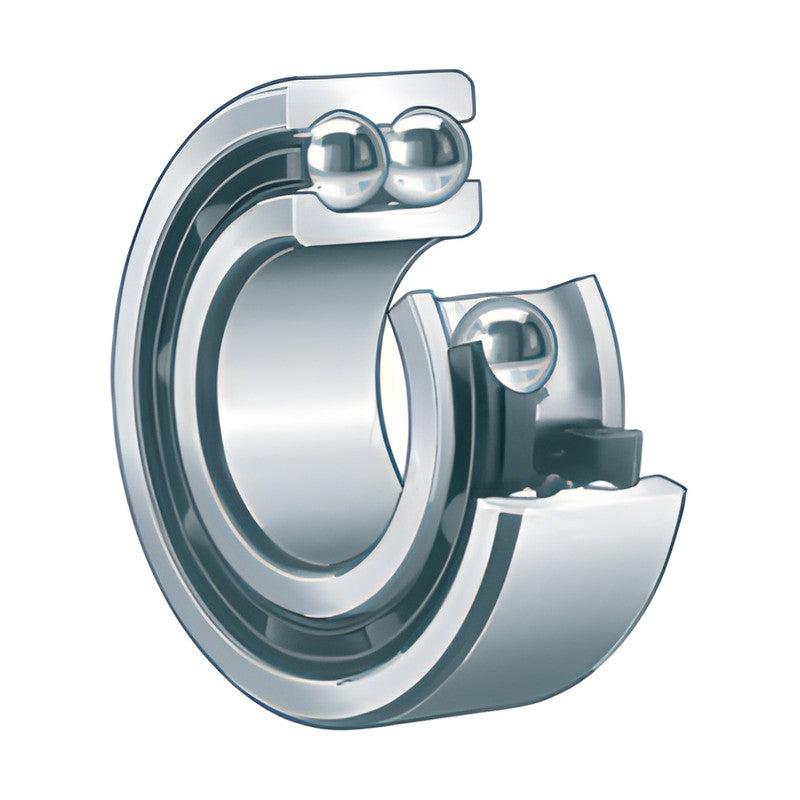

FAG double row angular contact ball bearings of series 32 and 33 in the filling slot design, larger sizes with machined brass cage (M).

Key features

  • Double row angular contact ball bearings with filling slot
  • Higher number of balls for high radial load capacity
  • Axial loads in both directions (lower on filling slot side)
  • Brass cage (M) on larger sizes as printed

Specifications

Bearing type Angular contact ball bearing, double row
Series 32, 33
Design Filling slot
Contact angle 35 deg
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 286-289
3314 d: 70 mm | D: 150 mm | B: 63.5 mm | C: 143 kN | C0: 166 kN | nG: 4000 rpm
3315 d: 75 mm | D: 160 mm | B: 68.3 mm | C: 163 kN | C0: 193 kN | nG: 3800 rpm
3316 d: 80 mm | D: 170 mm | B: 68.3 mm | C: 176 kN | C0: 212 kN | nG: 3600 rpm
3217 d: 85 mm | D: 150 mm | B: 49.2 mm | C: 112 kN | C0: 150 kN | nG: 3800 rpm
3317-M d: 85 mm | D: 180 mm | B: 73 mm | C: 190 kN | C0: 228 kN | nG: 3400 rpm
3218 d: 90 mm | D: 160 mm | B: 52.4 mm | C: 125 kN | C0: 170 kN | nG: 3600 rpm
3318 d: 90 mm | D: 190 mm | B: 73 mm | C: 216 kN | C0: 275 kN | nG: 3200 rpm
3219-M d: 95 mm | D: 170 mm | B: 55.6 mm | C: 140 kN | C0: 186 kN | nG: 3400 rpm
3319-M d: 95 mm | D: 200 mm | B: 77.8 mm | C: 220 kN | C0: 285 kN | nG: 3200 rpm
3220 d: 100 mm | D: 180 mm | B: 60.3 mm | C: 160 kN | C0: 224 kN | nG: 3200 rpm
3320-M d: 100 mm | D: 215 mm | B: 82.6 mm | C: 236 kN | C0: 320 kN | nG: 3000 rpm
3221-M d: 105 mm | D: 190 mm | B: 65.1 mm | C: 180 kN | C0: 245 kN | nG: 3200 rpm
3222-M d: 110 mm | D: 200 mm | B: 69.8 mm | C: 204 kN | C0: 280 kN | nG: 3000 rpm
3322-M d: 110 mm | D: 240 mm | B: 92.1 mm | C: 270 kN | C0: 390 kN | nG: 2600 rpm
Angular Contact Ball BearingsFAG
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG 32/33 Double Row Angular Contact Ball Bearings (Filling Slot)

Brand FAG·Angular Contact Ball Bearings

Available part numbers (14)

3314, 3315, 3316, 3217, 3317-M, 3218, 3318, 3219-M, 3319-M, 3220 + 4 more — see full table ↓

How to order

Send the FAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3314d: 70 mm | D: 150 mm | B: 63.5 mm | C: 143 kN | C0: 166 kN | nG: 4000 rpm
3315d: 75 mm | D: 160 mm | B: 68.3 mm | C: 163 kN | C0: 193 kN | nG: 3800 rpm
3316d: 80 mm | D: 170 mm | B: 68.3 mm | C: 176 kN | C0: 212 kN | nG: 3600 rpm
3217d: 85 mm | D: 150 mm | B: 49.2 mm | C: 112 kN | C0: 150 kN | nG: 3800 rpm
3317-Md: 85 mm | D: 180 mm | B: 73 mm | C: 190 kN | C0: 228 kN | nG: 3400 rpm
3218d: 90 mm | D: 160 mm | B: 52.4 mm | C: 125 kN | C0: 170 kN | nG: 3600 rpm
3318d: 90 mm | D: 190 mm | B: 73 mm | C: 216 kN | C0: 275 kN | nG: 3200 rpm
3219-Md: 95 mm | D: 170 mm | B: 55.6 mm | C: 140 kN | C0: 186 kN | nG: 3400 rpm
3319-Md: 95 mm | D: 200 mm | B: 77.8 mm | C: 220 kN | C0: 285 kN | nG: 3200 rpm
3220d: 100 mm | D: 180 mm | B: 60.3 mm | C: 160 kN | C0: 224 kN | nG: 3200 rpm
3320-Md: 100 mm | D: 215 mm | B: 82.6 mm | C: 236 kN | C0: 320 kN | nG: 3000 rpm
3221-Md: 105 mm | D: 190 mm | B: 65.1 mm | C: 180 kN | C0: 245 kN | nG: 3200 rpm
3222-Md: 110 mm | D: 200 mm | B: 69.8 mm | C: 204 kN | C0: 280 kN | nG: 3000 rpm
3322-Md: 110 mm | D: 240 mm | B: 92.1 mm | C: 270 kN | C0: 390 kN | nG: 2600 rpm
