• FAG 32..-B Double Row Angular Contact Ball Bearings
1 1

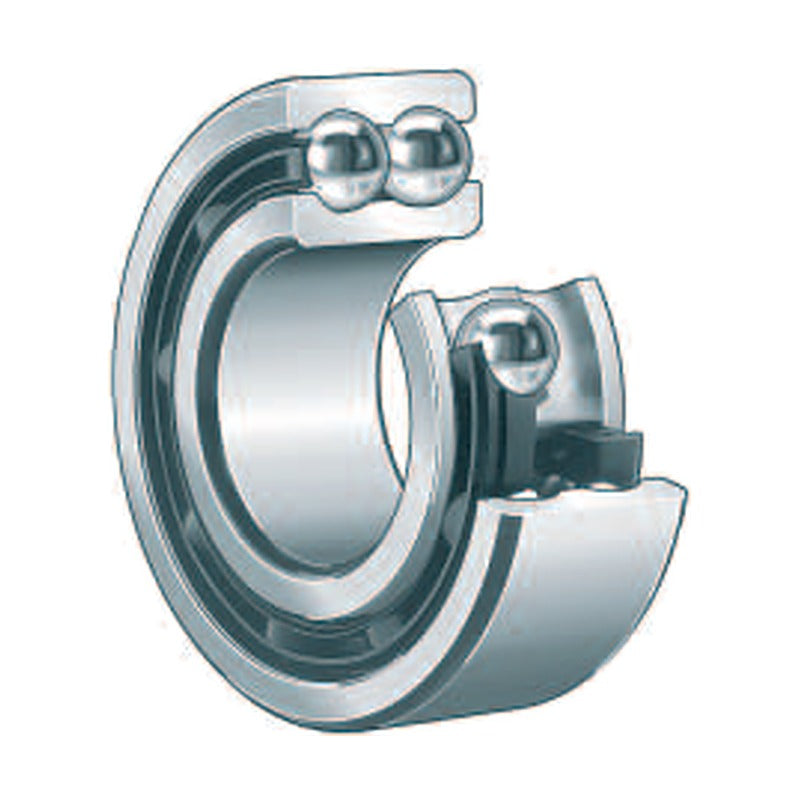

FAG 32..-B Double Row Angular Contact Ball Bearings

FAG 32..-B Double Row Angular Contact Ball Bearings

FAG double row angular contact ball bearings of series 32..-B, open or with 2Z / 2RSR seals as printed.

Key features

  • Double row angular contact ball bearings (O arrangement)
  • Support radial loads and axial loads in both directions
  • Open, 2Z gap seal and 2RSR lip seal versions as printed
  • Compact alternative to a pair of single row bearings
  • Glass fibre reinforced polyamide cage (TVH) as standard

Specifications

Bearing type Angular contact ball bearing, double row
Series 32..-B
Contact angle 25 deg
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 276-289
3200-B-TVH d: 10 mm | D: 30 mm | B: 14 mm | C: 7.8 kN | C0: 4.55 kN | nG: 22000 rpm
3200-B-2Z-TVH d: 10 mm | D: 30 mm | B: 14 mm | C: 7.8 kN | C0: 4.55 kN | nG: 16000 rpm
3201-B-TVH d: 12 mm | D: 32 mm | B: 15.9 mm | C: 10.6 kN | C0: 5.85 kN | nG: 20000 rpm
3201-B-2Z-TVH d: 12 mm | D: 32 mm | B: 15.9 mm | C: 10.6 kN | C0: 5.85 kN | nG: 15000 rpm
3202-B-TVH d: 15 mm | D: 35 mm | B: 15.9 mm | C: 11.8 kN | C0: 7.1 kN | nG: 19000 rpm
3202-B-2Z-TVH d: 15 mm | D: 35 mm | B: 15.9 mm | C: 11.8 kN | C0: 7.1 kN | nG: 14000 rpm
3202-B-2RSR-TVH d: 15 mm | D: 35 mm | B: 15.9 mm | C: 11.8 kN | C0: 7.1 kN | nG: 12000 rpm
3203-B-TVH d: 17 mm | D: 40 mm | B: 17.5 mm | C: 14.6 kN | C0: 9 kN | nG: 17000 rpm
3203-B-2Z-TVH d: 17 mm | D: 40 mm | B: 17.5 mm | C: 14.6 kN | C0: 9 kN | nG: 12000 rpm
3203-B-2RSR-TVH d: 17 mm | D: 40 mm | B: 17.5 mm | C: 14.6 kN | C0: 9 kN | nG: 10000 rpm
3204-B-TVH d: 20 mm | D: 47 mm | B: 20.6 mm | C: 19.6 kN | C0: 12.5 kN | nG: 15000 rpm
3204-B-2Z-TVH d: 20 mm | D: 47 mm | B: 20.6 mm | C: 19.6 kN | C0: 12.5 kN | nG: 10000 rpm
3204-B-2RSR-TVH d: 20 mm | D: 47 mm | B: 20.6 mm | C: 19.6 kN | C0: 12.5 kN | nG: 8500 rpm
3205-B-TVH d: 25 mm | D: 52 mm | B: 20.6 mm | C: 21.2 kN | C0: 14.6 kN | nG: 12000 rpm
3205-B-2Z-TVH d: 25 mm | D: 52 mm | B: 20.6 mm | C: 21.2 kN | C0: 14.6 kN | nG: 8500 rpm
3205-B-2RSR-TVH d: 25 mm | D: 52 mm | B: 20.6 mm | C: 21.2 kN | C0: 14.6 kN | nG: 7500 rpm
3206-B-TVH d: 30 mm | D: 62 mm | B: 23.8 mm | C: 30 kN | C0: 21.2 kN | nG: 9500 rpm
3206-B-2Z-TVH d: 30 mm | D: 62 mm | B: 23.8 mm | C: 30 kN | C0: 21.2 kN | nG: 7000 rpm
3206-B-2RSR-TVH d: 30 mm | D: 62 mm | B: 23.8 mm | C: 30 kN | C0: 21.2 kN | nG: 6300 rpm
3207-B-TVH d: 35 mm | D: 72 mm | B: 27 mm | C: 39 kN | C0: 28.5 kN | nG: 8500 rpm
3207-B-2Z-TVH d: 35 mm | D: 72 mm | B: 27 mm | C: 39 kN | C0: 28.5 kN | nG: 6300 rpm
3207-B-2RSR-TVH d: 35 mm | D: 72 mm | B: 27 mm | C: 39 kN | C0: 28.5 kN | nG: 5300 rpm
3208-B-TVH d: 40 mm | D: 80 mm | B: 30.2 mm | C: 48 kN | C0: 36.5 kN | nG: 7500 rpm
3208-B-2Z-TVH d: 40 mm | D: 80 mm | B: 30.2 mm | C: 48 kN | C0: 36.5 kN | nG: 5600 rpm
3208-B-2RSR-TVH d: 40 mm | D: 80 mm | B: 30.2 mm | C: 48 kN | C0: 36.5 kN | nG: 4800 rpm
3209-B-TVH d: 45 mm | D: 85 mm | B: 30.2 mm | C: 48 kN | C0: 37.5 kN | nG: 6700 rpm
3209-B-2Z-TVH d: 45 mm | D: 85 mm | B: 30.2 mm | C: 48 kN | C0: 37.5 kN | nG: 5000 rpm
3209-B-2RSR-TVH d: 45 mm | D: 85 mm | B: 30.2 mm | C: 48 kN | C0: 37.5 kN | nG: 4500 rpm
3210-B-TVH d: 50 mm | D: 90 mm | B: 30.2 mm | C: 51 kN | C0: 42.5 kN | nG: 6300 rpm
3210-B-2Z-TVH d: 50 mm | D: 90 mm | B: 30.2 mm | C: 51 kN | C0: 42.5 kN | nG: 4800 rpm
3210-B-2RSR-TVH d: 50 mm | D: 90 mm | B: 30.2 mm | C: 51 kN | C0: 42.5 kN | nG: 4000 rpm
3211-B-TVH d: 55 mm | D: 100 mm | B: 33.3 mm | C: 58.5 kN | C0: 49 kN | nG: 5600 rpm
3211-B-2Z-TVH d: 55 mm | D: 100 mm | B: 33.3 mm | C: 58.5 kN | C0: 49 kN | nG: 4300 rpm
3211-B-2RSR-TVH d: 55 mm | D: 100 mm | B: 33.3 mm | C: 58.5 kN | C0: 49 kN | nG: 3800 rpm
3212-B-TVH d: 60 mm | D: 110 mm | B: 36.5 mm | C: 72 kN | C0: 61 kN | nG: 5000 rpm
3212-B-2Z-TVH d: 60 mm | D: 110 mm | B: 36.5 mm | C: 72 kN | C0: 61 kN | nG: 3800 rpm
3212-B-2RSR-TVH d: 60 mm | D: 110 mm | B: 36.5 mm | C: 72 kN | C0: 61 kN | nG: 3400 rpm
3213-B-TVH d: 65 mm | D: 120 mm | B: 38.1 mm | C: 80 kN | C0: 73.5 kN | nG: 4500 rpm
3213-B-2RSR-TVH d: 65 mm | D: 120 mm | B: 38.1 mm | C: 80 kN | C0: 73.5 kN | nG: 3000 rpm
3214-B-TVH d: 70 mm | D: 125 mm | B: 39.7 mm | C: 83 kN | C0: 76.5 kN | nG: 4500 rpm
3214-B-2RSR-TVH d: 70 mm | D: 125 mm | B: 39.7 mm | C: 83 kN | C0: 76.5 kN | nG: 3400 rpm
3215-B-TVH d: 75 mm | D: 130 mm | B: 41.3 mm | C: 91.5 kN | C0: 85 kN | nG: 4300 rpm
3215-B-2RSR-TVH d: 75 mm | D: 130 mm | B: 41.3 mm | C: 91.5 kN | C0: 85 kN | nG: 2800 rpm
3216-B-TVH d: 80 mm | D: 140 mm | B: 44.4 mm | C: 98 kN | C0: 93 kN | nG: 4000 rpm
3216-B-2Z-TVH d: 80 mm | D: 140 mm | B: 44.4 mm | C: 98 kN | C0: 93 kN | nG: 3000 rpm
