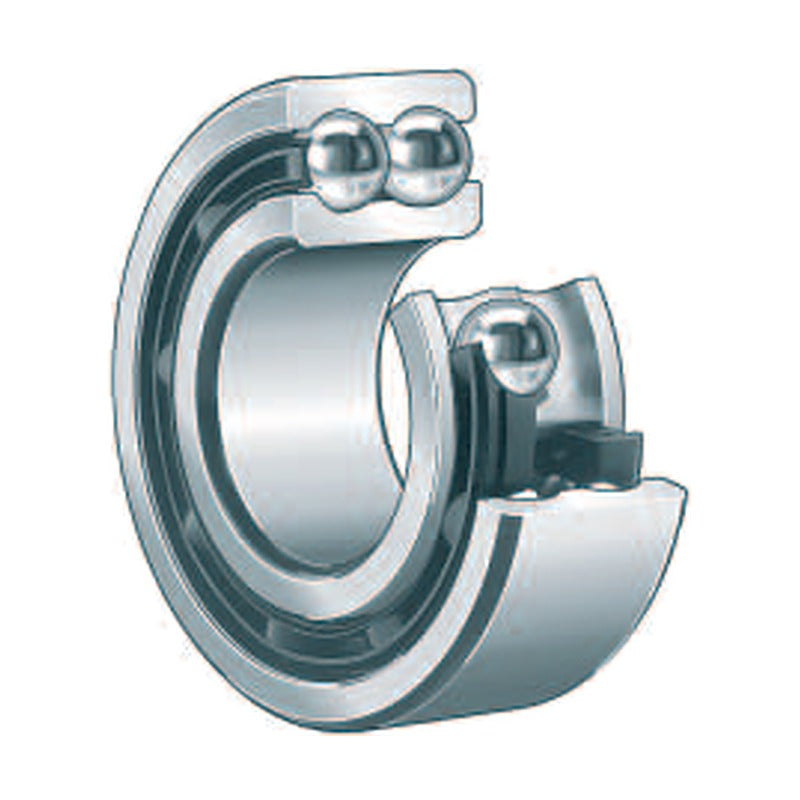

FAG 33..-B Double Row Angular Contact Ball Bearings

FAG 33..-B Double Row Angular Contact Ball Bearings

FAG double row angular contact ball bearings of series 33..-B, open or with 2Z / 2RSR seals as printed.

Key features

  • Double row angular contact ball bearings (O arrangement)
  • Support radial loads and axial loads in both directions
  • Open, 2Z gap seal and 2RSR lip seal versions as printed
  • Compact alternative to a pair of single row bearings
  • Glass fibre reinforced polyamide cage (TVH) as standard

Specifications

Bearing type Angular contact ball bearing, double row
Series 33..-B
Contact angle 25 deg
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 278-287
3302-B-TVH d: 15 mm | D: 42 mm | B: 19 mm | C: 16.3 kN | C0: 10 kN | nG: 16000 rpm
3303-B-TVH d: 17 mm | D: 47 mm | B: 22.2 mm | C: 20.8 kN | C0: 12.5 kN | nG: 15000 rpm
3304-B-TVH d: 20 mm | D: 52 mm | B: 22.2 mm | C: 23.2 kN | C0: 15 kN | nG: 13000 rpm
3304-B-2Z-TVH d: 20 mm | D: 52 mm | B: 22.2 mm | C: 23.2 kN | C0: 15 kN | nG: 9000 rpm
3304-B-2RSR-TVH d: 20 mm | D: 52 mm | B: 22.2 mm | C: 23.2 kN | C0: 15 kN | nG: 8000 rpm
3305-B-TVH d: 25 mm | D: 62 mm | B: 25.4 mm | C: 30 kN | C0: 20 kN | nG: 10000 rpm
3305-B-2Z-TVH d: 25 mm | D: 62 mm | B: 25.4 mm | C: 30 kN | C0: 20 kN | nG: 7500 rpm
3305-B-2RSR-TVH d: 25 mm | D: 62 mm | B: 25.4 mm | C: 30 kN | C0: 20 kN | nG: 6700 rpm
3306-B-TVH d: 30 mm | D: 72 mm | B: 30.2 mm | C: 41.5 kN | C0: 28.5 kN | nG: 8500 rpm
3306-B-2Z-TVH d: 30 mm | D: 72 mm | B: 30.2 mm | C: 41.5 kN | C0: 28.5 kN | nG: 6300 rpm
3306-B-2RSR-TVH d: 30 mm | D: 72 mm | B: 30.2 mm | C: 41.5 kN | C0: 28.5 kN | nG: 5600 rpm
3307-B-TVH d: 35 mm | D: 80 mm | B: 34.9 mm | C: 51 kN | C0: 34.5 kN | nG: 7500 rpm
3307-B-2Z-TVH d: 35 mm | D: 80 mm | B: 34.9 mm | C: 51 kN | C0: 34.5 kN | nG: 5600 rpm
3307-B-2RSR-TVH d: 35 mm | D: 80 mm | B: 34.9 mm | C: 51 kN | C0: 34.5 kN | nG: 5000 rpm
3308-B-TVH d: 40 mm | D: 90 mm | B: 36.5 mm | C: 62 kN | C0: 45 kN | nG: 6700 rpm
3308-B-2Z-TVH d: 40 mm | D: 90 mm | B: 36.5 mm | C: 62 kN | C0: 45 kN | nG: 5000 rpm
3308-B-2RSR-TVH d: 40 mm | D: 90 mm | B: 36.5 mm | C: 62 kN | C0: 45 kN | nG: 4500 rpm
3309-B-TVH d: 45 mm | D: 100 mm | B: 39.7 mm | C: 68 kN | C0: 51 kN | nG: 6000 rpm
3309-B-2Z-TVH d: 45 mm | D: 100 mm | B: 39.7 mm | C: 68 kN | C0: 51 kN | nG: 4500 rpm
3309-B-2RSR-TVH d: 45 mm | D: 100 mm | B: 39.7 mm | C: 68 kN | C0: 51 kN | nG: 4000 rpm
3310-B-TVH d: 50 mm | D: 110 mm | B: 44.4 mm | C: 81.5 kN | C0: 62 kN | nG: 5300 rpm
3310-B-2Z-TVH d: 50 mm | D: 110 mm | B: 44.4 mm | C: 81.5 kN | C0: 62 kN | nG: 4000 rpm
3310-B-2RSR-TVH d: 50 mm | D: 110 mm | B: 44.4 mm | C: 81.5 kN | C0: 62 kN | nG: 3600 rpm
3311-B-TVH d: 55 mm | D: 120 mm | B: 49.2 mm | C: 102 kN | C0: 78 kN | nG: 5000 rpm
3311-B-2Z-TVH d: 55 mm | D: 120 mm | B: 49.2 mm | C: 102 kN | C0: 78 kN | nG: 3800 rpm
3311-B-2RSR-TVH d: 55 mm | D: 120 mm | B: 49.2 mm | C: 102 kN | C0: 78 kN | nG: 3400 rpm
3312-B-TVH d: 60 mm | D: 130 mm | B: 54 mm | C: 125 kN | C0: 98 kN | nG: 4500 rpm
3312-B-2RSR-TVH d: 60 mm | D: 130 mm | B: 54 mm | C: 125 kN | C0: 98 kN | nG: 3000 rpm
3313-B-TVH d: 65 mm | D: 140 mm | B: 58.7 mm | C: 143 kN | C0: 112 kN | nG: 4300 rpm
Angular Contact Ball BearingsFAG
29 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG 33..-B Double Row Angular Contact Ball Bearings

Brand FAG·Angular Contact Ball Bearings

Available part numbers (29)

3302-B-TVH, 3303-B-TVH, 3304-B-TVH, 3304-B-2Z-TVH, 3304-B-2RSR-TVH, 3305-B-TVH, 3305-B-2Z-TVH, 3305-B-2RSR-TVH, 3306-B-TVH, 3306-B-2Z-TVH + 19 more — see full table ↓

How to order

Send the FAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3302-B-TVHd: 15 mm | D: 42 mm | B: 19 mm | C: 16.3 kN | C0: 10 kN | nG: 16000 rpm
3303-B-TVHd: 17 mm | D: 47 mm | B: 22.2 mm | C: 20.8 kN | C0: 12.5 kN | nG: 15000 rpm
3304-B-TVHd: 20 mm | D: 52 mm | B: 22.2 mm | C: 23.2 kN | C0: 15 kN | nG: 13000 rpm
3304-B-2Z-TVHd: 20 mm | D: 52 mm | B: 22.2 mm | C: 23.2 kN | C0: 15 kN | nG: 9000 rpm
3304-B-2RSR-TVHd: 20 mm | D: 52 mm | B: 22.2 mm | C: 23.2 kN | C0: 15 kN | nG: 8000 rpm
3305-B-TVHd: 25 mm | D: 62 mm | B: 25.4 mm | C: 30 kN | C0: 20 kN | nG: 10000 rpm
3305-B-2Z-TVHd: 25 mm | D: 62 mm | B: 25.4 mm | C: 30 kN | C0: 20 kN | nG: 7500 rpm
3305-B-2RSR-TVHd: 25 mm | D: 62 mm | B: 25.4 mm | C: 30 kN | C0: 20 kN | nG: 6700 rpm
3306-B-TVHd: 30 mm | D: 72 mm | B: 30.2 mm | C: 41.5 kN | C0: 28.5 kN | nG: 8500 rpm
3306-B-2Z-TVHd: 30 mm | D: 72 mm | B: 30.2 mm | C: 41.5 kN | C0: 28.5 kN | nG: 6300 rpm
3306-B-2RSR-TVHd: 30 mm | D: 72 mm | B: 30.2 mm | C: 41.5 kN | C0: 28.5 kN | nG: 5600 rpm
3307-B-TVHd: 35 mm | D: 80 mm | B: 34.9 mm | C: 51 kN | C0: 34.5 kN | nG: 7500 rpm
3307-B-2Z-TVHd: 35 mm | D: 80 mm | B: 34.9 mm | C: 51 kN | C0: 34.5 kN | nG: 5600 rpm
3307-B-2RSR-TVHd: 35 mm | D: 80 mm | B: 34.9 mm | C: 51 kN | C0: 34.5 kN | nG: 5000 rpm
3308-B-TVHd: 40 mm | D: 90 mm | B: 36.5 mm | C: 62 kN | C0: 45 kN | nG: 6700 rpm
3308-B-2Z-TVHd: 40 mm | D: 90 mm | B: 36.5 mm | C: 62 kN | C0: 45 kN | nG: 5000 rpm
3308-B-2RSR-TVHd: 40 mm | D: 90 mm | B: 36.5 mm | C: 62 kN | C0: 45 kN | nG: 4500 rpm
3309-B-TVHd: 45 mm | D: 100 mm | B: 39.7 mm | C: 68 kN | C0: 51 kN | nG: 6000 rpm
3309-B-2Z-TVHd: 45 mm | D: 100 mm | B: 39.7 mm | C: 68 kN | C0: 51 kN | nG: 4500 rpm
3309-B-2RSR-TVHd: 45 mm | D: 100 mm | B: 39.7 mm | C: 68 kN | C0: 51 kN | nG: 4000 rpm
3310-B-TVHd: 50 mm | D: 110 mm | B: 44.4 mm | C: 81.5 kN | C0: 62 kN | nG: 5300 rpm
3310-B-2Z-TVHd: 50 mm | D: 110 mm | B: 44.4 mm | C: 81.5 kN | C0: 62 kN | nG: 4000 rpm
3310-B-2RSR-TVHd: 50 mm | D: 110 mm | B: 44.4 mm | C: 81.5 kN | C0: 62 kN | nG: 3600 rpm
3311-B-TVHd: 55 mm | D: 120 mm | B: 49.2 mm | C: 102 kN | C0: 78 kN | nG: 5000 rpm
3311-B-2Z-TVHd: 55 mm | D: 120 mm | B: 49.2 mm | C: 102 kN | C0: 78 kN | nG: 3800 rpm
3311-B-2RSR-TVHd: 55 mm | D: 120 mm | B: 49.2 mm | C: 102 kN | C0: 78 kN | nG: 3400 rpm
3312-B-TVHd: 60 mm | D: 130 mm | B: 54 mm | C: 125 kN | C0: 98 kN | nG: 4500 rpm
3312-B-2RSR-TVHd: 60 mm | D: 130 mm | B: 54 mm | C: 125 kN | C0: 98 kN | nG: 3000 rpm
3313-B-TVHd: 65 mm | D: 140 mm | B: 58.7 mm | C: 143 kN | C0: 112 kN | nG: 4300 rpm
