FAG 33..-DA Double Row Angular Contact Ball Bearings (Split IR)

FAG 33..-DA Double Row Angular Contact Ball Bearings (Split IR)

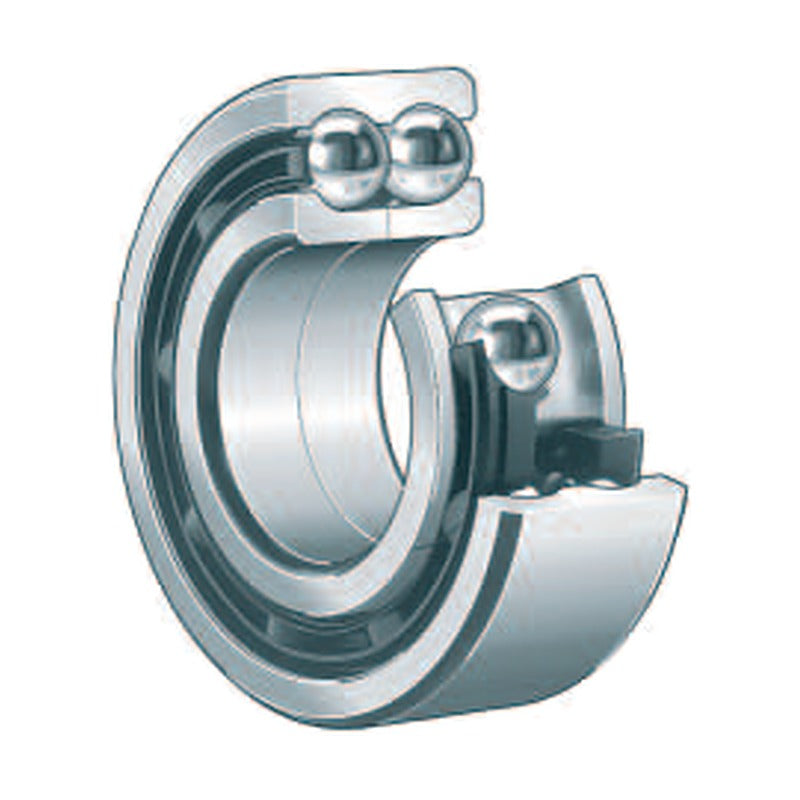

FAG double row angular contact ball bearings of series 33..-DA with split inner ring and 45 deg contact angle.

Key features

  • Double row angular contact ball bearings with split (two-piece) inner ring
  • High number of balls for high load capacity
  • Suitable for high axial loads in both directions
  • Polyamide (TVP) or brass (MA) cage as printed

Specifications

Bearing type Angular contact ball bearing, double row
Series 33..-DA
Inner ring Split
Contact angle 45 deg
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 280-287
3305-DA-TVP d: 25 mm | D: 62 mm | B: 25.4 mm | C: 30 kN | C0: 23.2 kN | nG: 10000 rpm
3306-DA d: 30 mm | D: 72 mm | B: 30.2 mm | C: 41.5 kN | C0: 34.5 kN | nG: 8500 rpm
3307-DA d: 35 mm | D: 80 mm | B: 34.9 mm | C: 50 kN | C0: 41.5 kN | nG: 7500 rpm
3308-DA-MA d: 40 mm | D: 90 mm | B: 36.5 mm | C: 62 kN | C0: 53 kN | nG: 6300 rpm
3309-DA d: 45 mm | D: 100 mm | B: 39.7 mm | C: 75 kN | C0: 64 kN | nG: 6000 rpm
3310-DA-MA d: 50 mm | D: 110 mm | B: 44.4 mm | C: 90 kN | C0: 85 kN | nG: 5300 rpm
3311-DA-MA d: 55 mm | D: 120 mm | B: 49.2 mm | C: 110 kN | C0: 100 kN | nG: 5000 rpm
3312-DA d: 60 mm | D: 130 mm | B: 54 mm | C: 127 kN | C0: 118 kN | nG: 4500 rpm
3313-DA d: 65 mm | D: 140 mm | B: 58.7 mm | C: 143 kN | C0: 137 kN | nG: 4300 rpm
3314-DA d: 70 mm | D: 150 mm | B: 63.5 mm | C: 163 kN | C0: 156 kN | nG: 4000 rpm
Angular Contact Ball BearingsFAG
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG 33..-DA Double Row Angular Contact Ball Bearings (Split IR)

Brand FAG·Angular Contact Ball Bearings

Available part numbers (10)

3305-DA-TVP, 3306-DA, 3307-DA, 3308-DA-MA, 3309-DA, 3310-DA-MA, 3311-DA-MA, 3312-DA, 3313-DA, 3314-DA

How to order

Send the FAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3305-DA-TVPd: 25 mm | D: 62 mm | B: 25.4 mm | C: 30 kN | C0: 23.2 kN | nG: 10000 rpm
3306-DAd: 30 mm | D: 72 mm | B: 30.2 mm | C: 41.5 kN | C0: 34.5 kN | nG: 8500 rpm
3307-DAd: 35 mm | D: 80 mm | B: 34.9 mm | C: 50 kN | C0: 41.5 kN | nG: 7500 rpm
3308-DA-MAd: 40 mm | D: 90 mm | B: 36.5 mm | C: 62 kN | C0: 53 kN | nG: 6300 rpm
3309-DAd: 45 mm | D: 100 mm | B: 39.7 mm | C: 75 kN | C0: 64 kN | nG: 6000 rpm
3310-DA-MAd: 50 mm | D: 110 mm | B: 44.4 mm | C: 90 kN | C0: 85 kN | nG: 5300 rpm
3311-DA-MAd: 55 mm | D: 120 mm | B: 49.2 mm | C: 110 kN | C0: 100 kN | nG: 5000 rpm
3312-DAd: 60 mm | D: 130 mm | B: 54 mm | C: 127 kN | C0: 118 kN | nG: 4500 rpm
3313-DAd: 65 mm | D: 140 mm | B: 58.7 mm | C: 143 kN | C0: 137 kN | nG: 4300 rpm
3314-DAd: 70 mm | D: 150 mm | B: 63.5 mm | C: 163 kN | C0: 156 kN | nG: 4000 rpm
