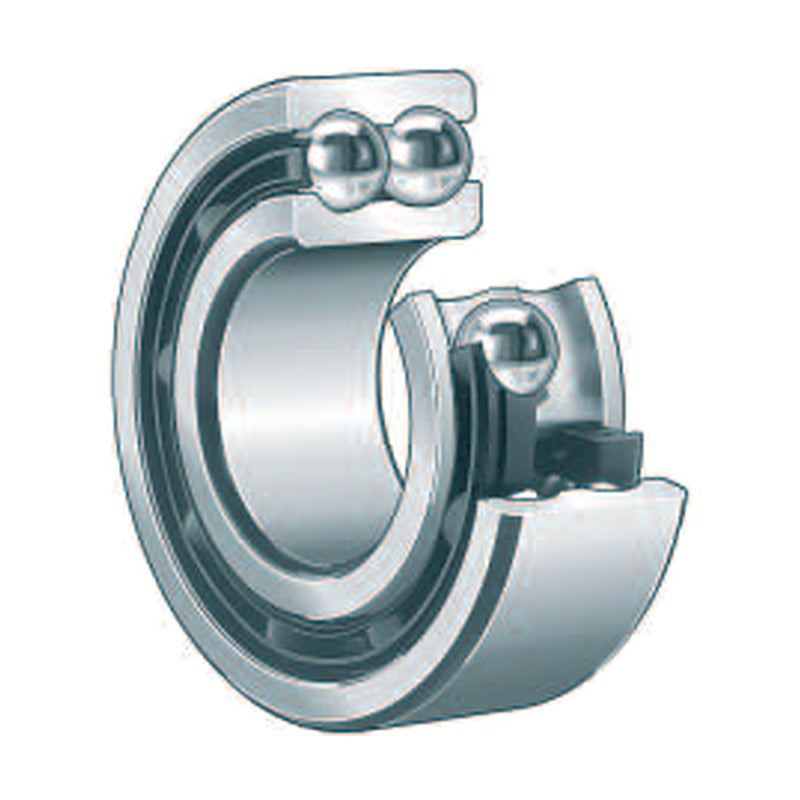

FAG 38..-B Double Row Angular Contact Ball Bearings

FAG 38..-B Double Row Angular Contact Ball Bearings

FAG double row angular contact ball bearings of series 38..-B, open or with 2Z / 2RSR seals as printed.

Key features

  • Double row angular contact ball bearings (O arrangement)
  • Support radial loads and axial loads in both directions
  • Open, 2Z gap seal and 2RSR lip seal versions as printed
  • Compact alternative to a pair of single row bearings
  • Glass fibre reinforced polyamide cage (TVH) as standard

Specifications

Bearing type Angular contact ball bearing, double row
Series 38..-B
Contact angle 25 deg
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 276-289
3800-B-TVH d: 10 mm | D: 19 mm | B: 7 mm | C: 2.12 kN | C0: 1.4 kN | nG: 26000 rpm
3800-B-2Z-TVH d: 10 mm | D: 19 mm | B: 7 mm | C: 2.12 kN | C0: 1.4 kN | nG: 18000 rpm
3800-B-2RSR-TVH d: 10 mm | D: 19 mm | B: 7 mm | C: 2.12 kN | C0: 1.4 kN | nG: 16000 rpm
3801-B-TVH d: 12 mm | D: 21 mm | B: 7 mm | C: 2.19 kN | C0: 1.55 kN | nG: 24000 rpm
3801-B-2Z-TVH d: 12 mm | D: 21 mm | B: 7 mm | C: 2.19 kN | C0: 1.55 kN | nG: 17000 rpm
3801-B-2RSR-TVH d: 12 mm | D: 21 mm | B: 7 mm | C: 2.19 kN | C0: 1.55 kN | nG: 15000 rpm
3802-B-TVH d: 15 mm | D: 24 mm | B: 7 mm | C: 2.43 kN | C0: 1.96 kN | nG: 22000 rpm
3802-B-2Z-TVH d: 15 mm | D: 24 mm | B: 7 mm | C: 2.43 kN | C0: 1.96 kN | nG: 16000 rpm
3802-B-2RSR-TVH d: 15 mm | D: 24 mm | B: 7 mm | C: 2.43 kN | C0: 1.96 kN | nG: 14000 rpm
3803-B-TVH d: 17 mm | D: 26 mm | B: 7 mm | C: 2.48 kN | C0: 2.08 kN | nG: 19000 rpm
3803-B-2Z-TVH d: 17 mm | D: 26 mm | B: 7 mm | C: 2.48 kN | C0: 2.08 kN | nG: 14000 rpm
3803-B-2RSR-TVH d: 17 mm | D: 26 mm | B: 7 mm | C: 2.48 kN | C0: 2.08 kN | nG: 12000 rpm
3804-B-TVH d: 20 mm | D: 32 mm | B: 10 mm | C: 5.8 kN | C0: 4.85 kN | nG: 17000 rpm
3804-B-2Z-TVH d: 20 mm | D: 32 mm | B: 10 mm | C: 5.8 kN | C0: 4.85 kN | nG: 12000 rpm
3804-B-2RSR-TVH d: 20 mm | D: 32 mm | B: 10 mm | C: 5.8 kN | C0: 4.85 kN | nG: 10000 rpm
3805-B-TVH d: 25 mm | D: 37 mm | B: 10 mm | C: 6 kN | C0: 5.6 kN | nG: 14000 rpm
3805-B-2Z-TVH d: 25 mm | D: 37 mm | B: 10 mm | C: 6 kN | C0: 5.6 kN | nG: 9500 rpm
3805-B-2RSR-TVH d: 25 mm | D: 37 mm | B: 10 mm | C: 6 kN | C0: 5.6 kN | nG: 8500 rpm
3806-B-TVH d: 30 mm | D: 42 mm | B: 10 mm | C: 6.3 kN | C0: 6.1 kN | nG: 11000 rpm
3806-B-2Z-TVH d: 30 mm | D: 42 mm | B: 10 mm | C: 6.3 kN | C0: 6.1 kN | nG: 8000 rpm
3806-B-2RSR-TVH d: 30 mm | D: 42 mm | B: 10 mm | C: 6.3 kN | C0: 6.1 kN | nG: 7000 rpm
3807-B-TVH d: 35 mm | D: 47 mm | B: 10 mm | C: 6.7 kN | C0: 7 kN | nG: 9500 rpm
3807-B-2Z-TVH d: 35 mm | D: 47 mm | B: 10 mm | C: 6.7 kN | C0: 7 kN | nG: 7000 rpm
3807-B-2RSR-TVH d: 35 mm | D: 47 mm | B: 10 mm | C: 6.7 kN | C0: 7 kN | nG: 6000 rpm
3808-B-TVH d: 40 mm | D: 52 mm | B: 10 mm | C: 7 kN | C0: 7.8 kN | nG: 8500 rpm
3808-B-2Z-TVH d: 40 mm | D: 52 mm | B: 10 mm | C: 7 kN | C0: 7.8 kN | nG: 6300 rpm
3808-B-2RSR-TVH d: 40 mm | D: 52 mm | B: 10 mm | C: 7 kN | C0: 7.8 kN | nG: 5300 rpm
3809-B-TVH d: 45 mm | D: 58 mm | B: 10 mm | C: 7.2 kN | C0: 8.3 kN | nG: 7500 rpm
3809-B-2Z-TVH d: 45 mm | D: 58 mm | B: 10 mm | C: 7.2 kN | C0: 8.3 kN | nG: 5600 rpm
3809-B-2RSR-TVH d: 45 mm | D: 58 mm | B: 10 mm | C: 7.2 kN | C0: 8.3 kN | nG: 5000 rpm
3810-B-TVH d: 50 mm | D: 65 mm | B: 12 mm | C: 8.7 kN | C0: 10.4 kN | nG: 7000 rpm
3810-B-2Z-TVH d: 50 mm | D: 65 mm | B: 12 mm | C: 8.7 kN | C0: 10.4 kN | nG: 5300 rpm
3810-B-2RSR-TVH d: 50 mm | D: 65 mm | B: 12 mm | C: 8.7 kN | C0: 10.4 kN | nG: 4500 rpm
3811-B-TVH d: 55 mm | D: 72 mm | B: 13 mm | C: 12.1 kN | C0: 15.7 kN | nG: 6300 rpm
3811-B-2Z-TVH d: 55 mm | D: 72 mm | B: 13 mm | C: 12.1 kN | C0: 15.7 kN | nG: 4500 rpm
3811-B-2RSR-TVH d: 55 mm | D: 72 mm | B: 13 mm | C: 12.1 kN | C0: 15.7 kN | nG: 4300 rpm
3812-B-TVH d: 60 mm | D: 78 mm | B: 14 mm | C: 14.5 kN | C0: 17.5 kN | nG: 5600 rpm
3812-B-2Z-TVH d: 60 mm | D: 78 mm | B: 14 mm | C: 14.5 kN | C0: 17.5 kN | nG: 4300 rpm
3812-B-2RSR-TVH d: 60 mm | D: 78 mm | B: 14 mm | C: 14.5 kN | C0: 17.5 kN | nG: 3800 rpm
3813-B-TVH d: 65 mm | D: 85 mm | B: 15 mm | C: 17.7 kN | C0: 21.4 kN | nG: 5000 rpm
3813-B-2Z-TVH d: 65 mm | D: 85 mm | B: 15 mm | C: 17.7 kN | C0: 21.4 kN | nG: 4000 rpm
3813-B-2RSR-TVH d: 65 mm | D: 85 mm | B: 15 mm | C: 17.7 kN | C0: 21.4 kN | nG: 3600 rpm
3814-B-TVH d: 70 mm | D: 90 mm | B: 15 mm | C: 19.2 kN | C0: 23.8 kN | nG: 5000 rpm
3814-B-2Z-TVH d: 70 mm | D: 90 mm | B: 15 mm | C: 19.2 kN | C0: 23.8 kN | nG: 3800 rpm
3814-B-2RSR-TVH d: 70 mm | D: 90 mm | B: 15 mm | C: 19.2 kN | C0: 23.8 kN | nG: 3400 rpm
3815-B-TVH d: 75 mm | D: 95 mm | B: 15 mm | C: 19.4 kN | C0: 24.4 kN | nG: 4800 rpm
3815-B-2Z-TVH d: 75 mm | D: 95 mm | B: 15 mm | C: 19.4 kN | C0: 24.4 kN | nG: 3600 rpm
3815-B-2RSR-TVH d: 75 mm | D: 95 mm | B: 15 mm | C: 19.4 kN | C0: 24.4 kN | nG: 3200 rpm
3816-B-TVH d: 80 mm | D: 100 mm | B: 15 mm | C: 19.6 kN | C0: 25.5 kN | nG: 4500 rpm
3816-B-2Z-TVH d: 80 mm | D: 100 mm | B: 15 mm | C: 19.6 kN | C0: 25.5 kN | nG: 3400 rpm
3816-B-2RSR-TVH d: 80 mm | D: 100 mm | B: 15 mm | C: 19.6 kN | C0: 25.5 kN | nG: 3000 rpm
Angular Contact Ball BearingsFAG
51 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG 38..-B Double Row Angular Contact Ball Bearings

Brand FAG·Angular Contact Ball Bearings

Available part numbers (51)

3800-B-TVH, 3800-B-2Z-TVH, 3800-B-2RSR-TVH, 3801-B-TVH, 3801-B-2Z-TVH, 3801-B-2RSR-TVH, 3802-B-TVH, 3802-B-2Z-TVH, 3802-B-2RSR-TVH, 3803-B-TVH + 41 more — see full table ↓

How to order

Send the FAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3800-B-TVHd: 10 mm | D: 19 mm | B: 7 mm | C: 2.12 kN | C0: 1.4 kN | nG: 26000 rpm
3800-B-2Z-TVHd: 10 mm | D: 19 mm | B: 7 mm | C: 2.12 kN | C0: 1.4 kN | nG: 18000 rpm
3800-B-2RSR-TVHd: 10 mm | D: 19 mm | B: 7 mm | C: 2.12 kN | C0: 1.4 kN | nG: 16000 rpm
3801-B-TVHd: 12 mm | D: 21 mm | B: 7 mm | C: 2.19 kN | C0: 1.55 kN | nG: 24000 rpm
3801-B-2Z-TVHd: 12 mm | D: 21 mm | B: 7 mm | C: 2.19 kN | C0: 1.55 kN | nG: 17000 rpm
3801-B-2RSR-TVHd: 12 mm | D: 21 mm | B: 7 mm | C: 2.19 kN | C0: 1.55 kN | nG: 15000 rpm
3802-B-TVHd: 15 mm | D: 24 mm | B: 7 mm | C: 2.43 kN | C0: 1.96 kN | nG: 22000 rpm
3802-B-2Z-TVHd: 15 mm | D: 24 mm | B: 7 mm | C: 2.43 kN | C0: 1.96 kN | nG: 16000 rpm
3802-B-2RSR-TVHd: 15 mm | D: 24 mm | B: 7 mm | C: 2.43 kN | C0: 1.96 kN | nG: 14000 rpm
3803-B-TVHd: 17 mm | D: 26 mm | B: 7 mm | C: 2.48 kN | C0: 2.08 kN | nG: 19000 rpm
3803-B-2Z-TVHd: 17 mm | D: 26 mm | B: 7 mm | C: 2.48 kN | C0: 2.08 kN | nG: 14000 rpm
3803-B-2RSR-TVHd: 17 mm | D: 26 mm | B: 7 mm | C: 2.48 kN | C0: 2.08 kN | nG: 12000 rpm
3804-B-TVHd: 20 mm | D: 32 mm | B: 10 mm | C: 5.8 kN | C0: 4.85 kN | nG: 17000 rpm
3804-B-2Z-TVHd: 20 mm | D: 32 mm | B: 10 mm | C: 5.8 kN | C0: 4.85 kN | nG: 12000 rpm
3804-B-2RSR-TVHd: 20 mm | D: 32 mm | B: 10 mm | C: 5.8 kN | C0: 4.85 kN | nG: 10000 rpm
3805-B-TVHd: 25 mm | D: 37 mm | B: 10 mm | C: 6 kN | C0: 5.6 kN | nG: 14000 rpm
3805-B-2Z-TVHd: 25 mm | D: 37 mm | B: 10 mm | C: 6 kN | C0: 5.6 kN | nG: 9500 rpm
3805-B-2RSR-TVHd: 25 mm | D: 37 mm | B: 10 mm | C: 6 kN | C0: 5.6 kN | nG: 8500 rpm
3806-B-TVHd: 30 mm | D: 42 mm | B: 10 mm | C: 6.3 kN | C0: 6.1 kN | nG: 11000 rpm
3806-B-2Z-TVHd: 30 mm | D: 42 mm | B: 10 mm | C: 6.3 kN | C0: 6.1 kN | nG: 8000 rpm
3806-B-2RSR-TVHd: 30 mm | D: 42 mm | B: 10 mm | C: 6.3 kN | C0: 6.1 kN | nG: 7000 rpm
3807-B-TVHd: 35 mm | D: 47 mm | B: 10 mm | C: 6.7 kN | C0: 7 kN | nG: 9500 rpm
3807-B-2Z-TVHd: 35 mm | D: 47 mm | B: 10 mm | C: 6.7 kN | C0: 7 kN | nG: 7000 rpm
3807-B-2RSR-TVHd: 35 mm | D: 47 mm | B: 10 mm | C: 6.7 kN | C0: 7 kN | nG: 6000 rpm
3808-B-TVHd: 40 mm | D: 52 mm | B: 10 mm | C: 7 kN | C0: 7.8 kN | nG: 8500 rpm
3808-B-2Z-TVHd: 40 mm | D: 52 mm | B: 10 mm | C: 7 kN | C0: 7.8 kN | nG: 6300 rpm
3808-B-2RSR-TVHd: 40 mm | D: 52 mm | B: 10 mm | C: 7 kN | C0: 7.8 kN | nG: 5300 rpm
3809-B-TVHd: 45 mm | D: 58 mm | B: 10 mm | C: 7.2 kN | C0: 8.3 kN | nG: 7500 rpm
3809-B-2Z-TVHd: 45 mm | D: 58 mm | B: 10 mm | C: 7.2 kN | C0: 8.3 kN | nG: 5600 rpm
3809-B-2RSR-TVHd: 45 mm | D: 58 mm | B: 10 mm | C: 7.2 kN | C0: 8.3 kN | nG: 5000 rpm
3810-B-TVHd: 50 mm | D: 65 mm | B: 12 mm | C: 8.7 kN | C0: 10.4 kN | nG: 7000 rpm
3810-B-2Z-TVHd: 50 mm | D: 65 mm | B: 12 mm | C: 8.7 kN | C0: 10.4 kN | nG: 5300 rpm
3810-B-2RSR-TVHd: 50 mm | D: 65 mm | B: 12 mm | C: 8.7 kN | C0: 10.4 kN | nG: 4500 rpm
3811-B-TVHd: 55 mm | D: 72 mm | B: 13 mm | C: 12.1 kN | C0: 15.7 kN | nG: 6300 rpm
3811-B-2Z-TVHd: 55 mm | D: 72 mm | B: 13 mm | C: 12.1 kN | C0: 15.7 kN | nG: 4500 rpm
3811-B-2RSR-TVHd: 55 mm | D: 72 mm | B: 13 mm | C: 12.1 kN | C0: 15.7 kN | nG: 4300 rpm
3812-B-TVHd: 60 mm | D: 78 mm | B: 14 mm | C: 14.5 kN | C0: 17.5 kN | nG: 5600 rpm
3812-B-2Z-TVHd: 60 mm | D: 78 mm | B: 14 mm | C: 14.5 kN | C0: 17.5 kN | nG: 4300 rpm
3812-B-2RSR-TVHd: 60 mm | D: 78 mm | B: 14 mm | C: 14.5 kN | C0: 17.5 kN | nG: 3800 rpm
3813-B-TVHd: 65 mm | D: 85 mm | B: 15 mm | C: 17.7 kN | C0: 21.4 kN | nG: 5000 rpm
3813-B-2Z-TVHd: 65 mm | D: 85 mm | B: 15 mm | C: 17.7 kN | C0: 21.4 kN | nG: 4000 rpm
3813-B-2RSR-TVHd: 65 mm | D: 85 mm | B: 15 mm | C: 17.7 kN | C0: 21.4 kN | nG: 3600 rpm
3814-B-TVHd: 70 mm | D: 90 mm | B: 15 mm | C: 19.2 kN | C0: 23.8 kN | nG: 5000 rpm
3814-B-2Z-TVHd: 70 mm | D: 90 mm | B: 15 mm | C: 19.2 kN | C0: 23.8 kN | nG: 3800 rpm
3814-B-2RSR-TVHd: 70 mm | D: 90 mm | B: 15 mm | C: 19.2 kN | C0: 23.8 kN | nG: 3400 rpm
3815-B-TVHd: 75 mm | D: 95 mm | B: 15 mm | C: 19.4 kN | C0: 24.4 kN | nG: 4800 rpm
3815-B-2Z-TVHd: 75 mm | D: 95 mm | B: 15 mm | C: 19.4 kN | C0: 24.4 kN | nG: 3600 rpm
3815-B-2RSR-TVHd: 75 mm | D: 95 mm | B: 15 mm | C: 19.4 kN | C0: 24.4 kN | nG: 3200 rpm
3816-B-TVHd: 80 mm | D: 100 mm | B: 15 mm | C: 19.6 kN | C0: 25.5 kN | nG: 4500 rpm
3816-B-2Z-TVHd: 80 mm | D: 100 mm | B: 15 mm | C: 19.6 kN | C0: 25.5 kN | nG: 3400 rpm
3816-B-2RSR-TVHd: 80 mm | D: 100 mm | B: 15 mm | C: 19.6 kN | C0: 25.5 kN | nG: 3000 rpm
