FAG 42..-B / 43..-B Double Row Deep Groove Ball Bearings

FAG 42..-B / 43..-B Double Row Deep Groove Ball Bearings

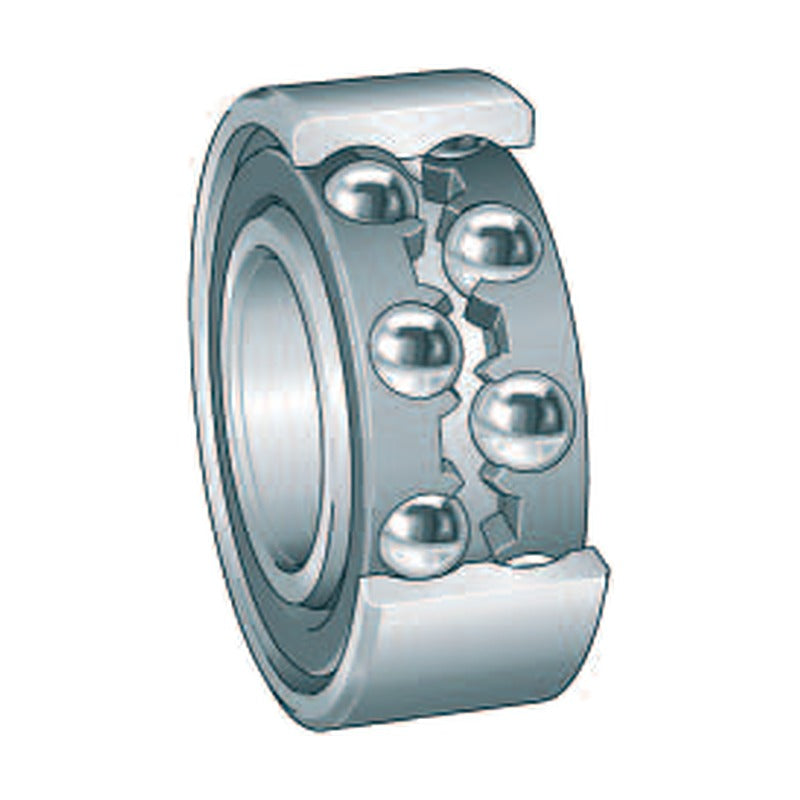

FAG double row deep groove ball bearings of series 42..-B and 43..-B with polyamide cage (TVH).

Key features

  • Double row deep groove ball bearings
  • Higher radial load capacity than single row bearings of same bore
  • Support axial loads in both directions
  • Glass fibre reinforced polyamide cage (TVH)

Specifications

Bearing type Deep groove ball bearing, double row
Series 42..-B, 43..-B
Cage TVH polyamide
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 242-243
4200-B-TVH d: 10 mm | D: 30 mm | B: 14 mm | C: 9.15 kN | C0: 5.2 kN | nG: 24000 rpm
4201-B-TVH d: 12 mm | D: 32 mm | B: 14 mm | C: 9.3 kN | C0: 5.5 kN | nG: 20000 rpm
4202-B-TVH d: 15 mm | D: 35 mm | B: 14 mm | C: 10.4 kN | C0: 6.7 kN | nG: 18000 rpm
4302-B-TVH d: 15 mm | D: 42 mm | B: 17 mm | C: 14.6 kN | C0: 9.15 kN | nG: 17000 rpm
4203-B-TVH d: 17 mm | D: 40 mm | B: 16 mm | C: 14.6 kN | C0: 9.5 kN | nG: 17000 rpm
4303-B-TVH d: 17 mm | D: 47 mm | B: 19 mm | C: 19.6 kN | C0: 13.2 kN | nG: 15000 rpm
4204-B-TVH d: 20 mm | D: 47 mm | B: 18 mm | C: 18 kN | C0: 12.7 kN | nG: 14000 rpm
4304-B-TVH d: 20 mm | D: 52 mm | B: 21 mm | C: 23.2 kN | C0: 16 kN | nG: 13000 rpm
4205-B-TVH d: 25 mm | D: 52 mm | B: 18 mm | C: 19.3 kN | C0: 14.6 kN | nG: 12000 rpm
4305-B-TVH d: 25 mm | D: 62 mm | B: 24 mm | C: 31.5 kN | C0: 22.4 kN | nG: 10000 rpm
4206-B-TVH d: 30 mm | D: 62 mm | B: 20 mm | C: 26 kN | C0: 20.8 kN | nG: 9500 rpm
4306-B-TVH d: 30 mm | D: 72 mm | B: 27 mm | C: 40 kN | C0: 30.5 kN | nG: 8500 rpm
4207-B-TVH d: 35 mm | D: 72 mm | B: 23 mm | C: 32 kN | C0: 26 kN | nG: 8500 rpm
4307-B-TVH d: 35 mm | D: 80 mm | B: 31 mm | C: 51 kN | C0: 38 kN | nG: 8000 rpm
4208-B-TVH d: 40 mm | D: 80 mm | B: 23 mm | C: 34 kN | C0: 30 kN | nG: 7500 rpm
4308-B-TVH d: 40 mm | D: 90 mm | B: 33 mm | C: 63 kN | C0: 48 kN | nG: 7000 rpm
4209-B-TVH d: 45 mm | D: 85 mm | B: 23 mm | C: 36 kN | C0: 33.5 kN | nG: 7000 rpm
4309-B-TVH d: 45 mm | D: 100 mm | B: 36 mm | C: 72 kN | C0: 60 kN | nG: 6000 rpm
4210-B-TVH d: 50 mm | D: 90 mm | B: 23 mm | C: 37.5 kN | C0: 36.5 kN | nG: 6300 rpm
4310-B-TVH d: 50 mm | D: 110 mm | B: 40 mm | C: 90 kN | C0: 75 kN | nG: 5300 rpm
4211-B-TVH d: 55 mm | D: 100 mm | B: 25 mm | C: 36.5 kN | C0: 43 kN | nG: 5600 rpm
4311-B-TVH d: 55 mm | D: 120 mm | B: 43 mm | C: 104 kN | C0: 90 kN | nG: 5000 rpm
4212-B-TVH d: 60 mm | D: 110 mm | B: 28 mm | C: 57 kN | C0: 58.5 kN | nG: 5000 rpm
4312-B-TVH d: 60 mm | D: 130 mm | B: 46 mm | C: 120 kN | C0: 106 kN | nG: 4500 rpm
4213-B-TVH d: 65 mm | D: 120 mm | B: 31 mm | C: 67 kN | C0: 67 kN | nG: 4800 rpm
4214-B-TVH d: 70 mm | D: 125 mm | B: 31 mm | C: 69.5 kN | C0: 73.5 kN | nG: 4500 rpm
4215-B-TVH d: 75 mm | D: 130 mm | B: 31 mm | C: 73.5 kN | C0: 80 kN | nG: 4300 rpm
4216-B-TVH d: 80 mm | D: 140 mm | B: 33 mm | C: 80 kN | C0: 90 kN | nG: 4000 rpm
4217-B-TVH d: 85 mm | D: 150 mm | B: 36 mm | C: 93 kN | C0: 106 kN | nG: 3800 rpm
4218-B-TVH d: 90 mm | D: 160 mm | B: 40 mm | C: 112 kN | C0: 122 kN | nG: 3600 rpm
