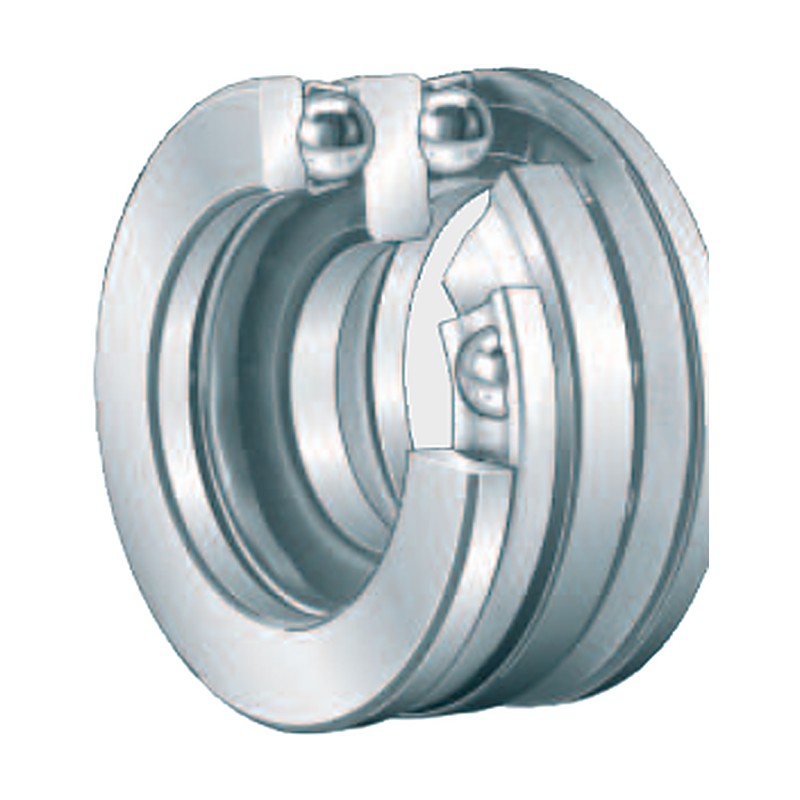

FAG 522/523/542/543 Double Direction Axial Ball Bearings

FAG 522/523/542/543 Double Direction Axial Ball Bearings

Double direction axial deep groove ball bearings of series 522 and 523 with flat housing washers, and series 542 and 543 with spherical housing washers for use with aligning seat washers U2/U3.

Key features

  • Two ball and cage assemblies with a central shaft washer
  • Supports axial loads in both directions
  • 542/543 with sphered housing washers compensate static misalignment
  • Separable design for easy mounting
  • Machined brass cage (MP) on larger sizes

Specifications

Brand FAG
Product type Thrust Bearings
Design Double direction
Series 522, 523, 542, 543
Bore d 10 - 150 mm
Outside diameter D 32 - 250 mm
Height T 22 - 140 mm
Source FAG Rolling Bearings HR 1 catalogue, p. 756-761
52202 d: 10 mm | D: 32 mm | T: 22 mm | Ca: 16.6 kN | C0a: 25 kN | m: 0.076 kg
52204 d: 15 mm | D: 40 mm | T: 26 mm | Ca: 22.4 kN | C0a: 37.5 kN | m: 0.145 kg
52205 d: 20 mm | D: 47 mm | T: 28 mm | Ca: 28 kN | C0a: 50 kN | m: 0.215 kg
54205 d: 20 mm | D: 47 mm | T: 31.4 mm | Ca: 28 kN | C0a: 50 kN | m: 0.221 kg
54205 + U205 d: 20 mm | D: 47 mm | T: 31.4 mm | Ca: 28 kN | C0a: 50 kN | m: 0.221 kg
52305 d: 20 mm | D: 52 mm | T: 34 mm | Ca: 34.5 kN | C0a: 55 kN | m: 0.291 kg
54305 d: 20 mm | D: 52 mm | T: 37.6 mm | Ca: 34.5 kN | C0a: 55 kN | m: 0.303 kg
54305 + U305 d: 20 mm | D: 52 mm | T: 37.6 mm | Ca: 34.5 kN | C0a: 55 kN | m: 0.303 kg
52206 d: 25 mm | D: 52 mm | T: 29 mm | Ca: 25 kN | C0a: 46.5 kN | m: 0.236 kg
54206 d: 25 mm | D: 52 mm | T: 32.6 mm | Ca: 25 kN | C0a: 46.5 kN | m: 0.269 kg
54206 + U206 d: 25 mm | D: 52 mm | T: 32.6 mm | Ca: 25 kN | C0a: 46.5 kN | m: 0.269 kg
52306 d: 25 mm | D: 60 mm | T: 38 mm | Ca: 38 kN | C0a: 65.5 kN | m: 0.435 kg
54306 d: 25 mm | D: 60 mm | T: 41.2 mm | Ca: 38 kN | C0a: 65.5 kN | m: 0.553 kg
54306 + U306 d: 25 mm | D: 60 mm | T: 41.2 mm | Ca: 38 kN | C0a: 65.5 kN | m: 0.553 kg
52207 d: 30 mm | D: 62 mm | T: 34 mm | Ca: 35.5 kN | C0a: 67 kN | m: 0.371 kg
54207 d: 30 mm | D: 62 mm | T: 37.8 mm | Ca: 35.5 kN | C0a: 67 kN | m: 0.749 kg
54207 + U207 d: 30 mm | D: 62 mm | T: 37.8 mm | Ca: 35.5 kN | C0a: 67 kN | m: 0.749 kg
52307 d: 30 mm | D: 68 mm | T: 44 mm | Ca: 50 kN | C0a: 88 kN | m: 0.63 kg
54307 d: 30 mm | D: 68 mm | T: 47.2 mm | Ca: 50 kN | C0a: 88 kN | m: 0.802 kg
54307 + U307 d: 30 mm | D: 68 mm | T: 47.2 mm | Ca: 50 kN | C0a: 88 kN | m: 0.802 kg
52208 d: 30 mm | D: 68 mm | T: 36 mm | Ca: 46.5 kN | C0a: 98 kN | m: 0.509 kg
54208 d: 30 mm | D: 68 mm | T: 38.6 mm | Ca: 46.5 kN | C0a: 98 kN | m: 0.513 kg
54208 + U208 d: 30 mm | D: 68 mm | T: 38.6 mm | Ca: 46.5 kN | C0a: 98 kN | m: 0.513 kg
52308 d: 30 mm | D: 78 mm | T: 49 mm | Ca: 61 kN | C0a: 112 kN | m: 1.02 kg
52209 d: 35 mm | D: 73 mm | T: 37 mm | Ca: 39 kN | C0a: 80 kN | m: 0.539 kg
54209 d: 35 mm | D: 73 mm | T: 39.6 mm | Ca: 39 kN | C0a: 80 kN | m: 0.537 kg
54209 + U209 d: 35 mm | D: 73 mm | T: 39.6 mm | Ca: 39 kN | C0a: 80 kN | m: 0.537 kg
52309 d: 35 mm | D: 85 mm | T: 52 mm | Ca: 75 kN | C0a: 140 kN | m: 1.15 kg
54309 d: 35 mm | D: 85 mm | T: 56.2 mm | Ca: 75 kN | C0a: 140 kN | m: 2.15 kg
54309 + U309 d: 35 mm | D: 85 mm | T: 56.2 mm | Ca: 75 kN | C0a: 140 kN | m: 2.15 kg
52210 d: 40 mm | D: 78 mm | T: 39 mm | Ca: 50 kN | C0a: 106 kN | m: 0.635 kg
54210 d: 40 mm | D: 78 mm | T: 42 mm | Ca: 50 kN | C0a: 106 kN | m: 0.625 kg
54210 + U210 d: 40 mm | D: 78 mm | T: 42 mm | Ca: 50 kN | C0a: 106 kN | m: 0.625 kg
52310 d: 40 mm | D: 95 mm | T: 58 mm | Ca: 86.5 kN | C0a: 170 kN | m: 1.76 kg
54310 d: 40 mm | D: 95 mm | T: 64.6 mm | Ca: 86.5 kN | C0a: 170 kN | m: 1.84 kg
54310 + U310 d: 40 mm | D: 95 mm | T: 64.6 mm | Ca: 86.5 kN | C0a: 170 kN | m: 1.84 kg
52211 d: 45 mm | D: 90 mm | T: 45 mm | Ca: 61 kN | C0a: 134 kN | m: 0.571 kg
54211 d: 45 mm | D: 90 mm | T: 49.6 mm | Ca: 61 kN | C0a: 134 kN | m: 1.02 kg
54211 + U211 d: 45 mm | D: 90 mm | T: 49.6 mm | Ca: 61 kN | C0a: 134 kN | m: 1.02 kg
52311 d: 45 mm | D: 105 mm | T: 64 mm | Ca: 102 kN | C0a: 208 kN | m: 2.37 kg
54311 d: 45 mm | D: 105 mm | T: 72.6 mm | Ca: 102 kN | C0a: 208 kN | m: 2.53 kg
54311 + U311 d: 45 mm | D: 105 mm | T: 72.6 mm | Ca: 102 kN | C0a: 208 kN | m: 2.53 kg
52212 d: 50 mm | D: 95 mm | T: 46 mm | Ca: 62 kN | C0a: 140 kN | m: 1.12 kg
54212 d: 50 mm | D: 95 mm | T: 50 mm | Ca: 62 kN | C0a: 140 kN | m: 1.17 kg
54212 + U212 d: 50 mm | D: 95 mm | T: 50 mm | Ca: 62 kN | C0a: 140 kN | m: 1.17 kg
52312 d: 50 mm | D: 110 mm | T: 64 mm | Ca: 100 kN | C0a: 208 kN | m: 2.49 kg
54312 d: 50 mm | D: 110 mm | T: 70.6 mm | Ca: 100 kN | C0a: 208 kN | m: 2.59 kg
54312 + U312 d: 50 mm | D: 110 mm | T: 70.6 mm | Ca: 100 kN | C0a: 208 kN | m: 2.59 kg
52213 d: 55 mm | D: 100 mm | T: 47 mm | Ca: 64 kN | C0a: 150 kN | m: 1.19 kg
52313 d: 55 mm | D: 115 mm | T: 65 mm | Ca: 106 kN | C0a: 220 kN | m: 2.5 kg
52214 d: 55 mm | D: 105 mm | T: 47 mm | Ca: 65.5 kN | C0a: 160 kN | m: 1.3 kg
52314 d: 55 mm | D: 125 mm | T: 72 mm | Ca: 134 kN | C0a: 290 kN | m: 3.55 kg
54314 d: 55 mm | D: 125 mm | T: 80.4 mm | Ca: 134 kN | C0a: 290 kN | m: 3.77 kg
54314 + U314 d: 55 mm | D: 125 mm | T: 80.4 mm | Ca: 134 kN | C0a: 290 kN | m: 3.77 kg
52215 d: 60 mm | D: 110 mm | T: 47 mm | Ca: 67 kN | C0a: 170 kN | m: 1.48 kg
54215 d: 60 mm | D: 110 mm | T: 49.6 mm | Ca: 67 kN | C0a: 170 kN | m: 1.87 kg
54215 + U215 d: 60 mm | D: 110 mm | T: 49.6 mm | Ca: 67 kN | C0a: 170 kN | m: 1.87 kg
52315 d: 60 mm | D: 135 mm | T: 79 mm | Ca: 163 kN | C0a: 360 kN | m: 4.72 kg
54315 d: 60 mm | D: 135 mm | T: 87.2 mm | Ca: 163 kN | C0a: 360 kN | m: 5.92 kg
54315 + U315 d: 60 mm | D: 135 mm | T: 87.2 mm | Ca: 163 kN | C0a: 360 kN | m: 5.92 kg
52216 d: 65 mm | D: 115 mm | T: 48 mm | Ca: 75 kN | C0a: 190 kN | m: 1.55 kg
54216 d: 65 mm | D: 115 mm | T: 51 mm | Ca: 75 kN | C0a: 190 kN | m: 1.6 kg
54216 + U216 d: 65 mm | D: 115 mm | T: 51 mm | Ca: 75 kN | C0a: 190 kN | m: 1.6 kg
52316 d: 65 mm | D: 140 mm | T: 79 mm | Ca: 160 kN | C0a: 360 kN | m: 4.82 kg
54316 d: 65 mm | D: 140 mm | T: 86.2 mm | Ca: 160 kN | C0a: 360 kN | m: 4.93 kg
54316 + U316 d: 65 mm | D: 140 mm | T: 86.2 mm | Ca: 160 kN | C0a: 360 kN | m: 4.93 kg
52217 d: 70 mm | D: 125 mm | T: 55 mm | Ca: 98 kN | C0a: 250 kN | m: 2.23 kg
54217 d: 70 mm | D: 125 mm | T: 59.2 mm | Ca: 98 kN | C0a: 250 kN | m: 2.25 kg
54217 + U217 d: 70 mm | D: 125 mm | T: 59.2 mm | Ca: 98 kN | C0a: 250 kN | m: 2.25 kg
52317 d: 70 mm | D: 150 mm | T: 87 mm | Ca: 186 kN | C0a: 415 kN | m: 6.21 kg
54317 d: 70 mm | D: 150 mm | T: 95.2 mm | Ca: 186 kN | C0a: 415 kN | m: 6.27 kg
54317 + U317 d: 70 mm | D: 150 mm | T: 95.2 mm | Ca: 186 kN | C0a: 415 kN | m: 6.27 kg
52218 d: 75 mm | D: 135 mm | T: 62 mm | Ca: 118 kN | C0a: 300 kN | m: 3.05 kg
54218 d: 75 mm | D: 135 mm | T: 69 mm | Ca: 118 kN | C0a: 300 kN | m: 3.11 kg
54218 + U218 d: 75 mm | D: 135 mm | T: 69 mm | Ca: 118 kN | C0a: 300 kN | m: 3.11 kg
52318 d: 75 mm | D: 155 mm | T: 88 mm | Ca: 193 kN | C0a: 455 kN | m: 6.62 kg
54318 d: 75 mm | D: 155 mm | T: 97.2 mm | Ca: 193 kN | C0a: 455 kN | m: 6.74 kg
54318 + U318 d: 75 mm | D: 155 mm | T: 97.2 mm | Ca: 193 kN | C0a: 455 kN | m: 6.74 kg
52220 d: 85 mm | D: 150 mm | T: 67 mm | Ca: 122 kN | C0a: 320 kN | m: 3.83 kg
54220 d: 85 mm | D: 150 mm | T: 72.8 mm | Ca: 122 kN | C0a: 320 kN | m: 3.87 kg
54220 + U220 d: 85 mm | D: 150 mm | T: 72.8 mm | Ca: 122 kN | C0a: 320 kN | m: 3.87 kg
52320 d: 85 mm | D: 170 mm | T: 97 mm | Ca: 240 kN | C0a: 585 kN | m: 8.71 kg
54320 d: 85 mm | D: 170 mm | T: 105.4 mm | Ca: 240 kN | C0a: 585 kN | m: 8.81 kg
54320 + U320 d: 85 mm | D: 170 mm | T: 105.4 mm | Ca: 240 kN | C0a: 585 kN | m: 8.81 kg
52222 d: 95 mm | D: 160 mm | T: 67 mm | Ca: 134 kN | C0a: 365 kN | m: 4.06 kg
52322-MP d: 95 mm | D: 190 mm | T: 110 mm | Ca: 280 kN | C0a: 750 kN | m: 14 kg
54322-MP d: 95 mm | D: 190 mm | T: 118.4 mm | Ca: 280 kN | C0a: 750 kN | m: 14 kg
54322-MP + U322 d: 95 mm | D: 190 mm | T: 118.4 mm | Ca: 280 kN | C0a: 750 kN | m: 14 kg
52224 d: 100 mm | D: 170 mm | T: 68 mm | Ca: 134 kN | C0a: 390 kN | m: 4.82 kg
52324-MP d: 100 mm | D: 210 mm | T: 123 mm | Ca: 325 kN | C0a: 915 kN | m: 16.8 kg
52226 d: 110 mm | D: 190 mm | T: 80 mm | Ca: 183 kN | C0a: 540 kN | m: 7.26 kg
52326-MP d: 110 mm | D: 225 mm | T: 130 mm | Ca: 360 kN | C0a: 1060 kN | m: 22 kg
52228 d: 120 mm | D: 200 mm | T: 81 mm | Ca: 190 kN | C0a: 570 kN | m: 7.78 kg
52328-MP d: 120 mm | D: 240 mm | T: 140 mm | Ca: 405 kN | C0a: 1250 kN | m: 28.3 kg
52230-MP d: 130 mm | D: 215 mm | T: 89 mm | Ca: 236 kN | C0a: 735 kN | m: 10.7 kg
52330-MP d: 130 mm | D: 250 mm | T: 140 mm | Ca: 415 kN | C0a: 1340 kN | m: 29.4 kg
52232-MP d: 140 mm | D: 225 mm | T: 90 mm | Ca: 240 kN | C0a: 765 kN | m: 12.2 kg
52234-MP d: 150 mm | D: 240 mm | T: 97 mm | Ca: 285 kN | C0a: 930 kN | m: 14 kg
