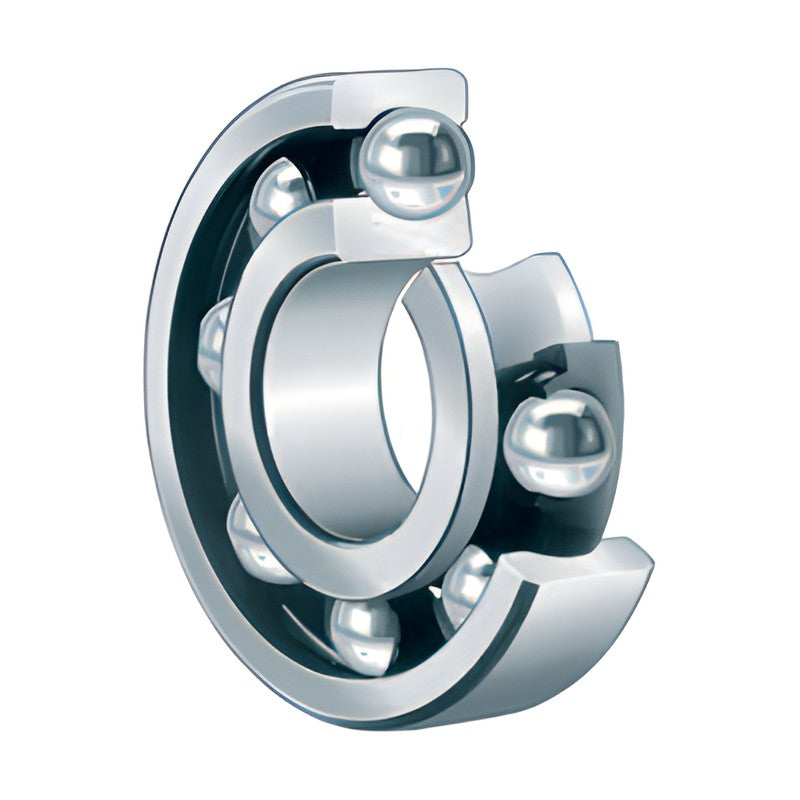

FAG 618 Series Deep Groove Ball Bearings (Open, 2Z, 2RSR)

FAG 618 Series Deep Groove Ball Bearings (Open, 2Z, 2RSR)

FAG single row deep groove ball bearings of the thin-section 618 series, listed in the Schaeffler HR 1 catalogue. Supplied in the open and sealed variants printed in the dimension tables.

Key features

  • Single row deep groove ball bearings for radial and axial loads in both directions
  • Open design plus 2Z gap seals and 2RSR lip seals where listed
  • Sealed bearings are greased for life and maintenance-free
  • Low friction and high speed capability
  • Dimensions to DIN 625-1 / ISO 15

Specifications

Bearing type Deep groove ball bearing, single row
Series 618
Variants Open, 2Z, 2RSR
Operating temp. (open) up to +120 C
Dimension standard DIN 625-1
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 206-241
61800 d: 10 mm | D: 19 mm | B: 5 mm | C: 1.45 kN | C0: 0.59 kN | nG: 43000 rpm
61800-2RSR d: 10 mm | D: 19 mm | B: 5 mm | C: 1.45 kN | C0: 0.59 kN | nG: 18000 rpm
61800-2Z d: 10 mm | D: 19 mm | B: 5 mm | C: 1.45 kN | C0: 0.59 kN | nG: 36000 rpm
61801 d: 12 mm | D: 21 mm | B: 5 mm | C: 1.52 kN | C0: 0.67 kN | nG: 38000 rpm
61801-2RSR d: 12 mm | D: 21 mm | B: 5 mm | C: 1.52 kN | C0: 0.67 kN | nG: 18000 rpm
61801-2Z d: 12 mm | D: 21 mm | B: 5 mm | C: 1.52 kN | C0: 0.67 kN | nG: 32000 rpm
61802 d: 15 mm | D: 24 mm | B: 5 mm | C: 1.65 kN | C0: 0.8 kN | nG: 34000 rpm
61802-2RSR d: 15 mm | D: 24 mm | B: 5 mm | C: 1.65 kN | C0: 0.8 kN | nG: 16000 rpm
61802-2Z d: 15 mm | D: 24 mm | B: 5 mm | C: 1.65 kN | C0: 0.8 kN | nG: 28000 rpm
61803 d: 17 mm | D: 26 mm | B: 5 mm | C: 1.77 kN | C0: 0.93 kN | nG: 30000 rpm
61803-2RSR d: 17 mm | D: 26 mm | B: 5 mm | C: 1.77 kN | C0: 0.93 kN | nG: 15000 rpm
61803-2Z d: 17 mm | D: 26 mm | B: 5 mm | C: 1.77 kN | C0: 0.93 kN | nG: 24000 rpm
61804 d: 20 mm | D: 32 mm | B: 7 mm | C: 3.9 kN | C0: 2.32 kN | nG: 24000 rpm
61804-2RSR d: 20 mm | D: 32 mm | B: 7 mm | C: 3.9 kN | C0: 2.32 kN | nG: 11500 rpm
61804-2Z d: 20 mm | D: 32 mm | B: 7 mm | C: 3.9 kN | C0: 2.32 kN | nG: 19000 rpm
61805 d: 25 mm | D: 37 mm | B: 7 mm | C: 4.15 kN | C0: 2.6 kN | nG: 20000 rpm
61805-2RSR d: 25 mm | D: 37 mm | B: 7 mm | C: 4.15 kN | C0: 2.6 kN | nG: 9800 rpm
61805-2Z d: 25 mm | D: 37 mm | B: 7 mm | C: 4.15 kN | C0: 2.6 kN | nG: 17000 rpm
61806 d: 30 mm | D: 42 mm | B: 7 mm | C: 4.3 kN | C0: 2.9 kN | nG: 18000 rpm
61806-2RSR d: 30 mm | D: 42 mm | B: 7 mm | C: 4.3 kN | C0: 2.9 kN | nG: 8400 rpm
61806-2Z d: 30 mm | D: 42 mm | B: 7 mm | C: 4.3 kN | C0: 2.9 kN | nG: 15000 rpm
61807 d: 35 mm | D: 47 mm | B: 7 mm | C: 4.45 kN | C0: 3.2 kN | nG: 16000 rpm
61807-2RSR d: 35 mm | D: 47 mm | B: 7 mm | C: 4.45 kN | C0: 3.2 kN | nG: 7300 rpm
61807-2Z d: 35 mm | D: 47 mm | B: 7 mm | C: 4.45 kN | C0: 3.2 kN | nG: 13000 rpm
61808 d: 40 mm | D: 52 mm | B: 7 mm | C: 4.6 kN | C0: 3.5 kN | nG: 14000 rpm
61808-2RSR d: 40 mm | D: 52 mm | B: 7 mm | C: 4.6 kN | C0: 3.5 kN | nG: 6500 rpm
61808-2Z d: 40 mm | D: 52 mm | B: 7 mm | C: 4.6 kN | C0: 3.5 kN | nG: 11000 rpm
61809-Y d: 45 mm | D: 58 mm | B: 7 mm | C: 6.4 kN | C0: 5.6 kN | nG: 14000 rpm
61809-2RSR-Y d: 45 mm | D: 58 mm | B: 7 mm | C: 6.4 kN | C0: 5.6 kN | nG: 7500 rpm
61809-2Z-Y d: 45 mm | D: 58 mm | B: 7 mm | C: 6.4 kN | C0: 5.6 kN | nG: 11000 rpm
61810-Y d: 50 mm | D: 65 mm | B: 7 mm | C: 6.8 kN | C0: 6.3 kN | nG: 13000 rpm
61810-2RSR-Y d: 50 mm | D: 65 mm | B: 7 mm | C: 6.8 kN | C0: 6.3 kN | nG: 6700 rpm
61810-2Z-Y d: 50 mm | D: 65 mm | B: 7 mm | C: 6.8 kN | C0: 6.3 kN | nG: 9300 rpm
61811-Y d: 55 mm | D: 72 mm | B: 9 mm | C: 9 kN | C0: 8.5 kN | nG: 11000 rpm
61811-2RSR-Y d: 55 mm | D: 72 mm | B: 9 mm | C: 9 kN | C0: 8.5 kN | nG: 6000 rpm
61811-2Z-Y d: 55 mm | D: 72 mm | B: 9 mm | C: 9 kN | C0: 8.5 kN | nG: 9000 rpm
61812-Y d: 60 mm | D: 78 mm | B: 10 mm | C: 11.8 kN | C0: 11 kN | nG: 9500 rpm
61812-2RSR-Y d: 60 mm | D: 78 mm | B: 10 mm | C: 11.8 kN | C0: 11 kN | nG: 5600 rpm
61812-2Z-Y d: 60 mm | D: 78 mm | B: 10 mm | C: 11.8 kN | C0: 11 kN | nG: 8000 rpm
61813-Y d: 65 mm | D: 85 mm | B: 10 mm | C: 12.2 kN | C0: 12 kN | nG: 9000 rpm
61813-2RSR-Y d: 65 mm | D: 85 mm | B: 10 mm | C: 12.2 kN | C0: 12 kN | nG: 5000 rpm
61813-2Z-Y d: 65 mm | D: 85 mm | B: 10 mm | C: 12.2 kN | C0: 12 kN | nG: 7500 rpm
61814-Y d: 70 mm | D: 90 mm | B: 10 mm | C: 12.5 kN | C0: 12.5 kN | nG: 8500 rpm
61814-2RSR-Y d: 70 mm | D: 90 mm | B: 10 mm | C: 12.5 kN | C0: 12.5 kN | nG: 4800 rpm
61814-2Z-Y d: 70 mm | D: 90 mm | B: 10 mm | C: 12.5 kN | C0: 12.5 kN | nG: 7000 rpm
61815-Y d: 75 mm | D: 95 mm | B: 10 mm | C: 12.9 kN | C0: 13.4 kN | nG: 8000 rpm
61815-2RSR-Y d: 75 mm | D: 95 mm | B: 10 mm | C: 12.9 kN | C0: 13.4 kN | nG: 4500 rpm
61815-2Z-Y d: 75 mm | D: 95 mm | B: 10 mm | C: 12.9 kN | C0: 13.4 kN | nG: 6700 rpm
61816-Y d: 80 mm | D: 100 mm | B: 10 mm | C: 12.9 kN | C0: 13.7 kN | nG: 7500 rpm
61816-2RSR-Y d: 80 mm | D: 100 mm | B: 10 mm | C: 12.9 kN | C0: 13.7 kN | nG: 4300 rpm
61816-2Z-Y d: 80 mm | D: 100 mm | B: 10 mm | C: 12.9 kN | C0: 13.7 kN | nG: 6300 rpm
61817-Y d: 85 mm | D: 110 mm | B: 13 mm | C: 19.3 kN | C0: 20 kN | nG: 6700 rpm
61817-2RSR-Y d: 85 mm | D: 110 mm | B: 13 mm | C: 19.3 kN | C0: 20 kN | nG: 3800 rpm
61817-2Z-Y d: 85 mm | D: 110 mm | B: 13 mm | C: 19.3 kN | C0: 20 kN | nG: 5600 rpm
61818-Y d: 90 mm | D: 115 mm | B: 13 mm | C: 19.6 kN | C0: 20.4 kN | nG: 6300 rpm
61818-2RSR-Y d: 90 mm | D: 115 mm | B: 13 mm | C: 19.6 kN | C0: 20.4 kN | nG: 3600 rpm
61818-2Z-Y d: 90 mm | D: 115 mm | B: 13 mm | C: 19.6 kN | C0: 20.4 kN | nG: 5300 rpm
61819-Y d: 95 mm | D: 120 mm | B: 13 mm | C: 20 kN | C0: 21.2 kN | nG: 6300 rpm
61819-2RSR-Y d: 95 mm | D: 120 mm | B: 13 mm | C: 20 kN | C0: 21.2 kN | nG: 3400 rpm
61819-2Z-Y d: 95 mm | D: 120 mm | B: 13 mm | C: 20 kN | C0: 21.2 kN | nG: 5300 rpm
61820-Y d: 100 mm | D: 125 mm | B: 13 mm | C: 20 kN | C0: 22 kN | nG: 6000 rpm
61820-2RSR-Y d: 100 mm | D: 125 mm | B: 13 mm | C: 20 kN | C0: 22 kN | nG: 3400 rpm
61820-2Z-Y d: 100 mm | D: 125 mm | B: 13 mm | C: 20 kN | C0: 22 kN | nG: 5000 rpm
61821-Y d: 105 mm | D: 130 mm | B: 13 mm | C: 20.8 kN | C0: 23.6 kN | nG: 5600 rpm
61821-2RSR-Y d: 105 mm | D: 130 mm | B: 13 mm | C: 20.8 kN | C0: 23.6 kN | nG: 3200 rpm
61821-2Z-Y d: 105 mm | D: 130 mm | B: 13 mm | C: 20.8 kN | C0: 23.6 kN | nG: 4800 rpm
61822-Y d: 110 mm | D: 140 mm | B: 16 mm | C: 28 kN | C0: 30.5 kN | nG: 5000 rpm
61822-2RSR-Y d: 110 mm | D: 140 mm | B: 16 mm | C: 28 kN | C0: 30.5 kN | nG: 3000 rpm
61822-2Z-Y d: 110 mm | D: 140 mm | B: 16 mm | C: 28 kN | C0: 30.5 kN | nG: 4300 rpm
61824-Y d: 120 mm | D: 150 mm | B: 16 mm | C: 29 kN | C0: 32.5 kN | nG: 4800 rpm
61824-2Z-Y d: 120 mm | D: 150 mm | B: 16 mm | C: 29 kN | C0: 32.5 kN | nG: 4000 rpm
61826 d: 130 mm | D: 165 mm | B: 18 mm | C: 38 kN | C0: 43 kN | nG: 8500 rpm
61828-Y d: 140 mm | D: 175 mm | B: 18 mm | C: 39 kN | C0: 46.5 kN | nG: 4000 rpm
61830 d: 150 mm | D: 190 mm | B: 20 mm | C: 51 kN | C0: 60 kN | nG: 7500 rpm
61832 d: 160 mm | D: 200 mm | B: 20 mm | C: 52 kN | C0: 62 kN | nG: 7000 rpm
61834 d: 170 mm | D: 215 mm | B: 22 mm | C: 61 kN | C0: 73.5 kN | nG: 6700 rpm
61836 d: 180 mm | D: 225 mm | B: 22 mm | C: 62 kN | C0: 76.5 kN | nG: 6300 rpm
61838 d: 190 mm | D: 240 mm | B: 24 mm | C: 69.5 kN | C0: 85 kN | nG: 6000 rpm
61840 d: 200 mm | D: 250 mm | B: 24 mm | C: 69.5 kN | C0: 88 kN | nG: 6000 rpm
61844 d: 220 mm | D: 270 mm | B: 24 mm | C: 73.5 kN | C0: 96.5 kN | nG: 5600 rpm
61848 d: 240 mm | D: 300 mm | B: 28 mm | C: 91.5 kN | C0: 120 kN | nG: 4800 rpm
61852 d: 260 mm | D: 320 mm | B: 28 mm | C: 96.5 kN | C0: 132 kN | nG: 4300 rpm
61856 d: 280 mm | D: 350 mm | B: 33 mm | C: 129 kN | C0: 176 kN | nG: 3800 rpm
61860-M d: 300 mm | D: 380 mm | B: 38 mm | C: 153 kN | C0: 204 kN | nG: 3600 rpm
61864-M d: 320 mm | D: 400 mm | B: 38 mm | C: 156 kN | C0: 220 kN | nG: 3400 rpm
61868-M d: 340 mm | D: 420 mm | B: 38 mm | C: 156 kN | C0: 220 kN | nG: 3200 rpm
61872-M d: 360 mm | D: 440 mm | B: 38 mm | C: 160 kN | C0: 236 kN | nG: 3200 rpm
61876-M d: 380 mm | D: 480 mm | B: 46 mm | C: 220 kN | C0: 320 kN | nG: 3000 rpm
61880-M d: 400 mm | D: 500 mm | B: 46 mm | C: 220 kN | C0: 335 kN | nG: 2800 rpm
61884-M d: 420 mm | D: 520 mm | B: 46 mm | C: 224 kN | C0: 345 kN | nG: 2800 rpm
61888-M d: 440 mm | D: 540 mm | B: 46 mm | C: 228 kN | C0: 355 kN | nG: 2600 rpm
61892-M d: 460 mm | D: 580 mm | B: 56 mm | C: 290 kN | C0: 480 kN | nG: 2400 rpm
61896-M d: 480 mm | D: 600 mm | B: 56 mm | C: 290 kN | C0: 500 kN | nG: 2200 rpm
618/500-M d: 500 mm | D: 620 mm | B: 56 mm | C: 300 kN | C0: 510 kN | nG: 2000 rpm
618/530-M d: 530 mm | D: 650 mm | B: 56 mm | C: 305 kN | C0: 550 kN | nG: 2000 rpm
618/560-M d: 560 mm | D: 680 mm | B: 56 mm | C: 310 kN | C0: 560 kN | nG: 1900 rpm
618/600-M d: 600 mm | D: 730 mm | B: 60 mm | C: 355 kN | C0: 670 kN | nG: 1800 rpm
618/630-M d: 630 mm | D: 780 mm | B: 69 mm | C: 400 kN | C0: 780 kN | nG: 1600 rpm
618/670-M d: 670 mm | D: 820 mm | B: 69 mm | C: 405 kN | C0: 815 kN | nG: 1500 rpm
618/710-M d: 710 mm | D: 870 mm | B: 74 mm | C: 465 kN | C0: 980 kN | nG: 1400 rpm
618/750-M d: 750 mm | D: 920 mm | B: 78 mm | C: 510 kN | C0: 1120 kN | nG: 1300 rpm
618/800-M d: 800 mm | D: 980 mm | B: 82 mm | C: 550 kN | C0: 1270 kN | nG: 1300 rpm
618/850-M d: 850 mm | D: 1030 mm | B: 82 mm | C: 560 kN | C0: 1290 kN | nG: 1200 rpm
