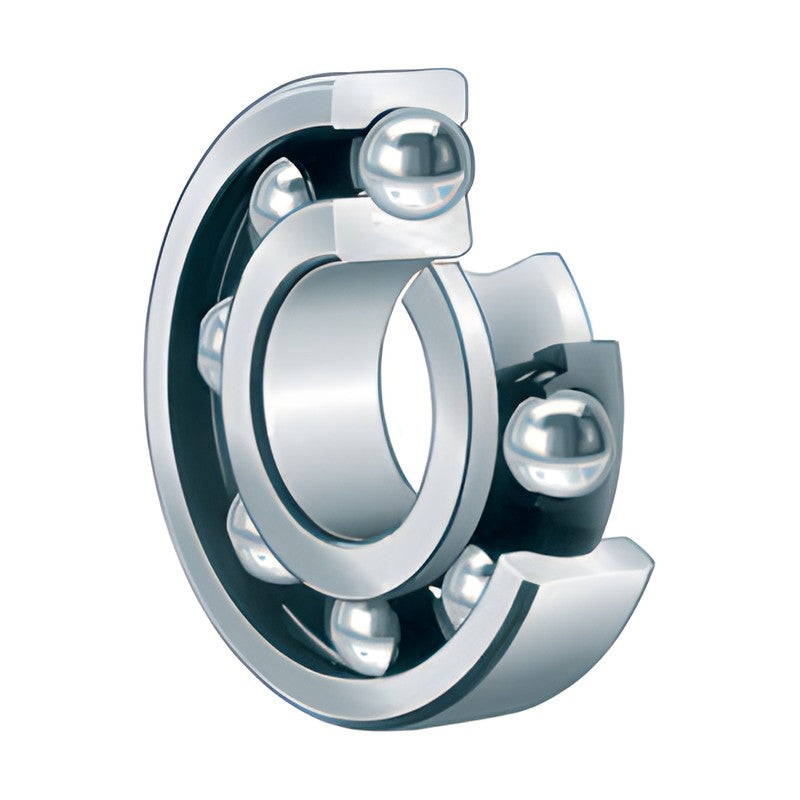

FAG 619 Series Deep Groove Ball Bearings (Open, 2Z, 2RSR)

FAG 619 Series Deep Groove Ball Bearings (Open, 2Z, 2RSR)

FAG single row deep groove ball bearings of the 619 series, listed in the Schaeffler HR 1 catalogue. Supplied in the open and sealed variants printed in the dimension tables.

Key features

  • Single row deep groove ball bearings for radial and axial loads in both directions
  • Open design plus 2Z gap seals and 2RSR lip seals where listed
  • Sealed bearings are greased for life and maintenance-free
  • Low friction and high speed capability
  • Dimensions to DIN 625-1 / ISO 15

Specifications

Bearing type Deep groove ball bearing, single row
Series 619
Variants Open, 2Z, 2RSR
Operating temp. (open) up to +120 C
Dimension standard DIN 625-1
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 206-231
61900 d: 10 mm | D: 22 mm | B: 6 mm | C: 2.2 kN | C0: 0.84 kN | nG: 40000 rpm
61900-2RSR d: 10 mm | D: 22 mm | B: 6 mm | C: 2.2 kN | C0: 0.84 kN | nG: 17300 rpm
61900-2Z d: 10 mm | D: 22 mm | B: 6 mm | C: 2.2 kN | C0: 0.84 kN | nG: 34000 rpm
61901 d: 12 mm | D: 24 mm | B: 6 mm | C: 2.36 kN | C0: 0.98 kN | nG: 36000 rpm
61901-2RSR d: 12 mm | D: 24 mm | B: 6 mm | C: 2.36 kN | C0: 0.98 kN | nG: 18000 rpm
61901-2Z d: 12 mm | D: 24 mm | B: 6 mm | C: 2.36 kN | C0: 0.98 kN | nG: 30000 rpm
61902 d: 15 mm | D: 28 mm | B: 7 mm | C: 4.35 kN | C0: 2.26 kN | nG: 30000 rpm
61902-2RSR d: 15 mm | D: 28 mm | B: 7 mm | C: 4.35 kN | C0: 2.26 kN | nG: 15000 rpm
61902-2Z d: 15 mm | D: 28 mm | B: 7 mm | C: 4.35 kN | C0: 2.26 kN | nG: 24000 rpm
61903 d: 17 mm | D: 30 mm | B: 7 mm | C: 4.6 kN | C0: 2.55 kN | nG: 28000 rpm
61903-2RSR d: 17 mm | D: 30 mm | B: 7 mm | C: 4.6 kN | C0: 2.55 kN | nG: 14000 rpm
61903-2Z d: 17 mm | D: 30 mm | B: 7 mm | C: 4.6 kN | C0: 2.55 kN | nG: 22000 rpm
61904 d: 20 mm | D: 37 mm | B: 9 mm | C: 6.3 kN | C0: 3.7 kN | nG: 22000 rpm
61904-2RSR d: 20 mm | D: 37 mm | B: 9 mm | C: 6.3 kN | C0: 3.7 kN | nG: 11500 rpm
61904-2Z d: 20 mm | D: 37 mm | B: 9 mm | C: 6.3 kN | C0: 3.7 kN | nG: 18000 rpm
61905 d: 25 mm | D: 42 mm | B: 9 mm | C: 6.9 kN | C0: 4.35 kN | nG: 19000 rpm
61905-2RSR d: 25 mm | D: 42 mm | B: 9 mm | C: 6.9 kN | C0: 4.35 kN | nG: 9800 rpm
61905-2Z d: 25 mm | D: 42 mm | B: 9 mm | C: 6.9 kN | C0: 4.35 kN | nG: 16000 rpm
61906 d: 30 mm | D: 47 mm | B: 9 mm | C: 7 kN | C0: 4.6 kN | nG: 17000 rpm
61906-2RSR d: 30 mm | D: 47 mm | B: 9 mm | C: 7 kN | C0: 4.6 kN | nG: 8100 rpm
61906-2Z d: 30 mm | D: 47 mm | B: 9 mm | C: 7 kN | C0: 4.6 kN | nG: 14000 rpm
61907 d: 35 mm | D: 55 mm | B: 10 mm | C: 9.5 kN | C0: 6.8 kN | nG: 14000 rpm
61907-2RSR d: 35 mm | D: 55 mm | B: 10 mm | C: 9.5 kN | C0: 6.8 kN | nG: 6900 rpm
61907-2Z d: 35 mm | D: 55 mm | B: 10 mm | C: 9.5 kN | C0: 6.8 kN | nG: 11500 rpm
61908 d: 40 mm | D: 62 mm | B: 12 mm | C: 13.7 kN | C0: 10 kN | nG: 12000 rpm
61908-2RSR d: 40 mm | D: 62 mm | B: 12 mm | C: 13.7 kN | C0: 10 kN | nG: 6100 rpm
61908-2Z d: 40 mm | D: 62 mm | B: 12 mm | C: 13.7 kN | C0: 10 kN | nG: 10000 rpm
61909 d: 45 mm | D: 68 mm | B: 12 mm | C: 14 kN | C0: 10.8 kN | nG: 26000 rpm
61909-2RSR d: 45 mm | D: 68 mm | B: 12 mm | C: 14 kN | C0: 10.8 kN | nG: 6700 rpm
61909-2Z d: 45 mm | D: 68 mm | B: 12 mm | C: 14 kN | C0: 10.8 kN | nG: 10000 rpm
61910 d: 50 mm | D: 72 mm | B: 12 mm | C: 14.6 kN | C0: 11.8 kN | nG: 22000 rpm
61910-2RSR d: 50 mm | D: 72 mm | B: 12 mm | C: 14.6 kN | C0: 11.8 kN | nG: 6000 rpm
61911 d: 55 mm | D: 80 mm | B: 13 mm | C: 16.6 kN | C0: 14 kN | nG: 19000 rpm
61911-2RSR d: 55 mm | D: 80 mm | B: 13 mm | C: 16.6 kN | C0: 14 kN | nG: 5600 rpm
61912 d: 60 mm | D: 85 mm | B: 13 mm | C: 16.3 kN | C0: 14.3 kN | nG: 18000 rpm
61912-2RSR d: 60 mm | D: 85 mm | B: 13 mm | C: 16.3 kN | C0: 14.3 kN | nG: 5000 rpm
61913 d: 65 mm | D: 90 mm | B: 13 mm | C: 20 kN | C0: 17.6 kN | nG: 17000 rpm
61914 d: 70 mm | D: 100 mm | B: 16 mm | C: 27 kN | C0: 23.2 kN | nG: 15000 rpm
61914-2RSR d: 70 mm | D: 100 mm | B: 16 mm | C: 27 kN | C0: 23.2 kN | nG: 4300 rpm
61915 d: 75 mm | D: 105 mm | B: 16 mm | C: 24.5 kN | C0: 22.4 kN | nG: 14000 rpm
61915-2RSR d: 75 mm | D: 105 mm | B: 16 mm | C: 24.5 kN | C0: 22.4 kN | nG: 4000 rpm
61916 d: 80 mm | D: 110 mm | B: 16 mm | C: 25 kN | C0: 24 kN | nG: 13000 rpm
Deep Groove Ball BearingsFAG
42 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG 619 Series Deep Groove Ball Bearings (Open, 2Z, 2RSR)

Brand FAG·Deep Groove Ball Bearings

Available part numbers (42)

61900, 61900-2RSR, 61900-2Z, 61901, 61901-2RSR, 61901-2Z, 61902, 61902-2RSR, 61902-2Z, 61903 + 32 more — see full table ↓

How to order

Send the FAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
61900d: 10 mm | D: 22 mm | B: 6 mm | C: 2.2 kN | C0: 0.84 kN | nG: 40000 rpm
61900-2RSRd: 10 mm | D: 22 mm | B: 6 mm | C: 2.2 kN | C0: 0.84 kN | nG: 17300 rpm
61900-2Zd: 10 mm | D: 22 mm | B: 6 mm | C: 2.2 kN | C0: 0.84 kN | nG: 34000 rpm
61901d: 12 mm | D: 24 mm | B: 6 mm | C: 2.36 kN | C0: 0.98 kN | nG: 36000 rpm
61901-2RSRd: 12 mm | D: 24 mm | B: 6 mm | C: 2.36 kN | C0: 0.98 kN | nG: 18000 rpm
61901-2Zd: 12 mm | D: 24 mm | B: 6 mm | C: 2.36 kN | C0: 0.98 kN | nG: 30000 rpm
61902d: 15 mm | D: 28 mm | B: 7 mm | C: 4.35 kN | C0: 2.26 kN | nG: 30000 rpm
61902-2RSRd: 15 mm | D: 28 mm | B: 7 mm | C: 4.35 kN | C0: 2.26 kN | nG: 15000 rpm
61902-2Zd: 15 mm | D: 28 mm | B: 7 mm | C: 4.35 kN | C0: 2.26 kN | nG: 24000 rpm
61903d: 17 mm | D: 30 mm | B: 7 mm | C: 4.6 kN | C0: 2.55 kN | nG: 28000 rpm
61903-2RSRd: 17 mm | D: 30 mm | B: 7 mm | C: 4.6 kN | C0: 2.55 kN | nG: 14000 rpm
61903-2Zd: 17 mm | D: 30 mm | B: 7 mm | C: 4.6 kN | C0: 2.55 kN | nG: 22000 rpm
61904d: 20 mm | D: 37 mm | B: 9 mm | C: 6.3 kN | C0: 3.7 kN | nG: 22000 rpm
61904-2RSRd: 20 mm | D: 37 mm | B: 9 mm | C: 6.3 kN | C0: 3.7 kN | nG: 11500 rpm
61904-2Zd: 20 mm | D: 37 mm | B: 9 mm | C: 6.3 kN | C0: 3.7 kN | nG: 18000 rpm
61905d: 25 mm | D: 42 mm | B: 9 mm | C: 6.9 kN | C0: 4.35 kN | nG: 19000 rpm
61905-2RSRd: 25 mm | D: 42 mm | B: 9 mm | C: 6.9 kN | C0: 4.35 kN | nG: 9800 rpm
61905-2Zd: 25 mm | D: 42 mm | B: 9 mm | C: 6.9 kN | C0: 4.35 kN | nG: 16000 rpm
61906d: 30 mm | D: 47 mm | B: 9 mm | C: 7 kN | C0: 4.6 kN | nG: 17000 rpm
61906-2RSRd: 30 mm | D: 47 mm | B: 9 mm | C: 7 kN | C0: 4.6 kN | nG: 8100 rpm
61906-2Zd: 30 mm | D: 47 mm | B: 9 mm | C: 7 kN | C0: 4.6 kN | nG: 14000 rpm
61907d: 35 mm | D: 55 mm | B: 10 mm | C: 9.5 kN | C0: 6.8 kN | nG: 14000 rpm
61907-2RSRd: 35 mm | D: 55 mm | B: 10 mm | C: 9.5 kN | C0: 6.8 kN | nG: 6900 rpm
61907-2Zd: 35 mm | D: 55 mm | B: 10 mm | C: 9.5 kN | C0: 6.8 kN | nG: 11500 rpm
61908d: 40 mm | D: 62 mm | B: 12 mm | C: 13.7 kN | C0: 10 kN | nG: 12000 rpm
61908-2RSRd: 40 mm | D: 62 mm | B: 12 mm | C: 13.7 kN | C0: 10 kN | nG: 6100 rpm
61908-2Zd: 40 mm | D: 62 mm | B: 12 mm | C: 13.7 kN | C0: 10 kN | nG: 10000 rpm
61909d: 45 mm | D: 68 mm | B: 12 mm | C: 14 kN | C0: 10.8 kN | nG: 26000 rpm
61909-2RSRd: 45 mm | D: 68 mm | B: 12 mm | C: 14 kN | C0: 10.8 kN | nG: 6700 rpm
61909-2Zd: 45 mm | D: 68 mm | B: 12 mm | C: 14 kN | C0: 10.8 kN | nG: 10000 rpm
61910d: 50 mm | D: 72 mm | B: 12 mm | C: 14.6 kN | C0: 11.8 kN | nG: 22000 rpm
61910-2RSRd: 50 mm | D: 72 mm | B: 12 mm | C: 14.6 kN | C0: 11.8 kN | nG: 6000 rpm
61911d: 55 mm | D: 80 mm | B: 13 mm | C: 16.6 kN | C0: 14 kN | nG: 19000 rpm
61911-2RSRd: 55 mm | D: 80 mm | B: 13 mm | C: 16.6 kN | C0: 14 kN | nG: 5600 rpm
61912d: 60 mm | D: 85 mm | B: 13 mm | C: 16.3 kN | C0: 14.3 kN | nG: 18000 rpm
61912-2RSRd: 60 mm | D: 85 mm | B: 13 mm | C: 16.3 kN | C0: 14.3 kN | nG: 5000 rpm
61913d: 65 mm | D: 90 mm | B: 13 mm | C: 20 kN | C0: 17.6 kN | nG: 17000 rpm
61914d: 70 mm | D: 100 mm | B: 16 mm | C: 27 kN | C0: 23.2 kN | nG: 15000 rpm
61914-2RSRd: 70 mm | D: 100 mm | B: 16 mm | C: 27 kN | C0: 23.2 kN | nG: 4300 rpm
61915d: 75 mm | D: 105 mm | B: 16 mm | C: 24.5 kN | C0: 22.4 kN | nG: 14000 rpm
61915-2RSRd: 75 mm | D: 105 mm | B: 16 mm | C: 24.5 kN | C0: 22.4 kN | nG: 4000 rpm
61916d: 80 mm | D: 110 mm | B: 16 mm | C: 25 kN | C0: 24 kN | nG: 13000 rpm
