• FAG 622 / 623 Series Wide Deep Groove Ball Bearings (2RSR)
1 1

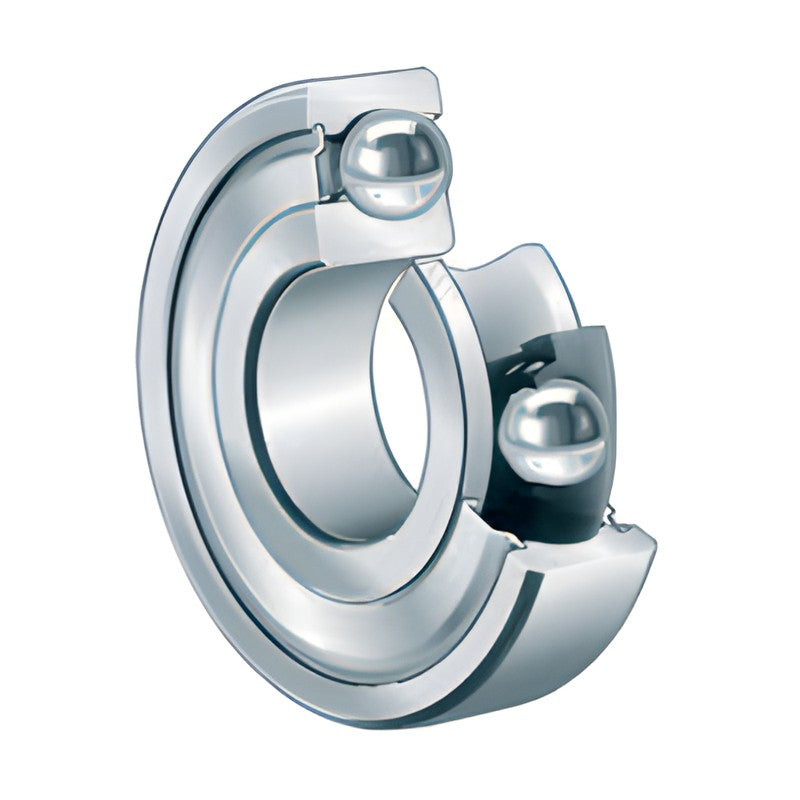

FAG 622 / 623 Series Wide Deep Groove Ball Bearings (2RSR)

FAG 622 / 623 Series Wide Deep Groove Ball Bearings (2RSR)

FAG wide-series single row deep groove ball bearings of series 622 and 623 with lip seals on both sides (2RSR).

Key features

  • Single row deep groove ball bearings for radial and axial loads in both directions
  • Wider ring section than 62/63 series for more grease volume
  • Lip seals on both sides (2RSR), greased for life
  • Low friction and high speed capability

Specifications

Bearing type Deep groove ball bearing, single row
Series 622, 623
Sealing 2RSR lip seals both sides
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 206-225
62200-2RSR d: 10 mm | D: 30 mm | B: 14 mm | C: 6 kN | C0: 2.6 kN | nG: 17000 rpm
62201-2RSR d: 12 mm | D: 32 mm | B: 14 mm | C: 6.95 kN | C0: 3.1 kN | nG: 16000 rpm
62202-2RSR d: 15 mm | D: 35 mm | B: 14 mm | C: 7.8 kN | C0: 3.75 kN | nG: 14000 rpm
62302-2RSR d: 15 mm | D: 42 mm | B: 17 mm | C: 11.4 kN | C0: 5.4 kN | nG: 12000 rpm
62203-2RSR d: 17 mm | D: 40 mm | B: 16 mm | C: 9.5 kN | C0: 4.75 kN | nG: 12000 rpm
62303-2RSR d: 17 mm | D: 47 mm | B: 19 mm | C: 13.4 kN | C0: 6.55 kN | nG: 11000 rpm
62204-2RSR d: 20 mm | D: 47 mm | B: 18 mm | C: 12.7 kN | C0: 6.55 kN | nG: 10000 rpm
62304-2RSR d: 20 mm | D: 52 mm | B: 21 mm | C: 16 kN | C0: 7.8 kN | nG: 9500 rpm
62205-2RSR d: 25 mm | D: 52 mm | B: 18 mm | C: 14 kN | C0: 7.8 kN | nG: 9000 rpm
62305-2RSR d: 25 mm | D: 62 mm | B: 24 mm | C: 22.4 kN | C0: 11.4 kN | nG: 7500 rpm
62206-2RSR d: 30 mm | D: 62 mm | B: 20 mm | C: 19.3 kN | C0: 11.2 kN | nG: 7500 rpm
62306-2RSR d: 30 mm | D: 72 mm | B: 27 mm | C: 29 kN | C0: 16.3 kN | nG: 6300 rpm
62207-2RSR d: 35 mm | D: 72 mm | B: 23 mm | C: 25.5 kN | C0: 15.3 kN | nG: 6300 rpm
62307-2RSR d: 35 mm | D: 80 mm | B: 31 mm | C: 33.5 kN | C0: 19 kN | nG: 5600 rpm
62208-2RSR d: 40 mm | D: 80 mm | B: 23 mm | C: 29 kN | C0: 18 kN | nG: 5600 rpm
62308-2RSR d: 40 mm | D: 90 mm | B: 33 mm | C: 42.5 kN | C0: 25 kN | nG: 5000 rpm
62209-2RSR d: 45 mm | D: 85 mm | B: 23 mm | C: 31 kN | C0: 20.4 kN | nG: 5300 rpm
62309-2RSR d: 45 mm | D: 100 mm | B: 36 mm | C: 53 kN | C0: 31.5 kN | nG: 4500 rpm
62210-2RSR d: 50 mm | D: 90 mm | B: 23 mm | C: 36.5 kN | C0: 24 kN | nG: 4800 rpm
62310-2RSR d: 50 mm | D: 110 mm | B: 40 mm | C: 62 kN | C0: 38 kN | nG: 4000 rpm
Deep Groove Ball BearingsFAG
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG 622 / 623 Series Wide Deep Groove Ball Bearings (2RSR)

Brand FAG·Deep Groove Ball Bearings

Available part numbers (20)

62200-2RSR, 62201-2RSR, 62202-2RSR, 62302-2RSR, 62203-2RSR, 62303-2RSR, 62204-2RSR, 62304-2RSR, 62205-2RSR, 62305-2RSR + 10 more — see full table ↓

How to order

Send the FAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
62200-2RSRd: 10 mm | D: 30 mm | B: 14 mm | C: 6 kN | C0: 2.6 kN | nG: 17000 rpm
62201-2RSRd: 12 mm | D: 32 mm | B: 14 mm | C: 6.95 kN | C0: 3.1 kN | nG: 16000 rpm
62202-2RSRd: 15 mm | D: 35 mm | B: 14 mm | C: 7.8 kN | C0: 3.75 kN | nG: 14000 rpm
62302-2RSRd: 15 mm | D: 42 mm | B: 17 mm | C: 11.4 kN | C0: 5.4 kN | nG: 12000 rpm
62203-2RSRd: 17 mm | D: 40 mm | B: 16 mm | C: 9.5 kN | C0: 4.75 kN | nG: 12000 rpm
62303-2RSRd: 17 mm | D: 47 mm | B: 19 mm | C: 13.4 kN | C0: 6.55 kN | nG: 11000 rpm
62204-2RSRd: 20 mm | D: 47 mm | B: 18 mm | C: 12.7 kN | C0: 6.55 kN | nG: 10000 rpm
62304-2RSRd: 20 mm | D: 52 mm | B: 21 mm | C: 16 kN | C0: 7.8 kN | nG: 9500 rpm
62205-2RSRd: 25 mm | D: 52 mm | B: 18 mm | C: 14 kN | C0: 7.8 kN | nG: 9000 rpm
62305-2RSRd: 25 mm | D: 62 mm | B: 24 mm | C: 22.4 kN | C0: 11.4 kN | nG: 7500 rpm
62206-2RSRd: 30 mm | D: 62 mm | B: 20 mm | C: 19.3 kN | C0: 11.2 kN | nG: 7500 rpm
62306-2RSRd: 30 mm | D: 72 mm | B: 27 mm | C: 29 kN | C0: 16.3 kN | nG: 6300 rpm
62207-2RSRd: 35 mm | D: 72 mm | B: 23 mm | C: 25.5 kN | C0: 15.3 kN | nG: 6300 rpm
62307-2RSRd: 35 mm | D: 80 mm | B: 31 mm | C: 33.5 kN | C0: 19 kN | nG: 5600 rpm
62208-2RSRd: 40 mm | D: 80 mm | B: 23 mm | C: 29 kN | C0: 18 kN | nG: 5600 rpm
62308-2RSRd: 40 mm | D: 90 mm | B: 33 mm | C: 42.5 kN | C0: 25 kN | nG: 5000 rpm
62209-2RSRd: 45 mm | D: 85 mm | B: 23 mm | C: 31 kN | C0: 20.4 kN | nG: 5300 rpm
62309-2RSRd: 45 mm | D: 100 mm | B: 36 mm | C: 53 kN | C0: 31.5 kN | nG: 4500 rpm
62210-2RSRd: 50 mm | D: 90 mm | B: 23 mm | C: 36.5 kN | C0: 24 kN | nG: 4800 rpm
62310-2RSRd: 50 mm | D: 110 mm | B: 40 mm | C: 62 kN | C0: 38 kN | nG: 4000 rpm
