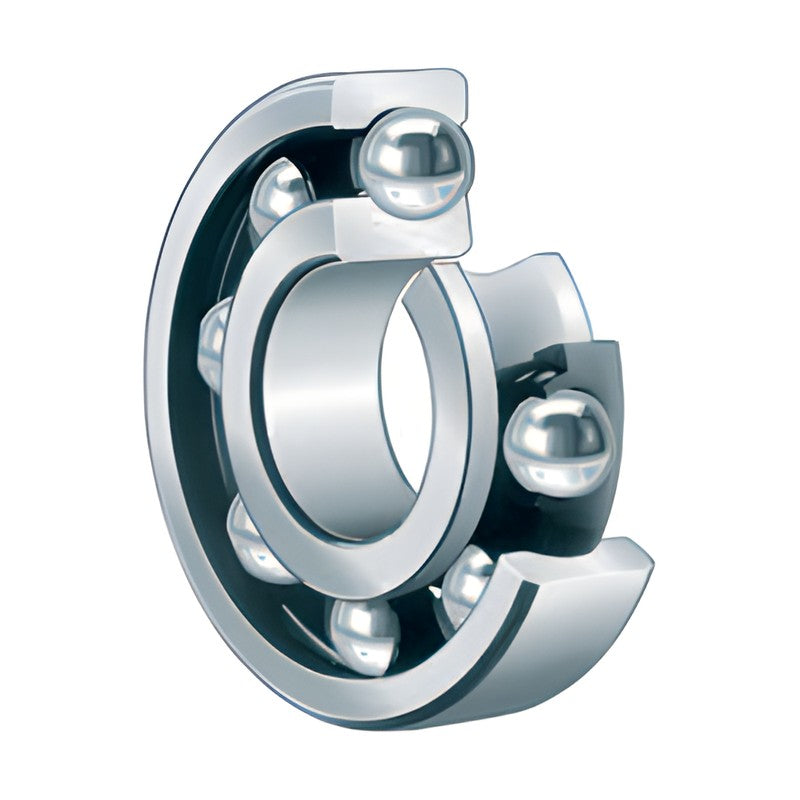

FAG 63 Series Deep Groove Ball Bearings (Open, 2Z, 2RSR)

FAG 63 Series Deep Groove Ball Bearings (Open, 2Z, 2RSR)

FAG single row deep groove ball bearings of the 63 (incl. 63x miniature sizes) series, listed in the Schaeffler HR 1 catalogue. Supplied in the open and sealed variants printed in the dimension tables.

Key features

  • Single row deep groove ball bearings for radial and axial loads in both directions
  • Open design plus 2Z gap seals and 2RSR lip seals where listed
  • Sealed bearings are greased for life and maintenance-free
  • Low friction and high speed capability
  • Dimensions to DIN 625-1 / ISO 15

Specifications

Bearing type Deep groove ball bearing, single row
Series 63
Variants Open, 2Z, 2RSR
Operating temp. (open) up to +120 C
Dimension standard DIN 625-1
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 204-239
634 d: 4 mm | D: 16 mm | B: 5 mm | C: 1.73 kN | C0: 0.67 kN | nG: 43000 rpm
634-2RSR d: 4 mm | D: 16 mm | B: 5 mm | C: 1.73 kN | C0: 0.67 kN | nG: 24000 rpm
634-2Z d: 4 mm | D: 16 mm | B: 5 mm | C: 1.73 kN | C0: 0.67 kN | nG: 36000 rpm
635 d: 5 mm | D: 19 mm | B: 6 mm | C: 2.6 kN | C0: 1.1 kN | nG: 40000 rpm
635-2RSR d: 5 mm | D: 19 mm | B: 6 mm | C: 2.6 kN | C0: 1.1 kN | nG: 22000 rpm
635-2Z d: 5 mm | D: 19 mm | B: 6 mm | C: 2.6 kN | C0: 1.1 kN | nG: 32000 rpm
6300 d: 10 mm | D: 35 mm | B: 11 mm | C: 8.15 kN | C0: 3.45 kN | nG: 56000 rpm
6300-2RSR d: 10 mm | D: 35 mm | B: 11 mm | C: 8.15 kN | C0: 3.45 kN | nG: 15000 rpm
6300-2Z d: 10 mm | D: 35 mm | B: 11 mm | C: 8.15 kN | C0: 3.45 kN | nG: 22000 rpm
6301 d: 12 mm | D: 37 mm | B: 12 mm | C: 9.65 kN | C0: 4.15 kN | nG: 53000 rpm
6301-2RSR d: 12 mm | D: 37 mm | B: 12 mm | C: 9.65 kN | C0: 4.15 kN | nG: 13000 rpm
6301-2Z d: 12 mm | D: 37 mm | B: 12 mm | C: 9.65 kN | C0: 4.15 kN | nG: 20000 rpm
6302 d: 15 mm | D: 42 mm | B: 13 mm | C: 11.4 kN | C0: 5.4 kN | nG: 43000 rpm
6302-2RSR d: 15 mm | D: 42 mm | B: 13 mm | C: 11.4 kN | C0: 5.4 kN | nG: 12000 rpm
6302-2Z d: 15 mm | D: 42 mm | B: 13 mm | C: 11.4 kN | C0: 5.4 kN | nG: 18000 rpm
6303 d: 17 mm | D: 47 mm | B: 14 mm | C: 13.4 kN | C0: 6.55 kN | nG: 30000 rpm
6303-2RSR d: 17 mm | D: 47 mm | B: 14 mm | C: 13.4 kN | C0: 6.55 kN | nG: 11000 rpm
6303-2Z d: 17 mm | D: 47 mm | B: 14 mm | C: 13.4 kN | C0: 6.55 kN | nG: 16000 rpm
6304 d: 20 mm | D: 52 mm | B: 15 mm | C: 16 kN | C0: 7.8 kN | nG: 34000 rpm
6304-2RSR d: 20 mm | D: 52 mm | B: 15 mm | C: 16 kN | C0: 7.8 kN | nG: 9500 rpm
6304-2Z d: 20 mm | D: 52 mm | B: 15 mm | C: 16 kN | C0: 7.8 kN | nG: 14000 rpm
6305 d: 25 mm | D: 62 mm | B: 17 mm | C: 22.4 kN | C0: 11.4 kN | nG: 28000 rpm
6305-2RSR d: 25 mm | D: 62 mm | B: 17 mm | C: 22.4 kN | C0: 11.4 kN | nG: 7500 rpm
6305-2Z d: 25 mm | D: 62 mm | B: 17 mm | C: 22.4 kN | C0: 11.4 kN | nG: 11000 rpm
6306 d: 30 mm | D: 72 mm | B: 19 mm | C: 29 kN | C0: 16.3 kN | nG: 24000 rpm
6306-2RSR d: 30 mm | D: 72 mm | B: 19 mm | C: 29 kN | C0: 16.3 kN | nG: 6300 rpm
6306-2Z d: 30 mm | D: 72 mm | B: 19 mm | C: 29 kN | C0: 16.3 kN | nG: 9500 rpm
6307 d: 35 mm | D: 80 mm | B: 21 mm | C: 33.5 kN | C0: 19 kN | nG: 20000 rpm
6307-2RSR d: 35 mm | D: 80 mm | B: 21 mm | C: 33.5 kN | C0: 19 kN | nG: 5600 rpm
6307-2Z d: 35 mm | D: 80 mm | B: 21 mm | C: 33.5 kN | C0: 19 kN | nG: 8500 rpm
6308 d: 40 mm | D: 90 mm | B: 23 mm | C: 42.5 kN | C0: 25 kN | nG: 18000 rpm
6308-2RSR d: 40 mm | D: 90 mm | B: 23 mm | C: 42.5 kN | C0: 25 kN | nG: 5000 rpm
6308-2Z d: 40 mm | D: 90 mm | B: 23 mm | C: 42.5 kN | C0: 25 kN | nG: 7500 rpm
6309 d: 45 mm | D: 100 mm | B: 25 mm | C: 53 kN | C0: 31.5 kN | nG: 16000 rpm
6309-2RSR d: 45 mm | D: 100 mm | B: 25 mm | C: 53 kN | C0: 31.5 kN | nG: 4500 rpm
6309-2Z d: 45 mm | D: 100 mm | B: 25 mm | C: 53 kN | C0: 31.5 kN | nG: 6700 rpm
6310 d: 50 mm | D: 110 mm | B: 27 mm | C: 62 kN | C0: 38 kN | nG: 14000 rpm
6310-2RSR d: 50 mm | D: 110 mm | B: 27 mm | C: 62 kN | C0: 38 kN | nG: 4000 rpm
6310-2Z d: 50 mm | D: 110 mm | B: 27 mm | C: 62 kN | C0: 38 kN | nG: 6000 rpm
6311 d: 55 mm | D: 120 mm | B: 29 mm | C: 76.5 kN | C0: 47.5 kN | nG: 13000 rpm
6311-2RSR d: 55 mm | D: 120 mm | B: 29 mm | C: 76.5 kN | C0: 47.5 kN | nG: 3600 rpm
6311-2Z d: 55 mm | D: 120 mm | B: 29 mm | C: 76.5 kN | C0: 47.5 kN | nG: 5300 rpm
6312 d: 60 mm | D: 130 mm | B: 31 mm | C: 81.5 kN | C0: 52 kN | nG: 12000 rpm
6312-2RSR d: 60 mm | D: 130 mm | B: 31 mm | C: 81.5 kN | C0: 52 kN | nG: 3400 rpm
6312-2Z d: 60 mm | D: 130 mm | B: 31 mm | C: 81.5 kN | C0: 52 kN | nG: 5000 rpm
6313 d: 65 mm | D: 140 mm | B: 33 mm | C: 93 kN | C0: 60 kN | nG: 11000 rpm
6313-2RSR d: 65 mm | D: 140 mm | B: 33 mm | C: 93 kN | C0: 60 kN | nG: 3000 rpm
6313-2Z d: 65 mm | D: 140 mm | B: 33 mm | C: 93 kN | C0: 60 kN | nG: 4500 rpm
6314 d: 70 mm | D: 150 mm | B: 35 mm | C: 104 kN | C0: 68 kN | nG: 10000 rpm
6314-2RSR d: 70 mm | D: 150 mm | B: 35 mm | C: 104 kN | C0: 68 kN | nG: 2800 rpm
6314-2Z d: 70 mm | D: 150 mm | B: 35 mm | C: 104 kN | C0: 68 kN | nG: 4300 rpm
6315 d: 75 mm | D: 160 mm | B: 37 mm | C: 114 kN | C0: 76.5 kN | nG: 9500 rpm
6315-2RSR d: 75 mm | D: 160 mm | B: 37 mm | C: 114 kN | C0: 76.5 kN | nG: 2600 rpm
6315-2Z d: 75 mm | D: 160 mm | B: 37 mm | C: 114 kN | C0: 76.5 kN | nG: 4000 rpm
6316 d: 80 mm | D: 170 mm | B: 39 mm | C: 122 kN | C0: 86.5 kN | nG: 9000 rpm
6316-2RSR d: 80 mm | D: 170 mm | B: 39 mm | C: 122 kN | C0: 86.5 kN | nG: 2600 rpm
6316-2Z d: 80 mm | D: 170 mm | B: 39 mm | C: 122 kN | C0: 86.5 kN | nG: 3800 rpm
6317 d: 85 mm | D: 180 mm | B: 41 mm | C: 132 kN | C0: 96.5 kN | nG: 8000 rpm
6317-2RSR d: 85 mm | D: 180 mm | B: 41 mm | C: 132 kN | C0: 96.5 kN | nG: 2400 rpm
6317-2Z d: 85 mm | D: 180 mm | B: 41 mm | C: 132 kN | C0: 96.5 kN | nG: 3400 rpm
6318 d: 90 mm | D: 190 mm | B: 43 mm | C: 134 kN | C0: 102 kN | nG: 8000 rpm
6318-2RSR d: 90 mm | D: 190 mm | B: 43 mm | C: 134 kN | C0: 102 kN | nG: 2200 rpm
6318-2Z d: 90 mm | D: 190 mm | B: 43 mm | C: 134 kN | C0: 102 kN | nG: 3400 rpm
6319 d: 95 mm | D: 200 mm | B: 45 mm | C: 146 kN | C0: 114 kN | nG: 7500 rpm
6319-2Z d: 95 mm | D: 200 mm | B: 45 mm | C: 146 kN | C0: 114 kN | nG: 3200 rpm
6320 d: 100 mm | D: 215 mm | B: 47 mm | C: 163 kN | C0: 134 kN | nG: 7000 rpm
6320-2Z d: 100 mm | D: 215 mm | B: 47 mm | C: 163 kN | C0: 134 kN | nG: 3000 rpm
6321 d: 105 mm | D: 225 mm | B: 49 mm | C: 173 kN | C0: 146 kN | nG: 6700 rpm
6322 d: 110 mm | D: 240 mm | B: 50 mm | C: 190 kN | C0: 166 kN | nG: 6300 rpm
6322-2RSR d: 110 mm | D: 240 mm | B: 50 mm | C: 190 kN | C0: 166 kN | nG: 1800 rpm
6322-2Z d: 110 mm | D: 240 mm | B: 50 mm | C: 190 kN | C0: 166 kN | nG: 2600 rpm
6324 d: 120 mm | D: 260 mm | B: 55 mm | C: 212 kN | C0: 190 kN | nG: 6000 rpm
6326-M d: 130 mm | D: 280 mm | B: 58 mm | C: 228 kN | C0: 216 kN | nG: 5600 rpm
6328-M d: 140 mm | D: 300 mm | B: 62 mm | C: 255 kN | C0: 245 kN | nG: 5300 rpm
6330-M d: 150 mm | D: 320 mm | B: 65 mm | C: 280 kN | C0: 290 kN | nG: 4800 rpm
6332-M d: 160 mm | D: 340 mm | B: 68 mm | C: 300 kN | C0: 325 kN | nG: 4300 rpm
6334-M d: 170 mm | D: 360 mm | B: 72 mm | C: 325 kN | C0: 365 kN | nG: 4000 rpm
6336-M d: 180 mm | D: 380 mm | B: 75 mm | C: 355 kN | C0: 405 kN | nG: 3800 rpm
6338-M d: 190 mm | D: 400 mm | B: 78 mm | C: 375 kN | C0: 440 kN | nG: 3600 rpm
6340-M d: 200 mm | D: 420 mm | B: 80 mm | C: 380 kN | C0: 465 kN | nG: 3400 rpm
6344-M d: 220 mm | D: 460 mm | B: 88 mm | C: 440 kN | C0: 560 kN | nG: 3200 rpm
6348-M d: 240 mm | D: 500 mm | B: 95 mm | C: 465 kN | C0: 620 kN | nG: 3000 rpm
