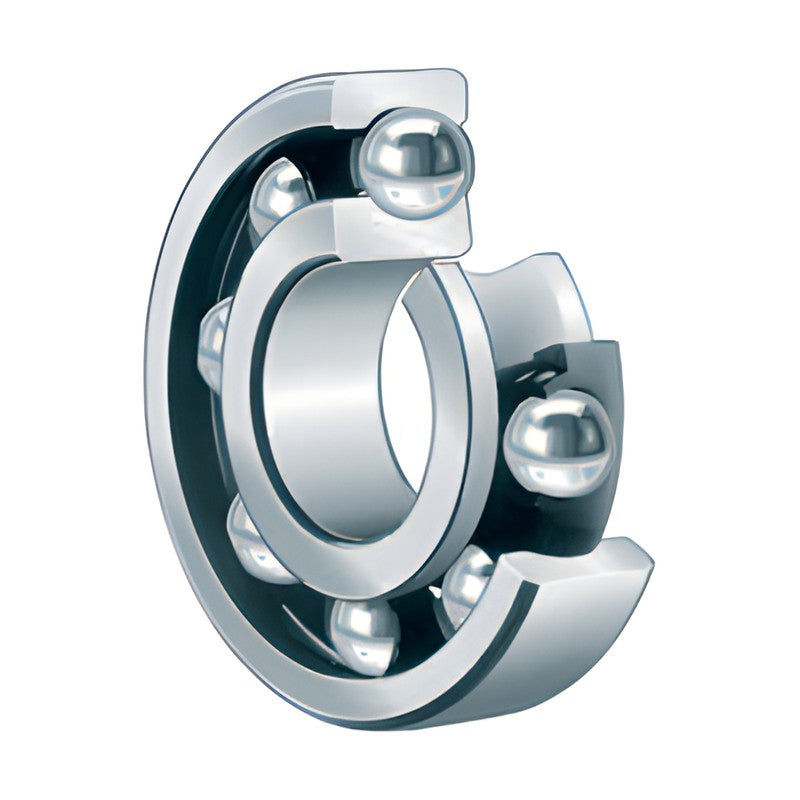

FAG 64 Series Deep Groove Ball Bearings (Open)

FAG 64 Series Deep Groove Ball Bearings (Open)

FAG single row deep groove ball bearings of the heavy 64 series, listed in the Schaeffler HR 1 catalogue. Supplied in the open and sealed variants printed in the dimension tables.

Key features

  • Single row deep groove ball bearings for radial and axial loads in both directions
  • Open design plus 2Z gap seals and 2RSR lip seals where listed
  • Sealed bearings are greased for life and maintenance-free
  • Low friction and high speed capability
  • Dimensions to DIN 625-1 / ISO 15

Specifications

Bearing type Deep groove ball bearing, single row
Series 64
Variants Open
Operating temp. (open) up to +120 C
Dimension standard DIN 625-1
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 210-233
6403 d: 17 mm | D: 62 mm | B: 17 mm | C: 22.4 kN | C0: 11.4 kN | nG: 28000 rpm
6404 d: 20 mm | D: 72 mm | B: 19 mm | C: 29 kN | C0: 16.3 kN | nG: 24000 rpm
6405 d: 25 mm | D: 80 mm | B: 21 mm | C: 33.5 kN | C0: 19 kN | nG: 20000 rpm
6406 d: 30 mm | D: 90 mm | B: 23 mm | C: 42.5 kN | C0: 25 kN | nG: 18000 rpm
6407 d: 35 mm | D: 100 mm | B: 25 mm | C: 53 kN | C0: 31.5 kN | nG: 16000 rpm
6408 d: 40 mm | D: 110 mm | B: 27 mm | C: 62 kN | C0: 38 kN | nG: 14000 rpm
6409 d: 45 mm | D: 120 mm | B: 29 mm | C: 76.5 kN | C0: 47.5 kN | nG: 13000 rpm
6410 d: 50 mm | D: 130 mm | B: 31 mm | C: 81.5 kN | C0: 52 kN | nG: 12000 rpm
6411 d: 55 mm | D: 140 mm | B: 33 mm | C: 93 kN | C0: 60 kN | nG: 11000 rpm
6412 d: 60 mm | D: 150 mm | B: 35 mm | C: 104 kN | C0: 68 kN | nG: 10000 rpm
6413 d: 65 mm | D: 160 mm | B: 37 mm | C: 114 kN | C0: 76.5 kN | nG: 9500 rpm
6414 d: 70 mm | D: 180 mm | B: 42 mm | C: 132 kN | C0: 96.5 kN | nG: 8500 rpm
6415-M d: 75 mm | D: 190 mm | B: 45 mm | C: 132 kN | C0: 96.5 kN | nG: 8500 rpm
6416-M d: 80 mm | D: 200 mm | B: 48 mm | C: 163 kN | C0: 125 kN | nG: 7500 rpm
6417-M d: 85 mm | D: 210 mm | B: 52 mm | C: 173 kN | C0: 137 kN | nG: 7000 rpm
6418-M d: 90 mm | D: 225 mm | B: 54 mm | C: 196 kN | C0: 163 kN | nG: 6700 rpm
Deep Groove Ball BearingsFAG
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG 64 Series Deep Groove Ball Bearings (Open)

Brand FAG·Deep Groove Ball Bearings

Available part numbers (16)

6403, 6404, 6405, 6406, 6407, 6408, 6409, 6410, 6411, 6412 + 6 more — see full table ↓

How to order

Send the FAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
6403d: 17 mm | D: 62 mm | B: 17 mm | C: 22.4 kN | C0: 11.4 kN | nG: 28000 rpm
6404d: 20 mm | D: 72 mm | B: 19 mm | C: 29 kN | C0: 16.3 kN | nG: 24000 rpm
6405d: 25 mm | D: 80 mm | B: 21 mm | C: 33.5 kN | C0: 19 kN | nG: 20000 rpm
6406d: 30 mm | D: 90 mm | B: 23 mm | C: 42.5 kN | C0: 25 kN | nG: 18000 rpm
6407d: 35 mm | D: 100 mm | B: 25 mm | C: 53 kN | C0: 31.5 kN | nG: 16000 rpm
6408d: 40 mm | D: 110 mm | B: 27 mm | C: 62 kN | C0: 38 kN | nG: 14000 rpm
6409d: 45 mm | D: 120 mm | B: 29 mm | C: 76.5 kN | C0: 47.5 kN | nG: 13000 rpm
6410d: 50 mm | D: 130 mm | B: 31 mm | C: 81.5 kN | C0: 52 kN | nG: 12000 rpm
6411d: 55 mm | D: 140 mm | B: 33 mm | C: 93 kN | C0: 60 kN | nG: 11000 rpm
6412d: 60 mm | D: 150 mm | B: 35 mm | C: 104 kN | C0: 68 kN | nG: 10000 rpm
6413d: 65 mm | D: 160 mm | B: 37 mm | C: 114 kN | C0: 76.5 kN | nG: 9500 rpm
6414d: 70 mm | D: 180 mm | B: 42 mm | C: 132 kN | C0: 96.5 kN | nG: 8500 rpm
6415-Md: 75 mm | D: 190 mm | B: 45 mm | C: 132 kN | C0: 96.5 kN | nG: 8500 rpm
6416-Md: 80 mm | D: 200 mm | B: 48 mm | C: 163 kN | C0: 125 kN | nG: 7500 rpm
6417-Md: 85 mm | D: 210 mm | B: 52 mm | C: 173 kN | C0: 137 kN | nG: 7000 rpm
6418-Md: 90 mm | D: 225 mm | B: 54 mm | C: 196 kN | C0: 163 kN | nG: 6700 rpm
