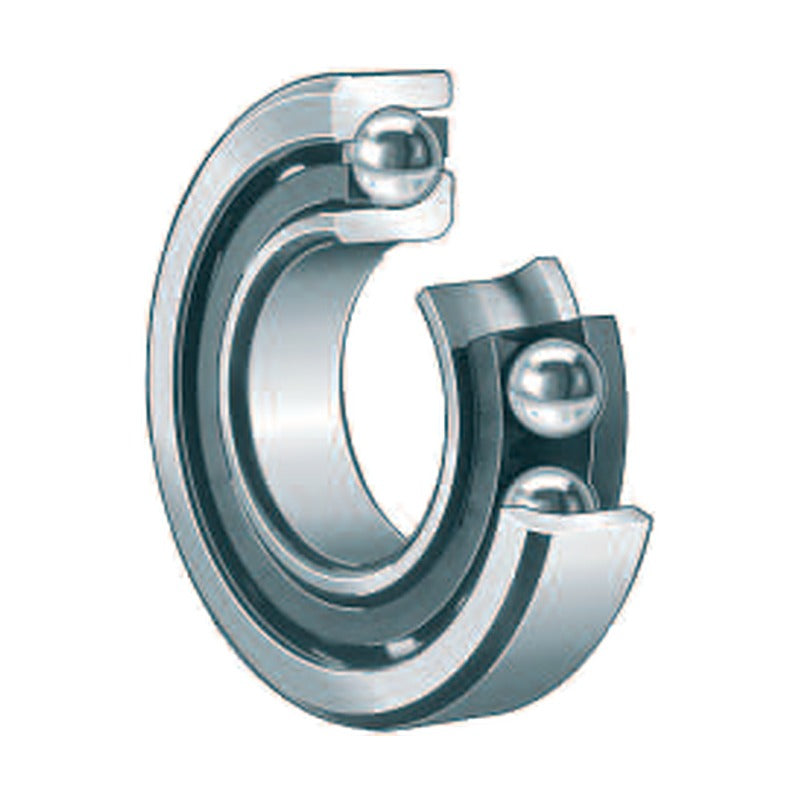

FAG 70..-B Single Row Angular Contact Ball Bearings (40 deg)

FAG 70..-B Single Row Angular Contact Ball Bearings (40 deg)

FAG single row angular contact ball bearings of series 70..-B with 40 deg contact angle, as listed in the HR 1 catalogue.

Key features

  • Single row angular contact ball bearings with 40 deg contact angle
  • Axial load in one direction; usually mounted in pairs
  • Cage options as printed: JP/MP (sheet steel/brass) and TVP (polyamide)
  • Sealed 2RS variants listed for 70, 72 and 73 series
  • X-life performance grade on the listed sizes

Specifications

Bearing type Angular contact ball bearing, single row
Series 70..-B
Contact angle 40 deg
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 260-263
7004-B-TVP d: 20 mm | D: 42 mm | B: 12 mm | C: 13.4 kN | C0: 7 kN | nG: 18000 rpm
7004-B-2RS-TVP d: 20 mm | D: 42 mm | B: 12 mm | C: 13.4 kN | C0: 7 kN | nG: 9500 rpm
7005-B-TVP d: 25 mm | D: 47 mm | B: 12 mm | C: 14.9 kN | C0: 8.6 kN | nG: 16000 rpm
7005-B-2RS-TVP d: 25 mm | D: 47 mm | B: 12 mm | C: 14.9 kN | C0: 8.6 kN | nG: 8000 rpm
7006-B-TVP d: 30 mm | D: 55 mm | B: 13 mm | C: 18.4 kN | C0: 11.5 kN | nG: 14000 rpm
7006-B-2RS-TVP d: 30 mm | D: 55 mm | B: 13 mm | C: 18.4 kN | C0: 11.5 kN | nG: 6700 rpm
7007-B-TVP d: 35 mm | D: 62 mm | B: 14 mm | C: 22.4 kN | C0: 14.8 kN | nG: 12000 rpm
7007-B-2RS-TVP d: 35 mm | D: 62 mm | B: 14 mm | C: 22.4 kN | C0: 14.8 kN | nG: 6000 rpm
7008-B-TVP d: 40 mm | D: 68 mm | B: 15 mm | C: 26 kN | C0: 17.4 kN | nG: 10000 rpm
7008-B-2RS-TVP d: 40 mm | D: 68 mm | B: 15 mm | C: 26 kN | C0: 17.4 kN | nG: 5300 rpm
Angular Contact Ball BearingsFAG
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG 70..-B Single Row Angular Contact Ball Bearings (40 deg)

Brand FAG·Angular Contact Ball Bearings

Available part numbers (10)

7004-B-TVP, 7004-B-2RS-TVP, 7005-B-TVP, 7005-B-2RS-TVP, 7006-B-TVP, 7006-B-2RS-TVP, 7007-B-TVP, 7007-B-2RS-TVP, 7008-B-TVP, 7008-B-2RS-TVP

How to order

Send the FAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
7004-B-TVPd: 20 mm | D: 42 mm | B: 12 mm | C: 13.4 kN | C0: 7 kN | nG: 18000 rpm
7004-B-2RS-TVPd: 20 mm | D: 42 mm | B: 12 mm | C: 13.4 kN | C0: 7 kN | nG: 9500 rpm
7005-B-TVPd: 25 mm | D: 47 mm | B: 12 mm | C: 14.9 kN | C0: 8.6 kN | nG: 16000 rpm
7005-B-2RS-TVPd: 25 mm | D: 47 mm | B: 12 mm | C: 14.9 kN | C0: 8.6 kN | nG: 8000 rpm
7006-B-TVPd: 30 mm | D: 55 mm | B: 13 mm | C: 18.4 kN | C0: 11.5 kN | nG: 14000 rpm
7006-B-2RS-TVPd: 30 mm | D: 55 mm | B: 13 mm | C: 18.4 kN | C0: 11.5 kN | nG: 6700 rpm
7007-B-TVPd: 35 mm | D: 62 mm | B: 14 mm | C: 22.4 kN | C0: 14.8 kN | nG: 12000 rpm
7007-B-2RS-TVPd: 35 mm | D: 62 mm | B: 14 mm | C: 22.4 kN | C0: 14.8 kN | nG: 6000 rpm
7008-B-TVPd: 40 mm | D: 68 mm | B: 15 mm | C: 26 kN | C0: 17.4 kN | nG: 10000 rpm
7008-B-2RS-TVPd: 40 mm | D: 68 mm | B: 15 mm | C: 26 kN | C0: 17.4 kN | nG: 5300 rpm
