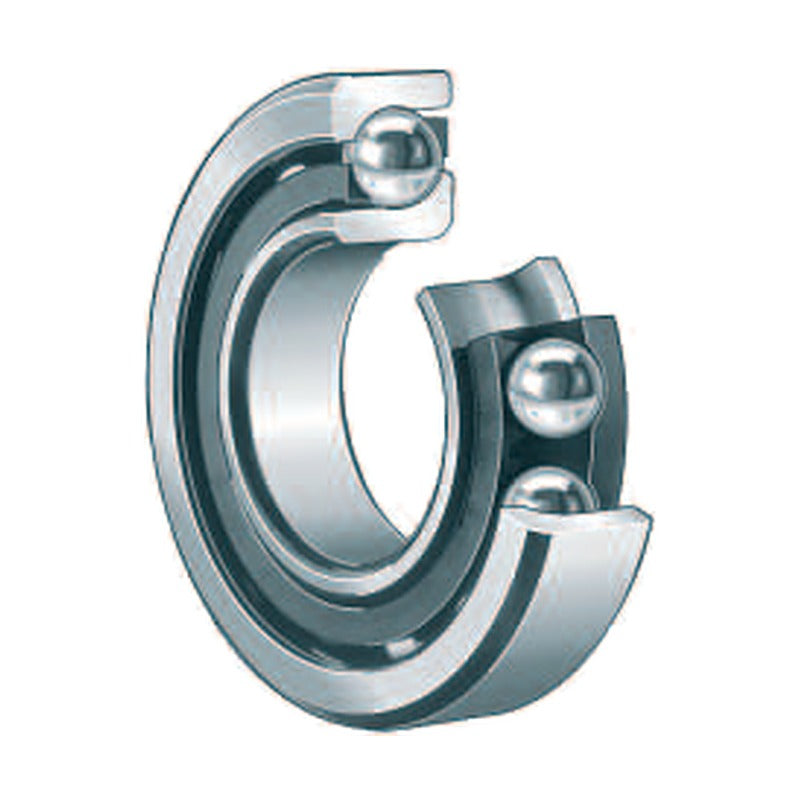

FAG 718..-B Single Row Angular Contact Ball Bearings (40 deg)

FAG 718..-B Single Row Angular Contact Ball Bearings (40 deg)

FAG single row angular contact ball bearings of series 718..-B with 40 deg contact angle, as listed in the HR 1 catalogue.

Key features

  • Single row angular contact ball bearings with 40 deg contact angle
  • Axial load in one direction; usually mounted in pairs
  • Cage options as printed: JP/MP (sheet steel/brass) and TVP (polyamide)
  • Sealed 2RS variants listed for 70, 72 and 73 series
  • X-life performance grade on the listed sizes

Specifications

Bearing type Angular contact ball bearing, single row
Series 718..-B
Contact angle 40 deg
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 262-265
71806-B-TVH d: 30 mm | D: 42 mm | B: 7 mm | C: 5.6 kN | C0: 4.55 kN | nG: 17000 rpm
71807-B-TVH d: 35 mm | D: 47 mm | B: 7 mm | C: 6 kN | C0: 5.3 kN | nG: 15000 rpm
71808-B-TVH d: 40 mm | D: 52 mm | B: 7 mm | C: 6.3 kN | C0: 5.85 kN | nG: 13000 rpm
71809-B-TVH d: 45 mm | D: 58 mm | B: 7 mm | C: 6.55 kN | C0: 6.55 kN | nG: 13000 rpm
71810-B-TVH d: 50 mm | D: 65 mm | B: 7 mm | C: 6.95 kN | C0: 7.35 kN | nG: 9500 rpm
71811-B-TVH d: 55 mm | D: 72 mm | B: 9 mm | C: 11.8 kN | C0: 11.8 kN | nG: 9000 rpm
71812-B-TVH d: 60 mm | D: 78 mm | B: 10 mm | C: 12.2 kN | C0: 12.9 kN | nG: 8000 rpm
71813-B-TVH d: 65 mm | D: 85 mm | B: 10 mm | C: 15.3 kN | C0: 16 kN | nG: 7500 rpm
71814-B-TVH d: 70 mm | D: 90 mm | B: 10 mm | C: 16 kN | C0: 17.3 kN | nG: 7000 rpm
71815-B-TVH d: 75 mm | D: 95 mm | B: 10 mm | C: 16.3 kN | C0: 18 kN | nG: 6300 rpm
71816-B-TVH d: 80 mm | D: 100 mm | B: 10 mm | C: 16.6 kN | C0: 19 kN | nG: 6000 rpm
Angular Contact Ball BearingsFAG
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG 718..-B Single Row Angular Contact Ball Bearings (40 deg)

Brand FAG·Angular Contact Ball Bearings

Available part numbers (11)

71806-B-TVH, 71807-B-TVH, 71808-B-TVH, 71809-B-TVH, 71810-B-TVH, 71811-B-TVH, 71812-B-TVH, 71813-B-TVH, 71814-B-TVH, 71815-B-TVH + 1 more — see full table ↓

How to order

Send the FAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
71806-B-TVHd: 30 mm | D: 42 mm | B: 7 mm | C: 5.6 kN | C0: 4.55 kN | nG: 17000 rpm
71807-B-TVHd: 35 mm | D: 47 mm | B: 7 mm | C: 6 kN | C0: 5.3 kN | nG: 15000 rpm
71808-B-TVHd: 40 mm | D: 52 mm | B: 7 mm | C: 6.3 kN | C0: 5.85 kN | nG: 13000 rpm
71809-B-TVHd: 45 mm | D: 58 mm | B: 7 mm | C: 6.55 kN | C0: 6.55 kN | nG: 13000 rpm
71810-B-TVHd: 50 mm | D: 65 mm | B: 7 mm | C: 6.95 kN | C0: 7.35 kN | nG: 9500 rpm
71811-B-TVHd: 55 mm | D: 72 mm | B: 9 mm | C: 11.8 kN | C0: 11.8 kN | nG: 9000 rpm
71812-B-TVHd: 60 mm | D: 78 mm | B: 10 mm | C: 12.2 kN | C0: 12.9 kN | nG: 8000 rpm
71813-B-TVHd: 65 mm | D: 85 mm | B: 10 mm | C: 15.3 kN | C0: 16 kN | nG: 7500 rpm
71814-B-TVHd: 70 mm | D: 90 mm | B: 10 mm | C: 16 kN | C0: 17.3 kN | nG: 7000 rpm
71815-B-TVHd: 75 mm | D: 95 mm | B: 10 mm | C: 16.3 kN | C0: 18 kN | nG: 6300 rpm
71816-B-TVHd: 80 mm | D: 100 mm | B: 10 mm | C: 16.6 kN | C0: 19 kN | nG: 6000 rpm
