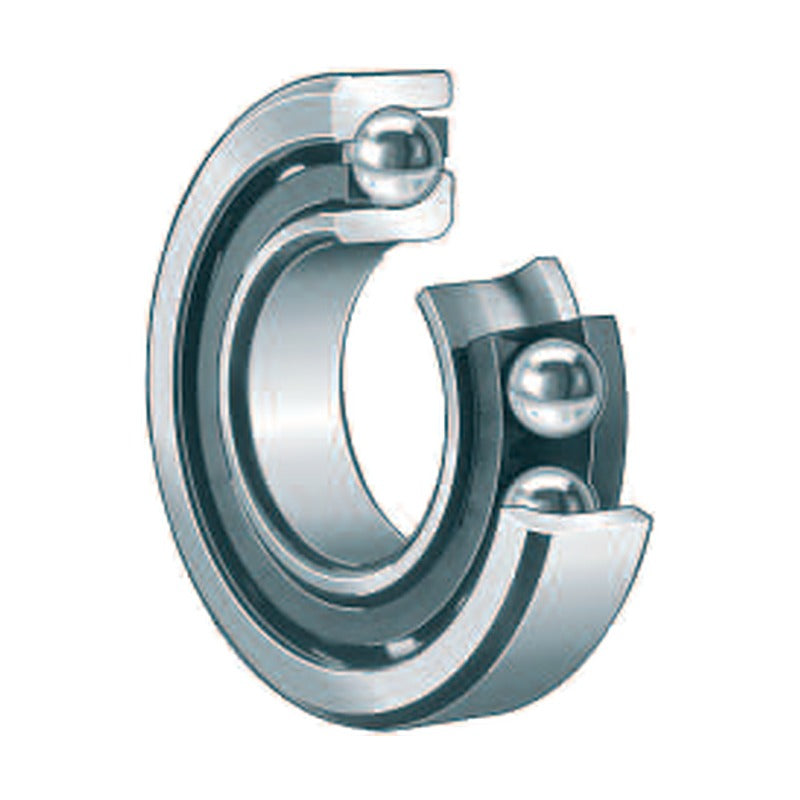

• FAG 72..-B Single Row Angular Contact Ball Bearings (40 deg)
1 1

FAG 72..-B Single Row Angular Contact Ball Bearings (40 deg)

FAG 72..-B Single Row Angular Contact Ball Bearings (40 deg)

FAG single row angular contact ball bearings of series 72..-B with 40 deg contact angle, as listed in the HR 1 catalogue.

Key features

  • Single row angular contact ball bearings with 40 deg contact angle
  • Axial load in one direction; usually mounted in pairs
  • Cage options as printed: JP/MP (sheet steel/brass) and TVP (polyamide)
  • Sealed 2RS variants listed for 70, 72 and 73 series
  • X-life performance grade on the listed sizes

Specifications

Bearing type Angular contact ball bearing, single row
Series 72..-B
Contact angle 40 deg
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 260-267
7200-B-JP d: 10 mm | D: 30 mm | B: 9 mm | C: 5.3 kN | C0: 2.6 kN | nG: 32000 rpm
7200-B-TVP d: 10 mm | D: 30 mm | B: 9 mm | C: 5.3 kN | C0: 2.6 kN | nG: 32000 rpm
7200-B-2RS-TVP d: 10 mm | D: 30 mm | B: 9 mm | C: 5.3 kN | C0: 2.6 kN | nG: 15000 rpm
7201-B-JP d: 12 mm | D: 32 mm | B: 10 mm | C: 7.4 kN | C0: 3.55 kN | nG: 28000 rpm
7201-B-TVP d: 12 mm | D: 32 mm | B: 10 mm | C: 7.4 kN | C0: 3.55 kN | nG: 28000 rpm
7201-B-2RS-TVP d: 12 mm | D: 32 mm | B: 10 mm | C: 7.4 kN | C0: 3.55 kN | nG: 14000 rpm
7202-B-JP d: 15 mm | D: 35 mm | B: 11 mm | C: 8.4 kN | C0: 4.45 kN | nG: 24000 rpm
7202-B-TVP d: 15 mm | D: 35 mm | B: 11 mm | C: 8.4 kN | C0: 4.45 kN | nG: 24000 rpm
7202-B-2RS-TVP d: 15 mm | D: 35 mm | B: 11 mm | C: 8.4 kN | C0: 4.45 kN | nG: 12000 rpm
7203-B-JP d: 17 mm | D: 40 mm | B: 12 mm | C: 10.5 kN | C0: 5.7 kN | nG: 20000 rpm
7203-B-TVP d: 17 mm | D: 40 mm | B: 12 mm | C: 10.5 kN | C0: 5.7 kN | nG: 20000 rpm
7203-B-2RS-TVP d: 17 mm | D: 40 mm | B: 12 mm | C: 10.5 kN | C0: 5.7 kN | nG: 11000 rpm
7204-B-JP d: 20 mm | D: 47 mm | B: 14 mm | C: 14 kN | C0: 7.8 kN | nG: 18000 rpm
7204-B-TVP d: 20 mm | D: 47 mm | B: 14 mm | C: 14 kN | C0: 7.8 kN | nG: 18000 rpm
7204-B-2RS-TVP d: 20 mm | D: 47 mm | B: 14 mm | C: 14 kN | C0: 7.8 kN | nG: 9000 rpm
7205-B-JP d: 25 mm | D: 52 mm | B: 15 mm | C: 15.3 kN | C0: 9 kN | nG: 16000 rpm
7205-B-TVP d: 25 mm | D: 52 mm | B: 15 mm | C: 15.3 kN | C0: 9 kN | nG: 16000 rpm
7205-B-2RS-TVP d: 25 mm | D: 52 mm | B: 15 mm | C: 15.3 kN | C0: 9 kN | nG: 8000 rpm
7206-B-JP d: 30 mm | D: 62 mm | B: 16 mm | C: 21.7 kN | C0: 14.1 kN | nG: 13000 rpm
7206-B-TVP d: 30 mm | D: 62 mm | B: 16 mm | C: 21.7 kN | C0: 14.1 kN | nG: 13000 rpm
7206-B-2RS-TVP d: 30 mm | D: 62 mm | B: 16 mm | C: 21.7 kN | C0: 14.1 kN | nG: 6300 rpm
7207-B-JP d: 35 mm | D: 72 mm | B: 17 mm | C: 28 kN | C0: 19 kN | nG: 11000 rpm
7207-B-TVP d: 35 mm | D: 72 mm | B: 17 mm | C: 28 kN | C0: 19 kN | nG: 11000 rpm
7207-B-2RS-TVP d: 35 mm | D: 72 mm | B: 17 mm | C: 28 kN | C0: 19 kN | nG: 5600 rpm
7208-B-JP d: 40 mm | D: 80 mm | B: 18 mm | C: 34 kN | C0: 23.5 kN | nG: 9500 rpm
7208-B-TVP d: 40 mm | D: 80 mm | B: 18 mm | C: 34 kN | C0: 23.5 kN | nG: 9500 rpm
7208-B-2RS-TVP d: 40 mm | D: 80 mm | B: 18 mm | C: 34 kN | C0: 23.5 kN | nG: 5000 rpm
7209-B-JP d: 45 mm | D: 85 mm | B: 19 mm | C: 37.5 kN | C0: 27 kN | nG: 8500 rpm
7209-B-TVP d: 45 mm | D: 85 mm | B: 19 mm | C: 37.5 kN | C0: 27 kN | nG: 8500 rpm
7210-B-JP d: 50 mm | D: 90 mm | B: 20 mm | C: 39 kN | C0: 28.5 kN | nG: 8000 rpm
7210-B-TVP d: 50 mm | D: 90 mm | B: 20 mm | C: 39 kN | C0: 28.5 kN | nG: 8000 rpm
7211-B-JP d: 55 mm | D: 100 mm | B: 21 mm | C: 49 kN | C0: 38.5 kN | nG: 7000 rpm
7211-B-TVP d: 55 mm | D: 100 mm | B: 21 mm | C: 49 kN | C0: 38.5 kN | nG: 7000 rpm
7212-B-JP d: 60 mm | D: 110 mm | B: 22 mm | C: 59 kN | C0: 45 kN | nG: 6300 rpm
7212-B-TVP d: 60 mm | D: 110 mm | B: 22 mm | C: 59 kN | C0: 45 kN | nG: 6300 rpm
7213-B-JP d: 65 mm | D: 120 mm | B: 23 mm | C: 67 kN | C0: 55 kN | nG: 6000 rpm
7213-B-TVP d: 65 mm | D: 120 mm | B: 23 mm | C: 67 kN | C0: 55 kN | nG: 6000 rpm
7214-B-JP d: 70 mm | D: 125 mm | B: 24 mm | C: 74 kN | C0: 62 kN | nG: 5600 rpm
7214-B-TVP d: 70 mm | D: 125 mm | B: 24 mm | C: 74 kN | C0: 62 kN | nG: 5600 rpm
7215-B-JP d: 75 mm | D: 130 mm | B: 25 mm | C: 73 kN | C0: 62 kN | nG: 5300 rpm
7215-B-TVP d: 75 mm | D: 130 mm | B: 25 mm | C: 73 kN | C0: 62 kN | nG: 5300 rpm
7216-B-JP d: 80 mm | D: 140 mm | B: 26 mm | C: 85 kN | C0: 72 kN | nG: 5000 rpm
7216-B-TVP d: 80 mm | D: 140 mm | B: 26 mm | C: 85 kN | C0: 72 kN | nG: 5000 rpm
7217-B-JP d: 85 mm | D: 150 mm | B: 28 mm | C: 97 kN | C0: 86 kN | nG: 4500 rpm
7217-B-TVP d: 85 mm | D: 150 mm | B: 28 mm | C: 97 kN | C0: 86 kN | nG: 4500 rpm
7218-B-JP d: 90 mm | D: 160 mm | B: 30 mm | C: 114 kN | C0: 98 kN | nG: 4300 rpm
7218-B-TVP d: 90 mm | D: 160 mm | B: 30 mm | C: 114 kN | C0: 98 kN | nG: 4300 rpm
7219-B-JP d: 95 mm | D: 170 mm | B: 32 mm | C: 123 kN | C0: 106 kN | nG: 4000 rpm
7219-B-TVP d: 95 mm | D: 170 mm | B: 32 mm | C: 123 kN | C0: 106 kN | nG: 4000 rpm
7220-B-JP d: 100 mm | D: 180 mm | B: 34 mm | C: 148 kN | C0: 132 kN | nG: 3800 rpm
7220-B-TVP d: 100 mm | D: 180 mm | B: 34 mm | C: 142 kN | C0: 124 kN | nG: 3800 rpm
7221-B-MP d: 105 mm | D: 190 mm | B: 36 mm | C: 155 kN | C0: 142 kN | nG: 6000 rpm
7222-B-JP d: 110 mm | D: 200 mm | B: 38 mm | C: 167 kN | C0: 154 kN | nG: 3600 rpm
7222-B-TVP d: 110 mm | D: 200 mm | B: 38 mm | C: 167 kN | C0: 154 kN | nG: 3600 rpm
7224-B-TVP d: 120 mm | D: 215 mm | B: 40 mm | C: 182 kN | C0: 178 kN | nG: 3400 rpm
7226-B-TVP d: 130 mm | D: 230 mm | B: 40 mm | C: 200 kN | C0: 204 kN | nG: 3200 rpm
7228-B-MP d: 140 mm | D: 250 mm | B: 42 mm | C: 214 kN | C0: 231 kN | nG: 4800 rpm
7230-B-MP d: 150 mm | D: 270 mm | B: 45 mm | C: 245 kN | C0: 275 kN | nG: 4500 rpm
7232-B-MP d: 160 mm | D: 290 mm | B: 48 mm | C: 236 kN | C0: 280 kN | nG: 4300 rpm
7234-B-MP d: 170 mm | D: 310 mm | B: 52 mm | C: 265 kN | C0: 325 kN | nG: 3800 rpm
