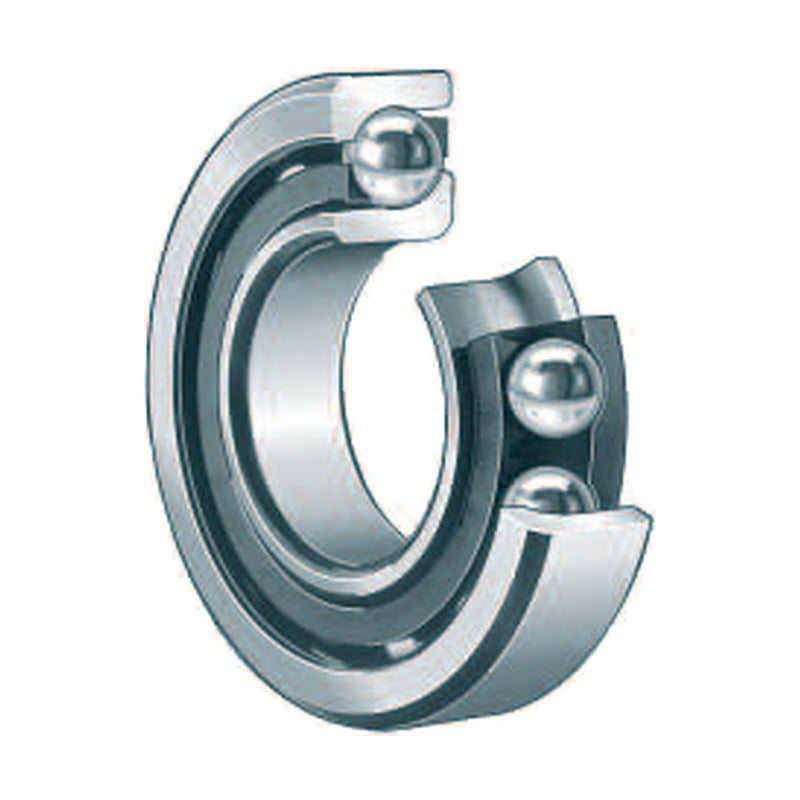

FAG 73..-B Single Row Angular Contact Ball Bearings (40 deg)

FAG 73..-B Single Row Angular Contact Ball Bearings (40 deg)

FAG single row angular contact ball bearings of series 73..-B with 40 deg contact angle, as listed in the HR 1 catalogue.

Key features

  • Single row angular contact ball bearings with 40 deg contact angle
  • Axial load in one direction; usually mounted in pairs
  • Cage options as printed: JP/MP (sheet steel/brass) and TVP (polyamide)
  • Sealed 2RS variants listed for 70, 72 and 73 series
  • X-life performance grade on the listed sizes

Specifications

Bearing type Angular contact ball bearing, single row
Series 73..-B
Contact angle 40 deg
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 260-267
7301-B-JP d: 12 mm | D: 37 mm | B: 12 mm | C: 11.4 kN | C0: 5.3 kN | nG: 24000 rpm
7301-B-TVP d: 12 mm | D: 37 mm | B: 12 mm | C: 11.4 kN | C0: 5.3 kN | nG: 24000 rpm
7302-B-JP d: 15 mm | D: 42 mm | B: 13 mm | C: 14.2 kN | C0: 7.2 kN | nG: 20000 rpm
7302-B-TVP d: 15 mm | D: 42 mm | B: 13 mm | C: 14.2 kN | C0: 7.2 kN | nG: 20000 rpm
7302-B-2RS-TVP d: 15 mm | D: 42 mm | B: 13 mm | C: 14.2 kN | C0: 7.2 kN | nG: 11000 rpm
7303-B-JP d: 17 mm | D: 47 mm | B: 14 mm | C: 17.6 kN | C0: 9 kN | nG: 18000 rpm
7303-B-TVP d: 17 mm | D: 47 mm | B: 14 mm | C: 17.6 kN | C0: 9 kN | nG: 18000 rpm
7303-B-2RS-TVP d: 17 mm | D: 47 mm | B: 14 mm | C: 17.6 kN | C0: 9 kN | nG: 9500 rpm
7304-B-JP d: 20 mm | D: 52 mm | B: 15 mm | C: 20.4 kN | C0: 11.1 kN | nG: 17000 rpm
7304-B-TVP d: 20 mm | D: 52 mm | B: 15 mm | C: 20.4 kN | C0: 11.1 kN | nG: 17000 rpm
7304-B-2RS-TVP d: 20 mm | D: 52 mm | B: 15 mm | C: 20.4 kN | C0: 11.1 kN | nG: 8500 rpm
7305-B-JP d: 25 mm | D: 62 mm | B: 17 mm | C: 28 kN | C0: 15.8 kN | nG: 14000 rpm
7305-B-TVP d: 25 mm | D: 62 mm | B: 17 mm | C: 28 kN | C0: 15.8 kN | nG: 14000 rpm
7305-B-2RS-TVP d: 25 mm | D: 62 mm | B: 17 mm | C: 28 kN | C0: 15.8 kN | nG: 7000 rpm
7306-B-JP d: 30 mm | D: 72 mm | B: 19 mm | C: 35.5 kN | C0: 22.1 kN | nG: 11000 rpm
7306-B-TVP d: 30 mm | D: 72 mm | B: 19 mm | C: 35.5 kN | C0: 22.1 kN | nG: 11000 rpm
7306-B-2RS-TVP d: 30 mm | D: 72 mm | B: 19 mm | C: 35.5 kN | C0: 22.1 kN | nG: 6000 rpm
7307-B-JP d: 35 mm | D: 80 mm | B: 21 mm | C: 43 kN | C0: 27.5 kN | nG: 9500 rpm
7307-B-TVP d: 35 mm | D: 80 mm | B: 21 mm | C: 43 kN | C0: 27.5 kN | nG: 9500 rpm
7307-B-2RS-TVP d: 35 mm | D: 80 mm | B: 21 mm | C: 43 kN | C0: 27.5 kN | nG: 5000 rpm
7308-B-JP d: 40 mm | D: 90 mm | B: 23 mm | C: 53 kN | C0: 34.5 kN | nG: 8500 rpm
7308-B-TVP d: 40 mm | D: 90 mm | B: 23 mm | C: 53 kN | C0: 34.5 kN | nG: 8500 rpm
7308-B-2RS-TVP d: 40 mm | D: 90 mm | B: 23 mm | C: 53 kN | C0: 34.5 kN | nG: 4500 rpm
7309-B-JP d: 45 mm | D: 100 mm | B: 25 mm | C: 65 kN | C0: 43 kN | nG: 7500 rpm
7309-B-TVP d: 45 mm | D: 100 mm | B: 25 mm | C: 65 kN | C0: 43 kN | nG: 7500 rpm
7310-B-JP d: 50 mm | D: 110 mm | B: 27 mm | C: 75 kN | C0: 50 kN | nG: 7000 rpm
7310-B-TVP d: 50 mm | D: 110 mm | B: 27 mm | C: 75 kN | C0: 50 kN | nG: 7000 rpm
7311-B-JP d: 55 mm | D: 120 mm | B: 29 mm | C: 86 kN | C0: 61 kN | nG: 6300 rpm
7311-B-TVP d: 55 mm | D: 120 mm | B: 29 mm | C: 86 kN | C0: 61 kN | nG: 6300 rpm
7312-B-JP d: 60 mm | D: 130 mm | B: 31 mm | C: 96 kN | C0: 69 kN | nG: 5600 rpm
7312-B-TVP d: 60 mm | D: 130 mm | B: 31 mm | C: 96 kN | C0: 69 kN | nG: 5600 rpm
7313-B-JP d: 65 mm | D: 140 mm | B: 33 mm | C: 110 kN | C0: 82 kN | nG: 5300 rpm
7313-B-TVP d: 65 mm | D: 140 mm | B: 33 mm | C: 110 kN | C0: 82 kN | nG: 5300 rpm
7314-B-JP d: 70 mm | D: 150 mm | B: 35 mm | C: 126 kN | C0: 93 kN | nG: 5000 rpm
7314-B-TVP d: 70 mm | D: 150 mm | B: 35 mm | C: 126 kN | C0: 93 kN | nG: 5000 rpm
7315-B-JP d: 75 mm | D: 160 mm | B: 37 mm | C: 140 kN | C0: 107 kN | nG: 4500 rpm
7315-B-TVP d: 75 mm | D: 160 mm | B: 37 mm | C: 140 kN | C0: 107 kN | nG: 4500 rpm
7316-B-JP d: 80 mm | D: 170 mm | B: 39 mm | C: 155 kN | C0: 124 kN | nG: 4300 rpm
7316-B-TVP d: 80 mm | D: 170 mm | B: 39 mm | C: 155 kN | C0: 124 kN | nG: 4300 rpm
7317-B-JP d: 85 mm | D: 180 mm | B: 41 mm | C: 167 kN | C0: 138 kN | nG: 4000 rpm
7317-B-TVP d: 85 mm | D: 180 mm | B: 41 mm | C: 167 kN | C0: 138 kN | nG: 4000 rpm
7318-B-JP d: 90 mm | D: 190 mm | B: 43 mm | C: 180 kN | C0: 155 kN | nG: 3800 rpm
7318-B-TVP d: 90 mm | D: 190 mm | B: 43 mm | C: 180 kN | C0: 155 kN | nG: 3800 rpm
7319-B-JP d: 95 mm | D: 200 mm | B: 45 mm | C: 189 kN | C0: 167 kN | nG: 3800 rpm
7319-B-TVP d: 95 mm | D: 200 mm | B: 45 mm | C: 189 kN | C0: 167 kN | nG: 3800 rpm
7320-B-JP d: 100 mm | D: 215 mm | B: 47 mm | C: 214 kN | C0: 197 kN | nG: 3600 rpm
7320-B-TVP d: 100 mm | D: 215 mm | B: 47 mm | C: 214 kN | C0: 197 kN | nG: 3600 rpm
7321-B-MP d: 105 mm | D: 225 mm | B: 49 mm | C: 225 kN | C0: 214 kN | nG: 5300 rpm
7322-B-JP d: 110 mm | D: 240 mm | B: 50 mm | C: 250 kN | C0: 245 kN | nG: 3400 rpm
7322-B-TVP d: 110 mm | D: 240 mm | B: 50 mm | C: 250 kN | C0: 245 kN | nG: 3400 rpm
7324-B-TVP d: 120 mm | D: 260 mm | B: 55 mm | C: 275 kN | C0: 285 kN | nG: 3200 rpm
7326-B-TVP d: 130 mm | D: 280 mm | B: 58 mm | C: 305 kN | C0: 325 kN | nG: 3000 rpm
7328-B-MP d: 140 mm | D: 300 mm | B: 62 mm | C: 300 kN | C0: 345 kN | nG: 4300 rpm
7330-B-MP d: 150 mm | D: 320 mm | B: 65 mm | C: 325 kN | C0: 390 kN | nG: 3800 rpm
7332-B-MP d: 160 mm | D: 340 mm | B: 68 mm | C: 360 kN | C0: 450 kN | nG: 3600 rpm
7334-B-MP d: 170 mm | D: 360 mm | B: 72 mm | C: 405 kN | C0: 530 kN | nG: 3200 rpm
