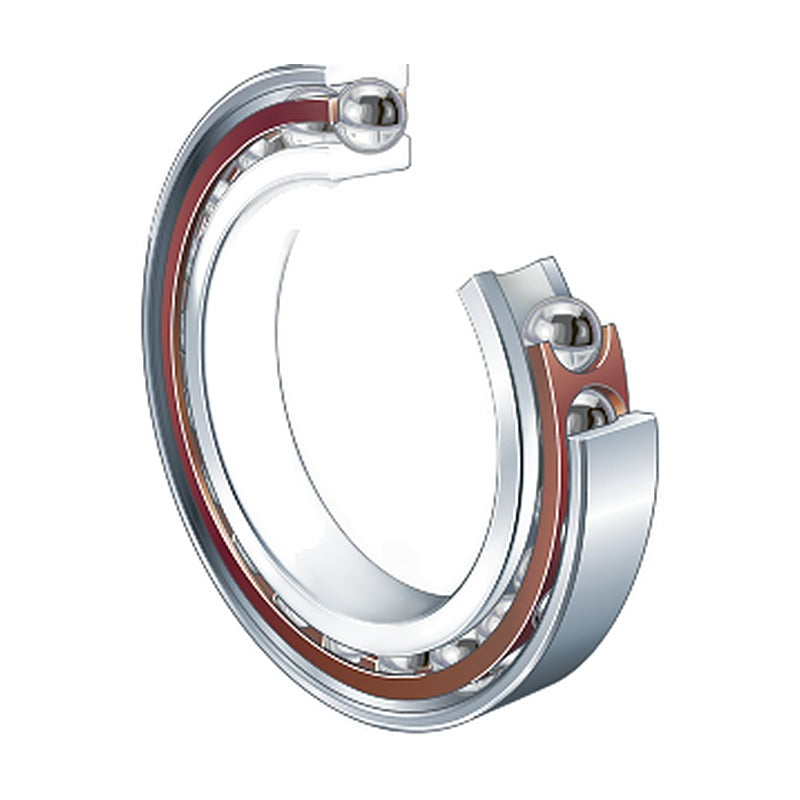

• FAG B719 Spindle Bearings (Steel Balls, P4S)
1 1

FAG B719 Spindle Bearings (Steel Balls, P4S)

FAG B719 Spindle Bearings (Steel Balls, P4S)

FAG B719 series high precision spindle bearings with steel balls, contact angle 15 deg (C) or 25 deg (E), precision P4S.

Key features

  • High precision spindle bearings, precision class P4S
  • C suffix = 15 deg contact angle, E suffix = 25 deg contact angle
  • Phenolic resin cage (T) for high speed operation
  • Available as universal bearings for pair/set arrangements
  • Limiting speeds listed for grease and oil lubrication

Specifications

Bearing type Spindle bearing (angular contact)
Series B719
Balls Steel balls
Cage T (phenolic resin)
Precision P4S
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 302-315
B71900-C-T-P4S d: 10 mm | D: 22 mm | B: 6 mm | C: 3 kN | C0: 1.53 kN | nG grease/oil: 70000/110000 rpm
B71900-E-T-P4S d: 10 mm | D: 22 mm | B: 6 mm | C: 2.9 kN | C0: 1.46 kN | nG grease/oil: 63000/95000 rpm
B71901-C-T-P4S d: 12 mm | D: 24 mm | B: 6 mm | C: 3.35 kN | C0: 1.86 kN | nG grease/oil: 60000/90000 rpm
B71901-E-T-P4S d: 12 mm | D: 24 mm | B: 6 mm | C: 3.2 kN | C0: 1.76 kN | nG grease/oil: 56000/85000 rpm
B71902-C-T-P4S d: 15 mm | D: 28 mm | B: 7 mm | C: 5 kN | C0: 2.9 kN | nG grease/oil: 50000/75000 rpm
B71902-E-T-P4S d: 15 mm | D: 28 mm | B: 7 mm | C: 4.8 kN | C0: 2.75 kN | nG grease/oil: 45000/67000 rpm
B71903-C-T-P4S d: 17 mm | D: 30 mm | B: 7 mm | C: 5.3 kN | C0: 3.15 kN | nG grease/oil: 48000/70000 rpm
B71903-E-T-P4S d: 17 mm | D: 30 mm | B: 7 mm | C: 5 kN | C0: 3 kN | nG grease/oil: 43000/63000 rpm
B71904-C-T-P4S d: 20 mm | D: 37 mm | B: 9 mm | C: 7.35 kN | C0: 4.55 kN | nG grease/oil: 38000/56000 rpm
B71904-E-T-P4S d: 20 mm | D: 37 mm | B: 9 mm | C: 6.95 kN | C0: 4.4 kN | nG grease/oil: 36000/53000 rpm
B71905-C-T-P4S d: 25 mm | D: 42 mm | B: 9 mm | C: 8.15 kN | C0: 5.7 kN | nG grease/oil: 32000/48000 rpm
B71905-E-T-P4S d: 25 mm | D: 42 mm | B: 9 mm | C: 7.8 kN | C0: 5.5 kN | nG grease/oil: 30000/45000 rpm
B71906-C-T-P4S d: 30 mm | D: 47 mm | B: 9 mm | C: 8.65 kN | C0: 6.55 kN | nG grease/oil: 28000/43000 rpm
B71906-E-T-P4S d: 30 mm | D: 47 mm | B: 9 mm | C: 8.15 kN | C0: 6.3 kN | nG grease/oil: 26000/40000 rpm
B71907-C-T-P4S d: 35 mm | D: 55 mm | B: 10 mm | C: 11.8 kN | C0: 9.5 kN | nG grease/oil: 24000/38000 rpm
B71907-E-T-P4S d: 35 mm | D: 55 mm | B: 10 mm | C: 11 kN | C0: 9 kN | nG grease/oil: 22000/36000 rpm
B71908-C-T-P4S d: 40 mm | D: 62 mm | B: 12 mm | C: 17.6 kN | C0: 13.7 kN | nG grease/oil: 22000/36000 rpm
B71908-E-T-P4S d: 40 mm | D: 62 mm | B: 12 mm | C: 16.6 kN | C0: 13.2 kN | nG grease/oil: 20000/34000 rpm
B71909-C-T-P4S d: 45 mm | D: 68 mm | B: 12 mm | C: 18.6 kN | C0: 15.6 kN | nG grease/oil: 19000/32000 rpm
B71909-E-T-P4S d: 45 mm | D: 68 mm | B: 12 mm | C: 17.6 kN | C0: 15 kN | nG grease/oil: 18000/30000 rpm
B71910-C-T-P4S d: 50 mm | D: 72 mm | B: 12 mm | C: 19 kN | C0: 16.6 kN | nG grease/oil: 18000/30000 rpm
B71910-E-T-P4S d: 50 mm | D: 72 mm | B: 12 mm | C: 18 kN | C0: 15.6 kN | nG grease/oil: 16000/26000 rpm
B71911-C-T-P4S d: 55 mm | D: 80 mm | B: 13 mm | C: 22.8 kN | C0: 20.4 kN | nG grease/oil: 16000/26000 rpm
B71911-E-T-P4S d: 55 mm | D: 80 mm | B: 13 mm | C: 21.6 kN | C0: 19.3 kN | nG grease/oil: 15000/24000 rpm
B71912-C-T-P4S d: 60 mm | D: 85 mm | B: 13 mm | C: 24 kN | C0: 22.8 kN | nG grease/oil: 15000/24000 rpm
B71912-E-T-P4S d: 60 mm | D: 85 mm | B: 13 mm | C: 22.8 kN | C0: 21.6 kN | nG grease/oil: 14000/22000 rpm
B71913-C-T-P4S d: 65 mm | D: 90 mm | B: 13 mm | C: 24.5 kN | C0: 24 kN | nG grease/oil: 14000/22000 rpm
B71913-E-T-P4S d: 65 mm | D: 90 mm | B: 13 mm | C: 22.8 kN | C0: 22.4 kN | nG grease/oil: 13000/20000 rpm
B71914-C-T-P4S d: 70 mm | D: 100 mm | B: 16 mm | C: 33.5 kN | C0: 32.5 kN | nG grease/oil: 13000/20000 rpm
B71914-E-T-P4S d: 70 mm | D: 100 mm | B: 16 mm | C: 31.5 kN | C0: 31 kN | nG grease/oil: 12000/19000 rpm
B71915-C-T-P4S d: 75 mm | D: 105 mm | B: 16 mm | C: 34 kN | C0: 34.5 kN | nG grease/oil: 12000/19000 rpm
B71915-E-T-P4S d: 75 mm | D: 105 mm | B: 16 mm | C: 32 kN | C0: 32.5 kN | nG grease/oil: 11000/18000 rpm
B71916-C-T-P4S d: 80 mm | D: 110 mm | B: 16 mm | C: 34.5 kN | C0: 36 kN | nG grease/oil: 12000/19000 rpm
B71916-E-T-P4S d: 80 mm | D: 110 mm | B: 16 mm | C: 32.5 kN | C0: 34 kN | nG grease/oil: 11000/18000 rpm
B71917-C-T-P4S d: 85 mm | D: 120 mm | B: 18 mm | C: 45 kN | C0: 46.5 kN | nG grease/oil: 11000/18000 rpm
B71917-E-T-P4S d: 85 mm | D: 120 mm | B: 18 mm | C: 42.5 kN | C0: 44 kN | nG grease/oil: 9500/16000 rpm
B71918-C-T-P4S d: 90 mm | D: 125 mm | B: 18 mm | C: 45.5 kN | C0: 49 kN | nG grease/oil: 10000/17000 rpm
B71918-E-T-P4S d: 90 mm | D: 125 mm | B: 18 mm | C: 43 kN | C0: 46.5 kN | nG grease/oil: 9000/15000 rpm
B71919-C-T-P4S d: 95 mm | D: 130 mm | B: 18 mm | C: 46.5 kN | C0: 51 kN | nG grease/oil: 9500/16000 rpm
B71919-E-T-P4S d: 95 mm | D: 130 mm | B: 18 mm | C: 44 kN | C0: 48 kN | nG grease/oil: 8500/14000 rpm
B71920-C-T-P4S d: 100 mm | D: 140 mm | B: 20 mm | C: 58.5 kN | C0: 64 kN | nG grease/oil: 9000/15000 rpm
B71920-E-T-P4S d: 100 mm | D: 140 mm | B: 20 mm | C: 55 kN | C0: 60 kN | nG grease/oil: 8000/13000 rpm
B71921-C-T-P4S d: 105 mm | D: 145 mm | B: 20 mm | C: 58.5 kN | C0: 64 kN | nG grease/oil: 8500/14000 rpm
B71921-E-T-P4S d: 105 mm | D: 145 mm | B: 20 mm | C: 55 kN | C0: 60 kN | nG grease/oil: 7500/12000 rpm
B71922-C-T-P4S d: 110 mm | D: 150 mm | B: 20 mm | C: 58.5 kN | C0: 67 kN | nG grease/oil: 8000/13000 rpm
B71922-E-T-P4S d: 110 mm | D: 150 mm | B: 20 mm | C: 56 kN | C0: 63 kN | nG grease/oil: 7500/12000 rpm
B71924-C-T-P4S d: 120 mm | D: 165 mm | B: 22 mm | C: 73.5 kN | C0: 85 kN | nG grease/oil: 7000/11000 rpm
B71924-E-T-P4S d: 120 mm | D: 165 mm | B: 22 mm | C: 69.5 kN | C0: 80 kN | nG grease/oil: 6700/10000 rpm
B71926-C-T-P4S d: 130 mm | D: 180 mm | B: 24 mm | C: 86.5 kN | C0: 100 kN | nG grease/oil: 6700/10000 rpm
B71926-E-T-P4S d: 130 mm | D: 180 mm | B: 24 mm | C: 81.5 kN | C0: 95 kN | nG grease/oil: 6000/9000 rpm
B71928-C-T-P4S d: 140 mm | D: 190 mm | B: 24 mm | C: 90 kN | C0: 108 kN | nG grease/oil: 6000/9000 rpm
B71928-E-T-P4S d: 140 mm | D: 190 mm | B: 24 mm | C: 85 kN | C0: 102 kN | nG grease/oil: 5600/8500 rpm
B71930-C-T-P4S d: 150 mm | D: 210 mm | B: 28 mm | C: 122 kN | C0: 143 kN | nG grease/oil: 5600/8500 rpm
B71930-E-T-P4S d: 150 mm | D: 210 mm | B: 28 mm | C: 114 kN | C0: 134 kN | nG grease/oil: 5000/7500 rpm
B71932-C-T-P4S d: 160 mm | D: 220 mm | B: 28 mm | C: 125 kN | C0: 150 kN | nG grease/oil: 5000/7500 rpm
B71932-E-T-P4S d: 160 mm | D: 220 mm | B: 28 mm | C: 116 kN | C0: 140 kN | nG grease/oil: 4800/7000 rpm
B71934-C-T-P4S d: 170 mm | D: 230 mm | B: 28 mm | C: 129 kN | C0: 163 kN | nG grease/oil: 4800/7000 rpm
B71934-E-T-P4S d: 170 mm | D: 230 mm | B: 28 mm | C: 122 kN | C0: 150 kN | nG grease/oil: 4300/6300 rpm
B71936-C-T-P4S d: 180 mm | D: 250 mm | B: 33 mm | C: 163 kN | C0: 204 kN | nG grease/oil: 4500/6700 rpm
B71936-E-T-P4S d: 180 mm | D: 250 mm | B: 33 mm | C: 156 kN | C0: 193 kN | nG grease/oil: 4000/6000 rpm
B71938-C-T-P4S d: 190 mm | D: 260 mm | B: 33 mm | C: 166 kN | C0: 212 kN | nG grease/oil: 4300/6300 rpm
B71938-E-T-P4S d: 190 mm | D: 260 mm | B: 33 mm | C: 156 kN | C0: 200 kN | nG grease/oil: 3800/5600 rpm
B71940-C-T-P4S d: 200 mm | D: 280 mm | B: 38 mm | C: 204 kN | C0: 255 kN | nG grease/oil: 3800/5600 rpm
B71940-E-T-P4S d: 200 mm | D: 280 mm | B: 38 mm | C: 193 kN | C0: 240 kN | nG grease/oil: 3600/5300 rpm
B71944-C-T-P4S d: 220 mm | D: 300 mm | B: 38 mm | C: 216 kN | C0: 285 kN | nG grease/oil: 3600/5300 rpm
B71944-E-T-P4S d: 220 mm | D: 300 mm | B: 38 mm | C: 204 kN | C0: 270 kN | nG grease/oil: 3200/4800 rpm
B71948-C-T-P4S d: 240 mm | D: 320 mm | B: 38 mm | C: 224 kN | C0: 310 kN | nG grease/oil: 3200/4800 rpm
B71948-E-T-P4S d: 240 mm | D: 320 mm | B: 38 mm | C: 212 kN | C0: 285 kN | nG grease/oil: 3000/4500 rpm
Angular Contact Ball BearingsFAG
68 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG B719 Spindle Bearings (Steel Balls, P4S)

Brand FAG·Angular Contact Ball Bearings

Available part numbers (68)

B71900-C-T-P4S, B71900-E-T-P4S, B71901-C-T-P4S, B71901-E-T-P4S, B71902-C-T-P4S, B71902-E-T-P4S, B71903-C-T-P4S, B71903-E-T-P4S, B71904-C-T-P4S, B71904-E-T-P4S + 58 more — see full table ↓

How to order

Send the FAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
B71900-C-T-P4Sd: 10 mm | D: 22 mm | B: 6 mm | C: 3 kN | C0: 1.53 kN | nG grease/oil: 70000/110000 rpm
B71900-E-T-P4Sd: 10 mm | D: 22 mm | B: 6 mm | C: 2.9 kN | C0: 1.46 kN | nG grease/oil: 63000/95000 rpm
B71901-C-T-P4Sd: 12 mm | D: 24 mm | B: 6 mm | C: 3.35 kN | C0: 1.86 kN | nG grease/oil: 60000/90000 rpm
B71901-E-T-P4Sd: 12 mm | D: 24 mm | B: 6 mm | C: 3.2 kN | C0: 1.76 kN | nG grease/oil: 56000/85000 rpm
B71902-C-T-P4Sd: 15 mm | D: 28 mm | B: 7 mm | C: 5 kN | C0: 2.9 kN | nG grease/oil: 50000/75000 rpm
B71902-E-T-P4Sd: 15 mm | D: 28 mm | B: 7 mm | C: 4.8 kN | C0: 2.75 kN | nG grease/oil: 45000/67000 rpm
B71903-C-T-P4Sd: 17 mm | D: 30 mm | B: 7 mm | C: 5.3 kN | C0: 3.15 kN | nG grease/oil: 48000/70000 rpm
B71903-E-T-P4Sd: 17 mm | D: 30 mm | B: 7 mm | C: 5 kN | C0: 3 kN | nG grease/oil: 43000/63000 rpm
B71904-C-T-P4Sd: 20 mm | D: 37 mm | B: 9 mm | C: 7.35 kN | C0: 4.55 kN | nG grease/oil: 38000/56000 rpm
B71904-E-T-P4Sd: 20 mm | D: 37 mm | B: 9 mm | C: 6.95 kN | C0: 4.4 kN | nG grease/oil: 36000/53000 rpm
B71905-C-T-P4Sd: 25 mm | D: 42 mm | B: 9 mm | C: 8.15 kN | C0: 5.7 kN | nG grease/oil: 32000/48000 rpm
B71905-E-T-P4Sd: 25 mm | D: 42 mm | B: 9 mm | C: 7.8 kN | C0: 5.5 kN | nG grease/oil: 30000/45000 rpm
B71906-C-T-P4Sd: 30 mm | D: 47 mm | B: 9 mm | C: 8.65 kN | C0: 6.55 kN | nG grease/oil: 28000/43000 rpm
B71906-E-T-P4Sd: 30 mm | D: 47 mm | B: 9 mm | C: 8.15 kN | C0: 6.3 kN | nG grease/oil: 26000/40000 rpm
B71907-C-T-P4Sd: 35 mm | D: 55 mm | B: 10 mm | C: 11.8 kN | C0: 9.5 kN | nG grease/oil: 24000/38000 rpm
B71907-E-T-P4Sd: 35 mm | D: 55 mm | B: 10 mm | C: 11 kN | C0: 9 kN | nG grease/oil: 22000/36000 rpm
B71908-C-T-P4Sd: 40 mm | D: 62 mm | B: 12 mm | C: 17.6 kN | C0: 13.7 kN | nG grease/oil: 22000/36000 rpm
B71908-E-T-P4Sd: 40 mm | D: 62 mm | B: 12 mm | C: 16.6 kN | C0: 13.2 kN | nG grease/oil: 20000/34000 rpm
B71909-C-T-P4Sd: 45 mm | D: 68 mm | B: 12 mm | C: 18.6 kN | C0: 15.6 kN | nG grease/oil: 19000/32000 rpm
B71909-E-T-P4Sd: 45 mm | D: 68 mm | B: 12 mm | C: 17.6 kN | C0: 15 kN | nG grease/oil: 18000/30000 rpm
B71910-C-T-P4Sd: 50 mm | D: 72 mm | B: 12 mm | C: 19 kN | C0: 16.6 kN | nG grease/oil: 18000/30000 rpm
B71910-E-T-P4Sd: 50 mm | D: 72 mm | B: 12 mm | C: 18 kN | C0: 15.6 kN | nG grease/oil: 16000/26000 rpm
B71911-C-T-P4Sd: 55 mm | D: 80 mm | B: 13 mm | C: 22.8 kN | C0: 20.4 kN | nG grease/oil: 16000/26000 rpm
B71911-E-T-P4Sd: 55 mm | D: 80 mm | B: 13 mm | C: 21.6 kN | C0: 19.3 kN | nG grease/oil: 15000/24000 rpm
B71912-C-T-P4Sd: 60 mm | D: 85 mm | B: 13 mm | C: 24 kN | C0: 22.8 kN | nG grease/oil: 15000/24000 rpm
B71912-E-T-P4Sd: 60 mm | D: 85 mm | B: 13 mm | C: 22.8 kN | C0: 21.6 kN | nG grease/oil: 14000/22000 rpm
B71913-C-T-P4Sd: 65 mm | D: 90 mm | B: 13 mm | C: 24.5 kN | C0: 24 kN | nG grease/oil: 14000/22000 rpm
B71913-E-T-P4Sd: 65 mm | D: 90 mm | B: 13 mm | C: 22.8 kN | C0: 22.4 kN | nG grease/oil: 13000/20000 rpm
B71914-C-T-P4Sd: 70 mm | D: 100 mm | B: 16 mm | C: 33.5 kN | C0: 32.5 kN | nG grease/oil: 13000/20000 rpm
B71914-E-T-P4Sd: 70 mm | D: 100 mm | B: 16 mm | C: 31.5 kN | C0: 31 kN | nG grease/oil: 12000/19000 rpm
B71915-C-T-P4Sd: 75 mm | D: 105 mm | B: 16 mm | C: 34 kN | C0: 34.5 kN | nG grease/oil: 12000/19000 rpm
B71915-E-T-P4Sd: 75 mm | D: 105 mm | B: 16 mm | C: 32 kN | C0: 32.5 kN | nG grease/oil: 11000/18000 rpm
B71916-C-T-P4Sd: 80 mm | D: 110 mm | B: 16 mm | C: 34.5 kN | C0: 36 kN | nG grease/oil: 12000/19000 rpm
B71916-E-T-P4Sd: 80 mm | D: 110 mm | B: 16 mm | C: 32.5 kN | C0: 34 kN | nG grease/oil: 11000/18000 rpm
B71917-C-T-P4Sd: 85 mm | D: 120 mm | B: 18 mm | C: 45 kN | C0: 46.5 kN | nG grease/oil: 11000/18000 rpm
B71917-E-T-P4Sd: 85 mm | D: 120 mm | B: 18 mm | C: 42.5 kN | C0: 44 kN | nG grease/oil: 9500/16000 rpm
B71918-C-T-P4Sd: 90 mm | D: 125 mm | B: 18 mm | C: 45.5 kN | C0: 49 kN | nG grease/oil: 10000/17000 rpm
B71918-E-T-P4Sd: 90 mm | D: 125 mm | B: 18 mm | C: 43 kN | C0: 46.5 kN | nG grease/oil: 9000/15000 rpm
B71919-C-T-P4Sd: 95 mm | D: 130 mm | B: 18 mm | C: 46.5 kN | C0: 51 kN | nG grease/oil: 9500/16000 rpm
B71919-E-T-P4Sd: 95 mm | D: 130 mm | B: 18 mm | C: 44 kN | C0: 48 kN | nG grease/oil: 8500/14000 rpm
B71920-C-T-P4Sd: 100 mm | D: 140 mm | B: 20 mm | C: 58.5 kN | C0: 64 kN | nG grease/oil: 9000/15000 rpm
B71920-E-T-P4Sd: 100 mm | D: 140 mm | B: 20 mm | C: 55 kN | C0: 60 kN | nG grease/oil: 8000/13000 rpm
B71921-C-T-P4Sd: 105 mm | D: 145 mm | B: 20 mm | C: 58.5 kN | C0: 64 kN | nG grease/oil: 8500/14000 rpm
B71921-E-T-P4Sd: 105 mm | D: 145 mm | B: 20 mm | C: 55 kN | C0: 60 kN | nG grease/oil: 7500/12000 rpm
B71922-C-T-P4Sd: 110 mm | D: 150 mm | B: 20 mm | C: 58.5 kN | C0: 67 kN | nG grease/oil: 8000/13000 rpm
B71922-E-T-P4Sd: 110 mm | D: 150 mm | B: 20 mm | C: 56 kN | C0: 63 kN | nG grease/oil: 7500/12000 rpm
B71924-C-T-P4Sd: 120 mm | D: 165 mm | B: 22 mm | C: 73.5 kN | C0: 85 kN | nG grease/oil: 7000/11000 rpm
B71924-E-T-P4Sd: 120 mm | D: 165 mm | B: 22 mm | C: 69.5 kN | C0: 80 kN | nG grease/oil: 6700/10000 rpm
B71926-C-T-P4Sd: 130 mm | D: 180 mm | B: 24 mm | C: 86.5 kN | C0: 100 kN | nG grease/oil: 6700/10000 rpm
B71926-E-T-P4Sd: 130 mm | D: 180 mm | B: 24 mm | C: 81.5 kN | C0: 95 kN | nG grease/oil: 6000/9000 rpm
B71928-C-T-P4Sd: 140 mm | D: 190 mm | B: 24 mm | C: 90 kN | C0: 108 kN | nG grease/oil: 6000/9000 rpm
B71928-E-T-P4Sd: 140 mm | D: 190 mm | B: 24 mm | C: 85 kN | C0: 102 kN | nG grease/oil: 5600/8500 rpm
B71930-C-T-P4Sd: 150 mm | D: 210 mm | B: 28 mm | C: 122 kN | C0: 143 kN | nG grease/oil: 5600/8500 rpm
B71930-E-T-P4Sd: 150 mm | D: 210 mm | B: 28 mm | C: 114 kN | C0: 134 kN | nG grease/oil: 5000/7500 rpm
B71932-C-T-P4Sd: 160 mm | D: 220 mm | B: 28 mm | C: 125 kN | C0: 150 kN | nG grease/oil: 5000/7500 rpm
B71932-E-T-P4Sd: 160 mm | D: 220 mm | B: 28 mm | C: 116 kN | C0: 140 kN | nG grease/oil: 4800/7000 rpm
B71934-C-T-P4Sd: 170 mm | D: 230 mm | B: 28 mm | C: 129 kN | C0: 163 kN | nG grease/oil: 4800/7000 rpm
B71934-E-T-P4Sd: 170 mm | D: 230 mm | B: 28 mm | C: 122 kN | C0: 150 kN | nG grease/oil: 4300/6300 rpm
B71936-C-T-P4Sd: 180 mm | D: 250 mm | B: 33 mm | C: 163 kN | C0: 204 kN | nG grease/oil: 4500/6700 rpm
B71936-E-T-P4Sd: 180 mm | D: 250 mm | B: 33 mm | C: 156 kN | C0: 193 kN | nG grease/oil: 4000/6000 rpm
B71938-C-T-P4Sd: 190 mm | D: 260 mm | B: 33 mm | C: 166 kN | C0: 212 kN | nG grease/oil: 4300/6300 rpm
B71938-E-T-P4Sd: 190 mm | D: 260 mm | B: 33 mm | C: 156 kN | C0: 200 kN | nG grease/oil: 3800/5600 rpm
B71940-C-T-P4Sd: 200 mm | D: 280 mm | B: 38 mm | C: 204 kN | C0: 255 kN | nG grease/oil: 3800/5600 rpm
B71940-E-T-P4Sd: 200 mm | D: 280 mm | B: 38 mm | C: 193 kN | C0: 240 kN | nG grease/oil: 3600/5300 rpm
B71944-C-T-P4Sd: 220 mm | D: 300 mm | B: 38 mm | C: 216 kN | C0: 285 kN | nG grease/oil: 3600/5300 rpm
B71944-E-T-P4Sd: 220 mm | D: 300 mm | B: 38 mm | C: 204 kN | C0: 270 kN | nG grease/oil: 3200/4800 rpm
B71948-C-T-P4Sd: 240 mm | D: 320 mm | B: 38 mm | C: 224 kN | C0: 310 kN | nG grease/oil: 3200/4800 rpm
B71948-E-T-P4Sd: 240 mm | D: 320 mm | B: 38 mm | C: 212 kN | C0: 285 kN | nG grease/oil: 3000/4500 rpm
