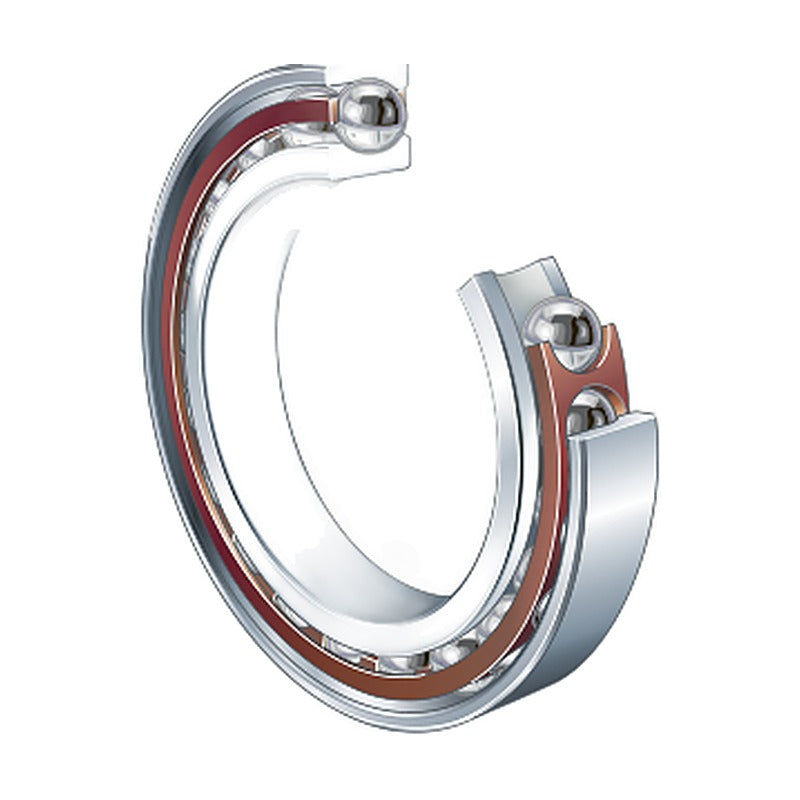

FAG B72 Spindle Bearings (Steel Balls, P4S)

FAG B72 Spindle Bearings (Steel Balls, P4S)

FAG B72 series high precision spindle bearings with steel balls, contact angle 15 deg (C) or 25 deg (E), precision P4S.

Key features

  • High precision spindle bearings, precision class P4S
  • C suffix = 15 deg contact angle, E suffix = 25 deg contact angle
  • Phenolic resin cage (T) for high speed operation
  • Available as universal bearings for pair/set arrangements
  • Limiting speeds listed for grease and oil lubrication

Specifications

Bearing type Spindle bearing (angular contact)
Series B72
Balls Steel balls
Cage T (phenolic resin)
Precision P4S
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 302-315
B7200-C-T-P4S d: 10 mm | D: 30 mm | B: 9 mm | C: 5.85 kN | C0: 2.9 kN | nG grease/oil: 53000/80000 rpm
B7200-E-T-P4S d: 10 mm | D: 30 mm | B: 9 mm | C: 5.6 kN | C0: 2.8 kN | nG grease/oil: 48000/70000 rpm
B7201-C-T-P4S d: 12 mm | D: 32 mm | B: 10 mm | C: 7.65 kN | C0: 3.9 kN | nG grease/oil: 50000/75000 rpm
B7201-E-T-P4S d: 12 mm | D: 32 mm | B: 10 mm | C: 7.35 kN | C0: 3.75 kN | nG grease/oil: 45000/67000 rpm
B7202-C-T-P4S d: 15 mm | D: 35 mm | B: 11 mm | C: 9.65 kN | C0: 5 kN | nG grease/oil: 45000/67000 rpm
B7202-E-T-P4S d: 15 mm | D: 35 mm | B: 11 mm | C: 9.3 kN | C0: 4.8 kN | nG grease/oil: 40000/60000 rpm
B7203-C-T-P4S d: 17 mm | D: 40 mm | B: 12 mm | C: 10.8 kN | C0: 5.85 kN | nG grease/oil: 38000/56000 rpm
B7203-E-T-P4S d: 17 mm | D: 40 mm | B: 12 mm | C: 10.4 kN | C0: 5.6 kN | nG grease/oil: 36000/53000 rpm
B7204-C-T-P4S d: 20 mm | D: 47 mm | B: 14 mm | C: 14.6 kN | C0: 8.15 kN | nG grease/oil: 32000/48000 rpm
B7204-E-T-P4S d: 20 mm | D: 47 mm | B: 14 mm | C: 14 kN | C0: 7.8 kN | nG grease/oil: 30000/45000 rpm
B7205-C-T-P4S d: 25 mm | D: 52 mm | B: 15 mm | C: 15.6 kN | C0: 9.3 kN | nG grease/oil: 28000/43000 rpm
B7205-E-T-P4S d: 25 mm | D: 52 mm | B: 15 mm | C: 15 kN | C0: 9 kN | nG grease/oil: 26000/40000 rpm
B7206-C-T-P4S d: 30 mm | D: 62 mm | B: 16 mm | C: 23.2 kN | C0: 14.6 kN | nG grease/oil: 24000/38000 rpm
B7206-E-T-P4S d: 30 mm | D: 62 mm | B: 16 mm | C: 22 kN | C0: 14 kN | nG grease/oil: 22000/36000 rpm
B7207-C-T-P4S d: 35 mm | D: 72 mm | B: 17 mm | C: 25.5 kN | C0: 18 kN | nG grease/oil: 20000/34000 rpm
B7207-E-T-P4S d: 35 mm | D: 72 mm | B: 17 mm | C: 24.5 kN | C0: 17 kN | nG grease/oil: 19000/32000 rpm
B7208-C-T-P4S d: 40 mm | D: 80 mm | B: 18 mm | C: 32 kN | C0: 22.4 kN | nG grease/oil: 18000/30000 rpm
B7208-E-T-P4S d: 40 mm | D: 80 mm | B: 18 mm | C: 30.5 kN | C0: 21.6 kN | nG grease/oil: 17000/28000 rpm
B7209-C-T-P4S d: 45 mm | D: 85 mm | B: 19 mm | C: 33.5 kN | C0: 24.5 kN | nG grease/oil: 17000/28000 rpm
B7209-E-T-P4S d: 45 mm | D: 85 mm | B: 19 mm | C: 32 kN | C0: 23.6 kN | nG grease/oil: 15000/24000 rpm
B7210-C-T-P4S d: 50 mm | D: 90 mm | B: 20 mm | C: 43 kN | C0: 31.5 kN | nG grease/oil: 16000/26000 rpm
B7210-E-T-P4S d: 50 mm | D: 90 mm | B: 20 mm | C: 40.5 kN | C0: 30.5 kN | nG grease/oil: 14000/22000 rpm
B7211-C-T-P4S d: 55 mm | D: 100 mm | B: 21 mm | C: 46.5 kN | C0: 37.5 kN | nG grease/oil: 14000/22000 rpm
B7211-E-T-P4S d: 55 mm | D: 100 mm | B: 21 mm | C: 44 kN | C0: 35.5 kN | nG grease/oil: 13000/20000 rpm
B7212-C-T-P4S d: 60 mm | D: 110 mm | B: 22 mm | C: 55 kN | C0: 44 kN | nG grease/oil: 13000/20000 rpm
B7212-E-T-P4S d: 60 mm | D: 110 mm | B: 22 mm | C: 52 kN | C0: 42.5 kN | nG grease/oil: 12000/19000 rpm
B7213-C-T-P4S d: 65 mm | D: 120 mm | B: 23 mm | C: 67 kN | C0: 54 kN | nG grease/oil: 12000/19000 rpm
B7213-E-T-P4S d: 65 mm | D: 120 mm | B: 23 mm | C: 64 kN | C0: 52 kN | nG grease/oil: 11000/18000 rpm
B7214-C-T-P4S d: 70 mm | D: 125 mm | B: 24 mm | C: 69.5 kN | C0: 58.5 kN | nG grease/oil: 11000/18000 rpm
B7214-E-T-P4S d: 70 mm | D: 125 mm | B: 24 mm | C: 65.5 kN | C0: 56 kN | nG grease/oil: 10000/17000 rpm
B7215-C-T-P4S d: 75 mm | D: 130 mm | B: 25 mm | C: 72 kN | C0: 63 kN | nG grease/oil: 11000/18000 rpm
B7215-E-T-P4S d: 75 mm | D: 130 mm | B: 25 mm | C: 68 kN | C0: 60 kN | nG grease/oil: 9500/16000 rpm
B7216-C-T-P4S d: 80 mm | D: 140 mm | B: 26 mm | C: 93 kN | C0: 78 kN | nG grease/oil: 10000/17000 rpm
B7216-E-T-P4S d: 80 mm | D: 140 mm | B: 26 mm | C: 88 kN | C0: 73.5 kN | nG grease/oil: 9000/15000 rpm
B7217-C-T-P4S d: 85 mm | D: 150 mm | B: 28 mm | C: 96.5 kN | C0: 85 kN | nG grease/oil: 9000/15000 rpm
B7217-E-T-P4S d: 85 mm | D: 150 mm | B: 28 mm | C: 91.5 kN | C0: 80 kN | nG grease/oil: 8000/13000 rpm
B7218-C-T-P4S d: 90 mm | D: 160 mm | B: 30 mm | C: 122 kN | C0: 104 kN | nG grease/oil: 8500/14000 rpm
B7218-E-T-P4S d: 90 mm | D: 160 mm | B: 30 mm | C: 116 kN | C0: 100 kN | nG grease/oil: 7500/12000 rpm
B7219-C-T-P4S d: 95 mm | D: 170 mm | B: 32 mm | C: 127 kN | C0: 114 kN | nG grease/oil: 8000/13000 rpm
B7219-E-T-P4S d: 95 mm | D: 170 mm | B: 32 mm | C: 122 kN | C0: 108 kN | nG grease/oil: 7000/11000 rpm
B7220-C-T-P4S d: 100 mm | D: 180 mm | B: 34 mm | C: 132 kN | C0: 122 kN | nG grease/oil: 7500/12000 rpm
B7220-E-T-P4S d: 100 mm | D: 180 mm | B: 34 mm | C: 125 kN | C0: 116 kN | nG grease/oil: 6700/10000 rpm
B7221-C-T-P4S d: 105 mm | D: 190 mm | B: 36 mm | C: 163 kN | C0: 146 kN | nG grease/oil: 7000/11000 rpm
B7221-E-T-P4S d: 105 mm | D: 190 mm | B: 36 mm | C: 156 kN | C0: 140 kN | nG grease/oil: 6300/9500 rpm
B7222-C-T-P4S d: 110 mm | D: 200 mm | B: 38 mm | C: 163 kN | C0: 150 kN | nG grease/oil: 6700/10000 rpm
B7222-E-T-P4S d: 110 mm | D: 200 mm | B: 38 mm | C: 153 kN | C0: 143 kN | nG grease/oil: 6000/9000 rpm
B7224-C-T-P4S d: 120 mm | D: 215 mm | B: 40 mm | C: 204 kN | C0: 196 kN | nG grease/oil: 6000/9000 rpm
B7224-E-T-P4S d: 120 mm | D: 215 mm | B: 40 mm | C: 196 kN | C0: 186 kN | nG grease/oil: 5300/8000 rpm
B7226-C-T-P4S d: 130 mm | D: 230 mm | B: 40 mm | C: 212 kN | C0: 216 kN | nG grease/oil: 5600/8500 rpm
B7226-E-T-P4S d: 130 mm | D: 230 mm | B: 40 mm | C: 204 kN | C0: 204 kN | nG grease/oil: 5000/7500 rpm
B7228-C-T-P4S d: 140 mm | D: 250 mm | B: 42 mm | C: 220 kN | C0: 232 kN | nG grease/oil: 5000/7500 rpm
B7228-E-T-P4S d: 140 mm | D: 250 mm | B: 42 mm | C: 212 kN | C0: 224 kN | nG grease/oil: 4500/6700 rpm
B7230-C-T-P4S d: 150 mm | D: 270 mm | B: 45 mm | C: 228 kN | C0: 255 kN | nG grease/oil: 4500/6700 rpm
B7230-E-T-P4S d: 150 mm | D: 270 mm | B: 45 mm | C: 216 kN | C0: 240 kN | nG grease/oil: 4000/6000 rpm
B7232-C-T-P4S d: 160 mm | D: 290 mm | B: 48 mm | C: 245 kN | C0: 285 kN | nG grease/oil: 4300/6300 rpm
B7232-E-T-P4S d: 160 mm | D: 290 mm | B: 48 mm | C: 232 kN | C0: 270 kN | nG grease/oil: 3800/5600 rpm
B7234-C-T-P4S d: 170 mm | D: 310 mm | B: 52 mm | C: 300 kN | C0: 360 kN | nG grease/oil: 3800/5600 rpm
B7234-E-T-P4S d: 170 mm | D: 310 mm | B: 52 mm | C: 280 kN | C0: 345 kN | nG grease/oil: 3600/5300 rpm
B7236-C-T-P4S d: 180 mm | D: 320 mm | B: 52 mm | C: 305 kN | C0: 390 kN | nG grease/oil: 3800/5600 rpm
B7236-E-T-P4S d: 180 mm | D: 320 mm | B: 52 mm | C: 290 kN | C0: 365 kN | nG grease/oil: 3400/5000 rpm
B7238-C-T-P4S d: 190 mm | D: 340 mm | B: 55 mm | C: 315 kN | C0: 415 kN | nG grease/oil: 3400/5000 rpm
B7238-E-T-P4S d: 190 mm | D: 340 mm | B: 55 mm | C: 300 kN | C0: 390 kN | nG grease/oil: 3200/4800 rpm
B7240-C-T-P4S d: 200 mm | D: 360 mm | B: 58 mm | C: 325 kN | C0: 440 kN | nG grease/oil: 3200/4800 rpm
B7240-E-T-P4S d: 200 mm | D: 360 mm | B: 58 mm | C: 310 kN | C0: 415 kN | nG grease/oil: 3000/4500 rpm
B7244-C-T-P4S d: 220 mm | D: 400 mm | B: 65 mm | C: 400 kN | C0: 560 kN | nG grease/oil: 2800/4300 rpm
B7244-E-T-P4S d: 220 mm | D: 400 mm | B: 65 mm | C: 380 kN | C0: 540 kN | nG grease/oil: 2600/4000 rpm
Angular Contact Ball BearingsFAG
66 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG B72 Spindle Bearings (Steel Balls, P4S)

Brand FAG·Angular Contact Ball Bearings

Available part numbers (66)

B7200-C-T-P4S, B7200-E-T-P4S, B7201-C-T-P4S, B7201-E-T-P4S, B7202-C-T-P4S, B7202-E-T-P4S, B7203-C-T-P4S, B7203-E-T-P4S, B7204-C-T-P4S, B7204-E-T-P4S + 56 more — see full table ↓

How to order

Send the FAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
B7200-C-T-P4Sd: 10 mm | D: 30 mm | B: 9 mm | C: 5.85 kN | C0: 2.9 kN | nG grease/oil: 53000/80000 rpm
B7200-E-T-P4Sd: 10 mm | D: 30 mm | B: 9 mm | C: 5.6 kN | C0: 2.8 kN | nG grease/oil: 48000/70000 rpm
B7201-C-T-P4Sd: 12 mm | D: 32 mm | B: 10 mm | C: 7.65 kN | C0: 3.9 kN | nG grease/oil: 50000/75000 rpm
B7201-E-T-P4Sd: 12 mm | D: 32 mm | B: 10 mm | C: 7.35 kN | C0: 3.75 kN | nG grease/oil: 45000/67000 rpm
B7202-C-T-P4Sd: 15 mm | D: 35 mm | B: 11 mm | C: 9.65 kN | C0: 5 kN | nG grease/oil: 45000/67000 rpm
B7202-E-T-P4Sd: 15 mm | D: 35 mm | B: 11 mm | C: 9.3 kN | C0: 4.8 kN | nG grease/oil: 40000/60000 rpm
B7203-C-T-P4Sd: 17 mm | D: 40 mm | B: 12 mm | C: 10.8 kN | C0: 5.85 kN | nG grease/oil: 38000/56000 rpm
B7203-E-T-P4Sd: 17 mm | D: 40 mm | B: 12 mm | C: 10.4 kN | C0: 5.6 kN | nG grease/oil: 36000/53000 rpm
B7204-C-T-P4Sd: 20 mm | D: 47 mm | B: 14 mm | C: 14.6 kN | C0: 8.15 kN | nG grease/oil: 32000/48000 rpm
B7204-E-T-P4Sd: 20 mm | D: 47 mm | B: 14 mm | C: 14 kN | C0: 7.8 kN | nG grease/oil: 30000/45000 rpm
B7205-C-T-P4Sd: 25 mm | D: 52 mm | B: 15 mm | C: 15.6 kN | C0: 9.3 kN | nG grease/oil: 28000/43000 rpm
B7205-E-T-P4Sd: 25 mm | D: 52 mm | B: 15 mm | C: 15 kN | C0: 9 kN | nG grease/oil: 26000/40000 rpm
B7206-C-T-P4Sd: 30 mm | D: 62 mm | B: 16 mm | C: 23.2 kN | C0: 14.6 kN | nG grease/oil: 24000/38000 rpm
B7206-E-T-P4Sd: 30 mm | D: 62 mm | B: 16 mm | C: 22 kN | C0: 14 kN | nG grease/oil: 22000/36000 rpm
B7207-C-T-P4Sd: 35 mm | D: 72 mm | B: 17 mm | C: 25.5 kN | C0: 18 kN | nG grease/oil: 20000/34000 rpm
B7207-E-T-P4Sd: 35 mm | D: 72 mm | B: 17 mm | C: 24.5 kN | C0: 17 kN | nG grease/oil: 19000/32000 rpm
B7208-C-T-P4Sd: 40 mm | D: 80 mm | B: 18 mm | C: 32 kN | C0: 22.4 kN | nG grease/oil: 18000/30000 rpm
B7208-E-T-P4Sd: 40 mm | D: 80 mm | B: 18 mm | C: 30.5 kN | C0: 21.6 kN | nG grease/oil: 17000/28000 rpm
B7209-C-T-P4Sd: 45 mm | D: 85 mm | B: 19 mm | C: 33.5 kN | C0: 24.5 kN | nG grease/oil: 17000/28000 rpm
B7209-E-T-P4Sd: 45 mm | D: 85 mm | B: 19 mm | C: 32 kN | C0: 23.6 kN | nG grease/oil: 15000/24000 rpm
B7210-C-T-P4Sd: 50 mm | D: 90 mm | B: 20 mm | C: 43 kN | C0: 31.5 kN | nG grease/oil: 16000/26000 rpm
B7210-E-T-P4Sd: 50 mm | D: 90 mm | B: 20 mm | C: 40.5 kN | C0: 30.5 kN | nG grease/oil: 14000/22000 rpm
B7211-C-T-P4Sd: 55 mm | D: 100 mm | B: 21 mm | C: 46.5 kN | C0: 37.5 kN | nG grease/oil: 14000/22000 rpm
B7211-E-T-P4Sd: 55 mm | D: 100 mm | B: 21 mm | C: 44 kN | C0: 35.5 kN | nG grease/oil: 13000/20000 rpm
B7212-C-T-P4Sd: 60 mm | D: 110 mm | B: 22 mm | C: 55 kN | C0: 44 kN | nG grease/oil: 13000/20000 rpm
B7212-E-T-P4Sd: 60 mm | D: 110 mm | B: 22 mm | C: 52 kN | C0: 42.5 kN | nG grease/oil: 12000/19000 rpm
B7213-C-T-P4Sd: 65 mm | D: 120 mm | B: 23 mm | C: 67 kN | C0: 54 kN | nG grease/oil: 12000/19000 rpm
B7213-E-T-P4Sd: 65 mm | D: 120 mm | B: 23 mm | C: 64 kN | C0: 52 kN | nG grease/oil: 11000/18000 rpm
B7214-C-T-P4Sd: 70 mm | D: 125 mm | B: 24 mm | C: 69.5 kN | C0: 58.5 kN | nG grease/oil: 11000/18000 rpm
B7214-E-T-P4Sd: 70 mm | D: 125 mm | B: 24 mm | C: 65.5 kN | C0: 56 kN | nG grease/oil: 10000/17000 rpm
B7215-C-T-P4Sd: 75 mm | D: 130 mm | B: 25 mm | C: 72 kN | C0: 63 kN | nG grease/oil: 11000/18000 rpm
B7215-E-T-P4Sd: 75 mm | D: 130 mm | B: 25 mm | C: 68 kN | C0: 60 kN | nG grease/oil: 9500/16000 rpm
B7216-C-T-P4Sd: 80 mm | D: 140 mm | B: 26 mm | C: 93 kN | C0: 78 kN | nG grease/oil: 10000/17000 rpm
B7216-E-T-P4Sd: 80 mm | D: 140 mm | B: 26 mm | C: 88 kN | C0: 73.5 kN | nG grease/oil: 9000/15000 rpm
B7217-C-T-P4Sd: 85 mm | D: 150 mm | B: 28 mm | C: 96.5 kN | C0: 85 kN | nG grease/oil: 9000/15000 rpm
B7217-E-T-P4Sd: 85 mm | D: 150 mm | B: 28 mm | C: 91.5 kN | C0: 80 kN | nG grease/oil: 8000/13000 rpm
B7218-C-T-P4Sd: 90 mm | D: 160 mm | B: 30 mm | C: 122 kN | C0: 104 kN | nG grease/oil: 8500/14000 rpm
B7218-E-T-P4Sd: 90 mm | D: 160 mm | B: 30 mm | C: 116 kN | C0: 100 kN | nG grease/oil: 7500/12000 rpm
B7219-C-T-P4Sd: 95 mm | D: 170 mm | B: 32 mm | C: 127 kN | C0: 114 kN | nG grease/oil: 8000/13000 rpm
B7219-E-T-P4Sd: 95 mm | D: 170 mm | B: 32 mm | C: 122 kN | C0: 108 kN | nG grease/oil: 7000/11000 rpm
B7220-C-T-P4Sd: 100 mm | D: 180 mm | B: 34 mm | C: 132 kN | C0: 122 kN | nG grease/oil: 7500/12000 rpm
B7220-E-T-P4Sd: 100 mm | D: 180 mm | B: 34 mm | C: 125 kN | C0: 116 kN | nG grease/oil: 6700/10000 rpm
B7221-C-T-P4Sd: 105 mm | D: 190 mm | B: 36 mm | C: 163 kN | C0: 146 kN | nG grease/oil: 7000/11000 rpm
B7221-E-T-P4Sd: 105 mm | D: 190 mm | B: 36 mm | C: 156 kN | C0: 140 kN | nG grease/oil: 6300/9500 rpm
B7222-C-T-P4Sd: 110 mm | D: 200 mm | B: 38 mm | C: 163 kN | C0: 150 kN | nG grease/oil: 6700/10000 rpm
B7222-E-T-P4Sd: 110 mm | D: 200 mm | B: 38 mm | C: 153 kN | C0: 143 kN | nG grease/oil: 6000/9000 rpm
B7224-C-T-P4Sd: 120 mm | D: 215 mm | B: 40 mm | C: 204 kN | C0: 196 kN | nG grease/oil: 6000/9000 rpm
B7224-E-T-P4Sd: 120 mm | D: 215 mm | B: 40 mm | C: 196 kN | C0: 186 kN | nG grease/oil: 5300/8000 rpm
B7226-C-T-P4Sd: 130 mm | D: 230 mm | B: 40 mm | C: 212 kN | C0: 216 kN | nG grease/oil: 5600/8500 rpm
B7226-E-T-P4Sd: 130 mm | D: 230 mm | B: 40 mm | C: 204 kN | C0: 204 kN | nG grease/oil: 5000/7500 rpm
B7228-C-T-P4Sd: 140 mm | D: 250 mm | B: 42 mm | C: 220 kN | C0: 232 kN | nG grease/oil: 5000/7500 rpm
B7228-E-T-P4Sd: 140 mm | D: 250 mm | B: 42 mm | C: 212 kN | C0: 224 kN | nG grease/oil: 4500/6700 rpm
B7230-C-T-P4Sd: 150 mm | D: 270 mm | B: 45 mm | C: 228 kN | C0: 255 kN | nG grease/oil: 4500/6700 rpm
B7230-E-T-P4Sd: 150 mm | D: 270 mm | B: 45 mm | C: 216 kN | C0: 240 kN | nG grease/oil: 4000/6000 rpm
B7232-C-T-P4Sd: 160 mm | D: 290 mm | B: 48 mm | C: 245 kN | C0: 285 kN | nG grease/oil: 4300/6300 rpm
B7232-E-T-P4Sd: 160 mm | D: 290 mm | B: 48 mm | C: 232 kN | C0: 270 kN | nG grease/oil: 3800/5600 rpm
B7234-C-T-P4Sd: 170 mm | D: 310 mm | B: 52 mm | C: 300 kN | C0: 360 kN | nG grease/oil: 3800/5600 rpm
B7234-E-T-P4Sd: 170 mm | D: 310 mm | B: 52 mm | C: 280 kN | C0: 345 kN | nG grease/oil: 3600/5300 rpm
B7236-C-T-P4Sd: 180 mm | D: 320 mm | B: 52 mm | C: 305 kN | C0: 390 kN | nG grease/oil: 3800/5600 rpm
B7236-E-T-P4Sd: 180 mm | D: 320 mm | B: 52 mm | C: 290 kN | C0: 365 kN | nG grease/oil: 3400/5000 rpm
B7238-C-T-P4Sd: 190 mm | D: 340 mm | B: 55 mm | C: 315 kN | C0: 415 kN | nG grease/oil: 3400/5000 rpm
B7238-E-T-P4Sd: 190 mm | D: 340 mm | B: 55 mm | C: 300 kN | C0: 390 kN | nG grease/oil: 3200/4800 rpm
B7240-C-T-P4Sd: 200 mm | D: 360 mm | B: 58 mm | C: 325 kN | C0: 440 kN | nG grease/oil: 3200/4800 rpm
B7240-E-T-P4Sd: 200 mm | D: 360 mm | B: 58 mm | C: 310 kN | C0: 415 kN | nG grease/oil: 3000/4500 rpm
B7244-C-T-P4Sd: 220 mm | D: 400 mm | B: 65 mm | C: 400 kN | C0: 560 kN | nG grease/oil: 2800/4300 rpm
B7244-E-T-P4Sd: 220 mm | D: 400 mm | B: 65 mm | C: 380 kN | C0: 540 kN | nG grease/oil: 2600/4000 rpm
