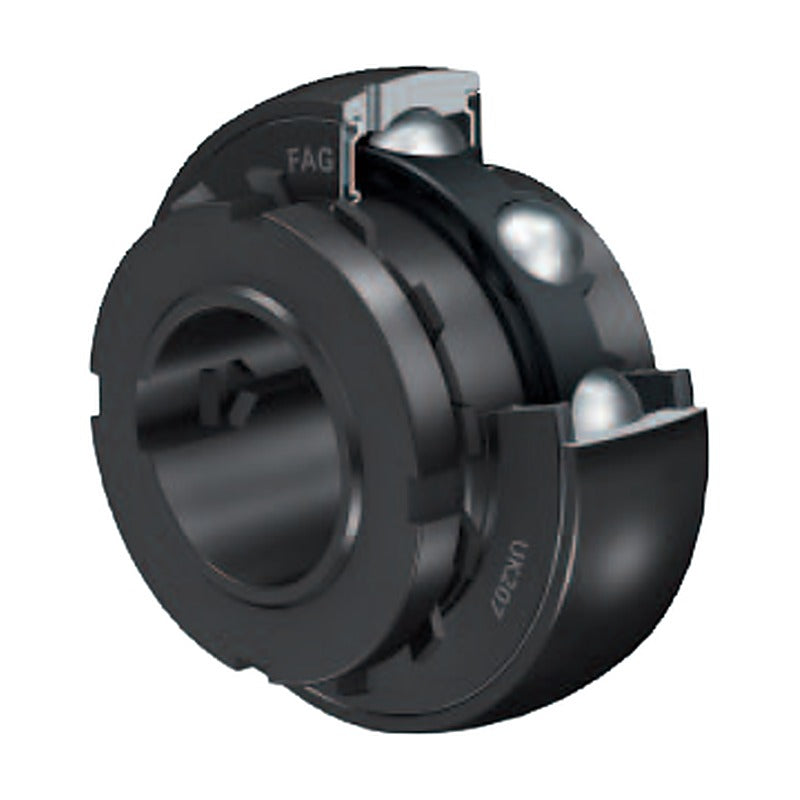

FAG H23..X Adapter Sleeves for UK Insert Bearings (Complete)

Complete adapter sleeves H23..X comprising sleeve, locknut and tab washer, for mounting FAG Black Series radial insert ball bearings UK on plain shafts.

Key features

Complete assembly: sleeve A23..X, locknut AN and tab washer AW..X
Matched to UK205 to UK218 radial insert ball bearings
Locates the bearing on cylindrical shafts without shoulders
Supplied with UK bearings; also orderable as replacement

Specifications

Series	H23..X
Components	Sleeve, locknut, tab washer
Matching bearings	UK205-UK218
Shaft range	20-80 mm
Source	FAG Black Series Radial Insert Ball Bearings and Housing Units (TPI 219), p. 18

H2305X		For bearing: UK205 \| Sleeve: A2305X \| Locknut: AN05 \| Tab washer: AW05X \| B1: 35 mm \| Mass: 0.1 kg
H2306X		For bearing: UK206 \| Sleeve: A2306X \| Locknut: AN06 \| Tab washer: AW06X \| B1: 38 mm \| Mass: 0.13 kg
H2307X		For bearing: UK207 \| Sleeve: A2307X \| Locknut: AN07 \| Tab washer: AW07X \| B1: 43 mm \| Mass: 0.18 kg
H2308X		For bearing: UK208 \| Sleeve: A2308X \| Locknut: AN08 \| Tab washer: AW08X \| B1: 46 mm \| Mass: 0.23 kg
H2309X		For bearing: UK209 \| Sleeve: A2309X \| Locknut: AN09 \| Tab washer: AW09X \| B1: 50 mm \| Mass: 0.31 kg
H2310X		For bearing: UK210 \| Sleeve: A2310X \| Locknut: AN10 \| Tab washer: AW10X \| B1: 55 mm \| Mass: 0.38 kg
H2311X		For bearing: UK211 \| Sleeve: A2311X \| Locknut: AN11 \| Tab washer: AW11X \| B1: 59 mm \| Mass: 0.45 kg
H2312X		For bearing: UK212 \| Sleeve: A2312X \| Locknut: AN12 \| Tab washer: AW12X \| B1: 62 mm \| Mass: 0.5 kg
H2313X		For bearing: UK213 \| Sleeve: A2313X \| Locknut: AN13 \| Tab washer: AW13X \| B1: 65 mm \| Mass: 0.58 kg
H2315X		For bearing: UK215 \| Sleeve: A2315X \| Locknut: AN15 \| Tab washer: AW15X \| B1: 73 mm \| Mass: 1.1 kg
H2316X		For bearing: UK216 \| Sleeve: A2316X \| Locknut: AN16 \| Tab washer: AW16X \| B1: 78 mm \| Mass: 1.33 kg
H2317X		For bearing: UK217 \| Sleeve: A2317X \| Locknut: AN17 \| Tab washer: AW17X \| B1: 82 mm \| Mass: 1.51 kg
H2318X		For bearing: UK218 \| Sleeve: A2318X \| Locknut: AN18 \| Tab washer: AW18X \| B1: 86 mm \| Mass: 1.77 kg

Bearing AccessoriesFAG

13 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG H23..X Adapter Sleeves for UK Insert Bearings (Complete)

Brand FAG·Bearing Accessories

Available part numbers (13)

H2305X, H2306X, H2307X, H2308X, H2309X, H2310X, H2311X, H2312X, H2313X, H2315X + 3 more — see full table ↓

How to order

Send the FAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
