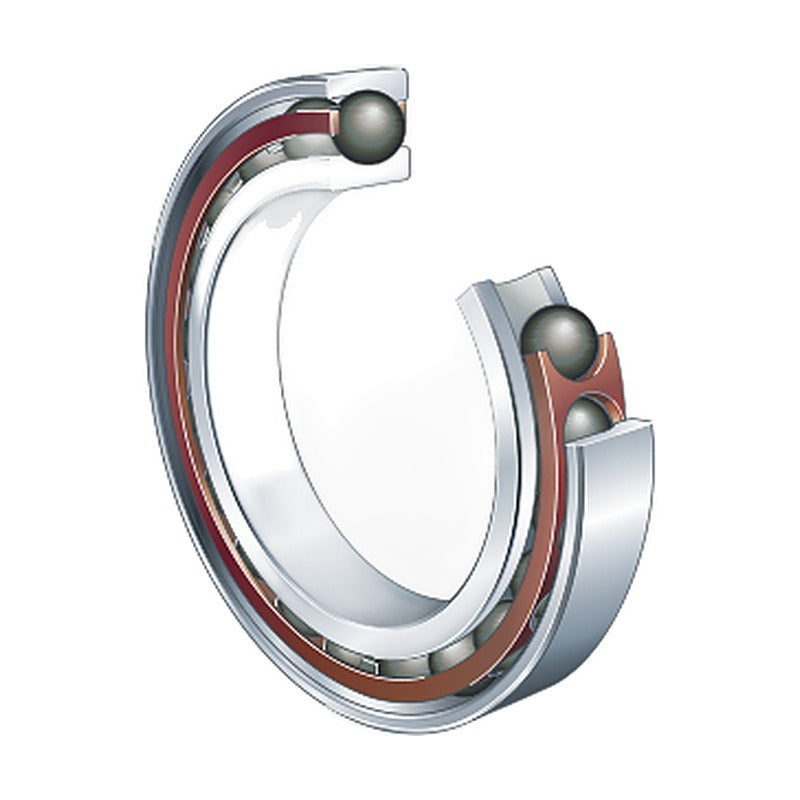

FAG HCB70 Spindle Bearings (Ceramic Balls, P4S)

FAG HCB70 Spindle Bearings (Ceramic Balls, P4S)

FAG HCB70 series high precision spindle bearings with ceramic balls, contact angle 15 deg (C) or 25 deg (E), precision P4S.

Key features

  • High precision spindle bearings, precision class P4S
  • C suffix = 15 deg contact angle, E suffix = 25 deg contact angle
  • Phenolic resin cage (T) for high speed operation
  • Available as universal bearings for pair/set arrangements
  • Limiting speeds listed for grease and oil lubrication
  • Ceramic balls for lower weight and higher speeds

Specifications

Bearing type Spindle bearing (angular contact)
Series HCB70
Balls Ceramic balls
Cage T (phenolic resin)
Precision P4S
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 316-323
HCB7000-C-T-P4S d: 10 mm | D: 26 mm | B: 8 mm | C: 2.9 kN | C0: 1.44 kN | nG grease/oil: 80000/130000 rpm
HCB7000-E-T-P4S d: 10 mm | D: 26 mm | B: 8 mm | C: 2.8 kN | C0: 1.39 kN | nG grease/oil: 67000/100000 rpm
HCB7001-C-T-P4S d: 12 mm | D: 28 mm | B: 8 mm | C: 3.3 kN | C0: 1.81 kN | nG grease/oil: 70000/110000 rpm
HCB7001-E-T-P4S d: 12 mm | D: 28 mm | B: 8 mm | C: 3.15 kN | C0: 1.73 kN | nG grease/oil: 60000/90000 rpm
HCB7002-C-T-P4S d: 15 mm | D: 32 mm | B: 9 mm | C: 4.3 kN | C0: 2.36 kN | nG grease/oil: 60000/90000 rpm
HCB7002-E-T-P4S d: 15 mm | D: 32 mm | B: 9 mm | C: 4.1 kN | C0: 2.26 kN | nG grease/oil: 50000/75000 rpm
HCB7003-C-T-P4S d: 17 mm | D: 35 mm | B: 10 mm | C: 6 kN | C0: 3.45 kN | nG grease/oil: 53000/80000 rpm
HCB7003-E-T-P4S d: 17 mm | D: 35 mm | B: 10 mm | C: 5.8 kN | C0: 3.3 kN | nG grease/oil: 45000/67000 rpm
HCB7004-C-T-P4S d: 20 mm | D: 42 mm | B: 12 mm | C: 7.2 kN | C0: 4.2 kN | nG grease/oil: 45000/67000 rpm
HCB7004-E-T-P4S d: 20 mm | D: 42 mm | B: 12 mm | C: 6.9 kN | C0: 4 kN | nG grease/oil: 38000/56000 rpm
HCB7005-C-T-P4S d: 25 mm | D: 47 mm | B: 12 mm | C: 10 kN | C0: 6.3 kN | nG grease/oil: 38000/56000 rpm
HCB7005-E-T-P4S d: 25 mm | D: 47 mm | B: 12 mm | C: 9.6 kN | C0: 6 kN | nG grease/oil: 34000/50000 rpm
HCB7006-C-T-P4S d: 30 mm | D: 55 mm | B: 13 mm | C: 10.4 kN | C0: 7.2 kN | nG grease/oil: 32000/48000 rpm
HCB7006-E-T-P4S d: 30 mm | D: 55 mm | B: 13 mm | C: 9.9 kN | C0: 6.8 kN | nG grease/oil: 28000/43000 rpm
HCB7007-C-T-P4S d: 35 mm | D: 62 mm | B: 14 mm | C: 13.2 kN | C0: 9.5 kN | nG grease/oil: 28000/43000 rpm
HCB7007-E-T-P4S d: 35 mm | D: 62 mm | B: 14 mm | C: 12.6 kN | C0: 9.1 kN | nG grease/oil: 24000/38000 rpm
HCB7008-C-T-P4S d: 40 mm | D: 68 mm | B: 15 mm | C: 14.2 kN | C0: 11.1 kN | nG grease/oil: 26000/40000 rpm
HCB7008-E-T-P4S d: 40 mm | D: 68 mm | B: 15 mm | C: 13.5 kN | C0: 10.5 kN | nG grease/oil: 22000/36000 rpm
HCB7009-C-T-P4S d: 45 mm | D: 75 mm | B: 16 mm | C: 19.1 kN | C0: 14.7 kN | nG grease/oil: 24000/38000 rpm
HCB7009-E-T-P4S d: 45 mm | D: 75 mm | B: 16 mm | C: 18.1 kN | C0: 14 kN | nG grease/oil: 20000/34000 rpm
HCB7010-C-T-P4S d: 50 mm | D: 80 mm | B: 16 mm | C: 19.7 kN | C0: 15.9 kN | nG grease/oil: 22000/36000 rpm
HCB7010-E-T-P4S d: 50 mm | D: 80 mm | B: 16 mm | C: 18.7 kN | C0: 15.2 kN | nG grease/oil: 18000/30000 rpm
HCB7011-C-T-P4S d: 55 mm | D: 90 mm | B: 18 mm | C: 26 kN | C0: 21.5 kN | nG grease/oil: 19000/32000 rpm
HCB7011-E-T-P4S d: 55 mm | D: 90 mm | B: 18 mm | C: 24.8 kN | C0: 20.4 kN | nG grease/oil: 17000/28000 rpm
HCB7012-C-T-P4S d: 60 mm | D: 95 mm | B: 18 mm | C: 27 kN | C0: 23.1 kN | nG grease/oil: 18000/30000 rpm
HCB7012-E-T-P4S d: 60 mm | D: 95 mm | B: 18 mm | C: 25.5 kN | C0: 21.9 kN | nG grease/oil: 15000/24000 rpm
HCB7013-C-T-P4S d: 65 mm | D: 100 mm | B: 18 mm | C: 27.5 kN | C0: 24.7 kN | nG grease/oil: 17000/28000 rpm
HCB7013-E-T-P4S d: 65 mm | D: 100 mm | B: 18 mm | C: 26 kN | C0: 23.5 kN | nG grease/oil: 15000/24000 rpm
HCB7014-C-T-P4S d: 70 mm | D: 110 mm | B: 20 mm | C: 34 kN | C0: 30 kN | nG grease/oil: 16000/26000 rpm
HCB7014-E-T-P4S d: 70 mm | D: 110 mm | B: 20 mm | C: 32.5 kN | C0: 29 kN | nG grease/oil: 13000/20000 rpm
HCB7015-C-T-P4S d: 75 mm | D: 115 mm | B: 20 mm | C: 35 kN | C0: 32.5 kN | nG grease/oil: 15000/24000 rpm
HCB7015-E-T-P4S d: 75 mm | D: 115 mm | B: 20 mm | C: 33.5 kN | C0: 30.5 kN | nG grease/oil: 13000/20000 rpm
HCB7016-C-T-P4S d: 80 mm | D: 125 mm | B: 22 mm | C: 44 kN | C0: 40.5 kN | nG grease/oil: 14000/22000 rpm
HCB7016-E-T-P4S d: 80 mm | D: 125 mm | B: 22 mm | C: 41.5 kN | C0: 38.5 kN | nG grease/oil: 12000/19000 rpm
HCB7017-C-T-P4S d: 85 mm | D: 130 mm | B: 22 mm | C: 45 kN | C0: 43 kN | nG grease/oil: 13000/20000 rpm
HCB7017-E-T-P4S d: 85 mm | D: 130 mm | B: 22 mm | C: 42.5 kN | C0: 41 kN | nG grease/oil: 11000/18000 rpm
HCB7018-C-T-P4S d: 90 mm | D: 140 mm | B: 24 mm | C: 53 kN | C0: 50 kN | nG grease/oil: 12000/19000 rpm
HCB7018-E-T-P4S d: 90 mm | D: 140 mm | B: 24 mm | C: 50 kN | C0: 47.5 kN | nG grease/oil: 10000/17000 rpm
HCB7019-C-T-P4S d: 95 mm | D: 145 mm | B: 24 mm | C: 54 kN | C0: 53 kN | nG grease/oil: 11000/18000 rpm
HCB7019-E-T-P4S d: 95 mm | D: 145 mm | B: 24 mm | C: 51 kN | C0: 51 kN | nG grease/oil: 9500/16000 rpm
HCB7020-C-T-P4S d: 100 mm | D: 150 mm | B: 24 mm | C: 56 kN | C0: 56 kN | nG grease/oil: 11000/18000 rpm
HCB7020-E-T-P4S d: 100 mm | D: 150 mm | B: 24 mm | C: 53 kN | C0: 53 kN | nG grease/oil: 9000/15000 rpm
HCB7021-C-T-P4S d: 105 mm | D: 160 mm | B: 26 mm | C: 57 kN | C0: 60 kN | nG grease/oil: 10000/17000 rpm
HCB7021-E-T-P4S d: 105 mm | D: 160 mm | B: 26 mm | C: 54 kN | C0: 57 kN | nG grease/oil: 8500/14000 rpm
HCB7022-C-T-P4S d: 110 mm | D: 170 mm | B: 28 mm | C: 76 kN | C0: 76 kN | nG grease/oil: 9500/16000 rpm
HCB7022-E-T-P4S d: 110 mm | D: 170 mm | B: 28 mm | C: 72 kN | C0: 72 kN | nG grease/oil: 8000/13000 rpm
HCB7024-C-T-P4S d: 120 mm | D: 180 mm | B: 28 mm | C: 77 kN | C0: 81 kN | nG grease/oil: 8500/14000 rpm
HCB7024-E-T-P4S d: 120 mm | D: 180 mm | B: 28 mm | C: 73 kN | C0: 77 kN | nG grease/oil: 7500/12000 rpm
HCB7026-C-T-P4S d: 130 mm | D: 200 mm | B: 33 mm | C: 100 kN | C0: 104 kN | nG grease/oil: 7500/12000 rpm
HCB7026-E-T-P4S d: 130 mm | D: 200 mm | B: 33 mm | C: 95 kN | C0: 99 kN | nG grease/oil: 6700/10000 rpm
HCB7028-C-T-P4S d: 140 mm | D: 210 mm | B: 33 mm | C: 102 kN | C0: 110 kN | nG grease/oil: 7000/11000 rpm
HCB7028-E-T-P4S d: 140 mm | D: 210 mm | B: 33 mm | C: 97 kN | C0: 105 kN | nG grease/oil: 6300/9500 rpm
Angular Contact Ball BearingsFAG
52 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG HCB70 Spindle Bearings (Ceramic Balls, P4S)

Brand FAG·Angular Contact Ball Bearings

Available part numbers (52)

HCB7000-C-T-P4S, HCB7000-E-T-P4S, HCB7001-C-T-P4S, HCB7001-E-T-P4S, HCB7002-C-T-P4S, HCB7002-E-T-P4S, HCB7003-C-T-P4S, HCB7003-E-T-P4S, HCB7004-C-T-P4S, HCB7004-E-T-P4S + 42 more — see full table ↓

How to order

Send the FAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
