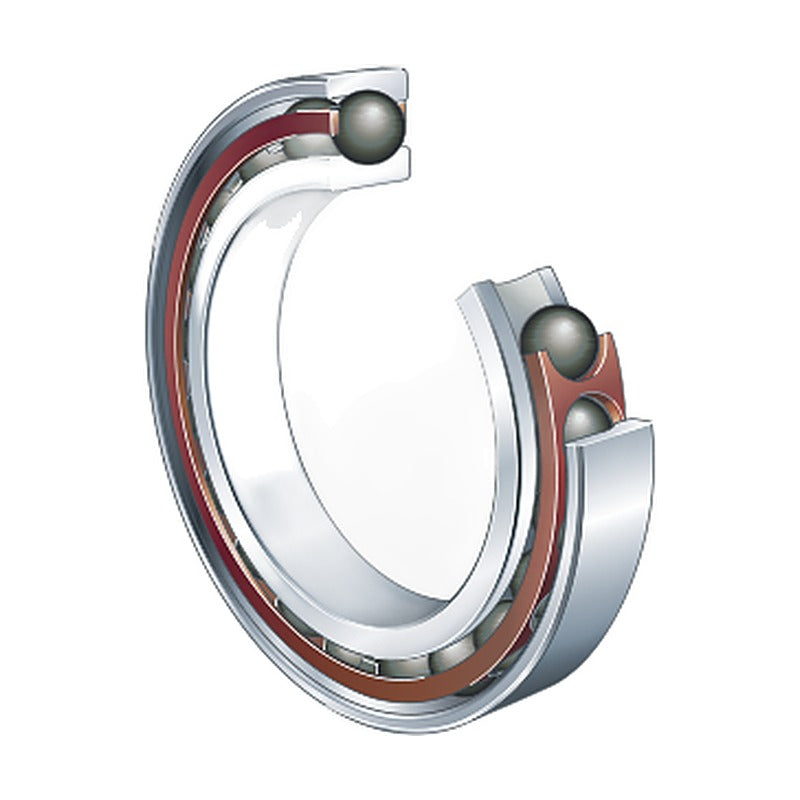

FAG HCB719 Spindle Bearings (Ceramic Balls, P4S)

FAG HCB719 Spindle Bearings (Ceramic Balls, P4S)

FAG HCB719 series high precision spindle bearings with ceramic balls, contact angle 15 deg (C) or 25 deg (E), precision P4S.

Key features

  • High precision spindle bearings, precision class P4S
  • C suffix = 15 deg contact angle, E suffix = 25 deg contact angle
  • Phenolic resin cage (T) for high speed operation
  • Available as universal bearings for pair/set arrangements
  • Limiting speeds listed for grease and oil lubrication
  • Ceramic balls for lower weight and higher speeds

Specifications

Bearing type Spindle bearing (angular contact)
Series HCB719
Balls Ceramic balls
Cage T (phenolic resin)
Precision P4S
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 316-323
HCB71900-C-T-P4S d: 10 mm | D: 22 mm | B: 6 mm | C: 2.08 kN | C0: 1.06 kN | nG grease/oil: 90000/150000 rpm
HCB71900-E-T-P4S d: 10 mm | D: 22 mm | B: 6 mm | C: 1.99 kN | C0: 1.01 kN | nG grease/oil: 75000/120000 rpm
HCB71901-C-T-P4S d: 12 mm | D: 24 mm | B: 6 mm | C: 2.32 kN | C0: 1.29 kN | nG grease/oil: 80000/130000 rpm
HCB71901-E-T-P4S d: 12 mm | D: 24 mm | B: 6 mm | C: 2.21 kN | C0: 1.23 kN | nG grease/oil: 67000/100000 rpm
HCB71902-C-T-P4S d: 15 mm | D: 28 mm | B: 7 mm | C: 3.45 kN | C0: 2.01 kN | nG grease/oil: 67000/100000 rpm
HCB71902-E-T-P4S d: 15 mm | D: 28 mm | B: 7 mm | C: 3.3 kN | C0: 1.92 kN | nG grease/oil: 56000/85000 rpm
HCB71903-C-T-P4S d: 17 mm | D: 30 mm | B: 7 mm | C: 3.65 kN | C0: 2.2 kN | nG grease/oil: 60000/90000 rpm
HCB71903-E-T-P4S d: 17 mm | D: 30 mm | B: 7 mm | C: 3.45 kN | C0: 2.1 kN | nG grease/oil: 50000/75000 rpm
HCB71904-C-T-P4S d: 20 mm | D: 37 mm | B: 9 mm | C: 5 kN | C0: 3.2 kN | nG grease/oil: 50000/75000 rpm
HCB71904-E-T-P4S d: 20 mm | D: 37 mm | B: 9 mm | C: 4.8 kN | C0: 3.05 kN | nG grease/oil: 43000/63000 rpm
HCB71905-C-T-P4S d: 25 mm | D: 42 mm | B: 9 mm | C: 5.2 kN | C0: 3.55 kN | nG grease/oil: 43000/63000 rpm
HCB71905-E-T-P4S d: 25 mm | D: 42 mm | B: 9 mm | C: 5.3 kN | C0: 3.8 kN | nG grease/oil: 36000/53000 rpm
HCB71906-C-T-P4S d: 30 mm | D: 47 mm | B: 9 mm | C: 5.9 kN | C0: 4.6 kN | nG grease/oil: 36000/53000 rpm
HCB71906-E-T-P4S d: 30 mm | D: 47 mm | B: 9 mm | C: 5.6 kN | C0: 4.35 kN | nG grease/oil: 32000/48000 rpm
HCB71907-C-T-P4S d: 35 mm | D: 55 mm | B: 10 mm | C: 8.1 kN | C0: 6.6 kN | nG grease/oil: 32000/48000 rpm
HCB71907-E-T-P4S d: 35 mm | D: 55 mm | B: 10 mm | C: 7.7 kN | C0: 6.3 kN | nG grease/oil: 26000/40000 rpm
HCB71908-C-T-P4S d: 40 mm | D: 62 mm | B: 12 mm | C: 12.1 kN | C0: 9.6 kN | nG grease/oil: 28000/43000 rpm
HCB71908-E-T-P4S d: 40 mm | D: 62 mm | B: 12 mm | C: 11.5 kN | C0: 9.1 kN | nG grease/oil: 24000/38000 rpm
HCB71909-C-T-P4S d: 45 mm | D: 68 mm | B: 12 mm | C: 12.8 kN | C0: 10.9 kN | nG grease/oil: 24000/38000 rpm
HCB71909-E-T-P4S d: 45 mm | D: 68 mm | B: 12 mm | C: 12.1 kN | C0: 10.3 kN | nG grease/oil: 22000/36000 rpm
HCB71910-C-T-P4S d: 50 mm | D: 72 mm | B: 12 mm | C: 13.1 kN | C0: 11.6 kN | nG grease/oil: 22000/36000 rpm
HCB71910-E-T-P4S d: 50 mm | D: 72 mm | B: 12 mm | C: 12.3 kN | C0: 11 kN | nG grease/oil: 20000/34000 rpm
HCB71911-C-T-P4S d: 55 mm | D: 80 mm | B: 13 mm | C: 15.8 kN | C0: 14.3 kN | nG grease/oil: 20000/34000 rpm
HCB71911-E-T-P4S d: 55 mm | D: 80 mm | B: 13 mm | C: 14.9 kN | C0: 13.5 kN | nG grease/oil: 18000/30000 rpm
HCB71912-C-T-P4S d: 60 mm | D: 85 mm | B: 13 mm | C: 16.6 kN | C0: 15.8 kN | nG grease/oil: 19000/32000 rpm
HCB71912-E-T-P4S d: 60 mm | D: 85 mm | B: 13 mm | C: 15.6 kN | C0: 15 kN | nG grease/oil: 17000/28000 rpm
HCB71913-C-T-P4S d: 65 mm | D: 90 mm | B: 13 mm | C: 16.8 kN | C0: 16.7 kN | nG grease/oil: 18000/30000 rpm
HCB71913-E-T-P4S d: 65 mm | D: 90 mm | B: 13 mm | C: 15.9 kN | C0: 15.8 kN | nG grease/oil: 15000/24000 rpm
HCB71914-C-T-P4S d: 70 mm | D: 100 mm | B: 16 mm | C: 23.1 kN | C0: 22.7 kN | nG grease/oil: 16000/26000 rpm
HCB71914-E-T-P4S d: 70 mm | D: 100 mm | B: 16 mm | C: 21.8 kN | C0: 21.5 kN | nG grease/oil: 14000/22000 rpm
HCB71915-C-T-P4S d: 75 mm | D: 105 mm | B: 16 mm | C: 23.5 kN | C0: 23.9 kN | nG grease/oil: 16000/26000 rpm
HCB71915-E-T-P4S d: 75 mm | D: 105 mm | B: 16 mm | C: 22.2 kN | C0: 22.7 kN | nG grease/oil: 13000/20000 rpm
HCB71916-C-T-P4S d: 80 mm | D: 110 mm | B: 16 mm | C: 23.9 kN | C0: 25 kN | nG grease/oil: 15000/24000 rpm
HCB71916-E-T-P4S d: 80 mm | D: 110 mm | B: 16 mm | C: 22.5 kN | C0: 23.7 kN | nG grease/oil: 13000/20000 rpm
HCB71917-C-T-P4S d: 85 mm | D: 120 mm | B: 18 mm | C: 31 kN | C0: 32.5 kN | nG grease/oil: 13000/20000 rpm
HCB71917-E-T-P4S d: 85 mm | D: 120 mm | B: 18 mm | C: 29.5 kN | C0: 30.5 kN | nG grease/oil: 12000/19000 rpm
HCB71918-C-T-P4S d: 90 mm | D: 125 mm | B: 18 mm | C: 31.5 kN | C0: 34 kN | nG grease/oil: 13000/20000 rpm
HCB71918-E-T-P4S d: 90 mm | D: 125 mm | B: 18 mm | C: 30 kN | C0: 32 kN | nG grease/oil: 11000/18000 rpm
HCB71919-C-T-P4S d: 95 mm | D: 130 mm | B: 18 mm | C: 32 kN | C0: 35.5 kN | nG grease/oil: 12000/19000 rpm
HCB71919-E-T-P4S d: 95 mm | D: 130 mm | B: 18 mm | C: 30.5 kN | C0: 33.5 kN | nG grease/oil: 10000/17000 rpm
HCB71920-C-T-P4S d: 100 mm | D: 140 mm | B: 20 mm | C: 40.5 kN | C0: 44.5 kN | nG grease/oil: 11000/18000 rpm
HCB71920-E-T-P4S d: 100 mm | D: 140 mm | B: 20 mm | C: 38 kN | C0: 42 kN | nG grease/oil: 9500/16000 rpm
HCB71921-C-T-P4S d: 105 mm | D: 145 mm | B: 20 mm | C: 40 kN | C0: 44.5 kN | nG grease/oil: 11000/18000 rpm
HCB71921-E-T-P4S d: 105 mm | D: 145 mm | B: 20 mm | C: 38 kN | C0: 42 kN | nG grease/oil: 9000/15000 rpm
HCB71922-C-T-P4S d: 110 mm | D: 150 mm | B: 20 mm | C: 41 kN | C0: 46.5 kN | nG grease/oil: 10000/17000 rpm
HCB71922-E-T-P4S d: 110 mm | D: 150 mm | B: 20 mm | C: 38.5 kN | C0: 43.5 kN | nG grease/oil: 9000/15000 rpm
HCB71924-C-T-P4S d: 120 mm | D: 165 mm | B: 22 mm | C: 51 kN | C0: 59 kN | nG grease/oil: 9000/15000 rpm
HCB71924-E-T-P4S d: 120 mm | D: 165 mm | B: 22 mm | C: 48 kN | C0: 55 kN | nG grease/oil: 8000/13000 rpm
HCB71926-C-T-P4S d: 130 mm | D: 180 mm | B: 24 mm | C: 60 kN | C0: 70 kN | nG grease/oil: 8500/14000 rpm
HCB71926-E-T-P4S d: 130 mm | D: 180 mm | B: 24 mm | C: 46 kN | C0: 53 kN | nG grease/oil: 7000/11000 rpm
HCB71928-C-T-P4S d: 140 mm | D: 190 mm | B: 24 mm | C: 62 kN | C0: 76 kN | nG grease/oil: 7500/12000 rpm
HCB71928-E-T-P4S d: 140 mm | D: 190 mm | B: 24 mm | C: 47.5 kN | C0: 57 kN | nG grease/oil: 6700/10000 rpm
