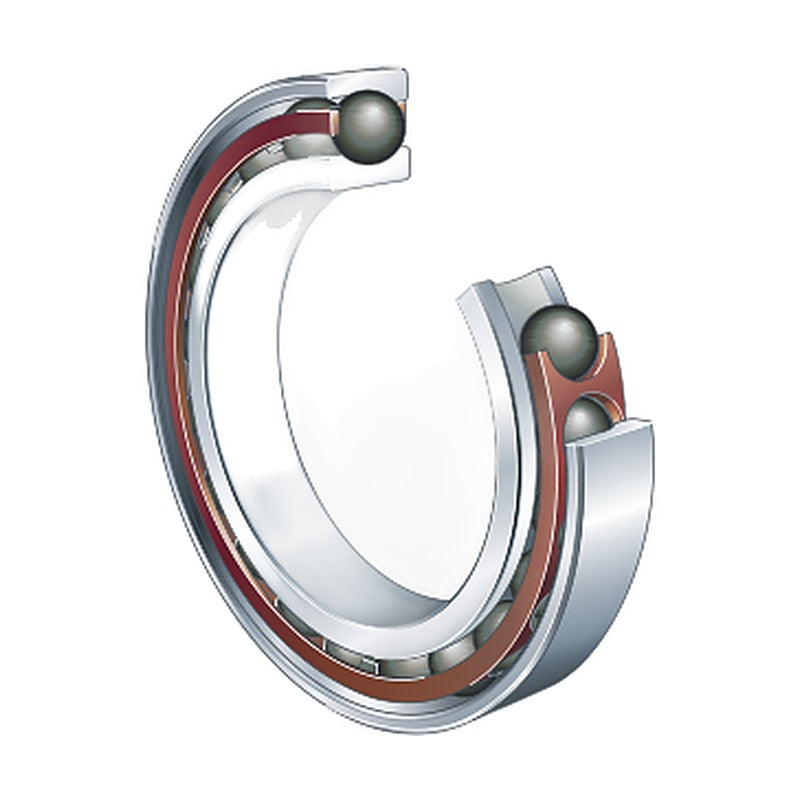

FAG HCB72 Spindle Bearings (Ceramic Balls, P4S)

FAG HCB72 Spindle Bearings (Ceramic Balls, P4S)

FAG HCB72 series high precision spindle bearings with ceramic balls, contact angle 15 deg (C) or 25 deg (E), precision P4S.

Key features

  • High precision spindle bearings, precision class P4S
  • C suffix = 15 deg contact angle, E suffix = 25 deg contact angle
  • Phenolic resin cage (T) for high speed operation
  • Available as universal bearings for pair/set arrangements
  • Limiting speeds listed for grease and oil lubrication
  • Ceramic balls for lower weight and higher speeds

Specifications

Bearing type Spindle bearing (angular contact)
Series HCB72
Balls Ceramic balls
Cage T (phenolic resin)
Precision P4S
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 316-321
HCB7200-C-T-P4S d: 10 mm | D: 30 mm | B: 9 mm | C: 4 kN | C0: 2.04 kN | nG grease/oil: 70000/110000 rpm
HCB7200-E-T-P4S d: 10 mm | D: 30 mm | B: 9 mm | C: 3.85 kN | C0: 1.96 kN | nG grease/oil: 60000/90000 rpm
HCB7201-C-T-P4S d: 12 mm | D: 32 mm | B: 10 mm | C: 5.3 kN | C0: 2.7 kN | nG grease/oil: 63000/95000 rpm
HCB7201-E-T-P4S d: 12 mm | D: 32 mm | B: 10 mm | C: 5.1 kN | C0: 2.6 kN | nG grease/oil: 56000/85000 rpm
HCB7202-C-T-P4S d: 15 mm | D: 35 mm | B: 11 mm | C: 6.7 kN | C0: 3.5 kN | nG grease/oil: 56000/85000 rpm
HCB7202-E-T-P4S d: 15 mm | D: 35 mm | B: 11 mm | C: 6.4 kN | C0: 3.35 kN | nG grease/oil: 48000/70000 rpm
HCB7203-C-T-P4S d: 17 mm | D: 40 mm | B: 12 mm | C: 7.5 kN | C0: 4.05 kN | nG grease/oil: 50000/75000 rpm
HCB7203-E-T-P4S d: 17 mm | D: 40 mm | B: 12 mm | C: 7.2 kN | C0: 3.9 kN | nG grease/oil: 43000/63000 rpm
HCB7204-C-T-P4S d: 20 mm | D: 47 mm | B: 14 mm | C: 10.1 kN | C0: 5.6 kN | nG grease/oil: 43000/63000 rpm
HCB7204-E-T-P4S d: 20 mm | D: 47 mm | B: 14 mm | C: 9.7 kN | C0: 5.4 kN | nG grease/oil: 36000/53000 rpm
HCB7205-C-T-P4S d: 25 mm | D: 52 mm | B: 15 mm | C: 10.8 kN | C0: 6.5 kN | nG grease/oil: 36000/53000 rpm
HCB7205-E-T-P4S d: 25 mm | D: 52 mm | B: 15 mm | C: 10.3 kN | C0: 6.2 kN | nG grease/oil: 32000/48000 rpm
HCB7206-C-T-P4S d: 30 mm | D: 62 mm | B: 16 mm | C: 15.9 kN | C0: 10.2 kN | nG grease/oil: 30000/45000 rpm
HCB7206-E-T-P4S d: 30 mm | D: 62 mm | B: 16 mm | C: 15.2 kN | C0: 9.8 kN | nG grease/oil: 26000/40000 rpm
HCB7207-C-T-P4S d: 35 mm | D: 72 mm | B: 17 mm | C: 17.6 kN | C0: 12.5 kN | nG grease/oil: 26000/40000 rpm
HCB7207-E-T-P4S d: 35 mm | D: 72 mm | B: 17 mm | C: 16.8 kN | C0: 11.9 kN | nG grease/oil: 22000/36000 rpm
HCB7208-C-T-P4S d: 40 mm | D: 80 mm | B: 18 mm | C: 22.1 kN | C0: 15.6 kN | nG grease/oil: 24000/38000 rpm
HCB7208-E-T-P4S d: 40 mm | D: 80 mm | B: 18 mm | C: 21.1 kN | C0: 14.9 kN | nG grease/oil: 20000/34000 rpm
HCB7209-C-T-P4S d: 45 mm | D: 85 mm | B: 19 mm | C: 23.2 kN | C0: 17.2 kN | nG grease/oil: 22000/36000 rpm
HCB7209-E-T-P4S d: 45 mm | D: 85 mm | B: 19 mm | C: 22.1 kN | C0: 16.4 kN | nG grease/oil: 18000/30000 rpm
HCB7210-C-T-P4S d: 50 mm | D: 90 mm | B: 20 mm | C: 29.5 kN | C0: 22.1 kN | nG grease/oil: 20000/34000 rpm
HCB7210-E-T-P4S d: 50 mm | D: 90 mm | B: 20 mm | C: 28 kN | C0: 21.1 kN | nG grease/oil: 17000/28000 rpm
HCB7211-C-T-P4S d: 55 mm | D: 100 mm | B: 21 mm | C: 32 kN | C0: 26 kN | nG grease/oil: 18000/30000 rpm
HCB7211-E-T-P4S d: 55 mm | D: 100 mm | B: 21 mm | C: 30.5 kN | C0: 24.7 kN | nG grease/oil: 15000/24000 rpm
HCB7212-C-T-P4S d: 60 mm | D: 110 mm | B: 22 mm | C: 38 kN | C0: 30.5 kN | nG grease/oil: 16000/26000 rpm
HCB7212-E-T-P4S d: 60 mm | D: 110 mm | B: 22 mm | C: 36 kN | C0: 29 kN | nG grease/oil: 14000/22000 rpm
HCB7213-C-T-P4S d: 65 mm | D: 120 mm | B: 23 mm | C: 46 kN | C0: 37.5 kN | nG grease/oil: 15000/24000 rpm
HCB7213-E-T-P4S d: 65 mm | D: 120 mm | B: 23 mm | C: 44 kN | C0: 36 kN | nG grease/oil: 13000/20000 rpm
HCB7214-C-T-P4S d: 70 mm | D: 125 mm | B: 24 mm | C: 48 kN | C0: 40.5 kN | nG grease/oil: 14000/22000 rpm
HCB7214-E-T-P4S d: 70 mm | D: 125 mm | B: 24 mm | C: 45.5 kN | C0: 38.5 kN | nG grease/oil: 12000/19000 rpm
HCB7215-C-T-P4S d: 75 mm | D: 130 mm | B: 25 mm | C: 49.5 kN | C0: 43.5 kN | nG grease/oil: 14000/22000 rpm
HCB7215-E-T-P4S d: 75 mm | D: 130 mm | B: 25 mm | C: 47 kN | C0: 41.5 kN | nG grease/oil: 12000/19000 rpm
Angular Contact Ball BearingsFAG
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG HCB72 Spindle Bearings (Ceramic Balls, P4S)

Brand FAG·Angular Contact Ball Bearings

Available part numbers (32)

HCB7200-C-T-P4S, HCB7200-E-T-P4S, HCB7201-C-T-P4S, HCB7201-E-T-P4S, HCB7202-C-T-P4S, HCB7202-E-T-P4S, HCB7203-C-T-P4S, HCB7203-E-T-P4S, HCB7204-C-T-P4S, HCB7204-E-T-P4S + 22 more — see full table ↓
