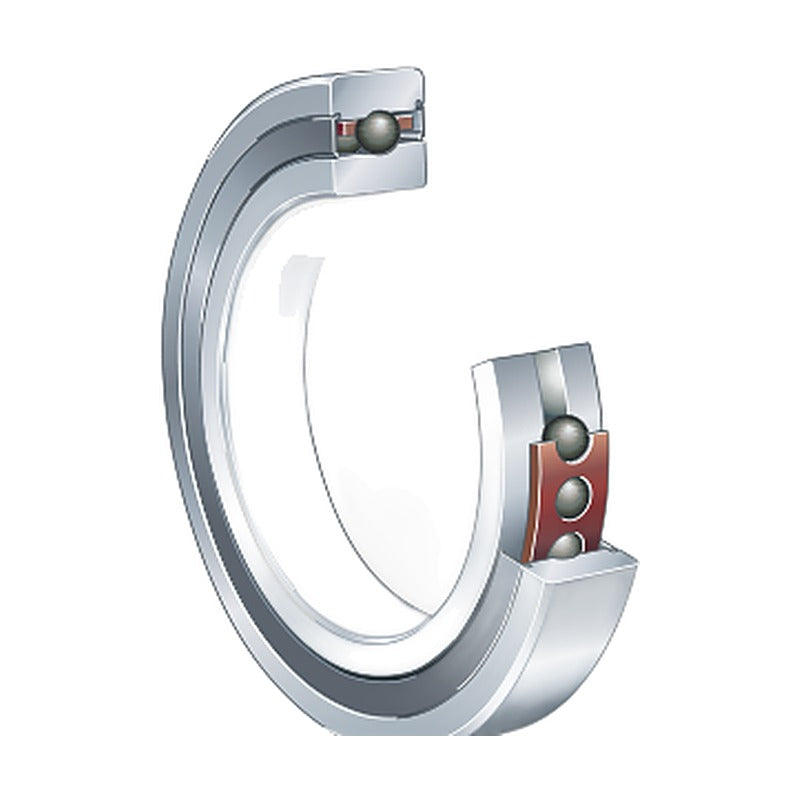

FAG HCS70 High Speed Spindle Bearings (Sealed, Ceramic Balls)

FAG HCS70 High Speed Spindle Bearings (Sealed, Ceramic Balls)

FAG HCS70 series sealed high speed spindle bearings with ceramic balls, contact angle 15 deg (C) or 25 deg (E), precision P4S.

Key features

  • High speed spindle bearings, sealed design, precision class P4S
  • C suffix = 15 deg contact angle, E suffix = 25 deg contact angle
  • Sealed on both sides and greased for life
  • Optimised internal design for very high speeds with low friction
  • Phenolic resin cage (T)

Specifications

Bearing type High speed spindle bearing, sealed
Series HCS70
Balls Ceramic balls
Lubrication Grease, sealed
Precision P4S
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 330-335
HCS7000-C-T-P4S d: 10 mm | D: 26 mm | B: 8 mm | C: 1.9 kN | C0: 1.1 kN | nG grease: 90000 rpm
HCS7000-E-T-P4S d: 10 mm | D: 26 mm | B: 8 mm | C: 1.8 kN | C0: 1.05 kN | nG grease: 75000 rpm
HCS7001-C-T-P4S d: 12 mm | D: 28 mm | B: 8 mm | C: 1.87 kN | C0: 1.13 kN | nG grease: 80000 rpm
HCS7001-E-T-P4S d: 12 mm | D: 28 mm | B: 8 mm | C: 1.77 kN | C0: 1.07 kN | nG grease: 70000 rpm
HCS7002-C-T-P4S d: 15 mm | D: 32 mm | B: 9 mm | C: 2.6 kN | C0: 1.7 kN | nG grease: 70000 rpm
HCS7002-E-T-P4S d: 15 mm | D: 32 mm | B: 9 mm | C: 2.45 kN | C0: 1.61 kN | nG grease: 60000 rpm
HCS7003-C-T-P4S d: 17 mm | D: 35 mm | B: 10 mm | C: 2.65 kN | C0: 1.84 kN | nG grease: 63000 rpm
HCS7003-E-T-P4S d: 17 mm | D: 35 mm | B: 10 mm | C: 2.5 kN | C0: 1.74 kN | nG grease: 53000 rpm
HCS7004-C-T-P4S d: 20 mm | D: 42 mm | B: 12 mm | C: 4.3 kN | C0: 3.2 kN | nG grease: 53000 rpm
HCS7004-E-T-P4S d: 20 mm | D: 42 mm | B: 12 mm | C: 4.1 kN | C0: 3 kN | nG grease: 45000 rpm
HCS7005-C-T-P4S d: 25 mm | D: 47 mm | B: 12 mm | C: 4.35 kN | C0: 3.45 kN | nG grease: 45000 rpm
HCS7005-E-T-P4S d: 25 mm | D: 47 mm | B: 12 mm | C: 4.1 kN | C0: 3.25 kN | nG grease: 38000 rpm
HCS7006-C-T-P4S d: 30 mm | D: 55 mm | B: 13 mm | C: 6 kN | C0: 4.95 kN | nG grease: 38000 rpm
HCS7006-E-T-P4S d: 30 mm | D: 55 mm | B: 13 mm | C: 5.7 kN | C0: 4.7 kN | nG grease: 32000 rpm
HCS7007-C-T-P4S d: 35 mm | D: 62 mm | B: 14 mm | C: 6.5 kN | C0: 5.8 kN | nG grease: 34000 rpm
HCS7007-E-T-P4S d: 35 mm | D: 62 mm | B: 14 mm | C: 6.1 kN | C0: 5.4 kN | nG grease: 28000 rpm
HCS7008-C-T-P4S d: 40 mm | D: 68 mm | B: 15 mm | C: 6.8 kN | C0: 6.5 kN | nG grease: 30000 rpm
HCS7008-E-T-P4S d: 40 mm | D: 68 mm | B: 15 mm | C: 6.4 kN | C0: 6.1 kN | nG grease: 26000 rpm
HCS7009-C-T-P4S d: 45 mm | D: 75 mm | B: 16 mm | C: 8.9 kN | C0: 8.6 kN | nG grease: 26000 rpm
HCS7009-E-T-P4S d: 45 mm | D: 75 mm | B: 16 mm | C: 8.4 kN | C0: 8 kN | nG grease: 24000 rpm
HCS7010-C-T-P4S d: 50 mm | D: 80 mm | B: 16 mm | C: 9.2 kN | C0: 9.2 kN | nG grease: 24000 rpm
HCS7010-E-T-P4S d: 50 mm | D: 80 mm | B: 16 mm | C: 8.7 kN | C0: 8.6 kN | nG grease: 22000 rpm
HCS7011-C-T-P4S d: 55 mm | D: 90 mm | B: 18 mm | C: 13 kN | C0: 13.2 kN | nG grease: 22000 rpm
HCS7011-E-T-P4S d: 55 mm | D: 90 mm | B: 18 mm | C: 12.2 kN | C0: 12.3 kN | nG grease: 19000 rpm
HCS7012-C-T-P4S d: 60 mm | D: 95 mm | B: 18 mm | C: 13.4 kN | C0: 14 kN | nG grease: 20000 rpm
HCS7012-E-T-P4S d: 60 mm | D: 95 mm | B: 18 mm | C: 12.6 kN | C0: 13.1 kN | nG grease: 18000 rpm
HCS7013-C-T-P4S d: 65 mm | D: 100 mm | B: 18 mm | C: 13.8 kN | C0: 15 kN | nG grease: 20000 rpm
HCS7013-E-T-P4S d: 65 mm | D: 100 mm | B: 18 mm | C: 13 kN | C0: 14 kN | nG grease: 17000 rpm
HCS7014-C-T-P4S d: 70 mm | D: 110 mm | B: 20 mm | C: 18 kN | C0: 19.5 kN | nG grease: 18000 rpm
HCS7014-E-T-P4S d: 70 mm | D: 110 mm | B: 20 mm | C: 17 kN | C0: 18.2 kN | nG grease: 15000 rpm
HCS7015-C-T-P4S d: 75 mm | D: 115 mm | B: 20 mm | C: 18.2 kN | C0: 20.1 kN | nG grease: 17000 rpm
HCS7015-E-T-P4S d: 75 mm | D: 115 mm | B: 20 mm | C: 17.2 kN | C0: 18.7 kN | nG grease: 15000 rpm
HCS7016-C-T-P4S d: 80 mm | D: 125 mm | B: 22 mm | C: 21.7 kN | C0: 24.3 kN | nG grease: 16000 rpm
HCS7016-E-T-P4S d: 80 mm | D: 125 mm | B: 22 mm | C: 20.5 kN | C0: 22.7 kN | nG grease: 13000 rpm
HCS7017-C-T-P4S d: 85 mm | D: 130 mm | B: 22 mm | C: 22 kN | C0: 25 kN | nG grease: 15000 rpm
HCS7017-E-T-P4S d: 85 mm | D: 130 mm | B: 22 mm | C: 20.7 kN | C0: 23.4 kN | nG grease: 13000 rpm
HCS7018-C-T-P4S d: 90 mm | D: 140 mm | B: 24 mm | C: 26 kN | C0: 30 kN | nG grease: 14000 rpm
HCS7018-E-T-P4S d: 90 mm | D: 140 mm | B: 24 mm | C: 24.3 kN | C0: 28 kN | nG grease: 12000 rpm
HCS7019-C-T-P4S d: 95 mm | D: 145 mm | B: 24 mm | C: 26 kN | C0: 31 kN | nG grease: 13000 rpm
HCS7019-E-T-P4S d: 95 mm | D: 145 mm | B: 24 mm | C: 24.6 kN | C0: 28.5 kN | nG grease: 11000 rpm
HCS7020-C-T-P4S d: 100 mm | D: 150 mm | B: 24 mm | C: 26.5 kN | C0: 31.5 kN | nG grease: 12000 rpm
HCS7020-E-T-P4S d: 100 mm | D: 150 mm | B: 24 mm | C: 24.9 kN | C0: 29.5 kN | nG grease: 11000 rpm
HCS7021-C-T-P4S d: 105 mm | D: 160 mm | B: 26 mm | C: 34 kN | C0: 40.5 kN | nG grease: 12000 rpm
HCS7021-E-T-P4S d: 105 mm | D: 160 mm | B: 26 mm | C: 32 kN | C0: 38 kN | nG grease: 10000 rpm
HCS7022-C-T-P4S d: 110 mm | D: 170 mm | B: 28 mm | C: 34.5 kN | C0: 42 kN | nG grease: 11000 rpm
HCS7022-E-T-P4S d: 110 mm | D: 170 mm | B: 28 mm | C: 32.5 kN | C0: 39 kN | nG grease: 9000 rpm
HCS7024-C-T-P4S d: 120 mm | D: 180 mm | B: 28 mm | C: 35.5 kN | C0: 44.5 kN | nG grease: 10000 rpm
HCS7024-E-T-P4S d: 120 mm | D: 180 mm | B: 28 mm | C: 33 kN | C0: 41.5 kN | nG grease: 8500 rpm
HCS7026-C-T-P4S d: 130 mm | D: 200 mm | B: 33 mm | C: 45.5 kN | C0: 58 kN | nG grease: 9000 rpm
HCS7026-E-T-P4S d: 130 mm | D: 200 mm | B: 33 mm | C: 42.5 kN | C0: 54 kN | nG grease: 7500 rpm
Angular Contact Ball BearingsFAG
50 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG HCS70 High Speed Spindle Bearings (Sealed, Ceramic Balls)

Brand FAG·Angular Contact Ball Bearings

Available part numbers (50)

HCS7000-C-T-P4S, HCS7000-E-T-P4S, HCS7001-C-T-P4S, HCS7001-E-T-P4S, HCS7002-C-T-P4S, HCS7002-E-T-P4S, HCS7003-C-T-P4S, HCS7003-E-T-P4S, HCS7004-C-T-P4S, HCS7004-E-T-P4S + 40 more — see full table ↓

How to order

Send the FAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HCS7000-C-T-P4Sd: 10 mm | D: 26 mm | B: 8 mm | C: 1.9 kN | C0: 1.1 kN | nG grease: 90000 rpm
HCS7000-E-T-P4Sd: 10 mm | D: 26 mm | B: 8 mm | C: 1.8 kN | C0: 1.05 kN | nG grease: 75000 rpm
HCS7001-C-T-P4Sd: 12 mm | D: 28 mm | B: 8 mm | C: 1.87 kN | C0: 1.13 kN | nG grease: 80000 rpm
HCS7001-E-T-P4Sd: 12 mm | D: 28 mm | B: 8 mm | C: 1.77 kN | C0: 1.07 kN | nG grease: 70000 rpm
HCS7002-C-T-P4Sd: 15 mm | D: 32 mm | B: 9 mm | C: 2.6 kN | C0: 1.7 kN | nG grease: 70000 rpm
HCS7002-E-T-P4Sd: 15 mm | D: 32 mm | B: 9 mm | C: 2.45 kN | C0: 1.61 kN | nG grease: 60000 rpm
HCS7003-C-T-P4Sd: 17 mm | D: 35 mm | B: 10 mm | C: 2.65 kN | C0: 1.84 kN | nG grease: 63000 rpm
HCS7003-E-T-P4Sd: 17 mm | D: 35 mm | B: 10 mm | C: 2.5 kN | C0: 1.74 kN | nG grease: 53000 rpm
HCS7004-C-T-P4Sd: 20 mm | D: 42 mm | B: 12 mm | C: 4.3 kN | C0: 3.2 kN | nG grease: 53000 rpm
HCS7004-E-T-P4Sd: 20 mm | D: 42 mm | B: 12 mm | C: 4.1 kN | C0: 3 kN | nG grease: 45000 rpm
HCS7005-C-T-P4Sd: 25 mm | D: 47 mm | B: 12 mm | C: 4.35 kN | C0: 3.45 kN | nG grease: 45000 rpm
HCS7005-E-T-P4Sd: 25 mm | D: 47 mm | B: 12 mm | C: 4.1 kN | C0: 3.25 kN | nG grease: 38000 rpm
HCS7006-C-T-P4Sd: 30 mm | D: 55 mm | B: 13 mm | C: 6 kN | C0: 4.95 kN | nG grease: 38000 rpm
HCS7006-E-T-P4Sd: 30 mm | D: 55 mm | B: 13 mm | C: 5.7 kN | C0: 4.7 kN | nG grease: 32000 rpm
HCS7007-C-T-P4Sd: 35 mm | D: 62 mm | B: 14 mm | C: 6.5 kN | C0: 5.8 kN | nG grease: 34000 rpm
HCS7007-E-T-P4Sd: 35 mm | D: 62 mm | B: 14 mm | C: 6.1 kN | C0: 5.4 kN | nG grease: 28000 rpm
HCS7008-C-T-P4Sd: 40 mm | D: 68 mm | B: 15 mm | C: 6.8 kN | C0: 6.5 kN | nG grease: 30000 rpm
HCS7008-E-T-P4Sd: 40 mm | D: 68 mm | B: 15 mm | C: 6.4 kN | C0: 6.1 kN | nG grease: 26000 rpm
HCS7009-C-T-P4Sd: 45 mm | D: 75 mm | B: 16 mm | C: 8.9 kN | C0: 8.6 kN | nG grease: 26000 rpm
HCS7009-E-T-P4Sd: 45 mm | D: 75 mm | B: 16 mm | C: 8.4 kN | C0: 8 kN | nG grease: 24000 rpm
HCS7010-C-T-P4Sd: 50 mm | D: 80 mm | B: 16 mm | C: 9.2 kN | C0: 9.2 kN | nG grease: 24000 rpm
HCS7010-E-T-P4Sd: 50 mm | D: 80 mm | B: 16 mm | C: 8.7 kN | C0: 8.6 kN | nG grease: 22000 rpm
HCS7011-C-T-P4Sd: 55 mm | D: 90 mm | B: 18 mm | C: 13 kN | C0: 13.2 kN | nG grease: 22000 rpm
HCS7011-E-T-P4Sd: 55 mm | D: 90 mm | B: 18 mm | C: 12.2 kN | C0: 12.3 kN | nG grease: 19000 rpm
HCS7012-C-T-P4Sd: 60 mm | D: 95 mm | B: 18 mm | C: 13.4 kN | C0: 14 kN | nG grease: 20000 rpm
HCS7012-E-T-P4Sd: 60 mm | D: 95 mm | B: 18 mm | C: 12.6 kN | C0: 13.1 kN | nG grease: 18000 rpm
HCS7013-C-T-P4Sd: 65 mm | D: 100 mm | B: 18 mm | C: 13.8 kN | C0: 15 kN | nG grease: 20000 rpm
HCS7013-E-T-P4Sd: 65 mm | D: 100 mm | B: 18 mm | C: 13 kN | C0: 14 kN | nG grease: 17000 rpm
HCS7014-C-T-P4Sd: 70 mm | D: 110 mm | B: 20 mm | C: 18 kN | C0: 19.5 kN | nG grease: 18000 rpm
HCS7014-E-T-P4Sd: 70 mm | D: 110 mm | B: 20 mm | C: 17 kN | C0: 18.2 kN | nG grease: 15000 rpm
HCS7015-C-T-P4Sd: 75 mm | D: 115 mm | B: 20 mm | C: 18.2 kN | C0: 20.1 kN | nG grease: 17000 rpm
HCS7015-E-T-P4Sd: 75 mm | D: 115 mm | B: 20 mm | C: 17.2 kN | C0: 18.7 kN | nG grease: 15000 rpm
HCS7016-C-T-P4Sd: 80 mm | D: 125 mm | B: 22 mm | C: 21.7 kN | C0: 24.3 kN | nG grease: 16000 rpm
HCS7016-E-T-P4Sd: 80 mm | D: 125 mm | B: 22 mm | C: 20.5 kN | C0: 22.7 kN | nG grease: 13000 rpm
HCS7017-C-T-P4Sd: 85 mm | D: 130 mm | B: 22 mm | C: 22 kN | C0: 25 kN | nG grease: 15000 rpm
HCS7017-E-T-P4Sd: 85 mm | D: 130 mm | B: 22 mm | C: 20.7 kN | C0: 23.4 kN | nG grease: 13000 rpm
HCS7018-C-T-P4Sd: 90 mm | D: 140 mm | B: 24 mm | C: 26 kN | C0: 30 kN | nG grease: 14000 rpm
HCS7018-E-T-P4Sd: 90 mm | D: 140 mm | B: 24 mm | C: 24.3 kN | C0: 28 kN | nG grease: 12000 rpm
HCS7019-C-T-P4Sd: 95 mm | D: 145 mm | B: 24 mm | C: 26 kN | C0: 31 kN | nG grease: 13000 rpm
HCS7019-E-T-P4Sd: 95 mm | D: 145 mm | B: 24 mm | C: 24.6 kN | C0: 28.5 kN | nG grease: 11000 rpm
HCS7020-C-T-P4Sd: 100 mm | D: 150 mm | B: 24 mm | C: 26.5 kN | C0: 31.5 kN | nG grease: 12000 rpm
HCS7020-E-T-P4Sd: 100 mm | D: 150 mm | B: 24 mm | C: 24.9 kN | C0: 29.5 kN | nG grease: 11000 rpm
HCS7021-C-T-P4Sd: 105 mm | D: 160 mm | B: 26 mm | C: 34 kN | C0: 40.5 kN | nG grease: 12000 rpm
HCS7021-E-T-P4Sd: 105 mm | D: 160 mm | B: 26 mm | C: 32 kN | C0: 38 kN | nG grease: 10000 rpm
HCS7022-C-T-P4Sd: 110 mm | D: 170 mm | B: 28 mm | C: 34.5 kN | C0: 42 kN | nG grease: 11000 rpm
HCS7022-E-T-P4Sd: 110 mm | D: 170 mm | B: 28 mm | C: 32.5 kN | C0: 39 kN | nG grease: 9000 rpm
HCS7024-C-T-P4Sd: 120 mm | D: 180 mm | B: 28 mm | C: 35.5 kN | C0: 44.5 kN | nG grease: 10000 rpm
HCS7024-E-T-P4Sd: 120 mm | D: 180 mm | B: 28 mm | C: 33 kN | C0: 41.5 kN | nG grease: 8500 rpm
HCS7026-C-T-P4Sd: 130 mm | D: 200 mm | B: 33 mm | C: 45.5 kN | C0: 58 kN | nG grease: 9000 rpm
HCS7026-E-T-P4Sd: 130 mm | D: 200 mm | B: 33 mm | C: 42.5 kN | C0: 54 kN | nG grease: 7500 rpm
