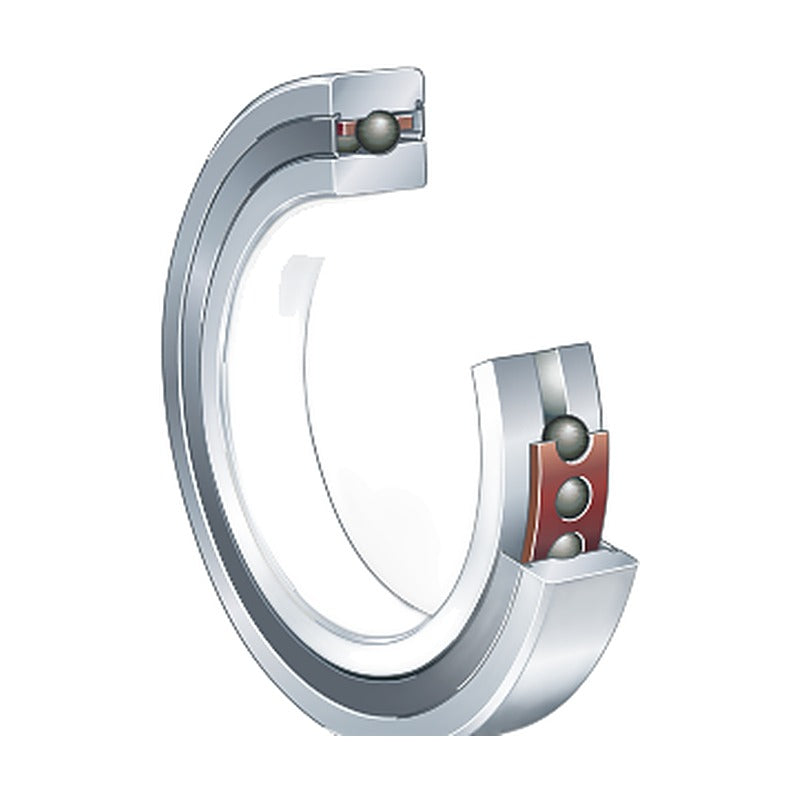

FAG HCS719 High Speed Spindle Bearings (Sealed, Ceramic Balls)

FAG HCS719 High Speed Spindle Bearings (Sealed, Ceramic Balls)

FAG HCS719 series sealed high speed spindle bearings with ceramic balls, contact angle 15 deg (C) or 25 deg (E), precision P4S.

Key features

  • High speed spindle bearings, sealed design, precision class P4S
  • C suffix = 15 deg contact angle, E suffix = 25 deg contact angle
  • Sealed on both sides and greased for life
  • Optimised internal design for very high speeds with low friction
  • Phenolic resin cage (T)

Specifications

Bearing type High speed spindle bearing, sealed
Series HCS719
Balls Ceramic balls
Lubrication Grease, sealed
Precision P4S
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 330-335
HCS71900-C-T-P4S d: 10 mm | D: 22 mm | B: 6 mm | C: 1.36 kN | C0: 0.76 kN | nG grease: 100000 rpm
HCS71900-E-T-P4S d: 10 mm | D: 22 mm | B: 6 mm | C: 1.29 kN | C0: 0.72 kN | nG grease: 85000 rpm
HCS71901-C-T-P4S d: 12 mm | D: 24 mm | B: 6 mm | C: 1.41 kN | C0: 0.84 kN | nG grease: 90000 rpm
HCS71901-E-T-P4S d: 12 mm | D: 24 mm | B: 6 mm | C: 1.33 kN | C0: 0.8 kN | nG grease: 75000 rpm
HCS71902-C-T-P4S d: 15 mm | D: 28 mm | B: 7 mm | C: 1.94 kN | C0: 1.23 kN | nG grease: 75000 rpm
HCS71902-E-T-P4S d: 15 mm | D: 28 mm | B: 7 mm | C: 1.83 kN | C0: 1.17 kN | nG grease: 63000 rpm
HCS71903-C-T-P4S d: 17 mm | D: 30 mm | B: 7 mm | C: 1.99 kN | C0: 1.33 kN | nG grease: 70000 rpm
HCS71903-E-T-P4S d: 17 mm | D: 30 mm | B: 7 mm | C: 1.88 kN | C0: 1.26 kN | nG grease: 60000 rpm
HCS71904-C-T-P4S d: 20 mm | D: 37 mm | B: 9 mm | C: 2.7 kN | C0: 1.98 kN | nG grease: 56000 rpm
HCS71904-E-T-P4S d: 20 mm | D: 37 mm | B: 9 mm | C: 2.55 kN | C0: 1.87 kN | nG grease: 48000 rpm
HCS71905-C-T-P4S d: 25 mm | D: 42 mm | B: 9 mm | C: 2.9 kN | C0: 2.36 kN | nG grease: 48000 rpm
HCS71905-E-T-P4S d: 25 mm | D: 42 mm | B: 9 mm | C: 2.75 kN | C0: 2.2 kN | nG grease: 40000 rpm
HCS71906-C-T-P4S d: 30 mm | D: 47 mm | B: 9 mm | C: 4.4 kN | C0: 3.65 kN | nG grease: 43000 rpm
HCS71906-E-T-P4S d: 30 mm | D: 47 mm | B: 9 mm | C: 4.15 kN | C0: 3.45 kN | nG grease: 36000 rpm
HCS71907-C-T-P4S d: 35 mm | D: 55 mm | B: 10 mm | C: 4.8 kN | C0: 4.35 kN | nG grease: 36000 rpm
HCS71907-E-T-P4S d: 35 mm | D: 55 mm | B: 10 mm | C: 4.5 kN | C0: 4.05 kN | nG grease: 30000 rpm
HCS71908-C-T-P4S d: 40 mm | D: 62 mm | B: 12 mm | C: 5 kN | C0: 4.8 kN | nG grease: 32000 rpm
HCS71908-E-T-P4S d: 40 mm | D: 62 mm | B: 12 mm | C: 4.75 kN | C0: 4.5 kN | nG grease: 28000 rpm
HCS71909-C-T-P4S d: 45 mm | D: 68 mm | B: 12 mm | C: 6.9 kN | C0: 6.7 kN | nG grease: 28000 rpm
HCS71909-E-T-P4S d: 45 mm | D: 68 mm | B: 12 mm | C: 6.5 kN | C0: 6.3 kN | nG grease: 24000 rpm
HCS71910-C-T-P4S d: 50 mm | D: 72 mm | B: 12 mm | C: 7.1 kN | C0: 7.2 kN | nG grease: 26000 rpm
HCS71910-E-T-P4S d: 50 mm | D: 72 mm | B: 12 mm | C: 6.7 kN | C0: 6.7 kN | nG grease: 22000 rpm
HCS71911-C-T-P4S d: 55 mm | D: 80 mm | B: 13 mm | C: 9.3 kN | C0: 9.5 kN | nG grease: 24000 rpm
HCS71911-E-T-P4S d: 55 mm | D: 80 mm | B: 13 mm | C: 8.8 kN | C0: 8.8 kN | nG grease: 20000 rpm
HCS71912-C-T-P4S d: 60 mm | D: 85 mm | B: 13 mm | C: 9.6 kN | C0: 10.1 kN | nG grease: 22000 rpm
HCS71912-E-T-P4S d: 60 mm | D: 85 mm | B: 13 mm | C: 9 kN | C0: 9.4 kN | nG grease: 19000 rpm
HCS71913-C-T-P4S d: 65 mm | D: 90 mm | B: 13 mm | C: 9.9 kN | C0: 10.7 kN | nG grease: 20000 rpm
HCS71913-E-T-P4S d: 65 mm | D: 90 mm | B: 13 mm | C: 9.3 kN | C0: 10 kN | nG grease: 18000 rpm
HCS71914-C-T-P4S d: 70 mm | D: 100 mm | B: 16 mm | C: 12.7 kN | C0: 14 kN | nG grease: 19000 rpm
HCS71914-E-T-P4S d: 70 mm | D: 100 mm | B: 16 mm | C: 11.9 kN | C0: 13.1 kN | nG grease: 16000 rpm
HCS71915-C-T-P4S d: 75 mm | D: 105 mm | B: 16 mm | C: 13 kN | C0: 14.8 kN | nG grease: 18000 rpm
HCS71915-E-T-P4S d: 75 mm | D: 105 mm | B: 16 mm | C: 12.2 kN | C0: 13.8 kN | nG grease: 15000 rpm
HCS71916-C-T-P4S d: 80 mm | D: 110 mm | B: 16 mm | C: 14.5 kN | C0: 16.8 kN | nG grease: 17000 rpm
HCS71916-E-T-P4S d: 80 mm | D: 110 mm | B: 16 mm | C: 13.7 kN | C0: 15.6 kN | nG grease: 15000 rpm
HCS71917-C-T-P4S d: 85 mm | D: 120 mm | B: 18 mm | C: 15.1 kN | C0: 18.1 kN | nG grease: 16000 rpm
HCS71917-E-T-P4S d: 85 mm | D: 120 mm | B: 18 mm | C: 14.2 kN | C0: 16.9 kN | nG grease: 13000 rpm
HCS71918-C-T-P4S d: 90 mm | D: 125 mm | B: 18 mm | C: 16.4 kN | C0: 19.8 kN | nG grease: 15000 rpm
HCS71918-E-T-P4S d: 90 mm | D: 125 mm | B: 18 mm | C: 15.5 kN | C0: 18.5 kN | nG grease: 13000 rpm
HCS71919-C-T-P4S d: 95 mm | D: 130 mm | B: 18 mm | C: 16.8 kN | C0: 20.8 kN | nG grease: 14000 rpm
HCS71919-E-T-P4S d: 95 mm | D: 130 mm | B: 18 mm | C: 15.8 kN | C0: 19.4 kN | nG grease: 12000 rpm
HCS71920-C-T-P4S d: 100 mm | D: 140 mm | B: 20 mm | C: 20.2 kN | C0: 25 kN | nG grease: 13000 rpm
HCS71920-E-T-P4S d: 100 mm | D: 140 mm | B: 20 mm | C: 19 kN | C0: 23.4 kN | nG grease: 11000 rpm
HCS71921-C-T-P4S d: 105 mm | D: 145 mm | B: 20 mm | C: 20.7 kN | C0: 26.5 kN | nG grease: 12000 rpm
HCS71921-E-T-P4S d: 105 mm | D: 145 mm | B: 20 mm | C: 19.5 kN | C0: 24.6 kN | nG grease: 11000 rpm
HCS71922-C-T-P4S d: 110 mm | D: 150 mm | B: 20 mm | C: 24.1 kN | C0: 30.5 kN | nG grease: 12000 rpm
HCS71922-E-T-P4S d: 110 mm | D: 150 mm | B: 20 mm | C: 22.6 kN | C0: 28.5 kN | nG grease: 10000 rpm
HCS71924-C-T-P4S d: 120 mm | D: 165 mm | B: 22 mm | C: 25 kN | C0: 33.5 kN | nG grease: 11000 rpm
HCS71924-E-T-P4S d: 120 mm | D: 165 mm | B: 22 mm | C: 23.7 kN | C0: 31 kN | nG grease: 9000 rpm
HCS71926-C-T-P4S d: 130 mm | D: 180 mm | B: 24 mm | C: 29 kN | C0: 39 kN | nG grease: 9500 rpm
HCS71926-E-T-P4S d: 130 mm | D: 180 mm | B: 24 mm | C: 27 kN | C0: 36.5 kN | nG grease: 8000 rpm
