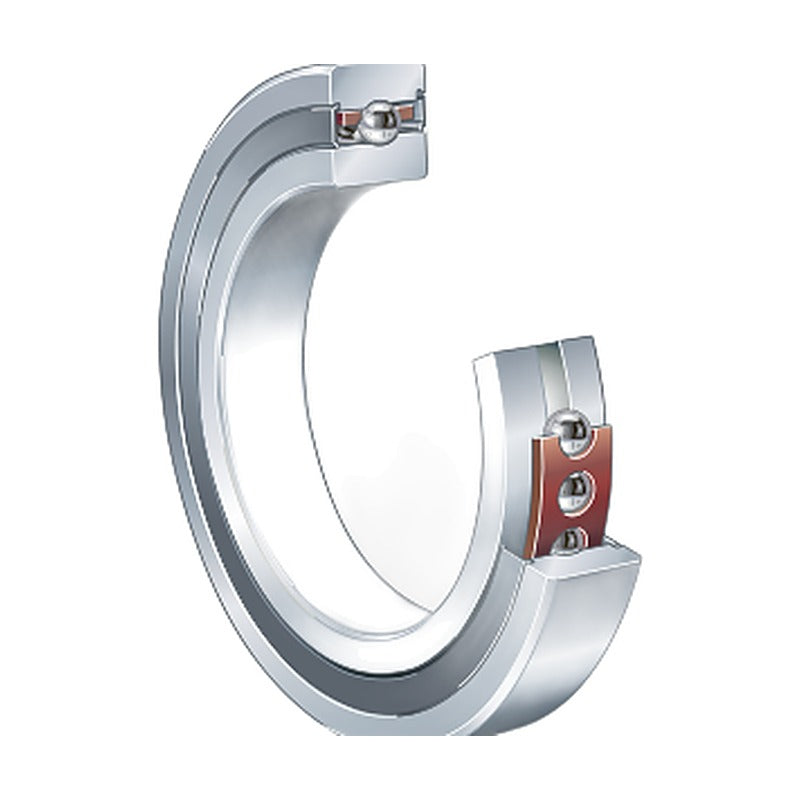

FAG HSS719 High Speed Spindle Bearings (Sealed, Steel Balls)

FAG HSS719 High Speed Spindle Bearings (Sealed, Steel Balls)

FAG HSS719 series sealed high speed spindle bearings with steel balls, contact angle 15 deg (C) or 25 deg (E), precision P4S.

Key features

  • High speed spindle bearings, sealed design, precision class P4S
  • C suffix = 15 deg contact angle, E suffix = 25 deg contact angle
  • Sealed on both sides and greased for life
  • Optimised internal design for very high speeds with low friction
  • Phenolic resin cage (T)

Specifications

Bearing type High speed spindle bearing, sealed
Series HSS719
Balls Steel balls
Lubrication Grease, sealed
Precision P4S
Load ratings C dynamic, C0 static radial
Brand FAG (Schaeffler)
Source FAG Rolling Bearings catalogue HR 1, p. 324-329
HSS71900-C-T-P4S d: 10 mm | D: 22 mm | B: 6 mm | C: 1.96 kN | C0: 1.1 kN | nG grease: 90000 rpm
HSS71900-E-T-P4S d: 10 mm | D: 22 mm | B: 6 mm | C: 1.86 kN | C0: 1.04 kN | nG grease: 75000 rpm
HSS71901-C-T-P4S d: 12 mm | D: 24 mm | B: 6 mm | C: 2.04 kN | C0: 1.2 kN | nG grease: 80000 rpm
HSS71901-E-T-P4S d: 12 mm | D: 24 mm | B: 6 mm | C: 1.93 kN | C0: 1.14 kN | nG grease: 67000 rpm
HSS71902-C-T-P4S d: 15 mm | D: 28 mm | B: 7 mm | C: 2.8 kN | C0: 1.76 kN | nG grease: 67000 rpm
HSS71902-E-T-P4S d: 15 mm | D: 28 mm | B: 7 mm | C: 2.65 kN | C0: 1.66 kN | nG grease: 56000 rpm
HSS71903-C-T-P4S d: 17 mm | D: 30 mm | B: 7 mm | C: 2.9 kN | C0: 1.9 kN | nG grease: 60000 rpm
HSS71903-E-T-P4S d: 17 mm | D: 30 mm | B: 7 mm | C: 2.7 kN | C0: 1.8 kN | nG grease: 50000 rpm
HSS71904-C-T-P4S d: 20 mm | D: 37 mm | B: 9 mm | C: 3.9 kN | C0: 2.85 kN | nG grease: 50000 rpm
HSS71904-E-T-P4S d: 20 mm | D: 37 mm | B: 9 mm | C: 3.75 kN | C0: 2.7 kN | nG grease: 43000 rpm
HSS71905-C-T-P4S d: 25 mm | D: 42 mm | B: 9 mm | C: 4.25 kN | C0: 3.35 kN | nG grease: 43000 rpm
HSS71905-E-T-P4S d: 25 mm | D: 42 mm | B: 9 mm | C: 4 kN | C0: 3.15 kN | nG grease: 36000 rpm
HSS71906-C-T-P4S d: 30 mm | D: 47 mm | B: 9 mm | C: 6.4 kN | C0: 5.2 kN | nG grease: 36000 rpm
HSS71906-E-T-P4S d: 30 mm | D: 47 mm | B: 9 mm | C: 6 kN | C0: 4.9 kN | nG grease: 32000 rpm
HSS71907-C-T-P4S d: 35 mm | D: 55 mm | B: 10 mm | C: 6.95 kN | C0: 6.2 kN | nG grease: 32000 rpm
HSS71907-E-T-P4S d: 35 mm | D: 55 mm | B: 10 mm | C: 6.55 kN | C0: 5.85 kN | nG grease: 26000 rpm
HSS71908-C-T-P4S d: 40 mm | D: 62 mm | B: 12 mm | C: 7.2 kN | C0: 6.95 kN | nG grease: 28000 rpm
HSS71908-E-T-P4S d: 40 mm | D: 62 mm | B: 12 mm | C: 6.8 kN | C0: 6.4 kN | nG grease: 24000 rpm
HSS71909-C-T-P4S d: 45 mm | D: 68 mm | B: 12 mm | C: 10 kN | C0: 9.65 kN | nG grease: 24000 rpm
HSS71909-E-T-P4S d: 45 mm | D: 68 mm | B: 12 mm | C: 9.5 kN | C0: 9 kN | nG grease: 22000 rpm
HSS71910-C-T-P4S d: 50 mm | D: 72 mm | B: 12 mm | C: 10.4 kN | C0: 10.2 kN | nG grease: 22000 rpm
HSS71910-E-T-P4S d: 50 mm | D: 72 mm | B: 12 mm | C: 9.8 kN | C0: 9.65 kN | nG grease: 20000 rpm
HSS71911-C-T-P4S d: 55 mm | D: 80 mm | B: 13 mm | C: 13.4 kN | C0: 13.7 kN | nG grease: 20000 rpm
HSS71911-E-T-P4S d: 55 mm | D: 80 mm | B: 13 mm | C: 12.7 kN | C0: 12.7 kN | nG grease: 18000 rpm
HSS71912-C-T-P4S d: 60 mm | D: 85 mm | B: 13 mm | C: 14 kN | C0: 14.6 kN | nG grease: 19000 rpm
HSS71912-E-T-P4S d: 60 mm | D: 85 mm | B: 13 mm | C: 13.2 kN | C0: 13.4 kN | nG grease: 17000 rpm
HSS71913-C-T-P4S d: 65 mm | D: 90 mm | B: 13 mm | C: 14.3 kN | C0: 15.3 kN | nG grease: 18000 rpm
HSS71913-E-T-P4S d: 65 mm | D: 90 mm | B: 13 mm | C: 13.4 kN | C0: 14.3 kN | nG grease: 15000 rpm
HSS71914-C-T-P4S d: 70 mm | D: 100 mm | B: 16 mm | C: 18.3 kN | C0: 20 kN | nG grease: 16000 rpm
HSS71914-E-T-P4S d: 70 mm | D: 100 mm | B: 16 mm | C: 17.3 kN | C0: 18.6 kN | nG grease: 14000 rpm
HSS71915-C-T-P4S d: 75 mm | D: 105 mm | B: 16 mm | C: 19 kN | C0: 21.2 kN | nG grease: 16000 rpm
HSS71915-E-T-P4S d: 75 mm | D: 105 mm | B: 16 mm | C: 17.6 kN | C0: 20 kN | nG grease: 13000 rpm
HSS71916-C-T-P4S d: 80 mm | D: 110 mm | B: 16 mm | C: 21.2 kN | C0: 24 kN | nG grease: 15000 rpm
HSS71916-E-T-P4S d: 80 mm | D: 110 mm | B: 16 mm | C: 19.6 kN | C0: 22.4 kN | nG grease: 13000 rpm
HSS71917-C-T-P4S d: 85 mm | D: 120 mm | B: 18 mm | C: 22 kN | C0: 26 kN | nG grease: 14000 rpm
HSS71917-E-T-P4S d: 85 mm | D: 120 mm | B: 18 mm | C: 20.4 kN | C0: 24.5 kN | nG grease: 12000 rpm
HSS71918-C-T-P4S d: 90 mm | D: 125 mm | B: 18 mm | C: 23.6 kN | C0: 28.5 kN | nG grease: 13000 rpm
HSS71918-E-T-P4S d: 90 mm | D: 125 mm | B: 18 mm | C: 22.4 kN | C0: 26.5 kN | nG grease: 11000 rpm
HSS71919-C-T-P4S d: 95 mm | D: 130 mm | B: 18 mm | C: 24.5 kN | C0: 30 kN | nG grease: 12000 rpm
HSS71919-E-T-P4S d: 95 mm | D: 130 mm | B: 18 mm | C: 22.8 kN | C0: 28 kN | nG grease: 10000 rpm
HSS71920-C-T-P4S d: 100 mm | D: 140 mm | B: 20 mm | C: 29 kN | C0: 36 kN | nG grease: 11000 rpm
HSS71920-E-T-P4S d: 100 mm | D: 140 mm | B: 20 mm | C: 27.5 kN | C0: 33.5 kN | nG grease: 9500 rpm
HSS71921-C-T-P4S d: 105 mm | D: 145 mm | B: 20 mm | C: 30 kN | C0: 38 kN | nG grease: 11000 rpm
HSS71921-E-T-P4S d: 105 mm | D: 145 mm | B: 20 mm | C: 28 kN | C0: 35.5 kN | nG grease: 9000 rpm
HSS71922-C-T-P4S d: 110 mm | D: 150 mm | B: 20 mm | C: 34.5 kN | C0: 44 kN | nG grease: 10000 rpm
HSS71922-E-T-P4S d: 110 mm | D: 150 mm | B: 20 mm | C: 32.5 kN | C0: 40.5 kN | nG grease: 9000 rpm
HSS71924-C-T-P4S d: 120 mm | D: 165 mm | B: 22 mm | C: 36.5 kN | C0: 48 kN | nG grease: 9000 rpm
HSS71924-E-T-P4S d: 120 mm | D: 165 mm | B: 22 mm | C: 34 kN | C0: 45 kN | nG grease: 8000 rpm
HSS71926-C-T-P4S d: 130 mm | D: 180 mm | B: 24 mm | C: 41.5 kN | C0: 56 kN | nG grease: 8500 rpm
HSS71926-E-T-P4S d: 130 mm | D: 180 mm | B: 24 mm | C: 39 kN | C0: 52 kN | nG grease: 7000 rpm
